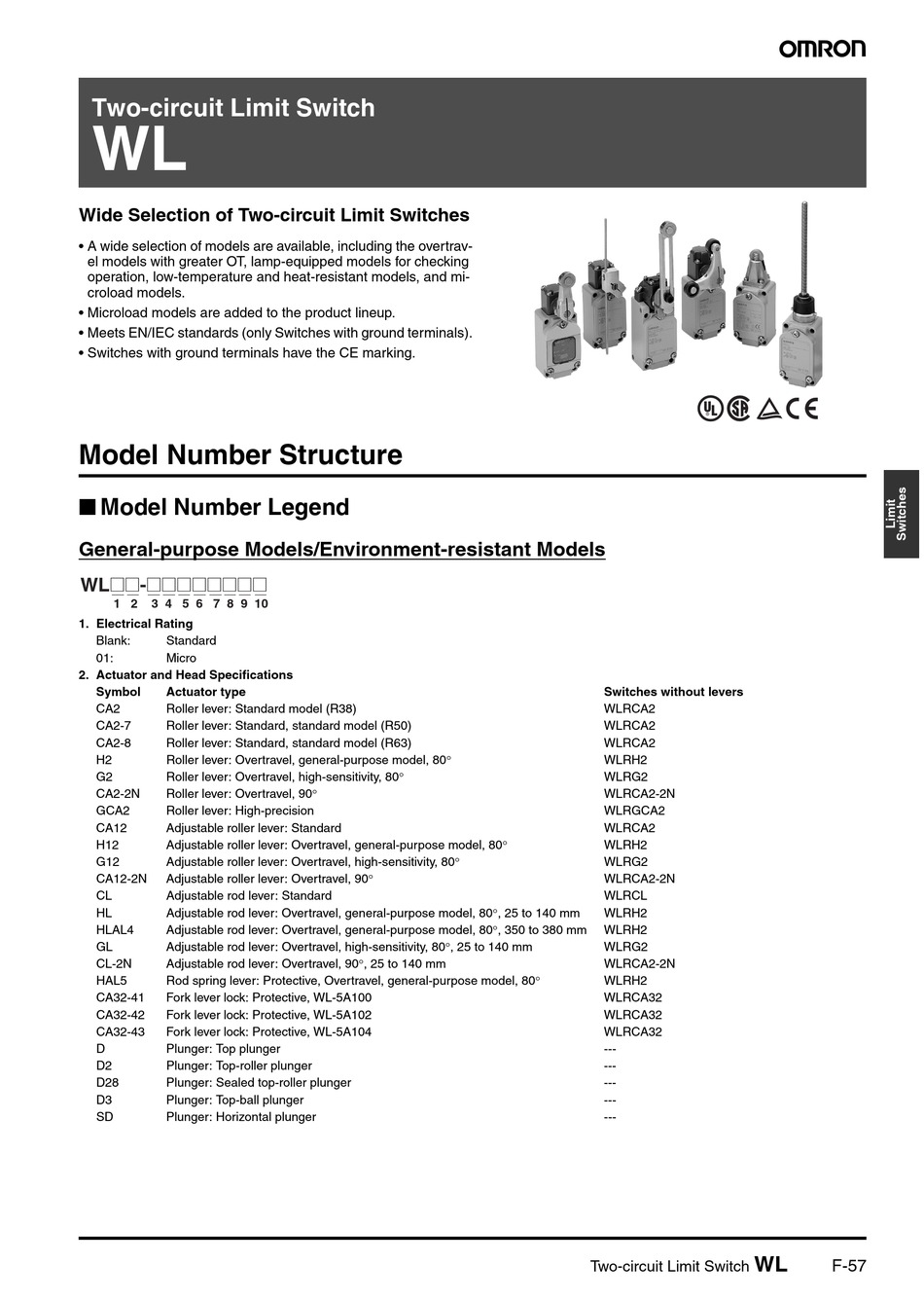

Two-circuit Limit Switch
WL

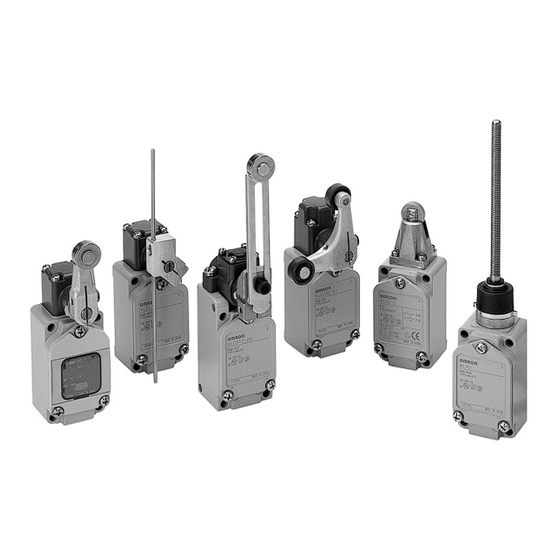

Wide Selection of Two-circuit Limit Switches
• A wide selection of models are available, including the overtrav-
el models with greater OT, lamp-equipped models for checking
operation, low-temperature and heat-resistant models, and mi-
croload models.
• Microload models are added to the product lineup.
• Meets EN/IEC standards (only Switches with ground terminals).
• Switches with ground terminals have the CE marking.
Model Number Structure
■ Model Number Legend
General-purpose Models/Environment-resistant Models
WL@@-@@@@@@@@
1 2
3 4 5 6 7 8 9 10
1. Electrical Rating
Blank:
Standard
01:
Micro
2. Actuator and Head Specifications
Symbol
Actuator type
CA2
Roller lever: Standard model (R38)
CA2-7
Roller lever: Standard, standard model (R50)
CA2-8
Roller lever: Standard, standard model (R63)
H2
Roller lever: Overtravel, general-purpose model, 80
G2
Roller lever: Overtravel, high-sensitivity, 80
CA2-2N
Roller lever: Overtravel, 90
GCA2
Roller lever: High-precision
CA12
Adjustable roller lever: Standard
H12
Adjustable roller lever: Overtravel, general-purpose model, 80
G12
Adjustable roller lever: Overtravel, high-sensitivity, 80
CA12-2N
Adjustable roller lever: Overtravel, 90
CL
Adjustable rod lever: Standard
HL
Adjustable rod lever: Overtravel, general-purpose model, 80 , 25 to 140 mm
HLAL4
Adjustable rod lever: Overtravel, general-purpose model, 80 , 350 to 380 mm
GL
Adjustable rod lever: Overtravel, high-sensitivity, 80 , 25 to 140 mm
CL-2N
Adjustable rod lever: Overtravel, 90 , 25 to 140 mm
HAL5
Rod spring lever: Protective, Overtravel, general-purpose model, 80
CA32-41
Fork lever lock: Protective, WL-5A100
CA32-42
Fork lever lock: Protective, WL-5A102
CA32-43
Fork lever lock: Protective, WL-5A104
D
Plunger: Top plunger
D2
Plunger: Top-roller plunger
D28
Plunger: Sealed top-roller plunger
D3
Plunger: Top-ball plunger
SD
Plunger: Horizontal plunger
Switches without levers
WLRCA2
WLRCA2
WLRCA2
WLRH2
WLRG2
WLRCA2-2N
WLRGCA2
WLRCA2
WLRH2
WLRG2
WLRCA2-2N
WLRCL
WLRH2
WLRH2
WLRG2
WLRCA2-2N
WLRH2
WLRCA32
WLRCA32
WLRCA32
---
---
---
---
---
WL
Two-circuit Limit Switch
F-57
