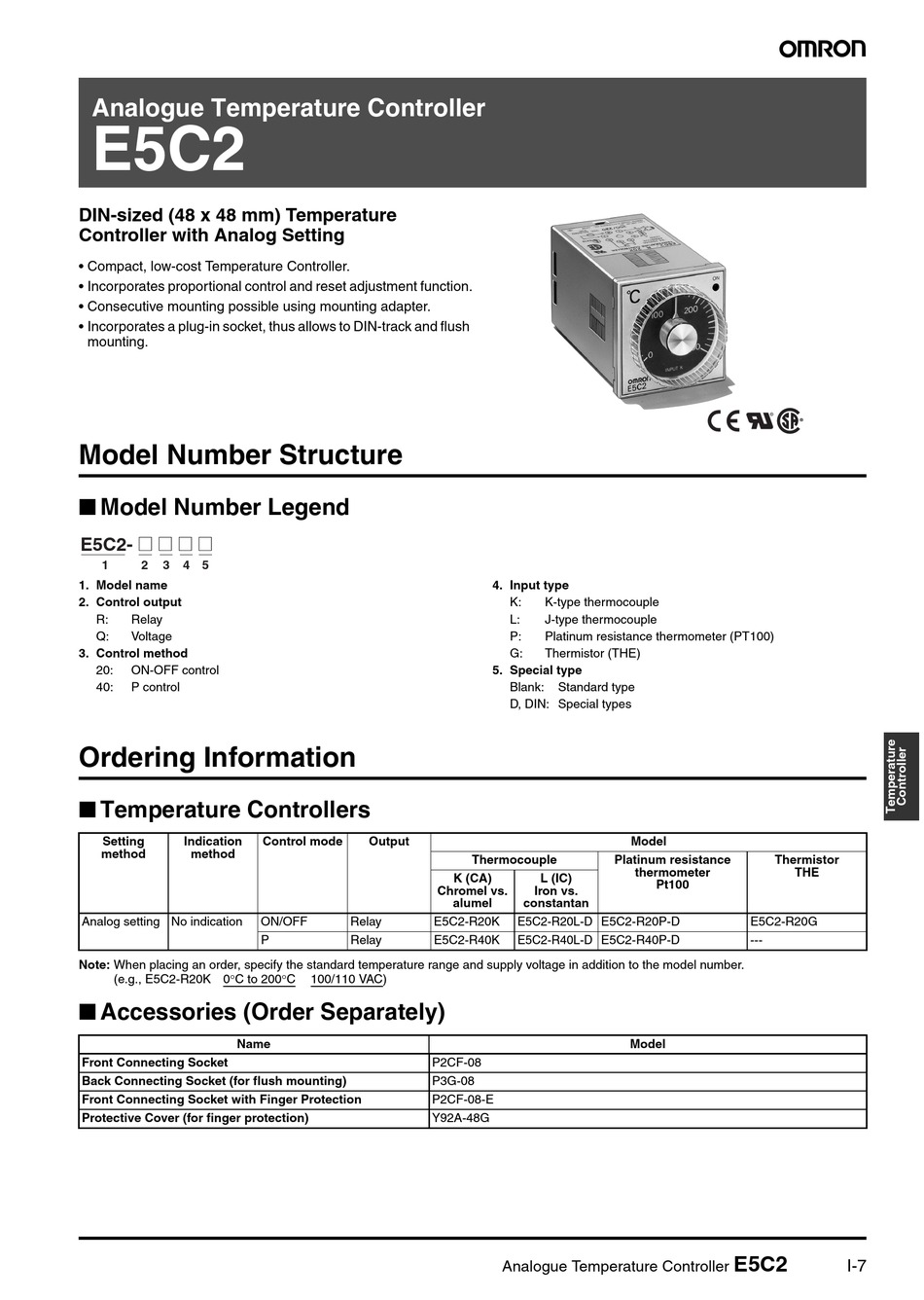

E5C2-R20L-D E5C2-R20P-D E5C2-R20G Relay E5C2-R40K E5C2-R40L-D E5C2-R40P-D Note: When placing an order, specify the standard temperature range and supply voltage in addition to the model number. (e.g., E5C2-R20K 0 C to 200 C 100/110 VAC) ■ Accessories (Order Separately) Name...
2,000 VAC, 50/60 Hz for 1 min between charged terminals and uncharged metallic parts Vibration resistance Malfunction: 10 to 55 Hz, 0.15-mm single amplitude for 10 min each in X, Y, and Z directions Destruction: 16.7 Hz, 2-mm double amplitude for 2 hrs each in X, Y, and Z directions...
Note: 109 mm for US08 Back Connecting Socket Panel Cutout Side-by-side Mounting of N Controllers 60 min. Note: 1. Recommended panel thickness is 1 to 4 mm. 2. Close side-by-side mounting is possible (in a single direction). E5C2 Analogue Temperature Controller...
If the load circuit is a heating control system, be sure to connect the resistance thermometer to the E5C2 as shown in the following illus- load to terminals 4 and 5. If the load circuit is a cooling control sys- tration.
Precautions Mounting Track Mounting (E5C2 with P2CF-08) When mounting two or more E5C2 models with track-mounting sock- ets, leave a space of approximately 20 mm on both sides of the sock- ets where hooks are located. Hook Duct P2CF-08 Panel...
Page 6
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. H081-E1-02 E5C2 I-12...
