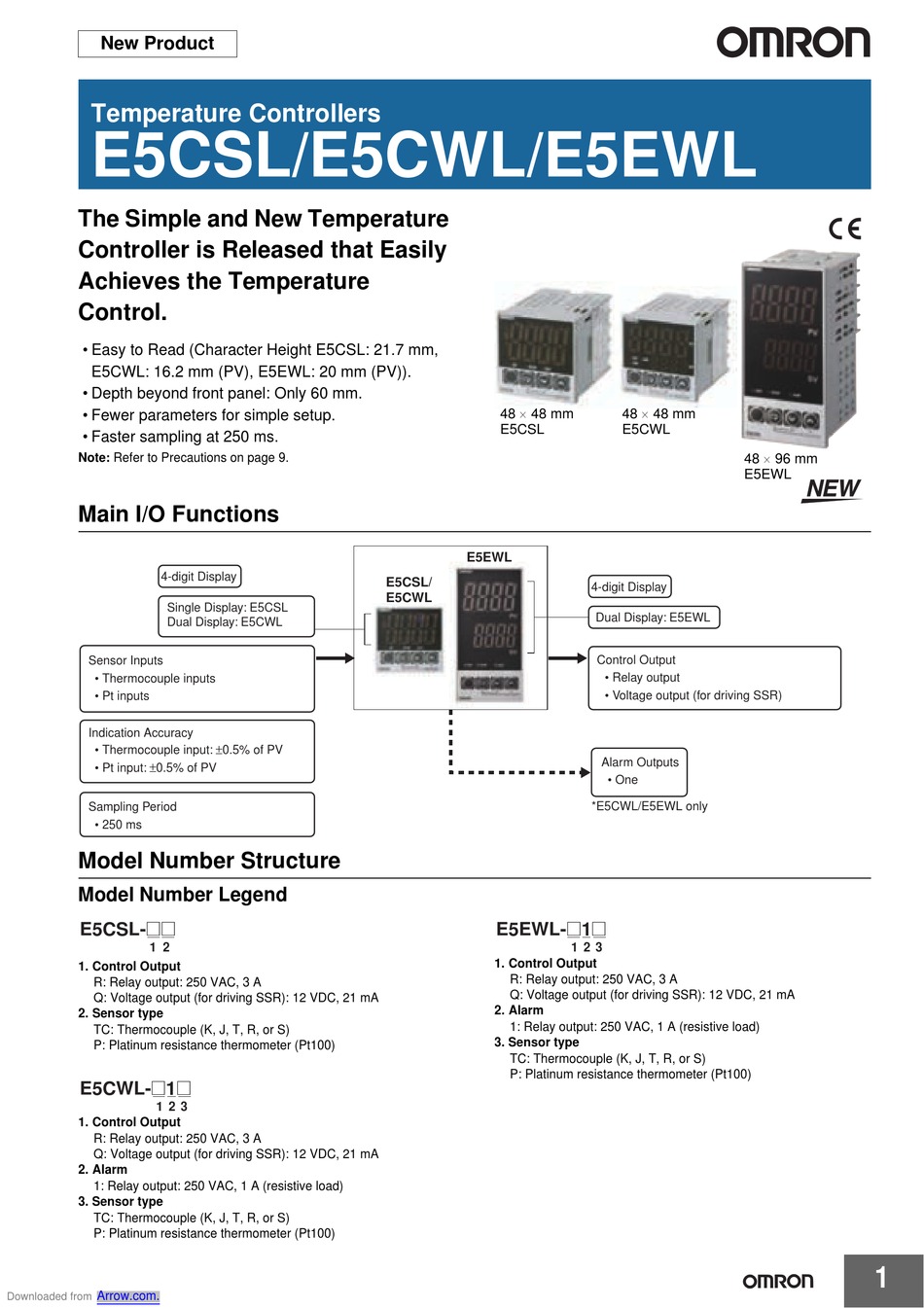

New Product
Temperature Controllers
E5CSL/E5CWL/E5EWL
The Simple and New Temperature
Controller is Released that Easily
Achieves the Temperature
Control.
• Easy to Read (Character Height E5CSL: 21.7 mm,
E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV)).
• Depth beyond front panel: Only 60 mm.
• Fewer parameters for simple setup.
• Faster sampling at 250 ms.
Note: Refer to Precautions on page 9.
Main I/O Functions
4-digit Display
Single Display: E5CSL
Dual Display: E5CWL
Sensor Inputs
• Thermocouple inputs
• Pt inputs
Indication Accuracy
• Thermocouple input: ±0.5% of PV
• Pt input: ±0.5% of PV
Sampling Period
• 250 ms
Model Number Structure
Model Number Legend
E5CSL-@@
1 2
1. Control Output
R: Relay output: 250 VAC, 3 A
Q: Voltage output (for driving SSR): 12 VDC, 21 mA
2. Sensor type
TC: Thermocouple (K, J, T, R, or S)
P: Platinum resistance thermometer (Pt100)
E5CWL-@1@
1
2
3
1. Control Output
R: Relay output: 250 VAC, 3 A
Q: Voltage output (for driving SSR): 12 VDC, 21 mA
2. Alarm
1: Relay output: 250 VAC, 1 A (resistive load)
3. Sensor type
TC: Thermocouple (K, J, T, R, or S)
P: Platinum resistance thermometer (Pt100)
Arrow.com.
Downloaded from
48 48 mm
E5CSL
E5EWL
E5CSL/
E5CWL
E5EWL-@1@
1. Control Output
R: Relay output: 250 VAC, 3 A
Q: Voltage output (for driving SSR): 12 VDC, 21 mA
2. Alarm
1: Relay output: 250 VAC, 1 A (resistive load)
3. Sensor type
TC: Thermocouple (K, J, T, R, or S)
P: Platinum resistance thermometer (Pt100)
48 48 mm
E5CWL
48 96 mm
E5EWL
4-digit Display
Dual Display: E5EWL
Control Output
• Relay output
• Voltage output (for driving SSR)
Alarm Outputs
• One
*E5CWL/E5EWL only
1
2
3
1
Advertisement
Table of Contents
Related Manuals for Omron E5CWL
Summary of Contents for Omron E5CWL
- Page 1 Controller is Released that Easily Achieves the Temperature Control. • Easy to Read (Character Height E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV)). • Depth beyond front panel: Only 60 mm. 48 48 mm 48 48 mm •...
-
Page 2: Ordering Information
Setting method Digital setting using front panel keys 7-segment digital display and individual indicators Indication method Character height: E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV) Other functions Temperature input shift, run/stop, protection functions, etc. Ambient operating 10 to 55C (with no icing or condensation) -
Page 3: Input Ranges
E5CSL/E5CWL/E5EWL Input Ranges Models with Thermocouple Inputs Range Model Set value Input type C F (temperature input) 200 to 1,300 300 to 2,300 20.0 to 500.0 0.0 to 900.0 100 to 850 100 to 1500 20.0 to 400.0 0.0 to 750.0 TC input 200 to 400... - Page 4 E5CSL/E5CWL/E5EWL Characteristics Thermocouple: (See note 1.) (±0.5% of indicated value or ±1°C, whichever is greater) ±1 digit max. Indication accuracy Platinum resistance thermometer: (±0.5% of indicated value or ±1°C, whichever is greater) ±1 digit max. R and S thermocouple inputs: Influence of temperature (±1% of PV or ±10°C, whichever is greater) ±1 digit max.
-
Page 5: External Connections
E5CSL/E5CWL/E5EWL External Connections A voltage output (control output) is not electrically insulated from the internal circuits. When using a grounding thermocouple, do not connect any of the control output terminals to ground. If the control output terminals are connected to ground, errors will occur in the measured temperature values as a result of leakage current. - Page 6 E5CSL/E5CWL/E5EWL Dimensions (Unit: mm) E5CSL/E5CWL 48×48 Panel Cutout 44.8×44.8 Individual Mounting Group Mounting +1.0 +0.6 60 min. Package Contents • Solderless terminal size: M3.5 Adapter • Temperature Controller +0.6 • Terminal Cover: E53-COV19 (sold separately) (Y92F-49) • Adapter • Front Panel: E53-COV20 (sold separately) •...
- Page 7 E5CSL/E5CWL/E5EWL Accessories (Order Separately) Terminal Cover Front Panel (For E5CSL/E5CWL) E53-COV19 E53-COV20 48 × 48 43.3 Note: The E53-COV10 cannot be used. Note: 1. This Front Panel accessory is required to attach the Y92A-48B or Y92A-48D. 2. This Front Panel accessory is only the frame.
- Page 8 E5CSL/E5CWL/E5EWL Operation Parameter Operations POWER ON Press for at least 1 second. Press Press for at least 3 seconds. for at least Press for less 3 seconds. than 1 second. Adjustment Initial Setting Press Level Level Protect Operation Level Level for at least 1 second.
-
Page 9: Safety Precautions
E5CSL/E5CWL/E5EWL Safety Precautions 9. Make sure that the rated voltage is attained within two seconds of !CAUTION turning ON the power using a switch or relay contact. If the voltage is applied gradually, the power may not be reset or output Do not touch the terminals while power is being malfunctions may occur. -
Page 10: Precautions For Correct Use
Panel 3. When two or more Temperature Controllers are mounted 1. Insert the E5CSL/E5CWL into the mounting hole in the panel. horizontally close to each other or vertically next to one another, 2. Push the adapter from the terminals up to the panel, and the internal temperature will increase due to heat radiated by the temporarily fasten the E5CSL/E5CWL. -
Page 11: Warranty And Application Considerations
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE... - Page 12 The Netherlands IL 60173-5302 U.S.A. Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 Tel: (31)2356-81-300/Fax: (31)2356-81-388 © OMRON Corporation 2010 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
