Omron E3Z Datasheet

General purpose sensors in compact plastic housing
Hide thumbs Also See for E3Z:

Advertisement

Quick Links

Download this manual

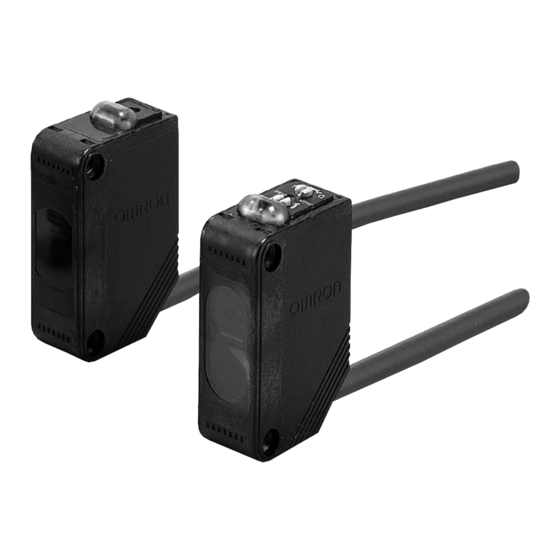

General purpose sensors in compact plastic housing
E3Z
• Compact housing size and high power
LED for excellent performance-size
ratio
• IP67 and IP69k for highest protection
in wet environments
Easy-to-
operate
Reliability
Basic performance
Reliability
Eliminates the influ-
ence of installation
and on-site condi-
tions, thus increasing
the reliability of the
line.
E3Z
Basic
performance
Globalization
Environmental
protection
Through-beam Model
30m
Retroreflective model
(with MSR function)
4m
Diffuse-reflective model
1m
Distance-setting model
0.2m
High protection against water and dust contami-
nants
Features
Dimensions
High immunity to electrical interference, such
as inverter drives.
120
100
10.4mm
20mm
80
60
40
20
0
3
10
Inverter frequency (kHz)
E3Z
100
A-43

Advertisement

loading

Related Manuals for Omron E3Z

Summary of Contents for Omron E3Z

  • Page 1 General purpose sensors in compact plastic housing • Compact housing size and high power LED for excellent performance-size ratio • IP67 and IP69k for highest protection in wet environments Basic performance Easy-to- operate Globalization Reliability Environmental protection Features Basic performance...
  • Page 2 Saves energy * with Built-in Amplifier 30 % less Approx. * The above figure is based on measurement under normal operating conditions. 10-quantity packing reduces waste cartons. Packed in "combustible" polyethylene bags free of Styrofoam. * This ECO label is indicated on products that meet the environmental standards established by OMRON.
  • Page 3 ● Uses OMRON's unique optical system ("Inner View") that can detect various shapes of PET bottles and transparent objects. ● Detects a wide range of bottles regardless of size and facets Fork Sensor, single and dual beam versions Fork design...
  • Page 4 Transparent PET Bottle related Detection Detection of films and glass plates - One bottle - Multiple bottles (Stocker) E3Z-G grooved type model Crane and automated warehouse conveyor table passage inspection and positioning. Grooved-Type Photoelectric Sensor E3Z-G A-46 Standard Photoelectric Sensors...
  • Page 5 E3Z-G62-M3J E3Z-G82-M3J *1. Models provided with a 0.5-m cable are available. When ordering, specify the cable length by adding the code "0.5M" to the model number (e.g., E3Z-T61 0.5M). *2. With „Emission Stop“ feature. Can be used to force a state change at the receiver (Sensor function test).
  • Page 6 * Values in parentheses indicate the minimum required distance between the sensor and reflector. Note: 1 . When using the reflector of other than the rated value, set the sensing distance to about 0.7 times of the typical example as a guideline.
  • Page 7 Sensor I/O Connectors Size Cable type Shape Cable length Model XS3F-M421-402-A Straight XS3F-M421-405-A 4-wire type XS3F-M422-402-A L-shaped XS3F-M422-405-A Standard cable XS2F-D421-DC0-A Straight XS2F-D421-GC0-A M12 (for -M1J) 3-wire type XS2F-D422-DC0-A L-shaped XS2F-D422-GC0-A A-49...
  • Page 8 15 mA receiver: 20 mA 30 mA max. Control output Load power supply voltage 26.4 VDC max., load current 100 mA max. (residual voltage 2 V max.) Open collector output type (depends on the NPN/PNP output format) Light-ON/Dark-ON switch selectable BGS / FGS selection...
  • Page 9 25 mA max. 40 mA max. Load power supply voltage 26.4 VDC max., load current 100 mA max. (residual voltage 2 V max.) Open collector output type (depends on the NPN/PNP output format) Light-ON/Dark-ON switch selectable BGS: Open or connected to GND...
  • Page 10 Connector type 30 g Approx. 20 g Material Case PBT (polybutylene terephthalate) Lens Denatured poly- Methacylate resin acrylate resin Accessories Instruction manual (The Reflector or Mounting Bracket is not provided with any of the above models.) A-52 Standard Photoelectric Sensors...
  • Page 11 E3Z-B81/86 E3Z-B82/87 E3Z-G81 E3Z-G82 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Destruction: 500 m/s for 3 times each in X, Y, and Z directions IEC 60529 IP67 IEC 60529 IP64...
  • Page 12 E3Z-B#1/B#6 + E39-R1S E3Z-B#2/B#7 + E39-R1S E3Z-L (optional reflector) (optional reflector) Reflector: E39-R1S Reflector: E39-R1S Sensing object: white paper (100 x 100 mm) 140 160 Distance X (m) Distance X (m) Distance X (mm) - 20 - 40 500-mm - 60...
  • Page 13 E3Z-D#1(D#6) E3Z-D#2(D#7) E3Z-L White paper SUS (glossy surface) SUS (glossy surface) White paper Black carbon Black carbon Side length (one side) of sensing object: d (mm) Side length (one side) of sensing object: d (mm) Sensing object size (mm) A-55...
  • Page 14 Inclination 40 mm 36 mm 4 mm 0 mm 9 mm Sensing Sensing Center Center object object line line White paper White paper Black paper Black paper Material Sensing object size (mm) Sensing object size (mm) A-56 Standard Photoelectric Sensors...
  • Page 15 FGS Mode Set Distance vs. Sensing Range Distance setting E3Z-LS White Paper Black Paper Set distance (mm) Set distance (mm) Sensing Distance vs. Material Distance setting E3Z-LS At Set Distance of 40 mm At Set Distance of 200 mm White...
  • Page 16 Load (e.g. relay) (Between brown and black) BGS: Either leave the pink wire (2) open or connect it to the blue wire (3). NEAR FAR VERY FAR FGS: Connect the pink wire (2) to the brown wire (1). Operation...
  • Page 17 Load (e.g. relay) (Between blue and black) BGS: Either leave the pink wire (2) open or connect it to the blue wire (3). NEAR FAR VERY FAR FGS: Connect the pink wire (2) to the brown wire (1). Operation...
  • Page 18 Connectors (Sensor I/O connectors) Wire Application Wire, outer jacket Connector pin colors Class color Standard E3Z-LS E3Z-G62/82 Brown White Brown Power supply (+V) Blue Black BGS / FGS Output 2 White selection (S2) For DC XS3F-M421-402-A Blue Power supply (0 V)
  • Page 19 Stable NEAR Stable FAR incident light not be detected. The hystere- ON (incident) sis is 10% or less, so at a set NEAR region FAR region VERY FAR region distance of 40 mm, steps with (for FGS only)
  • Page 20 • When mounting the case, make sure that the tightening torque applied to each screw does not exceed 0.54 Nm. Do not connect an AC power supply to the Sensor. If AC pow- er (100 VAC or more) is supplied to the Sensor, it may ex- M8 Connector plode or burn.

  • Page 21: Inspection And Maintenance

    D/ON Operation (orange) Note: 1 . If the stability indicator is lit, the detection/no detection status is stable within the rated ambient operating temperature -25 to 55°C). 2 . The VERY FAR region is supported only for FGS. The incident light threshold is fixed and cannot be set.
  • Page 22 Note: Terminal 2 and 4 B, D are free terminals. standard length: 0.3 m are not used. 2-M3 Vinyl-insulated round cable with two conductors, 4 dia. (0.2 mm ² with 1.1-dia. insulator); standard length: 2 m M12 x 1 12.45 Operation indicator (orange) Receiver 10.8...
  • Page 23 0.3 m Pre-wired 15.5 E3Z-D61 2-M3 Emitter E3Z-D81 Vinyl-insulated round cable with three conductors, 4 dia. M12 x 1 (0.2 mm ² with 1.1-dia. insulator); standard length: 2 m E3Z-D62 E3Z-D82 E3Z-L61 E3Z-L81 Retroreflective Models Connector type 12.45 E3Z-B66...
  • Page 24 (SUS301) E39-S65F ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E701-E2-01-X In the interest of product improvement, specifications are subject to change without notice.
