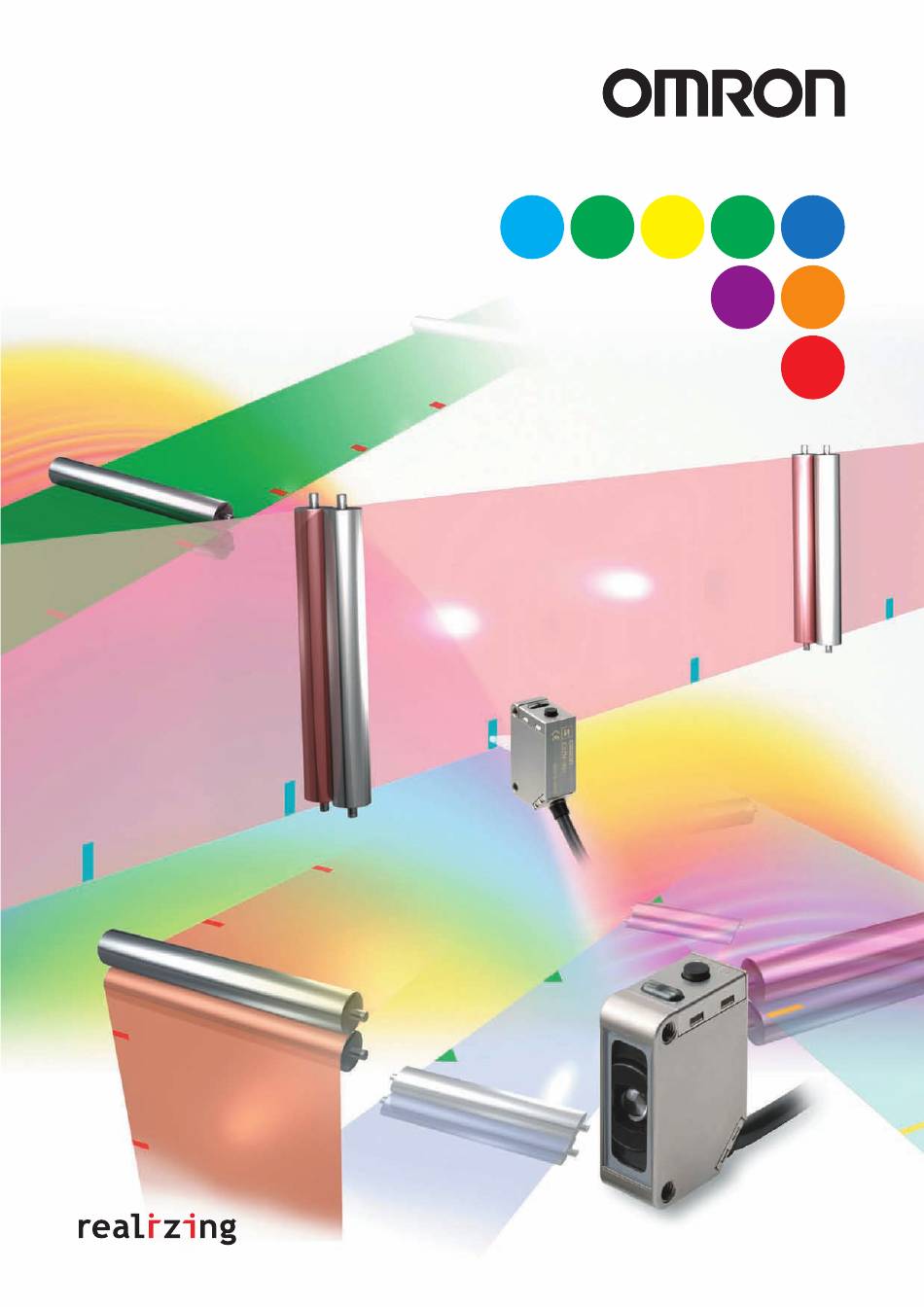

Mark Sensor with Stainless Steel Housing
Compact, Photoelectric Sensor with Built-in Amplifier and Teaching Function
E3ZM-V
Color Mark Detection in a World-standard Size (11 × 21 × 32 mm),
with High-speed Response (50 µs) and Accuracy in Spite of
Sensing Object Movement
Another Advance for the E3ZM Series in the Food and Packaging Industries.
Advertisement
Table of Contents
Related Manuals for Omron E3ZM-V61
Summary of Contents for Omron E3ZM-V61
- Page 1 Mark Sensor with Stainless Steel Housing Compact, Photoelectric Sensor with Built-in Amplifier and Teaching Function E3ZM-V Color Mark Detection in a World-standard Size (11 × 21 × 32 mm), with High-speed Response (50 µs) and Accuracy in Spite of Sensing Object Movement Another Advance for the E3ZM Series in the Food and Packaging Industries.
- Page 2 Photoelectric Sensors for the Food Industry ■ Space-saving Design with an SUS316L Housing E3ZM Standard Size The compact design reduces volume by 90% compared with previous OMRON models. And the world-standard dimensions Only 10% contribute to standardized installation the volume! specifications.
- Page 3 Cutting-edge Technologies Give This Color Mark Sensor Its Compact Size and Superior Performance. ■ Improved Color-difference Discrimination, RGB Signal Processing Discriminates fine color differences which was difficult for previous OMRON models. RGB light-receiving element Teaching enables automatic selection of ideal colors.
-
Page 4: Ordering Information
12±2 mm *2 *1. Models with a 5-m pre-wired cable are also available. When ordering, add the cable length to the end of the model number (e.g., E3ZM-V61 5M). *2. A deviation of ±2 mm (typical value) can be handled for combinations of white, yellow, and black. Refer to page 7 for the detection capability for other color combinations. - Page 5 E3ZM-V Mounting Brackets A Mounting Bracket is not provided with the Sensor. Order a Mounting Bracket separately if required. [Refer to Dimensions on E39-L/F39-L/E39-S/E39-R.] Model Model Appearance Quantity Remarks Appearance (Metal Quantity Remarks (Material) material) E39-L153 E39-L98 Protective Cover Bracket (SUS304) (SUS304) Mounting Brackets...
-
Page 6: Ratings And Specifications
E3ZM-V Ratings and Specifications Sensing method Diffuse reflective (mark detection) Model NPN output E3ZM-V61/-V66 Item PNP output E3ZM-V81/-V86 Sensing distance 12±2 mm *1 Sensing range Depends on the combination of colors. Refer to Engineering Data on page 7 for details. -
Page 7: Engineering Data (Typical)
E3ZM-V Engineering Data (Typical) ● Color vs. Detection Capability E3ZM-V@@ Teaching Capabilities Yellow- Yellow- Blue- White red Yellow Green Blue Black green green White Yellow- Yellow Yellow- green Green Blue- green Blue Black * The above chart shows the combinations of colors for which teaching is possible at a sensing distance of 12 mm. ●... -
Page 8: I/O Circuit Diagrams
Connector pin No. Application Brown Power supply (+V) White Remote control input Blue Power supply (0 V) Black Output Note: The above M8 Connectors made by OMRON are IP67. Do not use them in an environment where IP69K is required. -
Page 9: Safety Precautions
E3ZM-V Nomenclature Teaching Models Operation indicator Stability indicator (yellow) (green) Teaching button Teaching indicator (red) Safety Precautions Refer to Warranty and Limitations of Liability on page 15. WARNING This product is not designed or rated for Low-temperature Environments directly or indirectly ensuring safety of Do not touch the metal surface with your bare hands when the persons. -
Page 10: Precautions For Correct Use
E3ZM-V Precautions for Correct Use When disposing of the Sensor, treat it as industrial waste. Do not use the Sensor in any atmosphere or environment that exceeds the ratings. Mounting Diagram Do not install the Sensor in the following locations. Mounting Bracket (1)Locations subject to direct sunlight (sold separately) -
Page 11: Operating Procedure
E3ZM-V Operating Procedure Two-point Teaching Using Teaching Button Sensor 1. Place the point for which you want the output to go ON in the beam spot position. Then, press and hold the teaching button for at least 2 seconds. Mark Background The teaching indicator (red) will begin flashing quickly. - Page 12 E3ZM-V Automatic teaching (Remote) 1. Send a pulse with a duration of at least 2 s but less than 10 s min. to the remote control input (pink). 2. Teaching will be performed automatically when the mark (the light level with the shorter detection time) passes through the beam spot.
- Page 13 E3ZM-V Dimensions (Unit: mm) Sensors Mark Sensor 7.8 7.5 (Diffuse reflective) Pre-wired Models E3ZM-V61 E3ZM-V81 Operation Indicator (yellow) Teaching button (4 dia.) Teaching indicator (red) Stability indicator (green) 10.8 10.8 12.7 25.4 Lens 6 dia. Two, M3 4 dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm...
- Page 14 E3ZM-V Introducing the E3ZM Series E3ZM Standard Models (E3ZM-T/-R/-D/-LS) Ideal for the Food Industry, and Models for PET Bottle Detection (E3ZM-B). Ratings and Specifications Retro-reflective with MSR Sensing method Through-beam Diffuse-reflective Models function E3ZM-T61 E3ZM-T63 E3ZM-R61 E3ZM-D62 Model NPN output E3ZM-T66 E3ZM-T68 E3ZM-R66...
- Page 15 Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments. WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON...
- Page 16 IL 60173-5302 U.S.A. Carl-Benz-Str. 4, D-71154 Nufringen, Germany Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 Tel: (49) 7032-811-0/Fax: (49) 7032-811-199 © OMRON Corporation 2009 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
