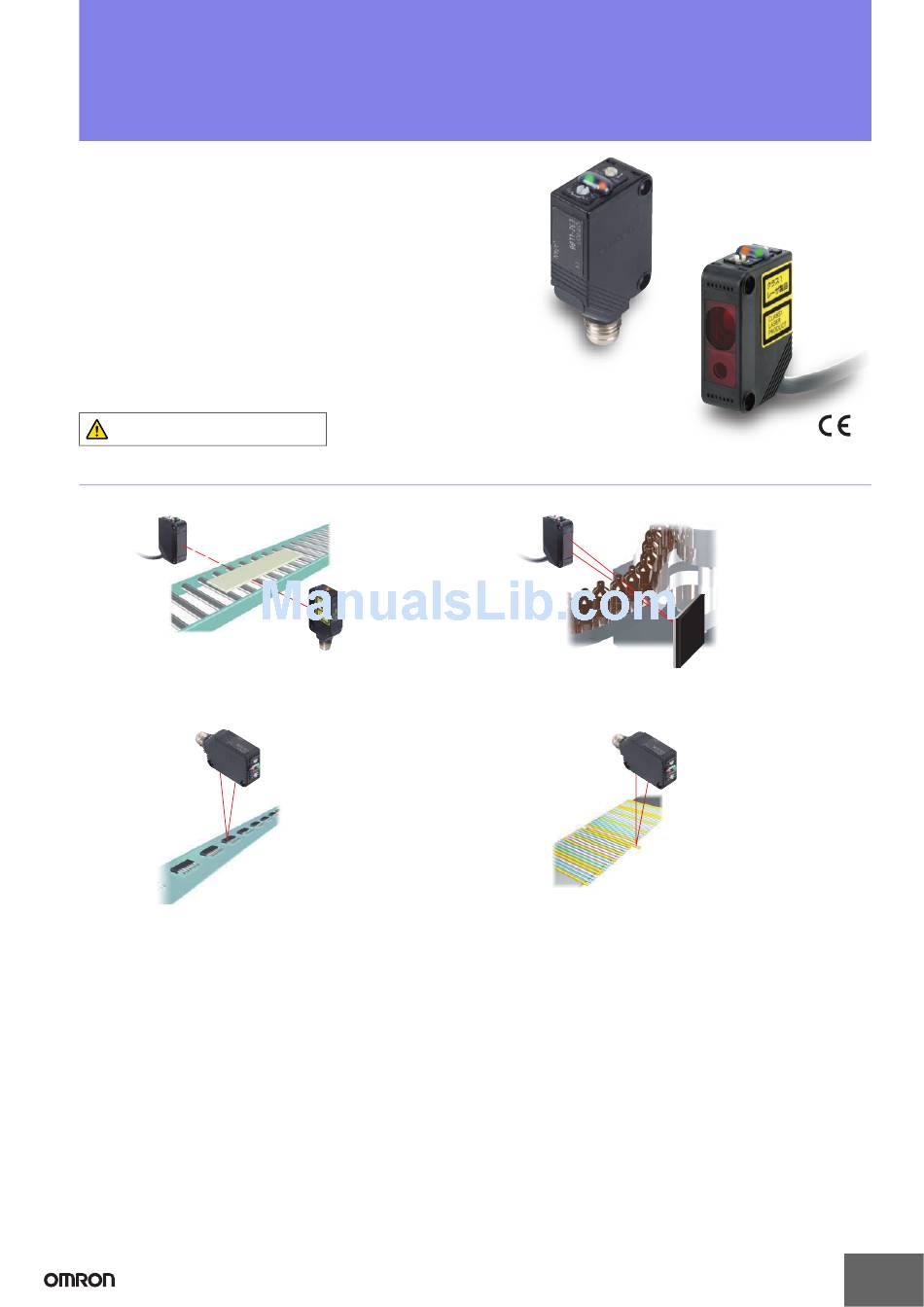

Compact Laser Photoelectric Sensor with Built-in Amplifier
E3Z-LT/LR/LL
Compact and Reliable
Laser Photoelectric Sensor
• Safety and reliability with laser class 1 (JIS and IEC).
• Product lineup includes models with distance setting without influence of
color.
• Maximum ambient operating temperature of 55°C and water-proof
construction in E3Z class.
Be sure to read Safety Precautions on
page 9.
Applications
Detect the sides of large tiles.
Greatly Enhanced Beam Visibility
for Easier Optical Axis Adjustment of Sensors
Detect chip components on tape.
Long-distance Sensing
at 300 mm (White Paper)
Count bottles.
Reliable Detection of
Small Objects and
Narrow Gaps with the Small Spot
Detect protruding straws.
A Low Black/White Error for
Applications with Mixed Colors
CSM_E3Z-LT_LR_LL_DS_E_6_4
1
Advertisement
Related Manuals for Omron E3Z-LT61
Summary of Contents for Omron E3Z-LT61
- Page 1 Compact Laser Photoelectric Sensor with Built-in Amplifier E3Z-LT/LR/LL CSM_E3Z-LT_LR_LL_DS_E_6_4 Compact and Reliable Laser Photoelectric Sensor • Safety and reliability with laser class 1 (JIS and IEC). • Product lineup includes models with distance setting without influence of color. • Maximum ambient operating temperature of 55°C and water-proof construction in E3Z class.
-
Page 2: Ordering Information
(e.g., E3Z-LT61 0.5M). M12 Pre-wired Connector Models are also available. When ordering, add “-M1J” to the end of the model number (e.g., E3Z-LT61-M1J). The cable is 0.3 m long. Also, the following connection forms can be manufactured. Ask your OMRON representative for details. - Page 3 E3Z-LT/LR/LL Mounting Brackets A Mounting Bracket is not provided with the Sensor. Order a Mounting Bracket separately if required. (Refer to Dimensions on E39-L/F39-L/E39-S/E39-R.) Appear- Appear- Model Quantity Remarks Model Quantity Remarks ance ance E39-L153 E39-L98 Metal Protective Cover Bracket Mounting Brackets E39-L104 E39-L150...
- Page 4 E3Z-LT/LR/LL Ratings and Specifications Sensing Retro-reflective with MSR Through-beam Distance-settable (BGS models) method function Response Standard response High-speed response E3Z-LT61/-LT66 E3Z-LR61/-LR66 E3Z-LL61/-LL66 E3Z-LL63/-LL68 output Model Item E3Z-LT81/-LT86 E3Z-LR81/-LR86 E3Z-LL81/-LL86 E3Z-LL83/-LL88 output 0.3 to 15 m White paper (100 × 100 mm): White paper (100 ×...
- Page 5 E3Z-LT/LR/LL Engineering Data (Typical) Parallel Operating Range Through-beam Models Through-beam Models Retro-reflective Models E3Z-LT@@ + E39-S65A E3Z-LT@@ E3Z-LR@@ E39-R1 E39-R6 −5 −50 −20 −10 E39-R12 −100 −40 −15 −20 −150 −60 Distance (m) Distance X (m) Distance X (m) Operating Range at a Set Distance Operating Range at a Set Distance of 300 mm of 40 mm...
- Page 6 E3Z-LT/LR/LL Sensing Distance vs. Sensing Object Material BGS Models E3Z-LL@1/-LL@6 E3Z-LL@3/-LL@8 E3Z-LL@1/-LL@6 White Paper with a Set Distance of 40 mm White Paper with a Set Distance of 40 mm White Paper with a Set Distance of 300 mm Black Black Mirror Black...
- Page 7 * Models numbers for Through-beam Sensors (E3Z-LT@@) are for sets that include both the Emitter and Receiver. The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-LT61-L 2M), the model number of the Receiver, by adding "-D"...
- Page 8 E3Z-LT/LR/LL Plugs (Sensor I/O Connectors) M8 4-pin Connectors Wire color Brown White Blue Black XS3F-M421-402-A XS3F-M422-402-A XS3F-M421-405-A XS3F-M422-405-A M12 Connectors Pin No. Wire color Brown Blue Black XS2F-D421-DC0-A XS2F-D422-DC0-A XS2F-D421-GC0-A XS2F-D422-GC0-A Nomenclature Sensors with Sensitivity Adjustment and Distance-settable Sensor Mode Selector Switch BGS Models E3Z-LL@@ Through-beam Models...
-
Page 9: Safety Precautions
E3Z-LT/LR/LL Safety Precautions Refer to Warranty and Limitations of Liability. WARNING Precautions for Correct Use This product is not designed or rated for ensuring Do not use the product in atmospheres or environments that exceed product ratings. safety of persons. Do not use it for such purpose. ●... - Page 10 E3Z-LT/LR/LL • The stability indicator may turn off in reaction to reflection from Mounting Direction for Distance-settable Models background objects. In such cases, incline the Sensor by 10° as • Make sure that the sensing side of shown in the illustration for more stable detection. the Sensor is parallel with the surface of the sensing objects.
- Page 11 * Models numbers for Through-beam Sensors (E3Z-LT@@) are for sets that include both the Emitter and Receiver. The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-LT61-L 2M), the model number of the Receiver, by adding "-D"...
- Page 12 E3Z-LT/LR/LL Retro-reflective Models M12 Pre-wired Connector 11.2 Pre-wired Models (E3Z-LR@@-M1J) Operation Indicator (orange) 4 dia. vinyl-insulated round E3Z-LR61 cable with 3 conductors, E3Z-LR81 Standard length: 0.3 m Operation selector Stability indicator (green) Sensitivity adjuster M12×1 10.8 10.8 Receiver Pre-wired Connector Models with M8 connectors Lens 7 dia.
- Page 13 E3Z-LT/LR/LL BGS Models M12 Pre-wired Connector Operation Indicator Pre-wired Models (E3Z-LL@@-M1J) (orange) 4 dia. vinyl-insulated round E3Z-LL61 cable with 3 conductors, E3Z-LL81 Standard length: 0.3 m E3Z-LL63 Set distance adjuster Operation selector E3Z-LL83 Stability indicator (green) M12×1 10.8 10.8 Pre-wired Connector Models with Receiver M8 connectors (Inquire) Lens 7 dia.
- Page 14 E3Z-LT/LR/LL Accessories (Order Separately) Slit Reflector E39-S65A E39-R1 40.3 Two, 3.5 dia. 10.4 10.4 20.2 20.2 0.5 dia. 12.7 32.2 32.2 59.9 0.2-mm-thick Material Materials SUS301 stainless steel Reflective surface: Acrylic Rear surface: Reflector Reflector E39-R6 E39-R12 R3.7 Two, 3.4 dia. Two, 3.5 dia.
- Page 15 Buyer indemnifies Omron against all related costs or expenses. rights of another party. 10. Force Majeure. Omron shall not be liable for any delay or failure in delivery 16. Property; Confidentiality. Any intellectual property in the Products is the exclu-...
- Page 16 OMRON ELETRÔNICA DO BRASIL LTDA • HEAD OFFICE São Paulo, SP, Brasil • 55.11.2101.6300 • www.omron.com.br OMRON EUROpE B.V. • Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. • Tel: +31 (0) 23 568 13 00 Fax: +31 (0) 23 568 13 88 • www.industrial.omron.eu Cat.
