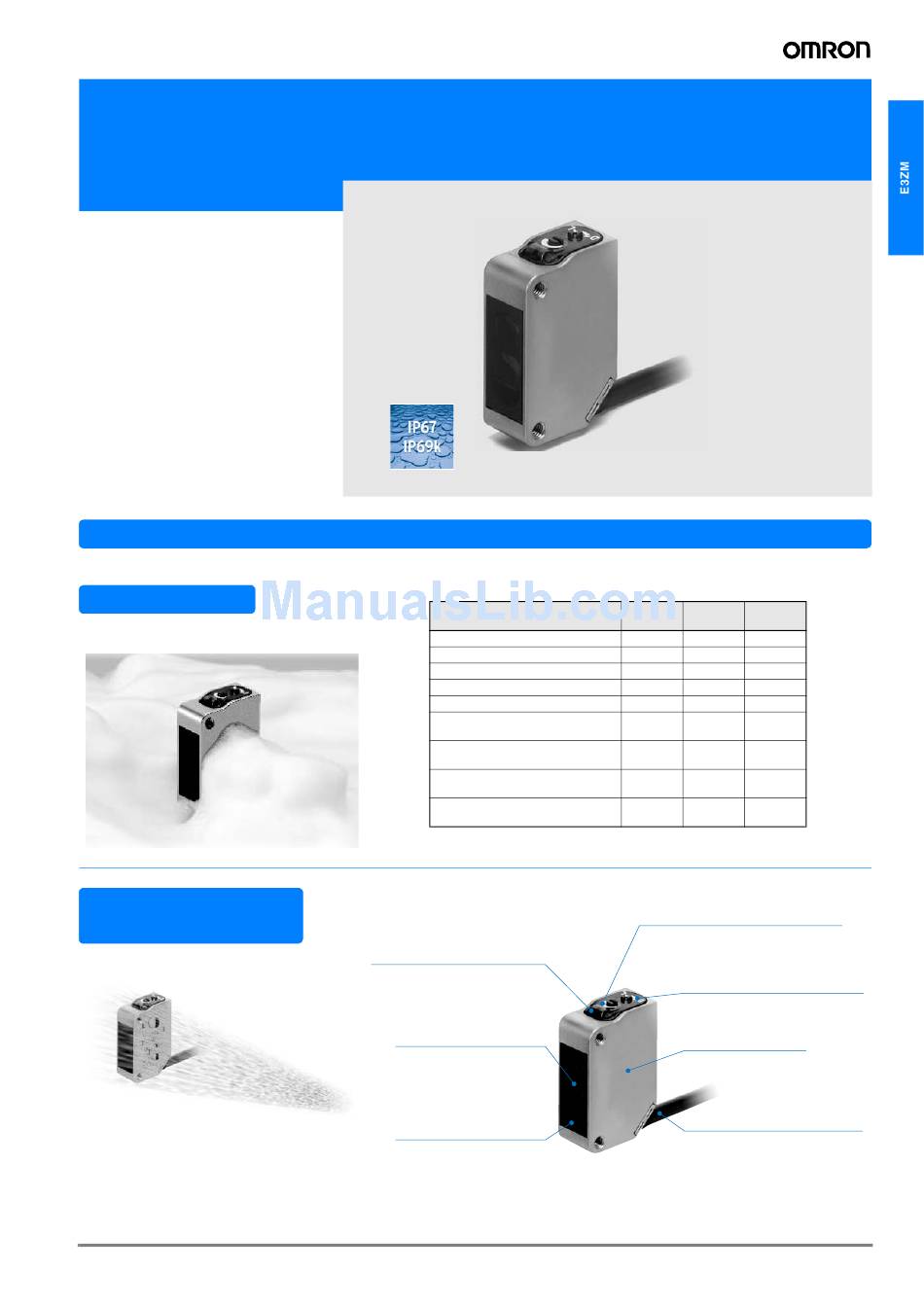

Photoelectric sensor in compact stainless steel housing
E3ZM
• Compact size SUS 316L housing for
highest mechanical protection
• Tested detergent and chemical resis-
tance (certified by Henkel-Ecolab)
• Watertight construction for highest
protection when cleaned with high
pressure
Detergent resistance
proven in intensive testing
Product concept for
highest machine hygiene
and often cleaned environments.
E3ZM
Application
Product name
Sodium hydroxide (NaOH)
Potassium hydroxide (KOH)
Phosphoric acid (H
PO
3
Sodium hypochlorite (NaCIO)
Hydrogen peroxide (H
O
2
P3-topax-66s
(Manufactured by Ecolab)
P3-topax-56
(Manufactured by Ecolab)
P3-oxonia active 90
(Manufactured by Ecolab)
TEK121
(Manufactured by ABC Compounding)
Waterproofing ring: Fluorine rubber
Excellent resistance to detergents and
disinfectants.
Optical plate: Methacyrlic resin
(PMMA)
Excellent resistance to detergents
and disinfectants. High
transparency and other qualities
give PMMA excellent optical
characteristics.
Seal
The seal provides the resistance to
high-temperature and high-pressure
water that complies with IP69K.
Concen-
Temper-
tration
ature
1.5 %
70 °C
1.5 %
70 °C
)
2.5 %
70 °C
4
0.3 %
25 °C
)
6.5 %
25 °C
2
3.0 %
70 °C
5.0 %
70 °C
1.0 %
25 °C
1.1 %
25 °C
Indicator cover: Polyether Sulfone
Excellent resistance to detergents and
disinfectants.
Sensitivity adjustment and operation
switch: Polyether etherketone
(PEEK)
Excellent resistance to detergents and
disinfectants. Also has excellent abrasion
resistance.
Case: SUS316L
Excellent corrosion resistance
to many chemical reagents.
Cable: Vinyl chloride
Excellent resistance to detergents and
disinfectants.
Time
240 h
240 h
240 h
240 h
240 h
240 h
240 h
240 h
240 h
(PES)
A-1
