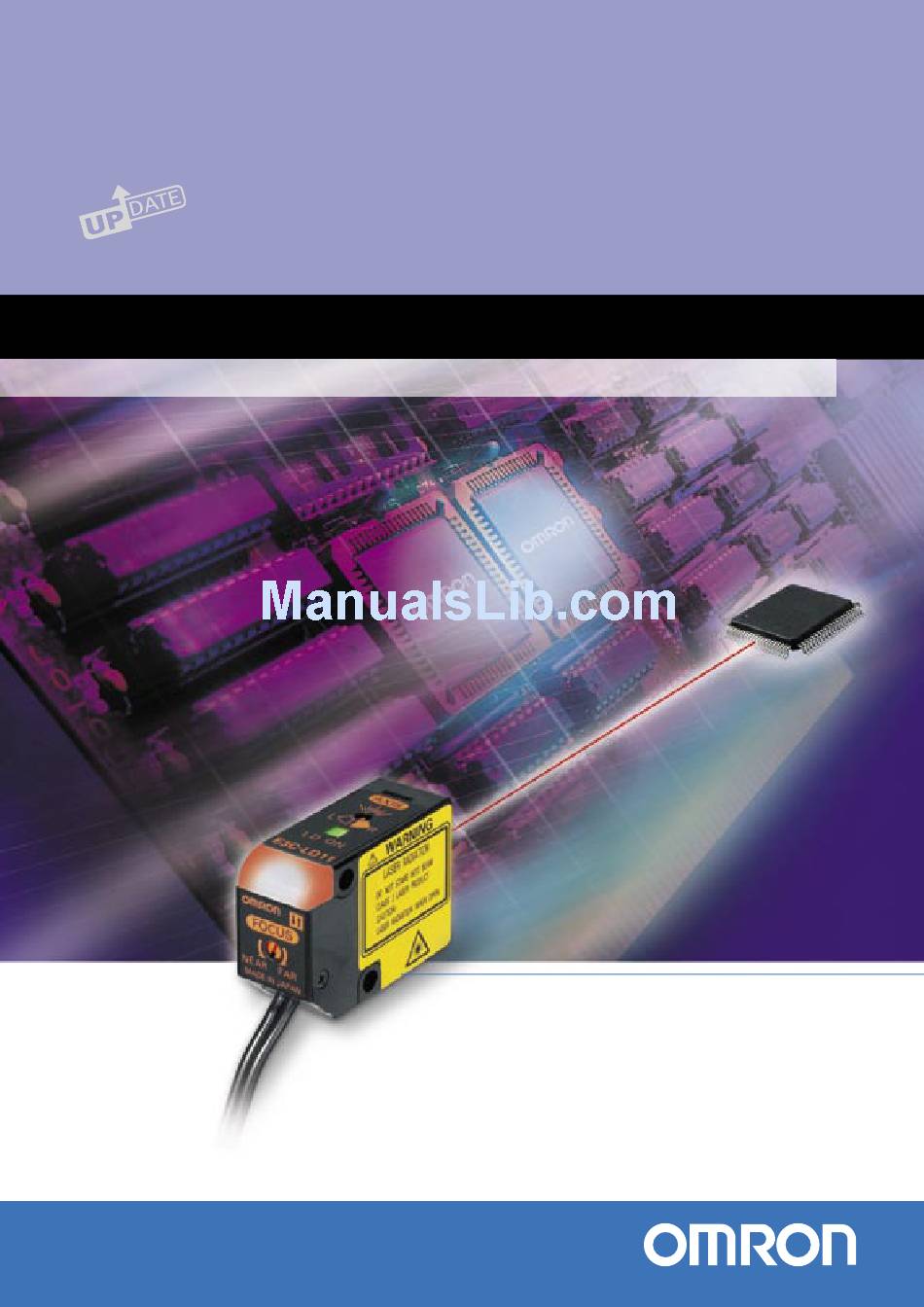

- Page 1 Photoelectric laser sensors E3C-LDA SERIES l o n g - d i s t a n c e , a d j u s t a b l e l a s e r b e a m Advanced Industrial Automation...
- Page 2 Omron’s E3C-LDA photoelectric laser sensor series is designed to provide advanced object detection, positioning and high-resolution sensing. What’s unique about the E3C-LDA is that the focal point and optical axis on the sensor head can be easily adjusted for precise beam adjustment, which in turn ensures easy set-up and very precise operation from a long distance.
- Page 4 7 metres with high-precision object detection. It is ideal for object detection through a small hole or gap in the assembly process. It can also be used for object detection through a glass view port in environmentally harsh processes.
- Page 6 With just one without any mutual interference occurring between them. touch you can adjust the light level settings of all connected With this feature multiple measurements can be made amplifiers to the same level. This feature saves you time and in a machine or a process.
- Page 7 Adhesive and seal Glass detection through application inspection a view port Repeated robot arm Grease application positioning teaching for inspection calibration Sheet displacement inspection Inspection of fine pins Existence of O-ring in the assembly process Glass mapping...
-
Page 8: Amplifier Units
The E3C-LDA series is the latest in a family of Omron sensor systems that include the E3X series, the ZX series, the ZX-E series and the ZS series. OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: +31 (0) 23 568 13 00 Fax: +31 (0) 23 568 13 88 www.omron-industrial.com Austria...
