Procedures
Note
3-2-7

Checking Internal Address Allocations for Variables

1,2,3...
104
DM area of CP1L-L
Address
D0000 to D9999
D10000 to D31999
D32000 to D32767

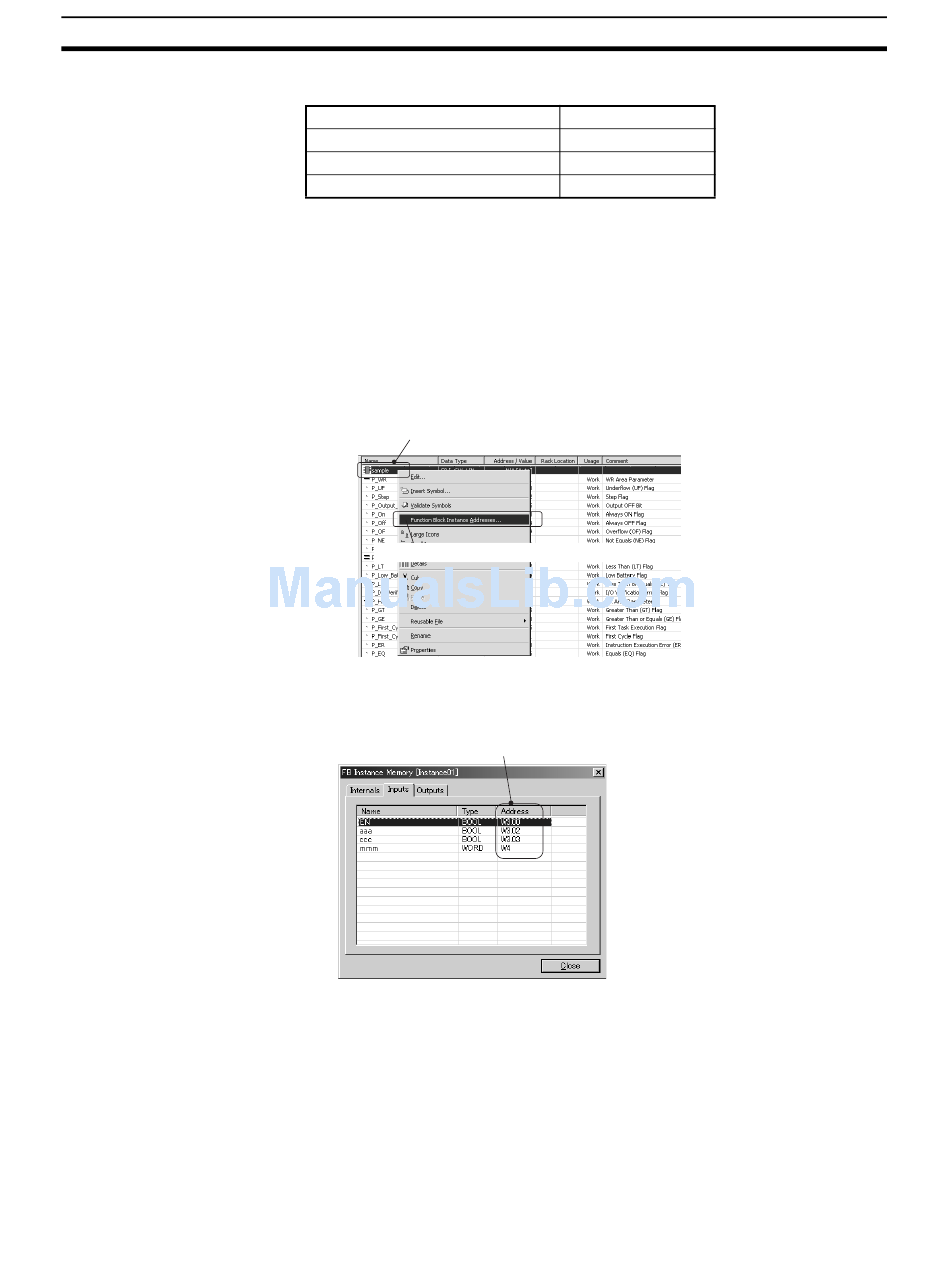

The following procedure can be used to check the I/O memory addresses
internally allocated to variables.
1. Select View - Symbols - Global.
2. Select the instance in the global symbol table, right-click, and select Func-
tion Block/SFC Memory Address from the pop-up menu. (Alternately,
select Memory Allocation - Function Block/SFC Memory - Function
Block/SFC Memory Address from the PLC Menu.)
Example: Instance name displayed in global variable table (automatically registered)
Right-click on the instance name and select Function Block Instance Address.
3. The FB Interface Memory Dialog Box will be displayed. Check the I/O
memory addresses internally allocated to variables here.
Example: Addresses used internally
for the input variables.
CP1L-L
Provided
Not Provided
Provided
Section 3-2
