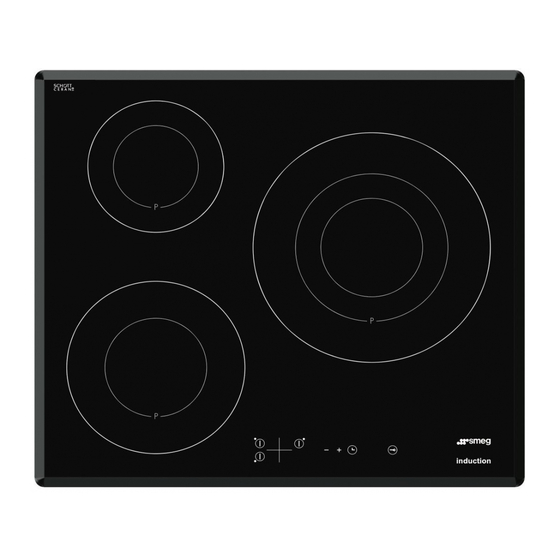

Page 1: Cooking Hob
GUIDE D’INSTALLATION ET D’UTILISATION GUIDE TO INSTALLATION AND USE MANUAL DE INSTALACIÓN Y UTILIZACIÓN MANUAL DE INSTALAÇÃO E UTILIZAÇÃO EINBAU- UND BETRIEBSANLEITUNG Table de cuisson Cooking hob Placa de cocción Placa de cozinha Kochfeld... -
Page 2: Table Of Contents
CONTENTS Safety Instructions ____________________________________________________ • Care for the environment _______________________________________________ • Description of your appliance ___________________________________________ • 1 / INSTALLING YOUR APPLIANCE Choice of location ____________________________________________________ • Fitting ______________________________________________________________ • Connection __________________________________________________________ • 2 / USING VOTRE APPLIANCE Description of the worktop _____________________________________________ •... -
Page 3: Safety Instructions
• • SAFETY INSTRUCTIONS Electrical Danger We have designed this cooking hob for use by Ensure that the power cable of a connected private individuals in their homes. electrical appliance near the hob is not in These cooking hobs are intended exclusively contact with the cooking zones. -
Page 4: Description Of Your Appliance
• • DESCRIPTION OF YOUR APPLIANCE Air intake Air outlet Vitroceramic glass Power cord... -
Page 5: Choice Of Location
