- Page 1 GS-5424LX Quick Installation Guide 10-2022 / V1.0...
-
Page 2: Table Of Contents
Contents I Product Information ..........1 Package Content ..............1 Hardware Overview ............. 1 LED Status ................2 II Installation .............. 3 II-1. Physically Setup ..............3 II-2. Connection ................4 III Web-based Configuration Utility ......5 IV More Information ............ 7 V Safety Instructions ........... -
Page 3: I Product Information

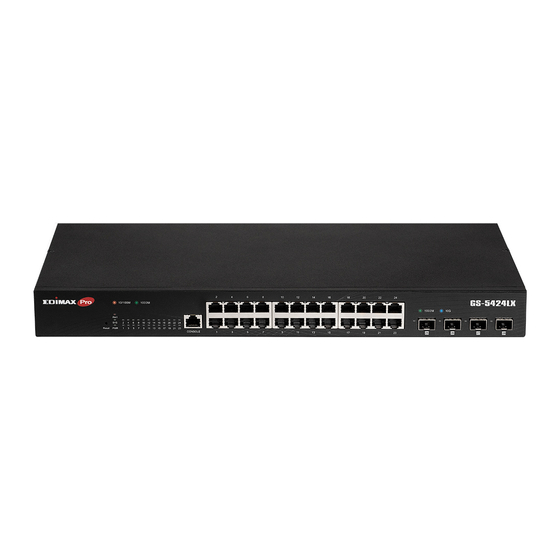

Product Information GS-5424LX: 28-Port Gigabit Web Smart Switch with 10GbE SFP+ Ports Package Content Power Cord Quick Installation GS-5424LX Guide Console Cable Rack-Mount Kit Hardware Overview 10 Gigabit SFP+ Gigabit Port Port (25~28) (1~24) Console Port Alert Reset AC In... -
Page 4: Led Status
LED Status Function Color Status Description Power on Green Power off Power on Green Blinking System is booting up Power off System failure (Overheat, wrong voltage) Alert Device in good condition Link at 1000Mbps Green Blinking Sending or receiving data Link/ACT Port disconnected or link fail (1-24... -
Page 5: Installation
Installation Read the following topics and perform the procedures in the correct order. Incorrect installation may cause damage to the product. II-1. Physically Setup There are two ways to physically set up the switch. No matter how you installed the switch, please keep it with good ventilation. 1. -
Page 6: Ii-2. Connection
II-2. Connection 1. Power on: Connect the power cord to the switch and the power outlet. The switch is powered by the 100-240VAC 50/60Hz external high- performance power supply. (Note: Make sure the PWR LED is green.) 2. Uplink: Plug the SFP/SFP+ cable into the SFP/SFP+ slot no. 25~28 and connect it to another switch. -
Page 7: Web-Based Configuration Utility
Web-based Configuration Utility This section describes how to navigate the web-based switch configuration utility through web browser. Be sure to disable any browser pop-up blocker. Browser Restrictions If you are using older versions of Internet Explorer, you cannot directly use an IPv6 address to access the device. - Page 8 3. The default username is “admin” and the default password is “1234”. The first time that you log in with the default username and password, you are required to set a new password. 5. For more information about Web-based Configuration Utility, please download User Manual from EDIMAX official website. https://www.edimax.com/download/...
-
Page 9: More Information
For detailed instructions, you can find user manual and all supporting documents from the link below or via the QR code: https://www.edimax.com/download/ Please search the model name “GS-5424LX” to enter the referred page. Safety Instructions The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage. - Page 10 Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes.
- Page 11 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 12 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/30/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/30/EU.
- Page 13 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: 24-port GbE + 4 Port 10G SFP+ L2 Management Switch Model No.: GS-5424LX...
- Page 14 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the United Kingdom EMC and Safety directives. Equipment: 24-port GbE + 4 Port 10G SFP+ L2 Management Switch Model No.: GS-5424LX...
