Summary of Contents for Edimax ES-1008PL

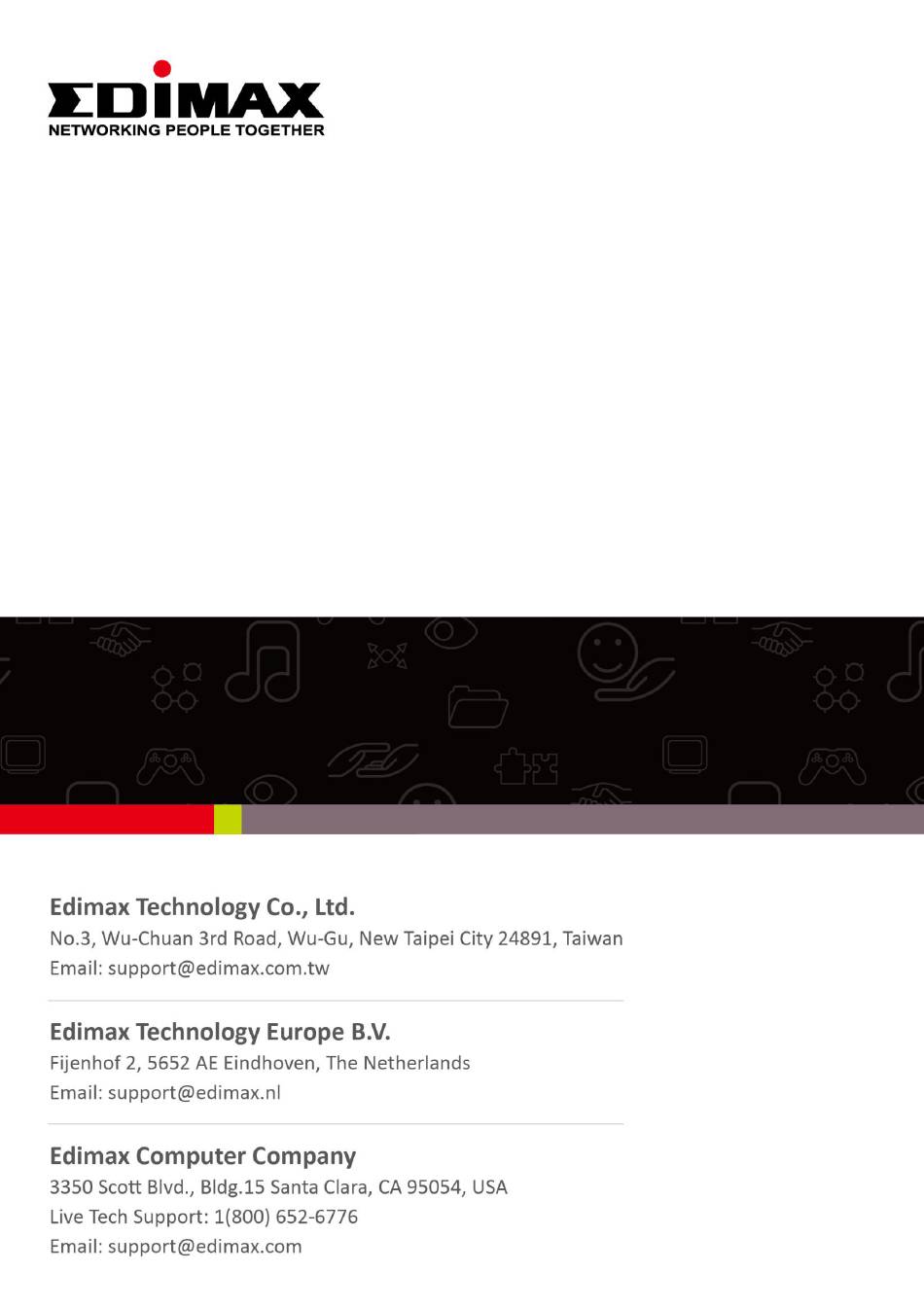

- Page 1 ES-1008PL / GS-1008PL Quick Installation Guide 07-2014 / v1.0...
- Page 2 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
-
Page 3: Product Introduction

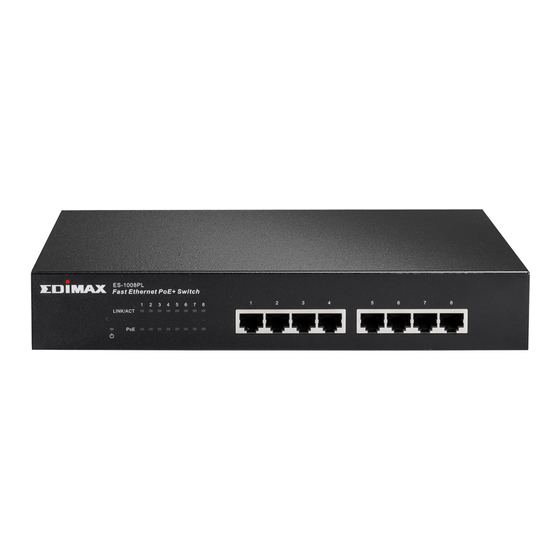

PRODUCT INTRODUCTION Model no.: ES-1008PL: 8-Port Fast Ethernet PoE+ Switch GS-1008PL: 8-Port Gigabit Ethernet PoE+ Switch Package Contents Before you start using this router, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): ... - Page 4 Front Panel Please refer to the following description for the front panel: *ES-1008PL *GS-1008PL LED Definitions: LED Name Light Description Status Switch on and correctly powered Switch not powered or not correctly powered The port connected LINK/ACT The port not connected...
- Page 5 Back Panel: Power Connector: Plug in the female connector of the provided power cord into this AC LINE socket, and the male into a power outlet. Supported input voltages range from 100-240V AC, and 50-60 Hz.
-
Page 6: Product Specifications
Product Specifications: Model ES-1008PL GS-1008PL IEEE 802.3 10BaseT IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3af/802.3at PoE IEEE 802.3af/802.3at PoE Standards IEEE 802.3x Flow Control IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient IEEE 802.3az Energy Efficient... -
Page 7: Product Installation
1. PRODUCT INSTALLATION There are two ways to install your switch, please select one that suits you. 2. Desktop Installation 1. Install the switch on a level surface that can support the weight of the unit and the relevant components, and attach the rubber feet to the bottom. - Page 8 Troubleshooting 1. Power LED is not lit Check if the power cord is properly connected to the plug and the power outlet; make sure the power cord is firmly plugged into the power socket of the switch. 2. LINK/ACT LED is not lit when connected to devices ...
- Page 9 Appendix: The standard RJ-45 Introduction RJ45 Pin: Below is an indication of a standard RJ-45 socket and plug, and definition for the pins. RJ-45 Connector pin signal: RJ-45 Connector pin signal Pin no. MDI-II signal MDI-X signal POE - POE - POE - POE - POE +...
-
Page 10: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 11: Ce Mark Warning
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2004/108/EC and 2006/95/EC Polski: Niniejszym (Edimax) oświadcza, że (ES-3305P / ES-3308P/ ES-3116P) jest zgodne z zasadniczymi wymaganiami oraz innymi stosownymi postanowieniami dyrektywy 2004/108/EC and 2006/95/EC Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale... -
Page 12: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., LTD., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (2004/108/EC and 2006/95/EC). Equipment : 8-Port Fast / Gigabit PoE+ Switch Model No.
