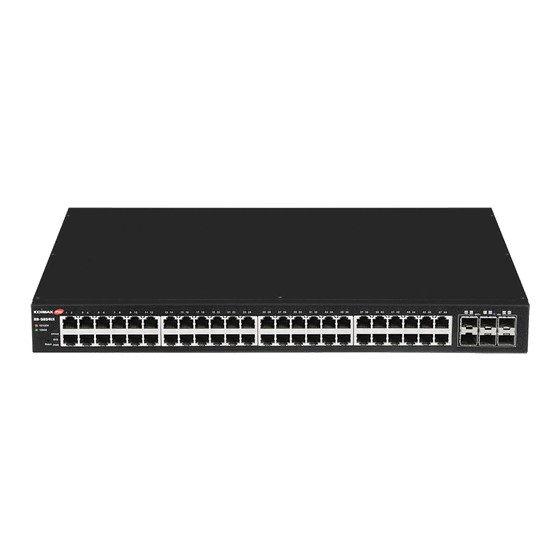

- Page 1 GS-5654LX & GS-5654PLX Quick Installation Guide 05-2021 / v1.0...
-
Page 2: Table Of Contents
Contents I Product Information ..........1 Package Content ............... 2 Hardware Overview ............3 LED Status ............... 5 II Installation .............. 7 II-1 Mounting the Switch ............7 II-1-1 Placement Tips ............7 II-1-2 Rack Mounting ............8 III Getting Started ............10 III-1 Power ................ -
Page 3: I Product Information
Product Information The EDIMAX Pro GS-5654LX and GS-5654PLX fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, high volume transaction processing, large file transferring, and more. With smart features such as SNMP v1/v2/v3, PoE PD Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP... -
Page 4: Package Content
Package Content Before start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): GS-5654LX GS-5654PLX Power Cord Rack-Mount Kit & Screws Console Cable... -
Page 5: Hardware Overview
Hardware Overview GS-5654LX: Descriptions Reset Button LED (PWR) LED (SYS) LED (SYS ALM) PoE Ports (1~48) SFP+ Port (49~54) Console Port Power Jack... - Page 6 GS-5654PLX: Descriptions Reset Button LED (PWR) LED (SYS) LED (PoE MAX) LED (SYS ALM) PoE Ports (1~48) SFP+ Port (49~52) LED (Link/Act) LED Slide Switch ( Link or PoE Powered) Console Port Power Jack...
-
Page 7: Led Status
LED Status GS-5654LX: Function Status Description On (Green) Power on Power off On (RED) System failure (Overheat, wrong voltage) SYS ALM Device in good condition On (Green) Power on Power off Blinking (Green) System boot up On (Green) Link at 1000M... - Page 8 GS-5654PLX: Function Status Description On (Green) Power on Power off On (RED) System failure (Overheat, wrong voltage) SYS ALM Device in good condition On (Green) Power on Power off Blinking (Green) System boot up On (Green) Over PoE max power PoE Max Not over PoE max power On (Green)
-
Page 9: Installation
Installation This chapter describes how to install and connect your Edimax Switch. Read the following topics and perform the procedures in the correct order. Incorrect installation may cause damage to the product. II-1 Mounting the Switch There are two ways to physically set up the switch. -
Page 10: Ii-1-2 Rack Mounting
II-1-2 Rack Mounting You can mount the switch in any standard size, 19-inch (about 48 cm) wide rack. The switch requires 1 rack unit (RU) of space, which is 1.75 inches (44.45 mm) high. For stability, load the rack from the bottom to the top, with the heaviest devices on the bottom. - Page 11 Secure the switch on the equipment rack with the screws provided. Figure 6 - Rack Installation...
-
Page 12: Getting Started
Getting Started This section provides an introduction to the web-based configuration utility, and covers the following topics: Powering on the device Connecting to the network Power over Ethernet (PoE) considerations Starting the web-based configuration utility III-1 Power III-1-1 Connecting to Power... -
Page 13: Iii-1-2 Connecting To Network
III-1-2 Connecting to Network To connect the switch to the network: Connect an Ethernet cable to the Ethernet port of a computer. Connect the other end of the Ethernet cable to LAN Port of the switch. The LED of the port lights if the device connected is active. Connect an Ethernet cable to the IP Cameras Connect the switch to end nodes using a standard Cat5e Ethernet cable to connect the switch to end nodes as shown in the illustration below. - Page 14 If you have multiple IPv6 interfaces on your management station, use the IPv6 global address instead of the IPv6 link local address to access the device from your browser. Launching the Configuration Utility Open the web-based configuration utility: Open a Web browser. Enter the IP address of the device you are configuring in the address bar on the browser (factory default IP address is 192.168.2.1) and then press Enter.
- Page 15 Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes.
- Page 16 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 17 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/30/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/30/EU.
- Page 18 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: 54 Gigabit ports Web-Smart Switch with 6 SFP+ 10 Gigabit Model No.: GS-5654LX...
- Page 19 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: 54 Gigabit PoE ports Web-Smart Switch with 6 SFP+ 10 Gigabit Model No.: GS-5654PLX...
