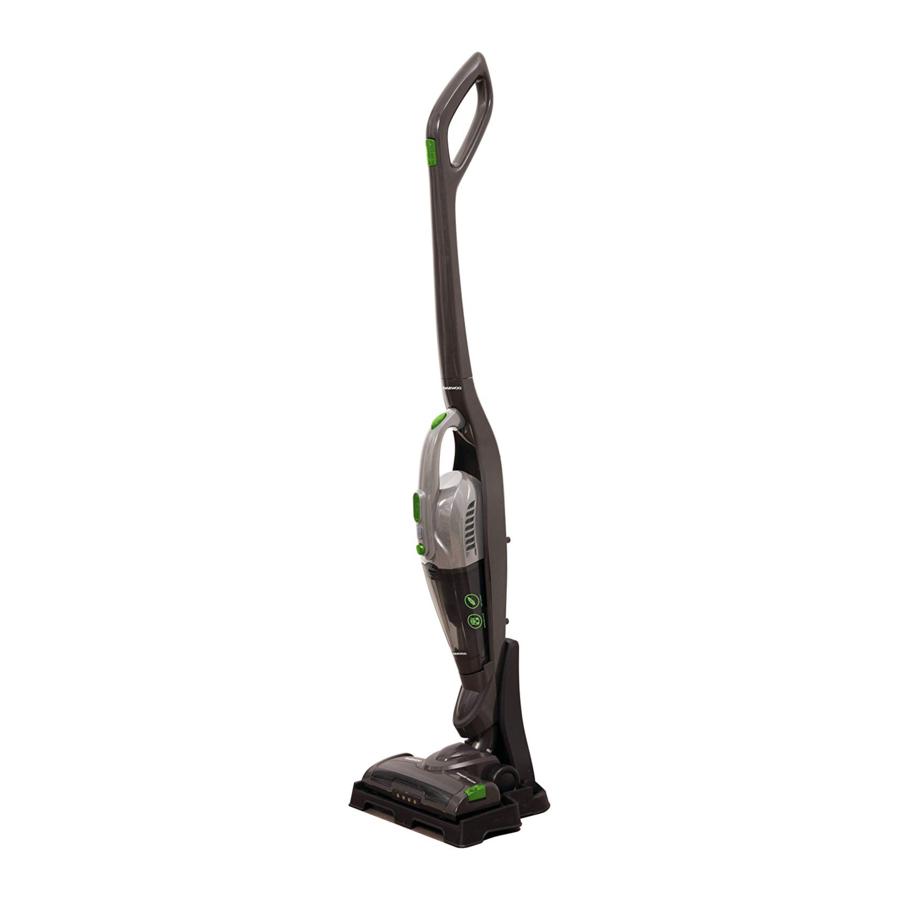

Daewoo FLR00044 - Tornado Cordless 2in1 Vacuum Manual

Features

Description of parts

Description of parts - Part 1
Description of parts - Part 2

Upright vacuum ON/OFF switch.
Speed button
Handheld vacuum release button.
Handheld vacuum ON/OFFswitch.
ON/OFF/charge level indicator
Dust cylinder release button.
Upright brush head.
LED light
Brush release button.
Crevice tool.
Charging dock.
Charging mount.
Upholstery tool.
Power supply.

Assembly

Fit the handle onto the main body of the vacuum and secure into place by fixing the screw provided into the hole at the rear of the handle.
Fit the main body of the vacuum onto the brush head and push home until it clicks into place, then fix the two screws provided into the holes at the rear of the main body.

Using the device hand held

Detatch the handheld unit from the main body by pressing the handheld vacuum release button (3) and tilting the handheld unit away from the main body.
To operate the handheld vacuum, use the handheld vacuum ON/OFF switch (4).
The crevice tool or upholstery tool can be attached to the handheld unit to clean hard to reach places and for cleaning soft furnishings.

Using the device upright

In the upright mode, the vacuum cleaner can be used to clean carpets and hard floors.
To operate the vacuum in the upright mode, use the upright vacuum ON/ OFF switch (1), the suction and brush speed can be selected using the speed button (2).
The brush assembly has a stall protection system. If the brush becomes fouled with excess fibre/string etc, the brush motor will automatically stop.

When the vacuum is in use, in either mode, the ON/OFF charge level indicator (5) will illuminate.
This indicator shows the level of charge left in the battery from three to one lights.

Charging

Plug the power supply jack into the rear of the charging dock and the plug into a suitable socket outlet.
Mount the vacuum on the base by aligning the vacuum with the charging mount (12) on the charging dock (11) and allow to drop into place.
The vacuum will now start to charge.
When all three lights on the ON/OFF charge indicator are lit, the vacuum is fully charged.

Cleaning and maintenance

To empty the dust cylinder, remove the handheld unit from the main body and press the dust cylinder release button (6), then tilt the dust cylinder forward, seperating it from the hand held unit motor section. Remove the filter from the dust cylinder and empty the cylinder. Clean the filter by tapping it lightly over a dustbin.
Disassembling the device for maintenance

Always disconnect the vacuum charging base from the mains power supply before cleaning.
Wipe clean the outside of the vacuum and charging base with a soft damp cloth. Never clean any part of the vacuum or charging base with harsh or abrasive cleaners.
Do not submerge any part of the charging base, power supply or vacuum in water or any other liquids

Technical Data

Power pack	Li-ion battery 22.2V (6x3.7V cells)
Battery Capacity	2200mAh
Running time	20 mins (high speed), 40 mins (low speed)
Power	120W
Power supply
Input	100-240V 50Hz, 0.5A, 120.0W
Output	27.0V DC, 500mA

Customer Support

Should you require any product information, replacement parts or accessories, please contact out customer care team at help@daewooelectricals.com or call 0161 831 7879.

Troubleshooting guide

Problem	Possible reason	Solution
Motor does not operate	Battery is low on power The hand held vacuum is not fitted to the main body. (Power to the brush head is supplied from the battery in the handheld unit)	Charge the battery Correctly fit the handheld unit to the main body of the vacuum
Suction is reduced	Dust cylinder is full Filter is clogged The air duct to the upright brush head is blocked Battery is low	Empty the dust cylinder Clean or replace the filter Clear the debris from the air duct Fully charge the battery
Charge indicator does not light up	The handheld unit is not fitted to the main body	Properly fit the handheld unit to the main body of the vacuum cleaner
Operating time is reduced	The battery has not been fully charged The battery is aging	Fully charge the battery as indicated in the charging section of this manual Batteries will deteriorate over time, new batteries should only be fitted by qualified service personel

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

Read and familiarise yourself with all operating instructions before using this Vacuum Cleaner.
Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Keep the appliance and its cord out of reach of children less than 8 years when it is energised or cooling down.
Do not immerse the appliance or its cord/charger in water or any other liquids.
Do not leave the appliance unattended during use.
Do not leave the appliance unattended whilst connected to the mains supply.
Do not use this appliance outdoors.
It is imperative to unplug the power cord/charger after charging, before it is cleaned and whilst being repaired.
Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard
Allow the unit to cool before storage.
Before cleaning, disconnect the appliance from the mains supply and allow to cool.
This appliance is intended for household use only and should not be used for industrial purposes.
Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
Do not use this appliance for anything other than its intended use.
Do not push objects into any openings as damage to the appliance and/or electric shock may occur.
Unplug after each use. Grasp the plug, not the cord.
Do not pull or carry the Vacuum Cleaner by the electrical cord, use the handles provided.
Ensure fingers and other objects are never placed in any part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly.
Keep hair, loose clothing, jewellery, fingers and all parts of the body away from openings and moving parts.
Keep all air vents clear and free of dust, lint, hair and anything else that may reduce airflow.
Avoid directing the appliance towards naked flames as the air discharged may extinguish gas fires or pilot lights and may disturb ashes in open fires.
