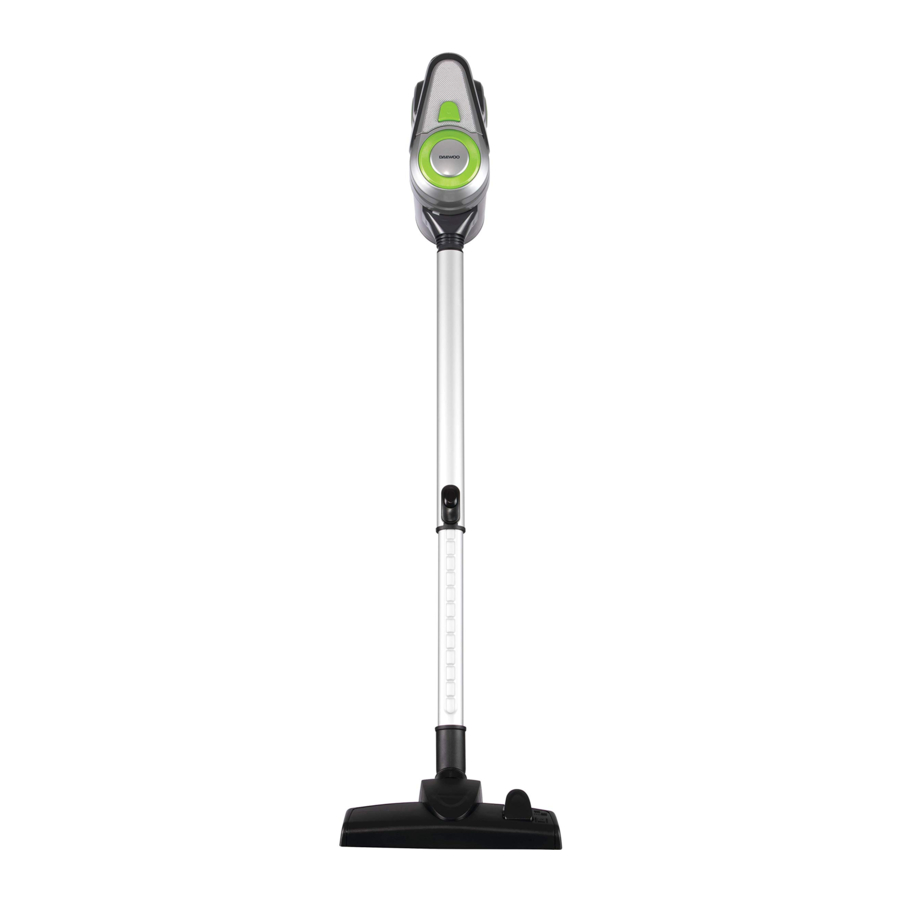

Daewoo FLR00039 - Cyclone Lyte 600W Corded Vacuum Cleaner Manual

Features

Description of Parts

1. Air/Dust Inlet
2. Filters
3. Dust Release Catch
4. Dust Compartment
5. Handle
6. On/Off Trigger Switch
7. Filter Compartment Release Catch
8. Filter Compartment

Accessories

9. Floor Tool
10. 2 in 1 Crevice Tool
11. Upholstery Tool
12. Telescopic Tube

Attaching the Accessories

Ensure that the vacuum cleaner is not connected to the mains supply before using the attachments.

The Floor Attachment

1. Push the Telescopic Tube (12) onto the Air/Dust Inlet (1) as shown below:

2. Push the Floor Tool (9) onto the other end of the Telescopic Tube (12)


NB Adjust the lever on the Floor Tool (9) according to the type of floor being cleaned. Push the lever down for use on hard floors (i.e. non carpeted), pull the lever up for vacuum cleaning carpets:
Adjust the lever on the Floor Tool for carpeted or hard floors:
Up for carpets
Down for hard floors

3. Set the required height of the cleaner by pressing the button on the Telescopic Tube (12) and adjusting the tube to the required height:


The Crevice Tool

1. Attach the 2 in 1 Crevice Tool (10) onto the Telescopic Tube (12) to clean carpet edges and hard to get at areas:

2. If the Telescopic Tube (12) is not required, attach the crevice tool directly to the cleaner, this useful whilst cleaning soft furnishings, stairs, etc.:


NB Rotate the brush on the end of the 2 in 1 Crevice tool to brush dust out of hard to get at areas.

The Upholstery Tool

1. Attach the Upholstery Tool (11) to the cleaner to clean soft furnishings such as sofas armchairs etc. Attach the Upholstery Tool (11) to Telescopic Tube (12) to give better reach to clean curtains, etc.:


Using Your Device

1. Once you have assembled your vacuum cleaner as desired above, Insert the mains plug into the nearest socket.

2. To operate the vacuum cleaner, grip the vacuum by the Handle (5) and press the On/Off Trigger Switch (6) at the top of the handle – arrowed below.


Emptying and Cleaning Your Unit

Always disconnect the cleaner from the mains power supply before cleaning.

1. Once the dust level reaches the 'MAX' mark on the Dust compartment (4) it will need emptying and the filters cleaned.
2. To empty the cleaner, hold the Dust Compartment (4) over a dust bin and press the Dust Release Catch (3) and the base of the dust compartment will swing open and allow the collected dust to fall out into the dust bin.

do not continue to use your vacuum cleaner once the 'MAX' mark has been reached as permanent damage may occur to the appliance.

3. Hold the Filter Compartment (8) and press the Filter Compartment Release Catch (7) and remove the Filter Compartment.

4. Twist the top off the Filter Compartment (8) anticlockwise and remove.

5. Pull out the filter assemblies.

6. Wash the Micro, Sponge and cyclonic filters in warm running water until the water runs clear. Allow the filters to dry thoroughly for 24 hours before reuse.


Care and Use of your Product

• Always disconnect the cleaner from the mains power supply before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge the cleaner in water or any other liquids.
• Empty the Dust Compartment (4) as soon as the 'MAX' mark has been reached.*
• Wash the Micro, Sponge and Cyclonic Filters (6) regularly – see table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and use.

*do not continue to use your vacuum cleaner once the 'MAX' mark has been reached as permanent damage may occur to the appliance.

Recommended filter cleaning intervals

Filter Type	Recommended cleaning period
Round Micro Filter	Shake out debris when you empty the dust Rinse under warm water once a month container Allow to dry thoroughly for 24 hours before reuse.
Round Sponge Filter	Occasionally remove any dust/debris as necessary. The filter should also be rinsed under warm water once a month. Allow to dry thoroughly for 24 hours before reuse.
Cyclonic Filter	Shake out debris once a month Rinse under warm water once a month. Allow to dry thoroughly for 24 hours before reuse.

Ensure the filters are cleaned periodically according to the table above, failure to clean the filters regularly will severely impair the performance and permanent damage may occur to the appliance and may invalidate your warranty.

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately.

To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N).
NB no connection must be made to the Earth (E) terminal.

• Ensure the outer sheath of the mains lead is securely held by the cable clamp
• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

Technical Specification

Customer Support

Should you require any product information, replacement parts or accessories, please contact out customer care team at help@daewooelectricals.com or call 0161 831 7879.

Troubleshooting Guide

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years when it is energised or cooling down.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains supply and allow to cool.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects into any openings as damage to the appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• Do not pull or carry the Vacuum Cleaner by the electrical cord, use the handle provided.
• Ensure fingers and other objects are never placed in any part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the air discharged may extinguish gas fires or pilot lights and may disturb ashes in open fires.
• Do not Vacuum water or any other liquids with this vacuum.
• Do not Vacuum hot ashes or lit cigarettes, etc.
