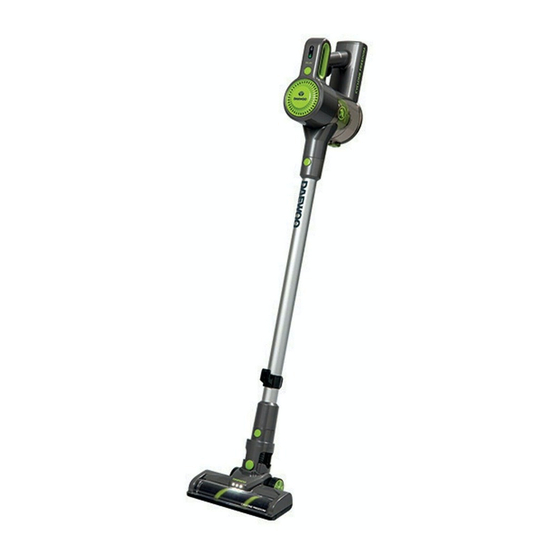

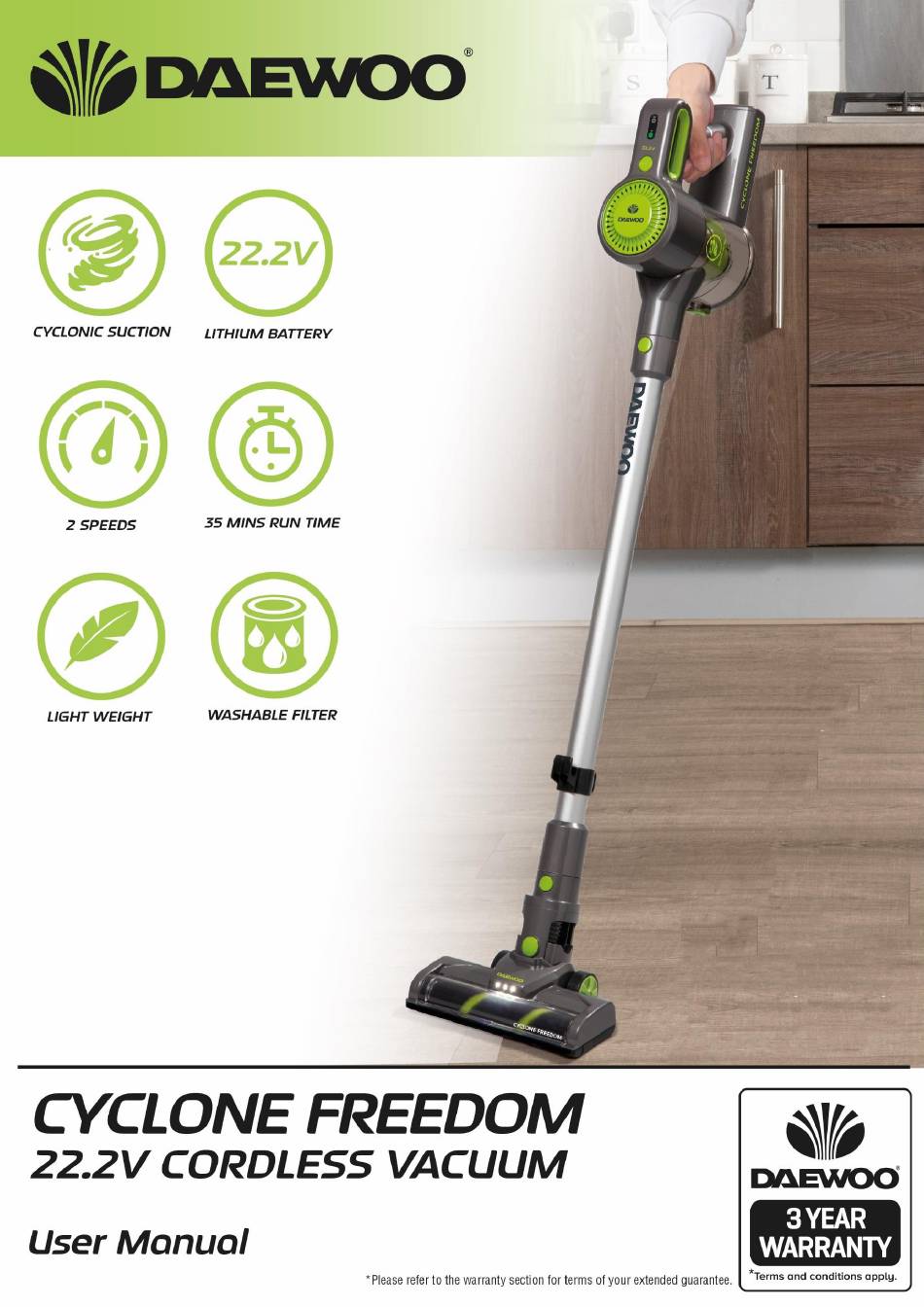

- Page 1 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual malfunction or after being dropped or damaged in any way. Regular, periodic checks should be carried out on the mains cable to • ensure no damage is evident. Should there be any signs of damage the •...
- Page 4 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with this symbol conform to applicable provisions of the European Economic Area. Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements.
- Page 5 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual Description of Parts & Accesories 1. Air/Dust Inlet 2. Conical Hepa & Cyclonic Filters 3. Dust Release Catch 4. Dust Compartment 5. Charging/Battery Indicators 6. Charging Socket 7. Handle 8. On/Off/Power Button 9.
- Page 6 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 1. Insert the Small Power Plug (15) of the Mains Charger (16) into the Charging Socket (6). 2. Plug the Mains Charger (16) into the nearest mains socket. 3. The Charging/Battery Indicators (5) will light in the sequence as in a, b, c below to show the internal battery is charging.
- Page 7 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual Using Your Cordless Vacuum Cleaner The Motorised Floor Tool (13) 1. Before using the Motorised Floor Tool (13) the first choose the appropriate brush type for the floor type being cleaned: Select the Carpet Brush (18) for vacuum cleaning carpets, rugs, etc.
- Page 8 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 6. Finally, push the brush retaining clip left to hold the brush in place as shown arrowed left. The vacuum is now ready to clean carpeted floors. Using Your Cordless Vacuum Cleaner 1.
- Page 9 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 3. Place your foot gently on the Motorised Floor Tool (13) and pull the cleaner back by the Handle (7) and start vacuum cleaning. 4. If the Aluminium Tube (17) is not required, the Motorised Floor Tool (13) can be attached directly as shown right for cleaning hard to get at areas such as...
- Page 10 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 2. If the Aluminium Tube (17) is not required, attach the Crevice Tool & Upholstery Tool (14) directly to the cleaner, this useful for cleaning soft furnishings, car seats, stairs, etc.: Emptying and Cleaning Your Cordless Vacuum Cleaner WARNING! Always disconnect the cleaner from the mains charger before cleaning.
- Page 11 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 3. After emptying the Dust Compartment (4), insert the top of the Crevice and Upholstery Tool (14) or the Long Reach Crevice Tool (20) into the base of the filter assembly as shown left and rotate anticlockwise to remove the Conical Hepa &...
- Page 12 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual Replacing the Filters in Your Cordless Vacuum Cleaner 6. Replace the Conical Hepa Filter (2) inside the Cyclonic Filter, rotate the filter anticlockwise towards the ‘LOCK’ position as shown circled left. 7.
- Page 13 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 • Allow the filters to thoroughly dry out for 24 hours before reassembly and User Manual reuse. WARNING! DO NOT continue to use your vacuum cleaner once the Dust Compartment (4) is full as permanent damage may occur to the appliance. Recommended filter cleaning intervals Filter Type Recommended cleaning period...
- Page 14 Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual 3. Hold the Wall Bracket level on the wall in line with the 1 metre mark made and mark the position of the two screw holes through the Wall Bracket using a pencil as shown. 4.
-
Page 15: Troubleshooting Guide
Cyclone Freedom 22.2V Cordless Vacuum Cleaner FLR00010 User Manual Technical Specification Model Number FLR00010 Mains Charger Input: AC 100-240V ~ 50/60Hz Output: 27V DC 500mA Rated Power 150W Battery 22.2V 2200mAh Li-Ion (6 cells) Unpacked Weight (approx.) 2.2 Kgs Dimensions (approx.) 210mm (l) x 128mm (w) x 290mm (h) Vacuum (max) 8-11kpa... -
Page 16: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
