Installation Manual

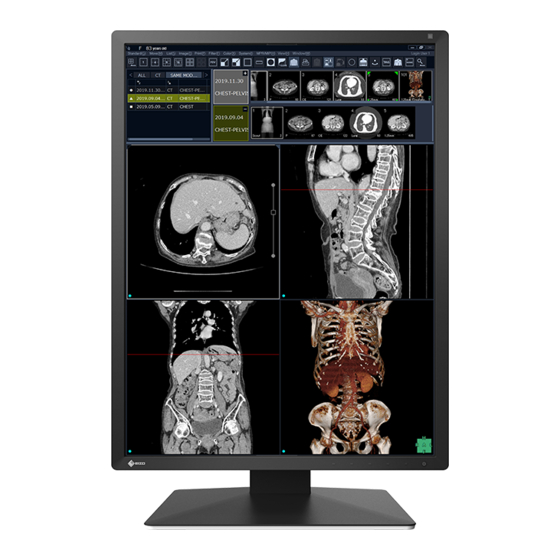

Color LCD Monitor
Important
To ensure that the product is used correctly, carefully read through
this Installation Manual and the Instructions for Use before use.
• See the Instructions for Use for monitor installation and connection.
• You can check the latest product information, including the Installation
Manual, from our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo RadiForce RX270
Summary of Contents for Eizo RadiForce RX270
- Page 1 Installation Manual Color LCD Monitor Important To ensure that the product is used correctly, carefully read through this Installation Manual and the Instructions for Use before use. • See the Instructions for Use for monitor installation and connection. • You can check the latest product information, including the Installation Manual, from our web site.
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Table Of Contents
CONTENTS CONTENTS 1 Basic Operation and Function List................Usage of Switches and Operation Guide ............Basic Operation of the Setting Menu ..............Function List......................2 Adjusting the Screen ....................Compatible Resolutions ..................Setting the Input Signal ..................Selecting Display Mode (CAL Switch Mode)............Adjusting Brightness / Colors ................ - Page 4 CONTENTS Skipping Unused Display Modes ................ 20 Enabling or Disabling DisplayPort Communication in Power Saving Mode..20 5.10 Locking Operation Switches................21 5.11 Setting Whether to Display / Hide the Grayscale Warning........21 5.12 Acquiring Life Estimation Data ................21 5.13 Viewing the Monitor Information................
-
Page 5: Basic Operation And Function List
Basic Operation and Function List | 1 1 Basic Operation and Function List 1.1 Usage of Switches and Operation Guide 1. Touch any switch (except The operation guide appears on the screen. Display Function Turns the power on or off. Displays the Setting menu. The Setting menu is used to configure advanced monitor settings. -
Page 6: Basic Operation Of The Setting Menu
1 | Basic Operation and Function List 1.2 Basic Operation of the Setting Menu 1. Select from the operation guide. The Setting menu appears. Note • To adjust or set "Administrator Settings" items, display the Setting menu according to the following procedure: 1. -
Page 7: Function List
Basic Operation and Function List | 1 Note • The settings for "Administrator Settings" items are applied by selecting "Apply". 5. Select several times to exit the Setting menu. Note • The menu for "Administrator Settings" items is exited by selecting "Apply". 1.3 Function List The following table shows the items in the Setting menu. - Page 8 1 | Basic Operation and Function List Main menu Item Reference Grayscale Warning Setting Whether to Display / Hide the Grayscale Warning [} 21] Sharpness Recovery Enabling or Disabling Sharpness Recovery (the Function of Correcting Image Clarity) [} 13] DisplayPort 1 Setting the Version for DisplayPort Input [} 19]...
-
Page 9: Adjusting The Screen
Adjusting the Screen | 2 2 Adjusting the Screen 2.1 Compatible Resolutions For information about the compatible resolutions of the monitor, see "Compatible Resolutions" in the Instructions for Use. 2.2 Setting the Input Signal You can select an input signal to be displayed on the screen. 1. -
Page 10: Adjusting Brightness / Colors
2 | Adjusting the Screen 2. Select from the operation guide. The Mode menu appears on the lower right. Example: 1-DICOM 2-CAL1 3-CAL2 4-Custom 5-sRGB 6-Text 3. Modes are changed in sequence each time you select You can also select to change modes when the Mode menu is being displayed. -
Page 11: Enabling Or Disabling Hybrid Gamma Pxl
Adjusting the Screen | 2 Function CAL Switch Mode 1-DICOM 2-CAL1 3-CAL2 5-sRGB 6-Text Custom Gamma ✓ ✓ ✓ ✓ ✓ ✓ Saturation ✓ ✓ ✓ Gain ✓ ✓ ✓ Reset ✓ ✓ ✓ ✓ ✓ ✓ 2.4.2 Enabling or disabling Hybrid Gamma PXL When the Hybrid Gamma PXL function is enabled, this product automatically differentiates between monochrome and color parts of the same image at a pixel level, and displays a color image using the gamma value for color image display. -
Page 12: Adjusting The Color Temperature
2 | Adjusting the Screen 2.4.5 Adjusting the color temperature Adjusts the color temperature. The color temperature is normally used to express the hue of "White" and/or "Black" with a numerical value. The value is expressed in degrees "K" (Kelvin). The screen becomes reddish at low color temperatures and bluish at high color temperatures, similar to the temperatures of a flame. -
Page 13: Adjusting The Gain
• When the gain is changed, the color temperature setting changes to "User". 2.5 Enabling or Disabling Sharpness Recovery (the Function of Correcting Image Clarity) EIZO’s unique technology called "Sharpness Recovery" improves picture clarity and displays images that are true to the original source data. 1. Select to turn off the monitor. -
Page 14: Controlling Monitor Quality
• If you want to perform high-level quality control in compliance with medical standards / guidelines, use optional monitor quality control software kit "RadiCS UX2". • To adjust measurement results of the Integrated Front Sensor to those of an EIZO external sensor (UX2 Sensor), perform correlation between the Integrated Front Sensor and the external sensor by using RadiCS / RadiCS LE. -
Page 15: Checking The Selfcalibration Results
Controlling Monitor Quality | 3 3.1.2 Checking the SelfCalibration results Attention • The results can be checked when "QC History" is set to "On" (see Setting Whether to Display / Hide Warnings or QC History [} 16]). 1. Select "RadiCS SelfQC" from the Setting menu, then select 2. -
Page 16: Setting Whether To Display / Hide Warnings Or Qc History
3 | Controlling Monitor Quality 4. Use to select either "DICOM", "CAL1", or "CAL2" and then select Up to five past Grayscale Check results (Passed, Failed, Canceled, or Error) are displayed. 3.3 Setting Whether to Display / Hide Warnings or QC History You can set whether to display or hide warnings related to "Failed"... -
Page 17: Using The Monitor For A Long Time
Using the Monitor for a Long Time | 4 4 Using the Monitor for a Long Time The monitor can be set to enter the power saving mode according to the PC status. The life of the monitor backlight can be extended by setting the monitor to enter the power saving mode when the monitor is not used. -
Page 18: Configuring Monitor Settings
5 | Configuring Monitor Settings 5 Configuring Monitor Settings 5.1 Specifying the Language The language for the Setting menu and messages can be selected. • Selectable Languages "English", "Germany", "French", "Spanish", "Italian", "Swedish", "Japanese", "Chinese (simplified)", "Chinese (traditional)" 1. Select "Languages" from the Setting menu, then select 2. -
Page 19: Automatically Detecting The Input Signal
Configuring Monitor Settings | 5 2. Select from the operation guide. Note • See Showing the Icon for Switching the USB Ports in the Operation Guide [} 18] does not appear. 3. Use to select "USB 1" or "USB 2", then select Select the USB upstream port to which the PC used for operation is connected. 5.4 Automatically Detecting the Input Signal This product automatically detects the connector through which a signal is input, and displays the signal on the screen. -
Page 20: Adjusting Brightness Of The Power Switch Indicator
5 | Configuring Monitor Settings 1. Select to turn off the monitor. 2. While touching the leftmost switch ( ), touch for more than two seconds to turn on the monitor. 3. Select "Image Rotation" in "Administrator Settings", then select 4. Use to select either "Portrait"... -
Page 21: Locking Operation Switches
Configuring Monitor Settings | 5 2. While touching the leftmost switch ( ), touch for more than two seconds to turn on the monitor. 3. Select "DP Power Save" in "Administrator Settings", then select 4. Use to select either "On" or "Off" and then select 5. -
Page 22: Viewing The Monitor Information
5 | Configuring Monitor Settings Note • Data is collected every 100 hours. • If you selected "Power Save" and 100 hours have elapsed, the data collection process runs when the monitor enters the power saving mode or the power is turned off. •... -
Page 23: Resetting The Color Adjustment Value
Configuring Monitor Settings | 5 5.14.1 Resetting the color adjustment value Only the color adjustment value for the currently selected mode is reset to the default setting. 1. Select "CAL Switch Mode" from the Setting menu, then select 2. Select "Reset" and then 3. -
Page 24: Troubleshooting
• Turn off the main power, and then turn it on again. Power switch indicator blinks: Orange, Green • Connect via the signal cable specified by EIZO. Turn off the main power, and then turn it on again. • If the signal cable is connected to DisplayPort 1 ( ), try switching the DisplayPort... -
Page 25: Imaging Problems
• Use "Brightness" or "Contrast" in the Setting menu to adjust it. (The LCD monitor backlight has a limited life span. When the screen becomes dark or begins to flicker, contact your local EIZO representative.) Text is blurred • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see "Compatible Resolutions"... -
Page 26: Other Problems
[} 18]). • If the peripheral works normally when directly connected to the PC, contact your dealer or local EIZO representative. • Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.) •... -
Page 27: Error Code Table
Error Code Table [} 27]. • If an error code that does not appear in the error code table is displayed, contact your dealer or local EIZO representative. Attention • Do not touch the Integrated Front Sensor. The SelfCalibration / Grayscale Check history does not display the clock time correctly. -
Page 28: Reference
7 | Reference 7 Reference 7.1 Attaching an Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the supported optional arm (or optional stand). (www.eizoglobal.com) Attention • When attaching an arm or stand, follow the instructions of the respective User’s Manual. •... -
Page 29: Using The Usb Hub Function
Reference | 7 7.2 Using the USB Hub Function This monitor is equipped with a USB hub. Connected to a PC compatible with USB or another monitor with a USB hub, this monitor functions as a USB hub allowing connection to peripheral USB devices. 1. -
Page 30: Main Default Settings
7 | Reference 7.3 Main Default Settings 7.3.1 CAL Switch Mode Factory default display setting is "1-DICOM". Mode Brightness Temperature Gamma Hybrid Gamma 1-DICOM 500 cd/m 7500 K DICOM GSDF 2-CAL1 400 cd/m 7500 K 3-CAL2 400 cd/m 7500 K DICOM GSDF 4-Custom Approx. -
Page 31: Appendix
(hereinafter referred to as the “Product”) from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty... - Page 32 Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of seven (7) years after the production of the Product is discontinued.
- Page 33 The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.
- Page 34 03V60258A1 IM-RX270 Copyright © 2022 EIZO Corporation. All rights reserved. 1st Edition – August, 2022...
