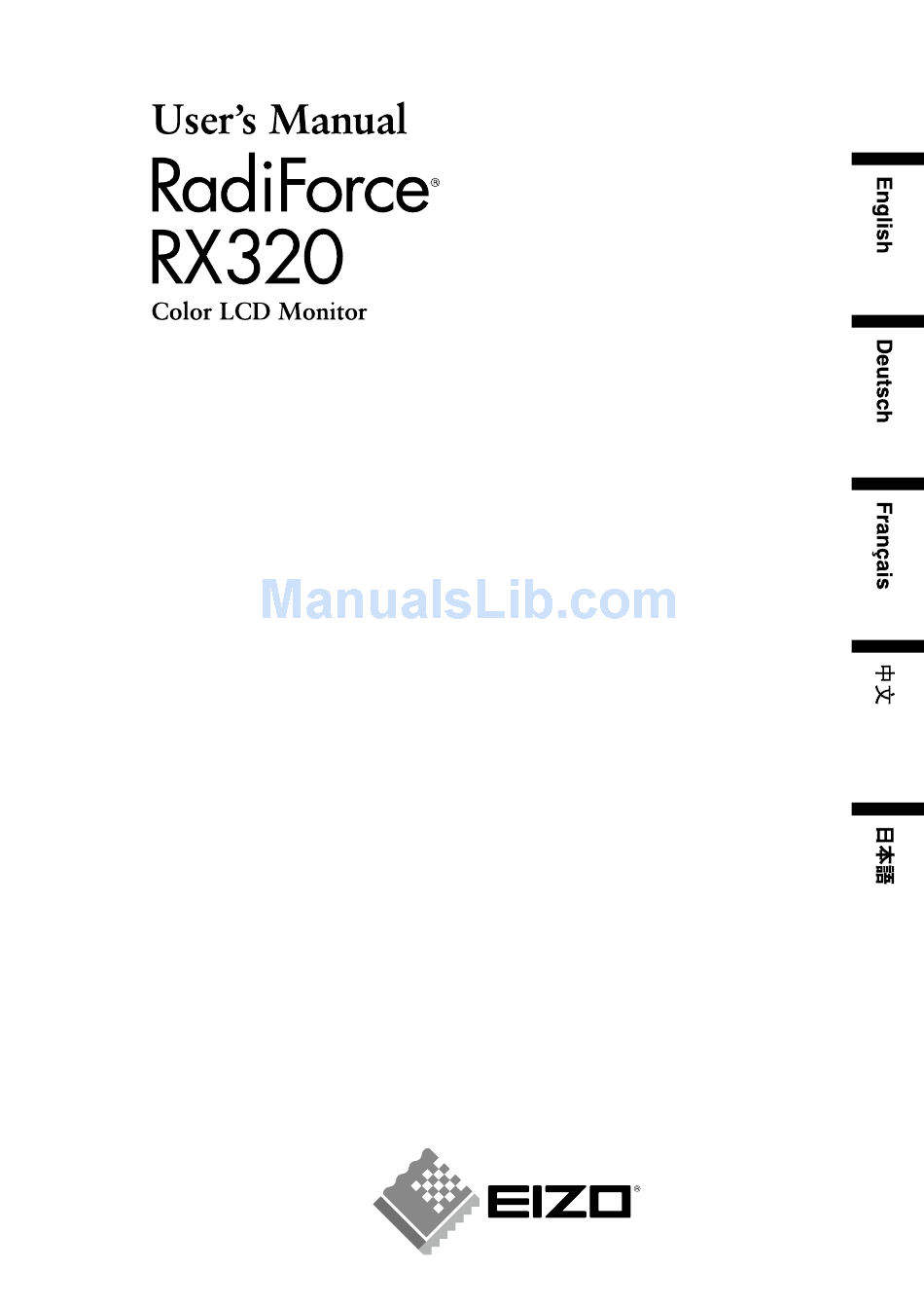

Important
Please read this User's Manual carefully to familiarize yourself with safe and effective
usage. Please retain this manual for future reference.
Wichtig
Bitte lesen Sie dieses Benutzerhandbuch sorgfältig durch, um sich mit der sicheren und
effizienten Bedienung vertraut zu machen. Bewahren Sie das vorliegende Handbuch
zu Referenzzwecken auf.
Important
Lisez attentivement le Manuel d'installation afin de vous familiariser avec la sécurité et
un usage effectif. Veuillez conserver ce manuel pour référence ultérieure.
重要
请仔细阅读用户指南，熟练掌握安全和有效的使用方法。
请妥善保存此手册，供日后参考。
重要
ご使用前には必ず取扱説明書をよくお読みになり、正しくお使いください。
この取扱説明書は大切に保管してください。

Advertisement

Table of Contents
loading

Related Manuals for Eizo RadiForce RX320

Summary of Contents for Eizo RadiForce RX320

  • Page 1 Important Please read this User’s Manual carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. Wichtig Bitte lesen Sie dieses Benutzerhandbuch sorgfältig durch, um sich mit der sicheren und effizienten Bedienung vertraut zu machen. Bewahren Sie das vorliegende Handbuch zu Referenzzwecken auf.

  • Page 2: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...
  • Page 3 It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.

  • Page 4: Safety Symbols

    Copyright© 2009 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ....................... 3 PRECAUTIONS ........................4 Notice for this monitor ........................8 1. Introduction ..........................10 1-1. Features ........................... 10 1-2. Package Contents ........................10 1-3. Controls and Connectors ......................11 2. Cable Connection ......................... 13 2-1.

  • Page 6: Precautions

    PRECAUTIONS PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. • To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below).
  • Page 7 PRECAUTIONS WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 8 PRECAUTIONS WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. Power supply: 100-120/200-240 Vac 50/60Hz To disconnect the power cord, grasp the plug firmly and pull.
  • Page 9 PRECAUTIONS WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.

  • Page 10: Notice For This Monitor

    Notice for this monitor Notice for this monitor • This product is suited to display medical images of such modalities as MRI and CT. It does not support the display of mammography images for diagnosis. • This product has been adjusted specifically for use in the region to which it was originally shipped.

  • Page 11: Lcd Panel

    Notice for this monitor Cleaning NOTE • Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, disinfectant, and abrasive cleaner, which may damage the cabinet or LCD panel. [LCD Panel] • The LCD surface can be cleaned with a soft cloth, such as cotton or lens paper. •...

  • Page 12: Introduction

    (refer to the EIZO LCD Utility Disk). • The utility software “ScreenManager Pro for Medical” (for Windows) to control the monitor from a PC with mouse/keyboard is included (refer to the EIZO LCD Utility Disk). • The height adjustable stand incorporated •...

  • Page 13: Controls And Connectors

    1. Introduction 1-. Controls and Connectors Front ® ScreenManager main menu CAL Switch menu Control Panel (1) Mode Switch Displays the CAL Switch menu (p. 23). (2) Enter Switch Displays the ScreenManager menu, determines an item on the menu screen, and saves values adjusted. (3) Directing Switches* Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the ScreenManager menu.
  • Page 14 1. Introduction Rear Power connector Main Power Switch (6) Stand Used to adjust the height and angle of the monitor screen. (7) Security lock slot Allows for connection of a security cable. This lock supports Kensington’s MicroSavere security system. (8) USB port (Down) Connects a peripheral USB device.

  • Page 15: Cable Connection

    • The procedure for connecting the monitor differs depending on the connection method chosen (Single Link or Dual Link). Verify the graphics board and connection method, and then perform the appropriate connection steps. Refer to Web site of EIZO NANAO CORPORATION for the latest information about supported graphics card (http://www.eizo.com).

  • Page 16: Single Link Cable Connection

    2. Cable Connection -. Single Link Cable Connection NOTE •Be sure that the power switches of both the PC and the monitor are OFF. •Refer to the PC user's manual when connecting the monitor. •Before a 10bit color signal can be input, your graphics board must configured. For details, refer to the user's manual for the graphics board.
  • Page 17 2. Cable Connection Thread the power cord and signal cable through the cable holder on the rear of the monitor stand. NOTE •When threading the cables through the cable holder, lead them to the cable entrance side and pinch the projection to open the cable entrance. •It is recommended that some slack be left in the cables to allow for smooth adjustment of the monitor stand and easy rotation between the portrait and landscape positions.
  • Page 18 2. Cable Connection Turn on the PC’s power. The image will appear. If an image does not appear, refer to “6. Troubleshooting” (p. 33) for additional advice. When finished, turn off the PC and the monitor. Tips •Adjust the brightness of the screen depending on the brightness of your environment.

  • Page 19: Dual Link Cable Connection

    2. Cable Connection -. Dual Link Cable Connection NOTE • Be sure that the power switches of both the PC and the monitor are OFF. • Refer also to the PC user's manual when connecting the monitor. Rotate the monitor ninety degrees clockwise into the portrait position. Connect the signal cable to the DVI-D input connector on the rear of the monitor and to the video output connector on the PC. After connecting, secure the cable connectors with the attached screw-in fasteners. Signal cable DD200DL-BK Power cord...
  • Page 20 2. Cable Connection Thread the power cord and signal cable through the cable holder on the rear of the monitor stand. NOTE •When threading the cables through the cable holder, lead them to the cable entrance side and pinch the projection to open the cable entrance. •It is recommended that some slack be left in the cables to allow for smooth adjustment of the monitor stand and easy rotation between the portrait and landscape positions.
  • Page 21 2. Cable Connection Touch the power switch while touching the mode switch. "Signal Selection" menu The <Signal Selection> menu appears on the screen. Select “Dual Link” and touch the enter switch. "Orientation" menu Next the <Orientation> menu appears. Select (or check) the orientation with directing switches according to your monitor orientation and touch the enter switch. Monitor Orientation Display Example Landscape Select this option when using the Landscape orientation. Portrait (SW) Select this option when using the Portrait orientation. Graphics board utility software is used to rotate the display image 90 degrees.

  • Page 22: 10Bit Color Signal Input

    2. Cable Connection -. 10bit Color Signal Input NOTE •Before a 10bit color signal can be input, your graphics board must configured. For details, refer to the user's manual for the graphics board. •For more on connecting the monitor and computer, refer to “2-2. Single Link Cable Connection” (p. 14) •If the image does not display correctly, verify the “Signal Selection” settings. Verifying “Signal Selection” Settings Turn off the monitor's power by touching the power switch. Touch the power switch while touching the mode switch. "Signal Selection" menu The <Signal Selection> menu appears on the screen. Select “Single Link/ 10bit” and touch the enter switch. "Orientation" menu Next the <Orientation> menu appears. Select (or check) the orientation with directing switches according to your monitor orientation and touch the enter switch. Monitor Orientation Display Example Landscape Select this option when using the Landscape orientation. Portrait (SW) Select this option when using the Portrait orientation.

  • Page 23: Adjustment And Settings

    3. Adjustment and Settings . Adjustment and Settings -1. How to use the ScreenManager Screen adjustments and settings can be performed with the ScreenManager (OSD) and switches of the monitor. ScreenManager menu Directing Switches CAL Switch menu Left, Down, Up, Right Enter Switch NOTE •...

  • Page 24: Screenmanager Menu

    3. Adjustment and Settings -. ScreenManager menu Using ScreenManager menu controls the screen adjustment and settings. Refer to the “Explanation” column in the following table for each detailed functions. Functions The following table shows all the ScreenManager’s adjustment and setting menus. Main menu Sub menu Explanation...

  • Page 25: Color Adjustment

    3. Adjustment and Settings -. Color Adjustment Simple Adjustment [CAL Switch mode] The most suitable display mode is available by switching the mode switch on the control panel. The <Brightness>, <Temperature>, and <Gamma> settings can be adjusted on the CAL Switch menu. CAL Switch Modes Mode Description...
  • Page 26 3. Adjustment and Settings Advanced Adjustments[Adjustment menu] The color settings for each CAL Switch mode can be adjusted and saved in the <Color> menu of the ScreenManager. Available settings The settings available for adjustment and the icons displayed in the ScreenManager will differ depending on which CAL Switch mode is selected.

  • Page 27: Menu Description

    3. Adjustment and Settings Adjustment Contents Menu Description Adjustable Range Brightness Sets the brightness of the 0~170% screen Temperature (p. 39) Sets the color temperature 6000 K~15000 K in 500 K increments (including 9300 K). Tips • The values shown in the Kelvin (K) are available only as reference. •...

  • Page 28: Mode Preset Function -

    3. Adjustment and Settings -. Mode Preset Function <Setup>-<Mode Preset> When CAL Switch mode is selected, the computer can be forced to display only specified modes. Use this function when the display modes are restricted or when the display should not be changed needlessly.

  • Page 29: Off Timer -

    3. Adjustment and Settings -. Off Timer <Others>-<Off Timer> The off timer function causes the monitor to turn off automatically after a predetermined amount of time has lapsed. This function was created to reduce the afterimages particular to LCD monitors, which appear when the screen is left on for long periods without use. [How to set] 1.

  • Page 30: Power Indicator Function -

    3. Adjustment and Settings NOTE • The adjustment lock function may activate when calibration is performed with the calibration kit (RadiCS LE / see Optional, p. 37). The monitor can be unlocked using the same unlocking procedure described above. -. Power Indicator Function <Others>-<Power Indicator > Use the function to keep the power indicator without light while the monitor is operational.
  • Page 31 3. Adjustment and Settings Smoothing the blurred texts Image smoothing can be adjusted if text or lines appear blurred when the display is set to “Full Screen” or “Enlarged” mode. [Procedure] 1. Select < Smoothing> in the ScreenManager <Others> menu. 2.

  • Page 32: Making Use Of Usb (Universal Serial Bus)

    4. Making Use of USB (Universal Serial Bus) . Making Use of USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected.
  • Page 33 4. Making Use of USB (Universal Serial Bus) After setting up, the monitor's USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Example Monitor Mouse Keyboard Downstream ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc. To use “RadiCS LE” (for Windows) or “ScreenManager Pro for Medical”...

  • Page 34: Attaching An Arm

    5. Attaching an Arm . Attaching an Arm The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm stand to the LCD monitor. NOTE • When attaching an arm or stand, follow the instructions of their user’s manual. •...

  • Page 35: Troubleshooting

    6. Troubleshooting . Troubleshooting If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems See No.1 ~ No.2 • Imaging problems See No.3 ~ No.7 • Other problems See No.8~ No.10 • USB problems See No.11...
  • Page 36 6. Troubleshooting Problems Points to check with possible solutions 4. Letters and lines appear blurred. • Check whether the signal setting of your PC matches the resolution and the vertical frequency settings for the monitor. • Adjust the blurred lines using <Smoothing> (p.29) •...

  • Page 37: Specifications

    7. Specifications . Specifications LCD Panel 54cm (21.2 inch), TFT color LDC panel Surface treatment: Anti-Glare Surface hardness: 3H Response Time : Black　 White　 Black 　20ms Viewing Angle Horizontal:170°, Vertical: 170° (CR 50 or more) Dot Pitch 0.21075 mm Horizontal Scan Frequency 31 ~ 127 kHz Vertical Scan Frequency 59 ~ 61 Hz,...

  • Page 38: Default Settings

    7. Specifications Dimensions unit :mm (inches) 325.5(12.8) Default Settings CAL Switch Mode : The default display mode setting is 1-DICOM mode. Brightness Color Temperature Gamma 1-DICOM 400cd/m (approx. 70%) 7500K DICOM setting 2-Custom approx.400cd/m (70%) 7500K 3-CAL 400cd/m (approx. 70%) 7500K DICOM setting 4-Text...
  • Page 39 EIZO “RadiCS UX1” Ver.3.2.2 or later EIZO “Clip-On Swing Sensor G1” Network QC Management EIZO “RadiNET Pro” Ver.3.2.2 or later Software Cleaning Kit EIZO “ScreenCleaner” Refer to Web site of EIZO NANAO CORPORATION for the latest information about supported graphics card (http://www.eizo.com).

  • Page 40: Pin Assignment

    7. Specifications Pin Assignment •DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 19 20 21 22 23 24 17 18 Signal Signal Signal T.M.D.S. Data2- T.M.D.S. Data1- 17 T.M.D.S. Data0- T.M.D.S. Data2+ 10 T.M.D.S.

  • Page 41: Glossary

    8. Glossary . Glossary DICOM (Digital Imaging and Communication in Medicine) The DICOM standard was developed by the American College of Radiology and the National Electrical Manufacturer’s Association of the USA. The DICOM compatible device connection enables to transfer the medical image and information.
  • Page 42 8. Glossary Temperature Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. At high temperatures the white tone appears somewhat Green, while at lower temperatures it appears somewhat red. Computer monitors generally give best performance at high temperature settings.

  • Page 43: Emc Information

    EMC Information Essential performance of RadiForce series is to display images and operate functions normally. CAUTION The RadiForce series requires special precautions regarding EMC and need to be installed, put into service and used according to the following information. Do not use any cables other than the cables that provided or specified by us. Using other cables may cause the increase of emission or decrease of immunity.
  • Page 44 Guidance and manufacturer’s declaration - electromagnetic immunity The RadiForce series is intended for use in the electromagnetic environment specified below. The customer or the user of the RadiForce series should assure that it is used in such an environment. Immunity test IEC60601 test level Compliance level Electromagnetic environment - guidance Electrostatic ±6kV contact ±6kV contact Floors should be wood, concrete or discharge (ESD)
  • Page 45 Guidance and manufacturer’s declaration - electromagnetic immunity The RadiForce series is intended for use in the electromagnetic environment specified below. The customer or the user of the RadiForce series should assure that it is used in such an environment. Immunity test IEC60601 test level Compliance level Electromagnetic environment - guidance Conducted RF 3Vrms Portable and mobile RF EN61000-4-6...
  • Page 46 Recommended separation distances between portable and mobile RF communications equipment and the RadiForce Series The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series as recommended below, according to the maximum output power of the communications equipment.
  • Page 47 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...
