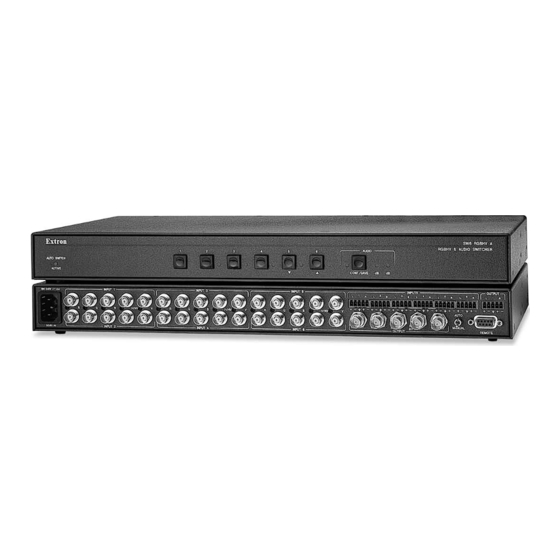

- Page 2 SW RGBHV series Wideband Video and Audio Switchers 68-648-01 Rev. D 07 08 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
- Page 4 FCC Class A Notice N This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Quick Start — SW RGBHV Switchers Installation Step 5 — Audio Inputs Cable audio models for stereo audio input (5). Step 1 — Remove power High impedance is generally over 10k ohms. Turn off power to the input and output devices, and remove the power cords from them.
- Page 6 Switch inputs in normal switch mode Press and release the desired input button. Adjust audio level (SW2 RGBHV A / SW4 RGBHV A / SW6 RGBHV A only) 1. Press and release the desired Press input button.
-
Page 7: Table Of Contents
......................3-4 Powering on the switcher ....................3-4 Switching inputs ........................ 3-4 Audio gain and attenuation (SW2 RGBHV A, SW4 RGBHV A, and SW6 RGBHV A only) .. 3-4 Example — Adjusting the audio level ................3-5 Audio level reset —... - Page 8 Table of Contents, cont’d Chapter 4 • Remote Control ....................4-1 Simple Instruction Set ...................... 4-2 Host-to-switcher instructions .................... 4-2 Switcher-initiated (unsolicited) messages ................ 4-3 Error responses ........................4-3 Timeout ..........................4-3 Using the Command/Response table ................4-3 ......................4-4 Symbol definitions ...............
-
Page 9: Chapter 1 • Introduction
SW RGBHV Series Switchers Chapter One Introduction About the Switchers Features Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 10: About The Switchers
• SW4 RGBHV A (four RGB inputs and four balanced or unbalanced stereo or mono audio inputs) • SW6 RGBHV (six RGB video inputs) • SW6 RGBHV A (six RGB inputs and six balanced or unbalanced stereo or mono audio inputs) The switchers can switch wideband video (RGBHV, RGBs, RGsB, and RsGsBs), component video, S-video, and composite video. -
Page 11: Features
(higher line level) and consumer (lower line level) audio equipment. Consumer VCR Audio Inputs Low Audio Output Output Level Level SW6 RGBHV A RGBHV & AUDIO SWITCHER AUDIO AUTO SWICH ACTIVE CONF/SAVE SW RGBHV A Series Switcher Audio System Audio... - Page 12 Introduction, cont’d Autoswitching mode — When autoswitching is enabled, the switcher continuously monitors all inputs and automatically switches to the highest-numbered input with video sync pulses present. If video is absent from all inputs, no input is selected. Operational flexibility — The operator can select the input and set the audio gain and attenuation for each input using the front panel buttons or via the switcher’s Remote port RS-232 link.
-
Page 13: Chapter 2 • Installation
SW RGBHV Series Switchers Chapter Two Installation Installation Overview Mounting the Switcher Cabling and Rear Panel Views Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 14: Installation Overview
Installation Installation, cont’d Installation Overview Install an SW RGBHV Series switcher as follows: Turn off the input and output devices, and unplug their power cables. If desired, mount the switcher in a rack, under furniture, or through furniture. See “Mounting the Switcher”, below. Connect the input and output devices to the switcher (see “Cabling and Rear Panel Views”, on page 2-7). -
Page 15: Sw2 Models
SW2 models If rubber feet were installed on the bottom of the switcher, remove them. Place the switcher on one half of the optional RSU 129 or RSB 129 1U (one unit high, 19" wide) rack shelf (part #60-190-01 or 60-604-02). Align the front of the switcher with the front of the shelf, and align the threaded holes on the bottom of the switcher with the holes in the rack shelf (figure 2-1). -
Page 16: Sw4 And Sw6 Models
Installation, cont’d SW4 and SW6 models If rubber feet were installed on the bottom of the switcher, remove them. Attach the rack mount brackets to the switcher with eight provided #8 machine screws, provided (figure 2-2). Mounting Screws (2 Plcs) Drill pilot holes Each Side 3/32”... - Page 17 IV E V & DI O IT CH Under Desk Kit Figure 2-3 — Under-furniture mounting SW4 and SW6 models Secure the optional table/wall mounting brackets to the switcher with the eight #8 machine screws provided in the mounting kit (figure 2-2 on page 2-4). Hold the switcher with attached brackets against the underside of the desk or other furniture.
-
Page 18: Through-Furniture Mounting The Switcher
Installation, cont’d Through-furniture mounting the switcher The switchers can be mounted through a desk or other furniture. The SW2 models require an optional through-desk mounting kit, part #70-077-02. The SW4 and SW6 models require the included through-desk and rack mounting bracket. Mount the switcher as follows (figure 2-4): Figure 2-4 —... -
Page 19: Cabling And Rear Panel Views
Tighten the screws. Replace the switcher on the underside of the surface (step 6). Cabling and Rear Panel Views All connectors are on the rear panel. The switcher can be connected to up to six RGBHV or component video devices and (audio models only) stereo audio devices, depending on the model. -
Page 20: Output
Installation, cont’d Balanced or unbalanced audio input connections (SW2 RGBHV A, SW4 RGBHV A, and SW6 RGBHV A only) — Each input has a 3.5 mm, 5-pole captive screw connector for balanced or unbalanced stereo audio input. Connectors are included with each SW RGBHV Series switcher, but you must supply the audio cable. -
Page 21: Remote Connection
Remote connection Remote connector — Connect a host device, such as a computer or touch panel control, or a remote contact closure device to the switcher via this 9-pin D connector (figure 2-10) for remote control of the switcher. See chapter 4, “Remote Control”, for definitions of the SIS commands, details on how to install and use the control software, and information on how to construct a remote contact closure device. - Page 22 Installation, cont’d 2-10 SW RGBHV Series Switchers • Installation Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 23: Chapter 3 • Operation
SW RGBHV Series Switchers Chapter Three Operation Controls and Indicators Switcher Operations Optimizing the Audio (SW2, SW4, and SW6 RGBHV A only) Troubleshooting — If No Image Appears Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 24: Controls And Indicators
Figure 3-1 shows the front panel of an SW2 RGBHV switcher. Figure 3-2 shows the front panel of an SW6 RGBHV A switcher. These two examples show all of the combinations of buttons and enclosure sizes that you may encounter with your particular switcher. -
Page 25: Audio Controls And Indicators
On the SW2 RGBHV A, this button and LED are secondary functions of the Input 1 button and LED. On the SW6 RGBHV A, this button and LED are secondary functions of the Input 5 button and LED. Up ( ) button and LED — The button is used to increase the audio level for a selected input. -
Page 26: Switcher Operations
Audio gain and attenuation (SW2 RGBHV A, SW4 RGBHV A, and SW6 RGBHV A only) Audio switchers have audio gain and attenuation adjustments. The audio level of each input can be adjusted through a range of –18 dB to +24 dB to ensure that there... -
Page 27: Example - Adjusting The Audio Level
Release the button. indicate 0 dB. On the SW4 RGBHV A and SW6 RGBHV A only, the input 1 through 4 LEDs display the approximate audio level for the selected input. Each input LED indicates a range of 6 dB when lit (Input 1 LED off = 0 dB to 5 dB, Input 1 LED lit = 6 dB to 11 dB, Input 2 LED lit = 12 dB to 17 dB, and so on). - Page 28 Operation, cont’d If the +dB and –dB LED are both lit they indicate 0 dB. Otherwise, you can determine the exact gain or attenuation using the following procedure. If one or more input LEDs are lit AND the +dB LED is/are lit, press and release the button repeatedly until the highest-numbered lit input LED goes out.
-
Page 29: Audio Level Reset - Single Input
As necessary, adjust the audio level of each input (see “Audio gain and attenuation (SW2 RGBHV A, SW4 RGBHV A, and SW6 RGBHV A only)”, earlier in this chapter) so that the approximate output level is the same for all selected inputs. -
Page 30: Troubleshooting - If No Image Appears
Operation, cont’d Troubleshooting — If No Image Appears Ensure that all devices are plugged in and powered on. The switcher is receiving power if the front panel Power LED (if equipped) is lit. Ensure an active input is selected on the switcher or that the switcher is in autoswitch mode. -
Page 31: Chapter 4 • Remote Control
SW RGBHV Series Switchers Chapter Four Remote Control Simple Instruction Set Windows ® -Based Control Program Contact Closure Infrared Remote Control Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 32: Simple Instruction Set
Remote Control Remote Control, cont’d The SW RGBHV A Series switchers can be remotely controlled via the switcher’s rear panel Remote connector (figure 4-1). Remote control devices can be: • A host device (such as a computer or control system) •... -
Page 33: Switcher-Initiated (Unsolicited) Messages
The switcher-initiated messages are listed below. (C) Copyright 2002, Extron Electronics, SW6 RGBHV {or appropriate model}, Vx.xx The switcher issues the copyright message when it first powers on. Vx.xx is the firmware version number. -
Page 34: Symbol Definitions
Select video and audio input •All Select input video and audio. Example (SW4 RGBHV A): In3•All Select input 3 video and audio. Example (SW6 RGBHV): In5•All Select input 5 video. & •Vid Select input video only (audio Select video input only breakaway). - Page 35 (manual) switch mode; video and audio unmuted. Request for part number xx-xxx-xx Example 60-493-21 60-493-21 = SW6 RGBHV A. Query firmware version Example 1.23 Sample value only. SW RGBHV Series Switchers • Remote Control Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 36: Windows -Based Control Program
Matrix Switchers Control Program creates a C:\UNIVSW folder and places two icons (Universal Switcher Control Program and Universal Switcher Help) into a group named “Extron Electronics”. SW RGBHV Series Switchers • Remote Control Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 37: Using The Software
For information about program features, you can access the help program in any of the following ways: • From the Extron Electronics program group, double-click on the Universal Switcher Control Program Help icon. From within the Windows-based switcher control program, click on the Help •... -
Page 38: Infrared Remote Control
Remote Control, cont’d Infrared Remote Control The optional Extron IR 102 Remote Control Kit consists of the following components: • IR 102 system remote (hand-held remote control) • IR detector with 6' cable • IR 102 receiver box with 3' cable •... -
Page 39: Appendix A • Specifications And Part Numbers
SW RGBHV Series Switchers A ppendix A Specifications and Part Numbers Specifications Part Numbers Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 40 (or digital audio) SW4 RGBHV/RGBHV A 4 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) SW6 RGBHV/RGBHV A 6 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) Connectors...
- Page 41 Audio — SW 2/4/6 RGBHV A only Gain ..........-18 to +24 dB, adjustable When audio gain is set to unity (0 dB), balanced output has a 0 dB gain; unbalanced output is attenuated by 6 dB. Frequency response ..... 20 Hz to 20 kHz, ±0.05 dB THD + Noise ........
- Page 42 Specifications, cont’d Contact closure pin configurations 1 = input #1, 4 = input #2, 6 = input #3, 7 = input #4, 8 = input #5, 9 = input #6 Program control ......Extron’s control/configuration program for Windows ® Extron’s Simple Instruction Set (SIS ™...
-
Page 43: Sw Rgbhv Switcher Part Numbers
SW4 RGBHV video switcher 60-492-01 SW4 RGBHV A video and audio switcher 60-492-21 SW6 RGBHV video switcher 60-493-01 SW6 RGBHV A video and audio switcher 60-493-21 Supplied accessories Switcher Part # SW RGBHV switcher User’s Manual Universal Switcher Control Program... -
Page 44: Crimp Tools And Assorted Connectors
Specifications, cont’d MHR-5 mini high resolution cable Part # MHR-5/500, five conductor, non-plenum, 500' (150 m) 22-020-02 MHR-5/1000, five conductor, non-plenum, 1000' (300 m)' 22-020-03 MHR-5P/500, one conductor, plenum, 500' (150 m) 22-103-02 MHR-5P/1000, one conductor, plenum, 1000' (300 m)' 22-103-03 MHRHF-5/500, one conductor, halon free, 500' (150 m) 22-126-02... - Page 45 Extron’s Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option,...
