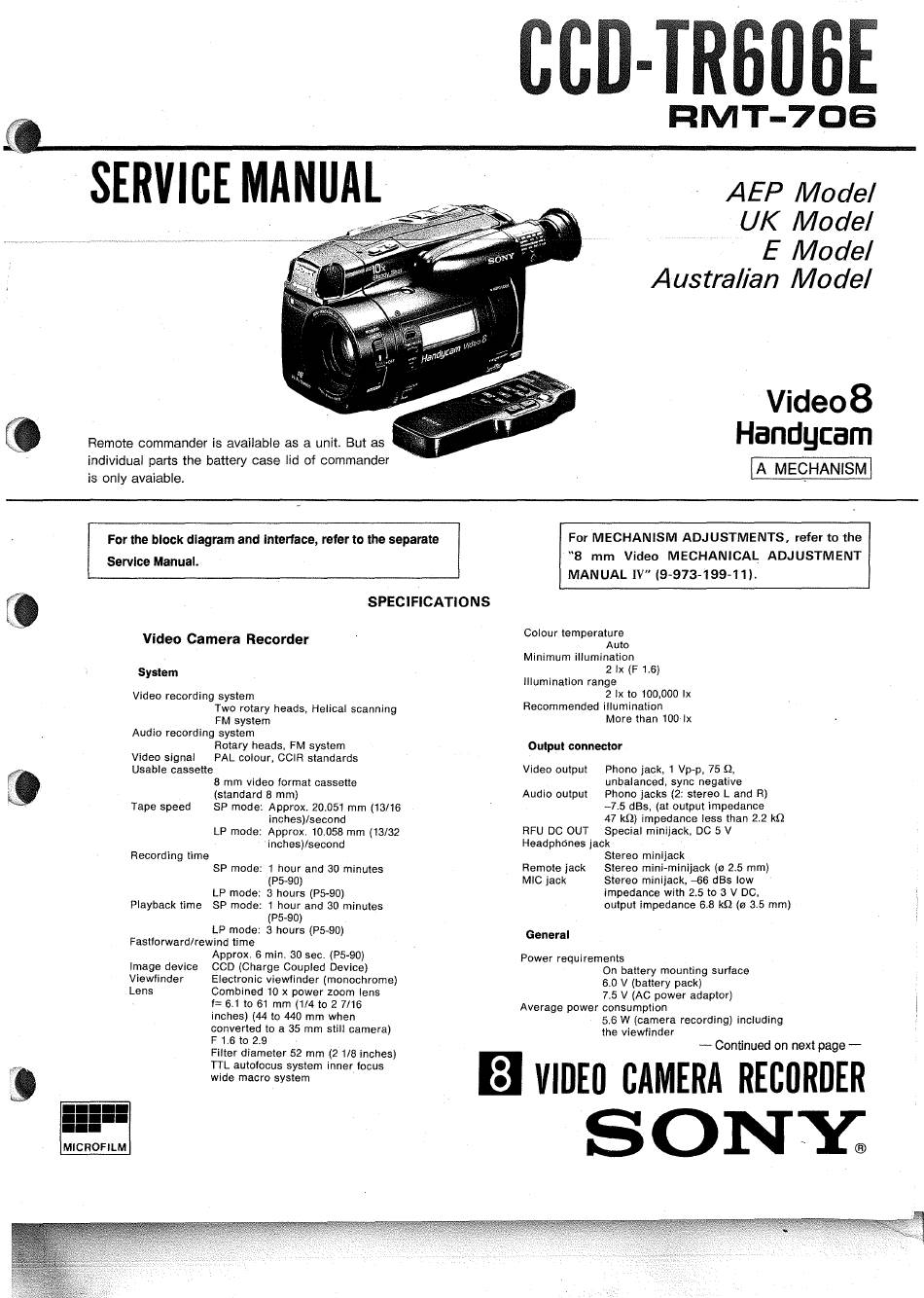

SERVICE MANUAL
Remote commander is available as a unit. But as
individual parts the battery case lid of commander
is only avaiable.
For the block diagram and interface, refer to the separate
Service Manual.
1111111
RMT-706
AEP Model
UK Model
E Model
Australian Model
VideoS
Handycam
I
A MECHANISM
I
For MECHANISM ADJUSTMENTS, refer to the
"8
mm
Video MECHANICAL ADJUSTMENT
MANUAL IV" (9-973-199-11).
SPECIFICATIONS
Video Camera Recorder
System
Video recording system
Two rotary heads, Helical scanning
FM system
Audio recording system
Rotary heads, FM system
Video signal
PAL colour, CCIR standards
Usable cassette
8 mm video format cassette
(standard 8 mm)
Tape speed
SP mode: Approx. 20.051 mm (13/16
Recording time
inches)/second
LP mode: Approx. 10.058 mm (13/32
inches)/second
SP mode: 1 hour and 30 minutes
(P5-90)
LP mode: 3 hours (P5-90)
Playback time
SP mode: 1 hour and 30 minutes
(P5-90)
LP mode: 3 hours (P5-90)
Fastforward/rewind time
Image device
Viewfinder
Lens
Approx. 6 min. 30 sec. (P5-90)
CCD {Charge Coupled Device)
Electronic viewfinder (monochrome)
Combined 10 x power zoom lens
f= 6.1 to 61 mm (1/4 to 2 7/16
inches) (44 to 440 mm when
converted to a 35 mm still camera)
F 1.6 to 2.9
Filter diameter 52 mm (2 1/8 inches)
TTL autofocus system inner focus
wide macro system
Colour temperature
Auto
Minimum illumination
2 lx (F 1.6)
Illumination range
2 lx to 100,000 lx
Recommended illumination
More than 100 lx
Output connector
Video output
Phono jack, 1 Vp-p, 75 Q,
unbalanced, sync negative
Audio output
Phono jacks (2: stereo L and R)
-7.5 dBs, (at output impedance
47 kQ) impedance less than 2.2 kQ
RFU DC OUT
Special minijack, DC 5 V
Headphdnesjack
Stereo minijack
Remote jack
Stereo mini-minijack (0 2.5 mm)
MIC jack
Stereo minijack, --66 dBs low
impedance with 2.5 to 3 V DC,
output impedance 6.8 kQ (0 3.5 mm)
General
Power requirements
On battery mounting surface
6.0 V {battery pack)
7.5 V (AC power adaptor)
Average power consumption
5.6 W (camera recording) including
the viewfinder
- Continued on next page -
