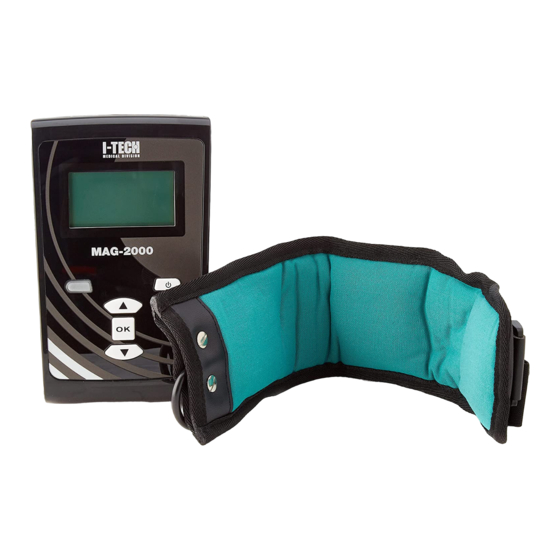

- Page 1 USER MANUAL MNPG52-04 Edition 27/06/2013 Magnetotherapy model MAG2000 I.A.C.E.R. Srl www.iacer.it www.itechmedicaldivision.com...
- Page 2 I.A.C.E.R. Srl Via S. Pertini 24/A – 30030 Martellago (VE) ITALY Tel. +39 041 5401356 – Fax +39 041 5402684 e-mail: iacer@iacer.it - http://www.itechmedicaldivision.com...
-
Page 3: Table Of Contents
Summary Summary Introduction Magnetotherapy Technical Specifications Declaration of conformity Specifications Purpose Technical features Labelling Label details Symbols description Kit contents How to use Warnings Electromagnetic interference Contraindications and side effects Quick use of the device with presetted parameters Adjustable programs instructions Stored programs list Set up ( language selection) Maintenance... -
Page 4: Introduction
Introduction Magnetotherapy It’s a long time that low frequency and high intensity pulsed electromagnetic fields have met maximum scientific consent in chronic and degenerative diseases treatment. Magnetotherapy uses low frequency and high intensity pulsed electromagnetic fields induced by electric current on a bobbin; characteristics, electromagnetotherapy universally recognized as the most suitable technique for the... -
Page 5: Technical Specifications
Declaration of conformity IACER S.r.l., headquartered in Italy, via S. Pertini 24/A 30030 Martellago (VE), declares on its own responsibility that MAG2000 is manufactured in conformity with Directive 93/42/EEC (MDD) dated 14 June 1993 (D. Lgs. 46/97 dated 24 February 1997 “Attuazione della Direttiva 93/42/CEE concernente i dispositivi medici), Annex II as modified by Directive 2007/47/CE dated 5 September 2007 (D. -
Page 6: Specifications
Equipment not suited to be used in external. Purpose Clinical purpose: Therapeutic Use: Clinic/Hospital and domestic use MAG2000 is indicated for the treatment, rehabilitation and functional recovery of the following pathologies: • wrist, hand, shoulder, foot, ankle and knee articulation • skeletal motor apparatus •... -
Page 7: Technical Features
• benign lesions and muscular tears • tendinitis MAG2000 is particularly suitable for the treatment and the care of the osteoporosis and all the pathologies on bony tissues. Cellulite treatment is not inserted in the CE marking of the device 0476 device. -
Page 8: Labelling
Intensity, frequency and time values are given with ±20% of accuracy. Environmental conditions of operation Temperature from +5 to + 40 °C Relative humidity from 10 to 93% Pressure from 500 to 1060 hPa Labelling Label 2 Label 3 Label 4 Label 1 (back) I.A.C.E.R. -
Page 9: Label Details
Label details Label 1 Label 2 Label 3 Label 4 DC 15V/1.2 A ON/OFF CH1 CH2 UE24WCP-150120SPA Symbols description Attention, consult operating instructions Product subject to WEEE regulations concerning separate waste collection of electronic equipment Class II equipment Applied part type BF Compliance with Directive 93/42/EEC and following modifications Manufacturing date (month/year) I.A.C.E.R. -
Page 10: Kit Contents
Moreover solenoids couple and magnetotherapy carpet are available as accessories. Visit website www.iacer.it to obtain more information. How to use Warnings Please read carefully the user manual before using MAG2000. recommend visit magnetotherapy section website www.itechmedicaldivision.com in order to obtain other information. - Page 11 • Take care of position and meaning of the labels on MAG2000; • Do not damage the therapeutic belt acting on connection cable and avoid to roll up the cable around the belt or the device; • Check the integrity of the power supply before use. Avoid the use in case of damage to the case or to the wire;...
-
Page 12: Electromagnetic Interference
Possible additions, changes and/or reparations are effected from authorized personnel. • The electric plant of the environment in which MAG2000 is inserted it is conforming to the national laws. • The instrument is employed in conformity to the instructions contained in this manual. - Page 13 3. Connect the power supply plug to the main (110-230 VAC, 50-60 Hz); 4. Move the ON/OFF switch, placed on device upper side, to the ON position: I-TECH logo and programs menu will be displayed on screen; 5. Select the therapy program running through programs menu, using buttons and put yourself on desired program;...
- Page 14 (step 6). By pressing again key screen will display the programs menu (step 5). Attention: MAG2000 recognizes applicators correct connection. During the treatment screen displays connection state under the magnet icon. I.A.C.E.R. Srl...
- Page 15 The presence of symbol near to the channel number (1 or 2) is an indicator of correct connection and applicator recognition. The symbol X near to the channel number (1 or 2) indicates a not correct connection of applicator, or its absence or even its incorrect functioning (see “Functioning control”...
- Page 16 Cervical Elbow Shoulder Wrist Knee Ankle Tibia/fibula Femur head Femur Shoulder Vertebral column Lumbar Suggestions for a correct use: I.A.C.E.R. Srl MNPG52-04...
-
Page 17: Adjustable Programs Instructions
(optional accessory) for prolonged treatments; Adjustable programs instructions With MAG2000 you can adjust time therapy and magnetic field intensity parameters as indicated in the following steps: 1. Connect the applicator (or the applicators) to the device by connecting applicator cable to one of two plugs (CH1-CH2) placed on device upper side;... - Page 18 Osteoporosis Arthrosis Arthritis Cerv. Arthrosis Articular pain Cervicalgias Sprains Fractures 6. Press OK. Screen will display base setting with therapy time (2 hours) and magnetic field intensity (50 int.). These parameters can be modified as follows: a) Press OK button: screen displays a moving key icon on the left side;...
- Page 19 c) Press key to adjust the desired therapy minutes (from 0 to 59) and confirm by pressing OK key. Screen will highlight treatment intensity; d) Press key to adjust the treatment intensity (from 5 to 100 Gauss on P1-P20 programs, from 5 to 150 Gauss on P21-P35 programs) and confirm by pressing OK key;...
- Page 20 (step 6). By pressing again key screen will display programs menu (step 5). Attention: MAG2000 recognizes applicators correct connection. During the treatment screen displays connection state under the magnet icon. The presence of symbol near to the channel number (1 or 2) indicates correct connection and applicator recognition.
-
Page 21: Stored Programs List
Stored programs list Pre-adjusted values Recommended values N° Pathology Time Treatment Treatment cycles interval hours Osteoporosis 2 - 6 24 hours Arthrosis 2 - 6 24 hours Arthritis 2 - 6 24 hours Cervical arthrosis 2 - 6 24 hours Articular pain 2 - 6 24 hours... -
Page 22: Set Up ( Language Selection)
(tendons, ligaments) in the same treatment. Therapy duration values are recommended by I.A.C.E.R. S.r.l. however the user can adjust the time as he prefers. MAG2000 uses therapy time values, working frequency values and field intensity values coming from scientific and medical literature, as result of well known sperimentations and clinical evaluations (Barker - Lunt 1983, Bassett –... -
Page 23: Maintenance
Maintenance Functioning control Mag2000 equipment offers a magnet in order to control the device functioning. Control procedure: 1. switch on the device in according to user manual safety prescriptions; 2. start a treatment in according to user manual instructions; 3. get the magnet and put it near to applicator;... -
Page 24: Carriage And Storage
Carriage and storage Carriage precautions MAG2000 is a portable device, so it does not need any particular carriage precautions. However we recommend to put away MAG2000 and its accessories in their own bag after every treatment. We recommend to not roll up power supply and applicators cables. -
Page 25: Assistance
• check the connection with power supply and connection cables integrity; • check the correct connection between MAG2000 and the applicator (or the applicators); • check all the operations have been done properly; • every two years we suggest a complete check of device (contact the manufacturer or locator dealer). - Page 26 I.A.C.E.R. S.r.l. Via S. Pertini, 24/a • 30030 Martellago (VE) - ITALY Tel. +39 0415401356 • Fax +39 0415402684 www.itechmedicaldivision.com • iacer@iacer.it To preserve product warranty, functionality and product safety we recommend to use only original spare parts. I.A.C.E.R. Srl MNPG52-04...
-
Page 27: Emc Tables
EMC tables Electromagnetic emission Emission test Compliance Electromagnetic environment – guidance Group 1 MAG 2000 uses RF energy only for its internal function. Therefore, its RF RF emissions emissions are very low and are not Cispr 11 likely to cause any interference in nearby electronic equipment Classe B MAG 2000 is suitable for use in all... - Page 28 IEC 61000-4-11 (60% dips of U (60% dips of U If the user of the per 5 cycles per 5 cycles MAG2000 requires continued operation 70% U 70% U during power mains (30% dips of U (30% dips of U...
- Page 29 RF Radiata 3 Veff from 3 Veff from communications equipment EN 61000-4-3 80MHz to 2,5GHz 80MHz to 2,5GHz should be used no closer to any part of MAG 2000, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
-
Page 30: Warranty
Warranty Make reference to the national laws for any warranty conditions by contacting the national distributor (or directly the manufacturer IACER). MAG2000. All rights reserved. MAG2000 and logos are owned by I.A.C.E.R Srl and are registered. I.A.C.E.R. Srl... -
Page 31: Mnpg52-04
I.A.C.E.R. Srl MNPG52-04... - Page 32 I.A.C.E.R. Srl MNPG52-04...
