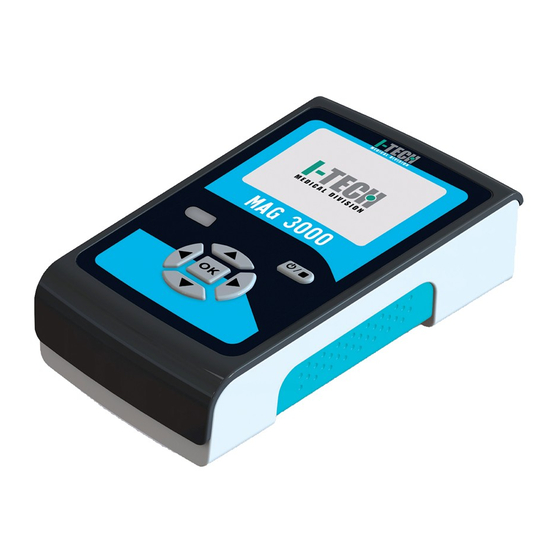

- Page 1 USER MANUAL MNPG273-00 Edition 03/01/2020 Magnetotherapy model MAG3000 I.A.C.E.R. Srl www.itechmedicaldivision.com...
- Page 2 I.A.C.E.R. Srl Via S. Pertini 24/A – 30030 Martellago (VE) ITALY Tel. +39 041 5401356 – Fax +39 041 5402684 e-mail: iacer@iacer.it https://www.itechmedicaldivision.com...
-
Page 3: Table Of Contents
Summary Summary Introduction Magnetotherapy Technical specification Manufacturer Declaration of conformity Classifications Intended purpose and scope of use Technical characteristics Labelling Device labels in detail Description of the symbols (device and packaging) Contents of the pack How to use the device Warnings Electromagnetic interference Contraindications and side effects... -
Page 4: Introduction
Introduction Magnetotherapy The treatment of certain conditions through low frequency and high intensity pulsed magnetic fields has garnered great consensus amongst international scientific circles for many years, especially as regards chronic and degenerative diseases. Magnetotherapy uses low frequency and high intensity pulsed magnetic fields induced by the electric current that runs through a coil;... -
Page 5: Technical Specification
Notified body:TÜV Rheinland Italia srl, Via Mattei 3 - 20010 Pogliano Milanese (MI) Italy. Certification path:Annex II, excluding item 4. The MAG3000 device is a class IIa equipment according to Annex IX, rule 9 of Directive 93/42/EEC (and subsequent amendments). Martellago, 12/06/19... -
Page 6: Classifications
1.4 of the same annex, the device relies on an electrical energy source, therefore it is considered as an active medical device. With reference to point 1.5 of the mentioned annex, the MAG3000 is an active therapeutic device, as it is intended for the treatment of various types of conditions. -
Page 7: Intended Purpose And Scope Of Use
MAG3000 is particularly indicated in the treatment of bone fractures even in the presence of rigid bandages or plaster casts. The distinctive feature of the MAG3000 device is the possibility of managing two treatments at the same time, by setting different times and programs. -
Page 8: Technical Characteristics
Technical characteristics Power supply Pow. UES36LCP-150200SPA, out 15VDC-2A Max. current consumption Insulation class (CEI EN 60601-1) Applied part (CEI EN 60601-1) Dimensions (length x width x 180x110x50 height)(mm) Intensity of the field Adjustable with increasing scale up to 150 Gauss (per channel). -
Page 9: Labelling
Labelling Label 3 Label 4 Label 2 Label 1 Device labels in detail Label 1 Label 2 Label 3 Label 4 DC 15V/2.0A ON/OFF CH1 CH2 UES36LCP-150200SPA I.A.C.E.R. Srl MNPG273-00... -
Page 10: Description Of The Symbols (Device And Packaging)
Manufacturer's data IP21 Degree of protection against the entry of solids, powders and liquids Center positive symbol Contents of the pack The MAG3000 pack contains: • N°1 MAG3000 device; • N°1 medical power supply (approx 1.5mt cable); • N°1 Use and maintenance manual;... -
Page 11: How To Use The Device
• N°1 device carry bag; • Magnet for verifying therapy operation • Non-woven fabric strip 15x150 cm (see page 15 for further details) The professional applicator with a pair of solenoids is available as an optional accessory. Visit www.itechmedicaldivision.com/it for more information. -
Page 12: Electromagnetic Interference
• the electrical system of the environment in which MAG3000 is inserted complies with national laws. • the devices are used in strict compliance with the instructions reported in this manual. -
Page 13: Contraindications And Side Effects
Quick use of the device with preset parameters To start using MAG3000 quickly and easily, we recommend that you follow the steps below: 1. Connect the applicator (or applicators) to the device by connecting the plug of the applicator cable to one of the two ports (CH1-CH2) on the panel at the top of the appliance;... - Page 14 6. Press OK. The display will show the basic setting time of the therapy (2 hours) and magnetic field intensity. These are the average values suggested by IACER to immediately start the treatment effectively. Label 1 7. Press the OK button. The device will start the treatment, displaying the magnet icon with the magnetic field flux.
-
Page 15: Use Of The Therapeutic Belts And Solenoids, Main Applications And Suggestions
Note: the device recognises if the applicators are connected correctly. During the therapy phase, the connection status is displayed below the magnet icon. The presence of the symbol next to the channel number (1 or 2) confirms the applicator is connected correctly and recognized. - Page 16 Knee Back (lumbar) Ankle Cervical vertebrae Elbow Shoulder Wrist Knee Ankle Tibia / fibula Femoral head Femur Shoulder I.A.C.E.R. Srl MNPG273-00...
-
Page 17: Instructions For Using The Preset Programs
230VAC, 50-60 Hz); 4. Press the ON/OFF switch on the small panel in the upper part so it is in the ON position: the display will show the I-TECH MEDICAL DIVISION logo and then the main menu screen; 5. Select "Single Patient" and scroll through the programs using the buttons and select the desired program I.A.C.E.R. - Page 18 6. Press OK. The display will show the basic setting of therapy time (2 hours) and intensity of magnetic field that we will modify; a) Press the button so that the spanner is highlighted. At this point press OK: the display shows a moving spanner icon on the left-hand side;...
- Page 19 b) Use the buttons to set the desired therapy hours (from 0 to 24) and confirm by pressing the OK button. The display will highlight the minutes of therapy; c) Use the buttons to set the desired therapy minutes (from 0 to 59) and confirm by pressing the OK button. The display will highlight the intensity of the treatment;...
-
Page 20: Instructions For Using Programs In Double Patient Mode
8. At the end of the therapy, the device will automatically return to the program menu screen. Instructions for using programs in Double Patient mode To use the "Double Patient" mode of the MAG3000 device, follow these simple steps: 1. Connect the applicator (or applicators) to the device by connecting the plug of the applicator cable to one of the two ports (CH1-CH2) on the panel at the top of the appliance;... - Page 21 Choose the desired settings: a) Use the buttons to set the desired therapy hours (from 0 to 24) and confirm by pressing the OK button. The display will highlight the minutes of therapy; b) Use the buttons to set the desired therapy minutes (from 0 to 59) and confirm by pressing the OK button.
- Page 22 c) Use the buttons to set the treatment intensity and confirm by pressing the OK button; 7. The device will now let you select the second program to be carried out. Follow the procedure described in point 6. 8. At the end of the therapy, the device will automatically return to the program menu screen.
-
Page 23: List Of Stored Programs
List of stored programs Preset values Recommended values Condition Duration Session Interval cycles between hours sessions Osteoporosis 2 – 6 30 – 60 24 hours Arthrosis 2 – 6 30 – 60 24 hours Arthritis 2 – 6 30 – 60 24 hours Cervical arthrosis 2 –... - Page 24 Ligament lesion 2 – 6 30 – 60 24 hours Bone oedema 2 – 6 30 – 60 24 hours Tendinitis 2 – 6 30 – 60 24 hours Chondropathy 2 – 6 30 – 60 24 hours Anti-inflammatory 2 – 6 30 –...
- Page 25 Articular pain: analgesic program designed for the joints. Cervicalgias: specific program for the reduction of cervical pain. Chronic pain: program designed to reduce pain and inflammatory processes. It is recommended to use the applicators on the area where the pain is felt. Fractures: specific program for the stimulation of bone regeneration in a post-traumatic condition.
- Page 26 Bone oedema: specific program for the stimulation of bone tissues in cases of bone oedema. Tendinitis: program designed for the treatment of inflammation of tendon tissues. Chondropathy: specific program for osteoarthritis (a particular type of chondropathy), designed for the reduction of inflammation of cartilaginous tissues.
-
Page 27: Last 10
The therapy duration values are those recommended by IACER S.r.l. and can be altered by the user. The MAG3000 magnetotherapy device incorporates the indications regarding magnetic field, frequency of therapy and power delivered that are found in scientific and medical literature, the result of experiments and clinical evaluations carried out (Barker - Lunt 1983, Bassett - Pawluk - Pilla 1974, Bassett - Valdes - Hernandez 1982). -
Page 28: Settings (Language Selection)
Settings (language selection) Press the ON/OFF switch located on the small panel in the upper part so it is in the ON position. After the I-TECH MEDICAL DIVISION logo appears, press and select the "Settings" menu. At this point select "Language"... -
Page 29: How To Look After The Device
How to look after the device Checking device operation A magnet (small ring or disc in metal or metal/plastic) is supplied with the appliance to check device operation. Procedure for checking: 1. switch on the device following all the safety instructions provided in this manual;... -
Page 30: Transport And Storage
Transport and storage Transport precautions There is no particular care to be taken during transport as MAG3000 is a portable device. It is recommended to store MAG3000 and its accessories in the bag supplied after each use and store everything inside the original box. -
Page 31: Support
• verify that all operations have been performed correctly; • every two years check that all functions of the device work correctly (contact the manufacturer). If you discover a problem or you require further information, please contact the manufacturer immediately at: I.A.C.E.R. -
Page 32: Emc Tables
RF emissions Class B The MAG3000 is suitable for use in all Cispr 11 buildings in addition to domestic ones and those directly connected to a low- Harmonic emissions... - Page 33 Immunity aspects The MAG3000 is intended to work in the electromagnetic environment specified below. The customer or user should make sure that it is used in such environment Immunity test Test level Compliance Electromagnetic 60601-1-2 level environment - guidance ± 8kV contact ±...
- Page 34 Recommended separation distance between portable and mobile radio communication devices and the MAG3000 device The MAG3000 is intended to operate in an electromagnetic environment in which RF irradiated disturbances are controlled. The customer or the operator of the device can help prevent...
-
Page 35: Warranty
Warranty MAG3000 is covered by a 2 year warranty starting from the date of purchase on the electrical and electronic parts. The parts subject to normal wear and tear are not covered by the warranty (fabric case of... - Page 36 10. The court of Venice has exclusive jurisdiction over any dispute. MAG3000. All rights reserved.MAG3000 and the logo are the exclusive property of I.A.C.E.R.Srl and are registered trademarks.
- Page 37 I.A.C.E.R. Srl MNPG273-00...
- Page 38 I.A.C.E.R. Srl MNPG273-00...
- Page 39 Unlock code: 18273 I.A.C.E.R. Srl MNPG273-00...
