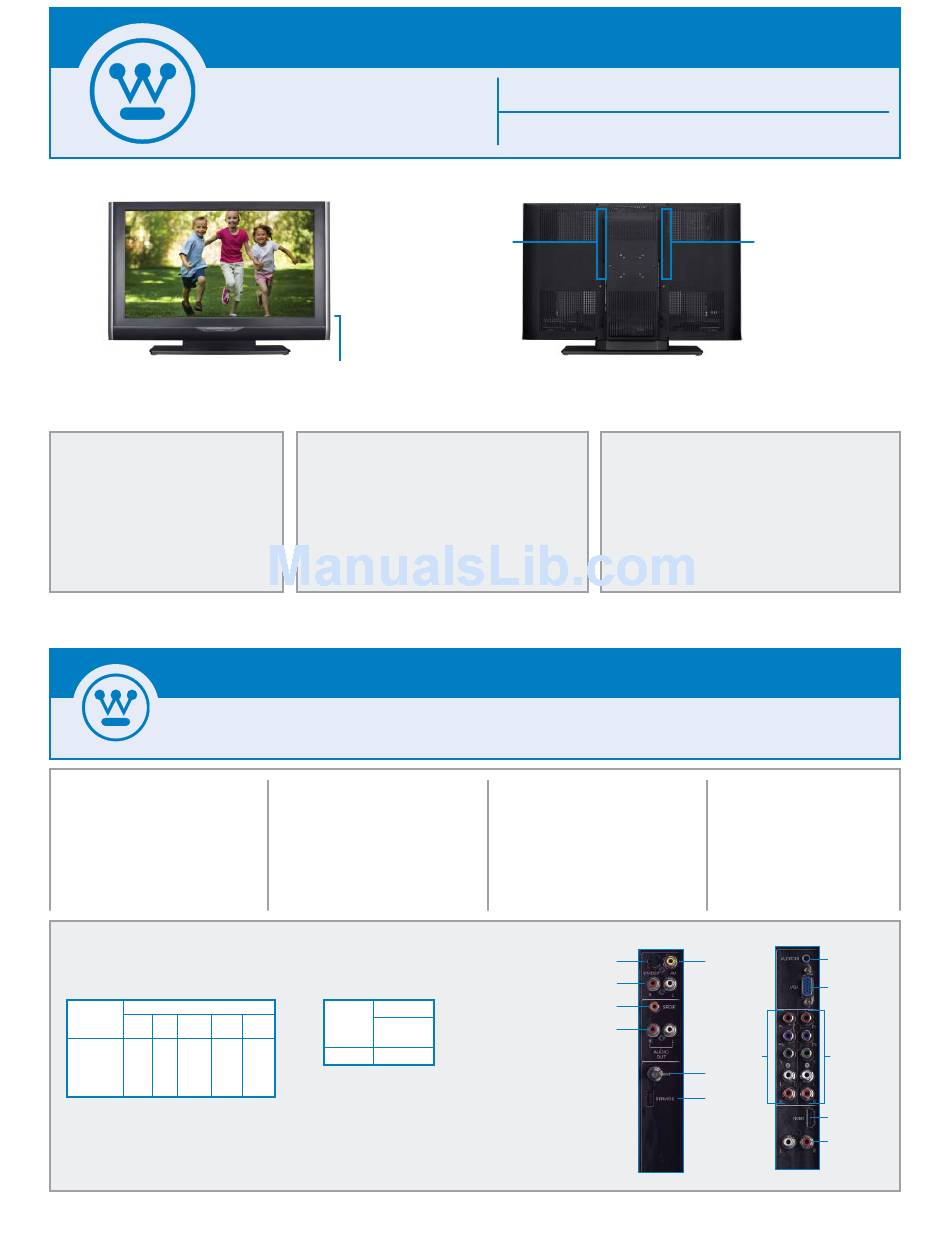

Westinghouse LTV-40w1 HDC Start Here

DID YOU KNOW THAT
YOUR LCD TV ALSO HAS:
• Easy side access to connectors through innovative
spine design
• Front slot loading DVD
CHECK OUT
www.westinghousedigital.com for our:
• Versatile Décor Wall Mounting options
• Décor Frames for LCD TVs with Acoustical Mattes
Quick Install Guide
CONGRATULATIONS
started in 3 easy steps. For complete installation, usage instructions, and safety precautions please refer to the User's Manual.
1
ANTENNA
Connect a terrestrial antenna or
Cable coaxial cable to the "Ant."
connector.
MAXIMIZE YOUR LCD TV EXPERIENCE
including a digital cable or satellite set top box, a game console, a VCR, or a computer. The chart shows our
recommendations for the best quality picture for these commonly used devices.
VIDEO INPUTS
TV Video S-Video YPbPr
Tuner
Digital Cable/
Satellite Receiver Good
Game Console Good Better Better
VCR Good Better Best
Note: The audio input is shared between Video and S-Video
TYPICAL SETUP
• HD cable or satellite with HDMI
• Game console action using YPbPr
• VCR viewing and editing with Video input
©
2005 Westinghouse Digital Electronics, LLC. All rights reserved. Specifications subject to change without
¼, Westinghouse You can be sure... if it's Westinghouse
notice. and
Corporation and are used under license. MA-PS-0117-0601
Westinghouse Digital Electronics
Start Here
LTV-40w1 HDC
Keypad: Power
& DVD Controls
SAVIEZ-VOUS QUE
VOTRE TV LCD EST AUSSI MUNIE:
• Conception innovante pour faciliter l'accès latéral aux connecteurs
• Le lecteur DVD à ouverture frontale
CONSULTEZ
www.westinghousedigital.com pour nos:
• Options multiples de Montants Muraux Décoratifs
• Cadres de décorations pour les TV LCD avec Caches Acoustiques
on purchasing a Westinghouse high definition LCD TV! This Quick Connect Guide will help you get
2
CHANNEL SET-UP
Power on the new LCD TV. Use
the keys on remote control or
side panel buttons to navigate
to the "Tuner Source" under the
"TV" Menu.
You can attach your LCD TV to a variety of electronic devices
PC INPUTS
HDMI
VGA
(RGB)
Best Monitor Best
Best
• Remember to adjust the resolution of your
computer to 1360 x 768 for best performance.
Use the input button on the remote control or keypad
to navigate between the DVD, TV, HDTV, YPbPr 1,
YPbPr 2, HDMI, Video, S-Video or VGA inputs.
are trademarks of Westinghouse Electric
Comienzo Aquí
Démarre Entière
YPbPr/VGA/
HDMI Inputs
3
AUTO SCAN
Select your signal source in "Tuner
Source", and press "Enter" on
"Auto Scan" under the "TV" Menu.
When Auto Scan is completed,
press "Enter" to exit*.
*This process may take several minutes.
S-Video In
S Video/
Video Audio
R/L
SPDIF
Audio Out R/L
Customer Service: 866.287.5555 • www.westinghousedigital.com
Video/S-Video/
Antenna Inputs
¿SABÍA USTED QUE SU TELEVISOR CON
PANTALLA DE CRISTAL LÍQUIDO TAMBIÉN TIENE:
• Fácil acceso lateral a los conectores a través del innovador
diseño espinal
• DVD player con ranura delantera para carga
CONSULTE
www.westinghousedigital.com para ver nuestras:
• Opciones de montaje en pared con versátiles decorados
• Marcos decorativos para televisores con pantalla de cristal
líquido con paneles acústicos
GO!
Insert disc into DVD slot
and you are now ready to enjoy
your new Westinghouse high
definition DVD combo LCD TV.
Video In
YPbPr 2
Antenna
Service Port
VGA Audio Input
VGA
YPbPr 1
HDMI Input
HDMI Audio Input
