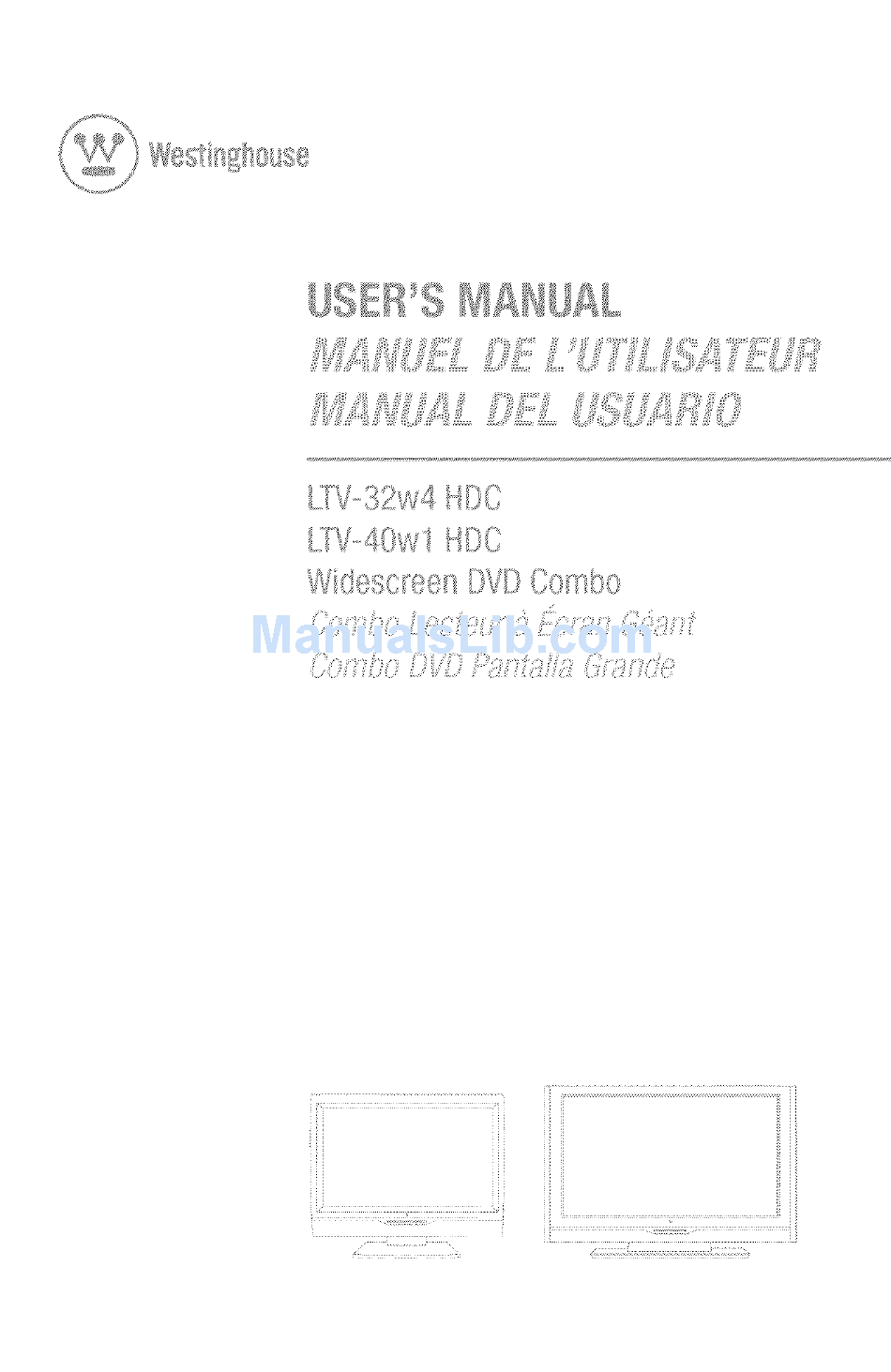

  • Page 1 KW-32w4 t_!DC _V-4Owl /,IDC Wi@scteen DYDCombo LO/8C/8/ 11 11 ; x;]]Zi] ¸:¸¸ L...

  • Page 2: Table Of Contents

    Contents Cleaning the LCD TV DVD combo ..........Product Safety Instructions ............Antenna Installation Safety ............Safety Guidelines ..............INSTALLATION Package Contents ..............Front View of the LCD TV DVD combo ........Rear View of the LCD TV DVD combo ......... Side View of the LCD TV DVD combo .........

  • Page 3: Cleaning The Lcd Tv Dvd Combo

    Some chemical cleaners have been reported to damage the screen and/or LCD TV DVD combo case. Westinghouse Digital will not be liable for damage resulting from the use of any ammonia or alcohol-based cleaners. Thank you for purchasing...

  • Page 4: Product Safety Instructions

    • If the LCD TV DVD combo emits smoke, abnormal noise, or a strange odor, immediately turn it off and contact the Westinghouse Service Center. WARNING - To Reduce The Risk Of Fire Or Electric Shock,...

  • Page 5: Antenna Installation Safety

    Antenna Installation Safety Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use the LCD TV DVD combo near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 6: Safety Guidelines

    Increase the separation between the LCD TV DVD combo and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the Westinghouse Service Center or an experienced radio/TV technician for assistance. FCC Warninq To assure continued FCC compliance,...

  • Page 7: Installation

    INSTALLATION This User Manual covers models: LTV-32w4HDC and LTV-40w1HDC Package Contents Your product package includes: • Westinghouse LCD TV DVD combo • Remote Control (with batteries) • Power Cord • Quick Connect Guide • User's Manual • Warranty Card Front View of the LCD TV DVD combo...
  • Page 8 Side View of the LCD TV )ineDesign Input connector Control keys Control Key MENU VC)L ÷ INPUT © I_11...

  • Page 9: Input Connectors

    Input connector 1. S-Video Input Connect to a legacy video device such as a VCR or video game system. 2. Video Input Connect the Composite Video to a legacy video device such as a VCR or video game system. 3. Video &...

  • Page 10: Remote Control

    Remote Control 1. POWER Switch the power On/Off Mute : Turn the Sound On/Off. 3. DVD Eject : Eject the DVD disc. Select VGA source input. 5. DVD : Select DVD source input. 6. TV: Select TV source input to toggle between Standard Definition TV (SDTV) and High Definition TV...
  • Page 11 Remote Control (cont.) 18.Menu Turn OSD Menu ON/OFF. 19. V/A/_I/I_: OSD Menu control. 20. Enter : Execute a command. INFO : Display the source and channel information EPG : Electronic program guide for HDTV 23. DVD (Setup) button: Press when the player is in either play or stop mode to open and close the setup screen (disc must be inserted).

  • Page 12: Installation

    Installation 1, Insert Remote Control Batteries 1) Remove the battery cover. 2) Insert the batteries corres to (+) and (-) marks on the battery compartment. 3) Re-attach the battery cover. CAUTION: • Only use AAA batteries. • Do not mix new and old batteries. This may result in cracking or leakage, which...
  • Page 13 Connect one or all of the following into the back of the LCD TV DVD combo. IMPORTANT: Before beginning, make sure all devices are turned off. 2. Connect audio and video cables from a PC VGA CONNECTION: Connect an analog VGA cable from your PC VGA OUT port to the LCD TV DVD combo VGA IN port.
  • Page 14 4. Connect power cables Connect the power cord to the LCD TV DVD combo then to a properly grounded outlet. IMPORTANT: The power input voltage is 120VAC, 60 Hz, 3A, Before beginning, make sure all devices are turned off. 5. Turn Power On Press the Power button on the right side of the LCD TV DVD combo,...

  • Page 15: Playing A Disc

    Playing a Disc This product is an LCD TV DVD combo with Westinghouse Auto Wake feature. From the power off state, just insert disc, sit back, and enjoy your movie. This section describes basics on how to play a disc.
  • Page 16 Customizing the function You can change the default DVD setting to your preference via remote control keys or control panel on the right side of LCD. To display DVD setting menu, press Setup button on the remote control or select DVD SETTING submenu from main menu.

  • Page 17: Image Settings

    Function adjustment: All the function can be adjusted either by the remote control or using the control keys on the right side of LCD TV DVD combo. To display the OSD main menu, press the Menu button on the right side of front control keys of the LCD TV DVD combo or the MENU key on the remote control.

  • Page 18: Swap / Pip Size / Pip Position / Audio From

    DISPLAY SETTING: Function Name Function Select main screen sources: MAIN SOURCE "TV","HDTV", "VIDEO", "S-VIDEO", "YPbPrl", "YPbPr2" "VGA", "DVD", "HDMI" PIP SOURCE Select sub screen sources ASPECT RATIO Select "STAN DARD", "FI LL" PIP MODE Select "OFF", "PIP", "PBP", "POP". SWAP Swap main screen and sub-screen source.
  • Page 19 AUDIO SETTING: BASS Bass adjustment TREBLE Treble adjustment BALANCE Balance adjustment Select STEREO, MONO, or SAP MUTE Select audio "OFF" or "ON" SPEAKER Select "internal", "external", or "Both" speakers AUDIO OUT Select SPDIF OUT for 2.1 channel or 5.1 channel RESET Select "NO"...
  • Page 20 TV/HDTV SETTING:...

  • Page 21: Edit

    PARENTAL CONTROL: The parental controls feature prevents viewers from watching programs that are not age-appropriate, such as programs containing violence or adult language. Function Name Function The factory default password is "0000". Use remote control to key PASSWORD _nthe number and enter the parental controls sub-menu.

  • Page 22: Menu Position / System Info

    GENERAL SETTING: Function Name • Function TRANSPARENCY Set OSD transparency level MENU POSITION OSD horizontal/vertical position adjustment SYSTEM INFO Display input source, type and signal Turn closed caption or CC1, CC2, CC3, CC4, CLOSED CAPTION TEXT1, TEXT2, TEXT3, TEXT4 LANGUAGE OSD language selection SLEEP TIMER...

  • Page 23: Specifications

    LTV-32w4 HDC LCD TV Specifications Model Name LTV-32w4 HDC 32" (32.02" viewable diagonal area), TFT (Thin Film Transistor), Active Panel Type Matrix WXGA LCD, 1366 x 768 vertical stripe Color Anti-reflective coating + Anti-glare coating Viewing Angles 170 ° (H)/170 ° (V) Input Signal Video/Audio VGA Analog * 1 (75 ohms, 0.7 Vp-p)/Mini-Stereo...
  • Page 24 LTV-40wl HDC LCD TV Specifications Model Name LTV-40W1 HDC 40" (40.02" viewable diagonal area), TFT (Thin Film Transistor), Active Panel Type Matrix WXGA LCD, 1366 x 768 vertical stripe Viewing Angles 178 ° (H)/178 ° (V) Input Signal Video/Audio VGA Analog * 1 (75 ohms, 0.7 Vp-p)/Mini-Stereo "1 H/V separated (TTL) for PC;...

  • Page 25: Troubleshooting

    Troubleshooting No Power • Make sure power button is ON (Blue LED ). • Make sure AC power cord is securely connected to the AC socket. • Plug another electrical device (such as a radio) to the power outlet to verify that the outlet is supplying the proper voltage.
  • Page 26 • The setup may not match your TV system. No subtitle • Some discs have no subtitles. How Can I Find More Help? • Log on to: www.westinghousedigital.com • Contact Westinghouse Customer Service at (866) 287-5555 or write us at service@westinqhousediqital.com...

This manual is also suitable for:

Ltv-32w4 hdc
