Vulcan-Hart GCO22D Specifications

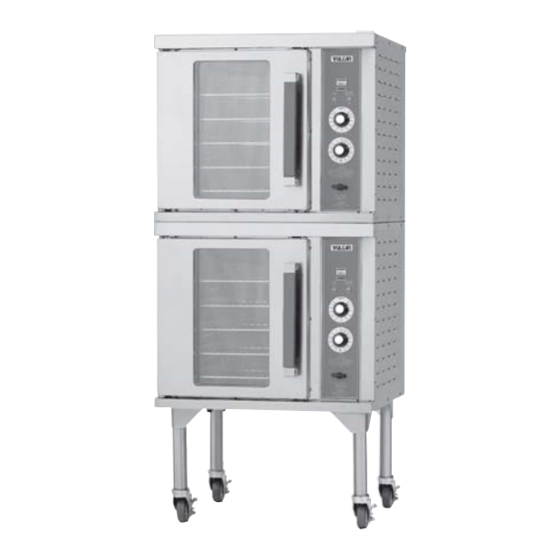

GCO22D
shown on optional casters
SPECIFICATIONS:
Double deck half size gas convection oven, Model No.
GCO22D, manufactured by Vulcan-Hart. Each porcelain
enamel on steel oven interior measures 15
Furnished with nine position nickel plated rack guides and five
nickel plated racks measuring 14
oven heated by 25,000 BTU/hr. gas burner. 50,000 BTU/hr.
total input. Stainless steel front, sides, top and rear enclosure
panel. Insulation applied to the top, rear, both sides, bottom
and door. Stainless steel doors with double pane window.
Solid state temperature controls adjustable from 200° to
500°F. 60 minute electrical timers with continuous sounding
buzzer. Single speed / H.P. permanently lubricated oven
1
2
blower motors. Requires 120/60/1 power supply. 16 amps
total draw. Each oven furnished with cord and plug.
Exterior dimensions: 30"w x 28
CSA design certified for use in the U.S. and Canada.
NSF listed.
Specify type of gas and finish when ordering. Specify
altitude if above 2,000 ft.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32207 (03-08)
/ "w x 21"d x 20"h.
1
4
3 / " x 20 7 / " per section. Each
8 8
1 / "d x 68 3 / "h on 16 3 / " legs.
4 8 4
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
MODEL GCO22D
DOUBLE DECK GAS HALF SIZE
CONVECTION OVEN
STANDARD FEATURES
■ Stainless steel front, sides, top and rear enclosure panel.
■ Stainless steel doors with double pane window.
■ Cool to the touch oven door handles.
■ Stainless steel oven door gaskets.
■ 50,000 total BTU/hr. input (25,000 BTU/hr. per section).
■ Electronic spark ignition system.
■ Solid state temperature controls adjust from 200° to 500°F.
■ 60 minute electric timers with time expired buzzer.
■ / H.P. single speed fan motor per deck.
1
2
■ Oven cool switch for rapid cool down when door is open.
■ Oven interior liners are porcelain on steel.
■ Nine position rack guides with five nickel plated racks
per section.
■ 16 / " adjustable stainless steel legs.
3
4
■ Manual shut-off valve and gas pressure regulator.
connection required.
■ Requires 120/60/1 power supply. 16 amps total draw.
Furnished with cord and plug.
■ One year limited parts and labor warranty.
OPTIONS AT EXTRA COST
16 / " adjustable stainless steel legs with casters.
3
4
Additional oven racks.
Rack hanger(s).
Second year extended limited parts and labor warranty.
C.S.I. Section 11420
/ " gas
3
4
