Important Safety Instructions .......................................................................... 1
Introduction ......................................................................................................... 2
Parts Check List ................................................................................................... 2
Handset and Base Layout .................................................................................... 3
Getting Started .................................................................................................... 4
Setup ..................................................................................................................... 4
Wall Mounting ........................................................................................................ 6
Handset Features ................................................................................................. 7
Base Unit Features ............................................................................................... 8
Basic Operation .................................................................................................. 9
Operating Instructions ........................................................................................... 9
Making Calls ..................................................................................................... 9
Answering Calls ................................................................................................ 9
Disconnecting .................................................................................................... 9
Changing Channels .......................................................................................... 10
TONE/PULSE Setting ....................................................................................... 10
Temporary Tone .............................................................................................. 10
Programming the Ringer Type ........................................................................ 10
Turning Off the Ringer .................................................................................... 10
Checking the Ringer ........................................................................................ 11
Memory Dialing ................................................................................................ 11
Programming Speed Dial Numbers ................................................................. 11
Speed Number Dialing ..................................................................................... 11
To Change or Replace a Speed Dial Number ............................................... 11
Storing Pauses in Memory .............................................................................. 12
Using Redial ..................................................................................................... 12
Storing a Redial Number into Speed Dial ....................................................... 12
The Page Feature ........................................................................................... 12
Additional Information ...................................................................................... 13
Headset Operation ............................................................................................... 13
Belt Clip ............................................................................................................ 13
Maintenance ......................................................................................................... 14
In Case Of Difficulty ............................................................................................ 15
Warranty Statement .............................................................................................. 17
FCC, ACTA and IC Regulations ............................................................................ 20
®
Seal ................................................................................................... 23
Technical Specifications ....................................................................................... 24
Advertisement
Table of Contents
Related Manuals for VTech t2419
Summary of Contents for VTech t2419
-
Page 1: Table Of Contents
Table of Contents Important Safety Instructions ... 1 Introduction ... 2 Parts Check List ... 2 Handset and Base Layout ... 3 Getting Started ... 4 Setup ... 4 Wall Mounting ... 6 Handset Features ... 7 Base Unit Features ... 8 Basic Operation ... -
Page 2: Important Safety Instructions
If the product has been dropped and the cabinet has been damaged. f) If the product exhibits a distinct change in performance. 13.Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. -
Page 3: Introduction
Parts Check List: Handset Base Unit Telephone Line Cord Battery Pack AC Adapter Belt Clip Owner's Manual Introduction To purchase replacement battery packs, call VTECH Communications at 1-800-595- 9511. In Canada, call VTECH Electronics at 1-800-267-7377. -
Page 4: Handset And Base Layout
Handset and Base Layout... -
Page 5: Getting Started
Connecting power to Base Unit Plug the AC power adapter into an electrical outlet, and the DC connector into the bottom of the Base Unit. Installation of Battery Pack in Handset Follow the steps below: Remove the battery cover by pressing on the indent and sliding downward. - Page 6 4. Do not dispose of the battery in a fire. The cell may explode. Connecting to phone line Plug one end of the telephone line cord into the jack on the bottom of the Base Unit. Plug the other end of this cord into the wall jack.
-
Page 7: Wall Mounting
Slide the Base down on the mounting studs until it locks into place. 3. Connect the telephone cord. The telephone line cord has a snap-in plug at each end. Insert one of the plugs into the jack on the bottom of the Base. Insert the other end of the plug into the wall phone jack. -

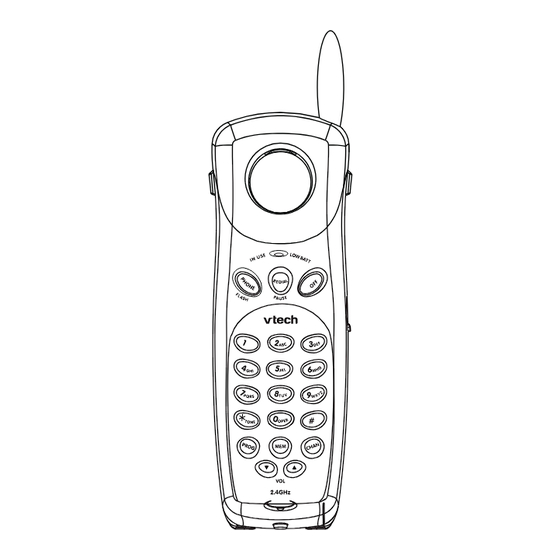

Page 8: Handset Features
Handset Features IN USE/LOW BATT LED • The IN USE/LOW BATT LED lights when the Handset is on an active call. • It flashes in cadence with an incoming ring. • It flashes quickly during programming mode. • It flashes slowly when battery is low. PHONE / FLASH KEY •... -
Page 9: Base Unit Features
IN USE/CHARGING LED • The LED illuminates steadily when the Handset is in the Base cradle to indicate that the Handset battery is being charged. • The LED illuminates whenever the Handset is being used. • This LED also flashes in cadence with the incoming ring. -
Page 10: Basic Operation
Operating Instructions Making Calls • Pick up the Handset and press PHONE. • When you hear a dial tone, dial the number. • The IN USE LED will illuminate while the Handset is in use. If you make a mistake when dialing, press OFF to hang up, then press PHONE to get the dial tone again. -
Page 11: Changing Channels
• If you have rotary service, press PROG, *, #, MEM to switch to PULSE. Temporary Tone If you have a rotary (dial-pulse) telephone service, (TONE/PULSE setting is set to PULSE), this feature allows you to enter special codes and tones... -
Page 12: Checking The Ringer
Operating Instructions Checking the Ringer To check the ringer which is currently programmed, do the following: • Press PROG. • Press the # key. • Press 0. • Press the MEM key to confirm. Memory Dialing • The VT2418 can store up to 10 different phone numbers that you can dial just by pressing PHONE, MEM and one of the number keys (0-9) -
Page 13: Storing Pauses In Memory
Storing Pauses in Memory • To insert a pause in a phone number, press PAUSE. The pause is 2 seconds in length. For longer pauses, press PAUSE two or more times. Each additional press adds an additional 2 seconds pause. •... -
Page 14: Additional Information
Headset for hands-free operation. If you choose to use the Headset option, you must obtain an optional accessory Headset, which is compatible with the VT2418. To purchase a Headset, call VTECH Customer Service at 1-800-595-9511. Once you have a compatible 2.5mm Headset, locate the Headset Jack on the VT2418 Handset. -
Page 15: Maintenance
Avoid water Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or shower. -
Page 16: In Case Of Difficulty
• First check all the suggestions above. • If you still don't hear a dial tone, disconnect the Base Unit from the telephone jack and connect a different phone. If there is no dial tone on that phone either, the problem is in your wiring or local service. - Page 17 In Case Of Difficulty You Hear Noise In The Handset, And None Of The Keys Or Buttons Work • Make sure the power cord is plugged in. Common Cure For Electronic Equipment If the unit does not seem to be responding normally, then try putting the Handset in the cradle.
-
Page 18: Warranty Statement
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTECH electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or electronic serial numbers have been removed, altered or rendered illegible;... - Page 19 • If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTECH will notify you and will request that you authorize the cost of repair prior to any further repair activity.
- Page 20 • In no event shall VTECH be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the product, or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this product.
-
Page 21: Fcc, Acta And Ic Regulations
This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTECH Electronics at 1- 800-267-7377. For repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. - Page 22 The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most, but not all areas, the sum of all RENs should be five (5.0) or less. You may want to contact your local telephone company for more information.
- Page 23 FCC, ACTA and IC Regulations and the telephone company is required to inform you of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned.
-
Page 24: The Rbrc Seal
RBRC service centers. Please call 1-800-8-BATTERY™ for information on Ni-Cd battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. -
Page 25: Technical Specifications
FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base: 2411.15 - 2418.4 MHz Handset: 912.75 - 917.10 MHz RECEIVE FREQUENCY Base: 912.75 - 917.10 MHz Handset: 2411.15 - 2418.4 MHz CHANNELS 30 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. - Page 26 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc.; Beaverton, Oregon. Distributed in Canada by VTech Electronics Canada Ltd., Suite 200, 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2002 for VTECH TELECOMMUNICATIONS LTD.
