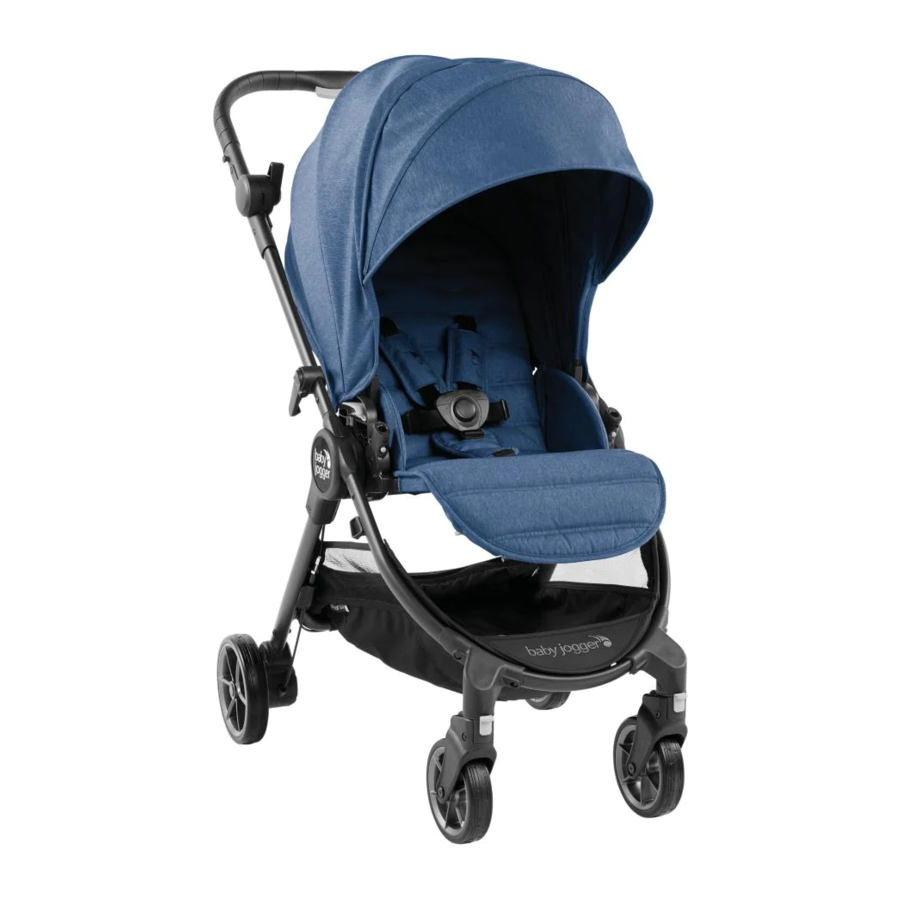

PARTS DESCRIPTION

1. Handlebar Fold Button
2. Canopy
3. Harness Covers
4. Seat Release Lever
5. Harness Buckle
6. Foot Rest
7. Storage Basket
8. Rear Wheel
9. Front Wheel
10. Swivel/Lock
11. Handlebar Fold Release Button
12. Parking Brake
13. Seat Recline Handle
14. Carry Bag Storage Pocket
15. Rear Wheel Release Button
16. Front Wheel Release Button
17. Storage Lock

FRAME

1. Unpack the stroller frame from the box and set the wheels aside. Unlock the stroller by pulling the Storage Lock Lever.


2. Lift the front stroller frame away from the rear stroller frame.


3. Lift the upper frame up and away from the lower frame.


4. Rotate the handlebar up. The stroller will lock into place and you will hear a click.


Ensure that all the locking devices are engaged before use.

Moving parts when folding and unfolding stroller can cause injury. Children should stay clear when folding and unfolding.

FRONT WHEEL

5. Installation

   • Lay stroller on its back so the handlebar is resting on the floor.
   • Attach the front wheel by sliding it into the front wheel mount until it clicks. Gently pull on the front wheel to make sure it is properly attached.
6. Removal

   • While pressing the front wheel release button, gently slide the front wheel out of the front wheel mount.

SWIVEL FEATURE

7. Push the swivel lock button up to lock the front wheel to a fixed position.


8. Press the swivel lock button down to allow the front wheel assembly to swivel.


When loading and unloading child, lock the front wheel in a fixed position. Although the front wheel of your stroller locks, it is not intended for jogging or exercise purposes.

REAR WHEELS

9. Installation

   • Align the rear wheel axle with the wheel mount on the stroller frame and insert it into the wheel mount until it locks into place. You will hear a click.
   • Gently pull on the rear wheel to make sure it is properly attached.
10. Removal

    • While pressing down on the wheel release button, gently slide the rear wheel out of the wheel mount.

BRAKE

11. To lock the brakes: Rotate the brake lever down to engage the brakes.

12. To release the brakes: Push the brake release button.


Ensure that the brake is properly engaged by moving the stroller slightly back and forth. Lock the brakes before loading and unloading your child and whenever the stroller is not moving.

ATTACHING THE CANOPY

13. Insert the ends of the canopy into the seat frame.

14. Loop the small strap to the hook on the sides of the seat.

15. From the back of the seat, zip the canopy to the seat.


ATTACH SEAT

16. To attach the seat frame to the stroller frame: Unfold the seat and lower the seat onto the stroller frame mounting brackets. You will hear a click when it is securely attached.

    • The seat may also be attached rear-facing.
17. To remove the seat: Lift up on the seat release levers.


CANOPY

18. Pull forward to open canopy, push backwards to close canopy.


19. To use the canopy extension: Pull the extension out from under the canopy, push the extension under the main canopy to hide.


20. When folding the double visor, make sure to fold each section of the visor one by one.


ADJUSTING SHOULDER STRAPS

21. From the back of the seat locate the plastic square stopper. Turn stopper and pass through the openings in the seat back frame and seat fabric.


22. Reinsert stopper at seat opening closest to child' s shoulders. Pass back through seat fabric and the seat back frame. Tug on strap to ensure stopper is locked. Repeat on both sides.


    Avoid serious injury from falling or sliding out. Always properly adjust and fasten safety harness.

23. Slide the harness pads up to access plastic guide on strap.


24. Hold the plastic guide and pull strap to tighten or loosen.



USING SAFETY HARNESS

25. Insert the waist strap buckle parts into the shoulder strap buckle parts on both sides.


26. Insert the connected shoulder and waist strap buckle parts into the sides of the crotch buckle.


27. Press button on crotch buckle to release.


RECLINE THE BACKREST

28. Lift the release lever at the back of the seat to recline the backrest.


When making adjustments to the stroller seat, make sure child's head, arms, and legs are clear of moving seat parts and stroller frame.

ADJUSTING THE FOOTREST

29. Pull the release levers underneath the foot rest to fold it down.


FOLDING

• Remove your child from the seat.
• Disengage front wheel swivel locks.
• Remove all attached accessories and all items from basket.

30. From the back of the seat, Lift the release lever at the back of the seat and fold the backrest forward.

    • The seat may also be folded while rear-facing.

      The seat MUST be folded before folding the stroller frame.
31. Slide the handlebar fold release button while squeezing the fold button on the handle bar and fold the handlebar forward.


32. Fold the upper stroller frame down to the lower stroller frame.

33. Lift up the stroller from the hand carry strap to help fold the front and rear stroller frames together.

34. Make sure the storage lock lever clicks into place.


CARRY STRAPS

35. There are two carry straps for the stroller: Use the shorter hand carry strap, or the longer shoulder carry strap on the top of the folded stroller to easily carry the stroller.


36. The shoulder carry strap can also be used for carrying the frame without the seat. To attach the carry strap to the frame, first unhook the clasp to open the plastic loop on the end of the strap.


37. Slide the open end of the plastic loop through the webbed loop on the stroller frame. Then reattach the clasp to close the plastic loop.


38. With the carry strap securely attached, the stroller frame may now be carried.


REMOVING THE SEAT FABRIC

39. To remove the canopy fabric: Undo the elastic loop from the hook on the sides of the seat.

40. Pull the ends of the canopy out of the seat frame.

41. From the back of the seat, unzip the canopy from the seat.

42. Slide the metal bar out of the canopy fabric.

43. To remove the seat fabric: From the back of the seat locate the four plastic harness clips. Turn the clips and pass through the openings in the seat back frame and seat fabric.

44. Undo the two elastics loops on the back of the seat.

45. Undo the snaps along the sides and top of the seat.

46. From underneath the seat, locate the plastic square stopper. Turn the stopper and pass through the openings in the seat back frame and seat fabric.

47. Undo the fastening strip and pass through the openings in the seat frame and seat fabric. Then remove the seat fabric from the seat frame.

48. To remove the harness pads: with the harness removed from the seat, slide the pad off the harness strap.

49. To remove the buckle cover: with the harness removed from the seat, slide the cover off the crotch strap.


When refitting the seat fabric, assure that the harness system is properly re-assembled.

CARRY BAG

50. Unzip carry bag storage pocket, fold your stroller, place stroller into carry bag.


51. To store the carry bag: Fold the carry bag tightly, place into the storage pocket, and zip the pocket.


52. The stroller may also be stored in the carry bag with the Baby Jogger Folding Pram.

    NOTE: The carry bag cannot hold both the seat and the folding pram at the same time. The seat must be removed from carry bag to store the folding pram in the carry bag.
53. To store the folding pram in the carry bag, first remove the pram body from the stroller frame. Follow the folding pram instructions to fold the pram.


54. Place the stroller frame in the carry bag first. Then fit the folded pram on top of the stroller. Make sure to have the crease of the folding frame facing toward the carry bag handle. Zip the carry bag closed.


CARE AND MAINTENANCE

To preserve the longevity of your stroller, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition.
If you hear any squeaking or feel tension, you can take your stroller to a local bike shop for added lubrication.
All repairs should only be carried out by an authorized dealer.

WASHING

Seat Fabric

• You can machine wash your stroller' s seat in cold water with a mild detergent.
• Do not use solvents, caustic or abrasive cleaning materials.
• To minimize shrinkage, simply reattach the seat to the frame to dry.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If the seat covers need to be replaced, only use parts from a Baby Jogger Authorized Dealer. They are the only ones that are guaranteed to have been safety tested and designed to fit this seat.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat folding mechanism or brakes.

Wheel Care

• The wheels can be cleaned using a damp cloth. They will need to be dried completely with a soft towel or cloth.

STORING

• Sunshine can fade seat fabric and dry out tires, so storing your stroller indoors will prolong its good looks.
• DO NOT store outside.
• Ensure that the stroller is dry before storing for prolonged periods.
• Always store the stroller in a dry environment.
• Store the stroller in a safe place when not in use (i.e. where children cannot play with it).
• DO NOT place heavy objects on top of the stroller.
• DO NOT store the stroller near a direct heat source such as a radiator or fire.

SAFETY INFORMATION

Keep these instructions for future reference.
Read these instructions carefully before use. Your child's safety may be affected if you do not follow these instructions.

• Never leave the child unattended.
• Ensure that all locking devices are engaged before use.
• To avoid injury and prevent finger entrapment ensure that the child is kept away when unfolding and folding this product.
• Do not let the child play with this product.
• For new born babies always use the most reclined position.
• Always use the restraint system.
• Check that the seat unit attachment devices are correctly engaged before use.
• This seat is only approved for use with the City Tour Lux.
• This product is not suitable for running or skating.
• This stroller seats one passenger. NEVER allow more than one child at a time on this stroller.
• The seat unit is suitable for one child from birth up to 15kg.
• Total weight load recommended for this stroller is 20 kg. 15 kg in the seat, and 5 kg in the basket. Excessive weight may cause a hazardous unstable condition to exist.
• Always engage the parking brake when placing or removing the child and whenever the stroller is not moving.
• Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
•
  DO NOT USE THIS SEAT WITH ANY OTHER MODES OF STROLLER.
• Stroller is not meant to be used for transporting children up or down stairs or escalators or televators (travelators). Damage resulting to stroller will not be covered under warranty.
• This stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.
• It is unsafe to use accessories which are not approved by Baby Jogger shall not be used.
• Watch out for cars - never assume that a driver can see you and your child.
• The passenger shall remain seated (no standing in the stroller).
• Only use replacement parts which are supplied or approved by Baby Jogger.
• The most reclined seat position should be used for new born babies.
