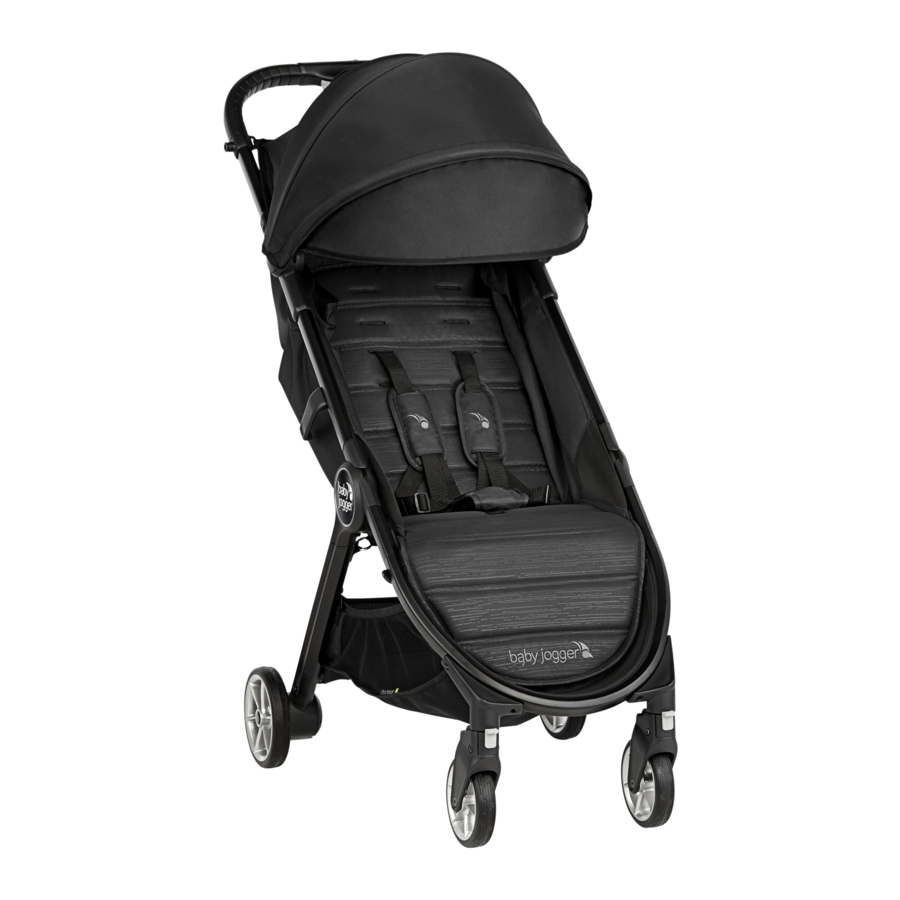

Baby Jogger City Tour 2 - Pushchair Manual

Read carefully and keep for future reference. Your child's safety may be affected if you do not follow these instructions.

OVERVIEW

1. Handlebar
2. Canopy
3. Canopy Extension
4. Harness Pads and Buckle Pad
5. Harness Buckle
6. Rear Wheel
7. Storage Basket
8. Leg Support
9. Footwell
10. Swivel/Lock
11. Front Wheel
12. Handlebar Fold Release Button
13. Handlebar Fold Button
14. Parking Brake
15. Rear Wheel Release Button
16. Front Wheel Release Button
17. Auto-lock

OPERATION

FRAME

1. Unpack the stroller frame from the box and set the wheels aside. Unlock the stroller by pulling the auto-lock lever.

2. Pull the lower front frame of the stroller away from the rear legs. Then, lift the seat back frame upwards from the rear legs. Lastly, unfold the handlebar upwards. The stroller will lock into position and you will hear a click.

3. Place the stroller in the upright position.


Ensure that all the locking devices are engaged before use.

FRONT WHEEL

4. Installation

   • Attach the front wheel by sliding it into the front wheel mount until it clicks. Gently pull on the front wheel to make sure it is properly attached.
5. Removal

   • While pressing the front wheel release button, gently slide the front wheel out of the front wheel mount.

SWIVEL FEATURE

6. Push the swivel lock button up to lock the front wheel to a fixed position.

7. Press the swivel lock button down to allow the front wheel assembly to swivel.


When loading and unloading child, lock the front wheel in a fixed position. Although the front wheel of your stroller locks, it is not intended for jogging or exercise purposes.

REAR WHEELS

8. Installation

   • Align the rear wheel axle with the wheel mount on the stroller frame and insert it into the wheel mount until it locks into place. You will hear a click.
   • Gently pull on the rear wheel to make sure it is properly attached.
9. Removal

   • While pressing down on the wheel release button, gently slide the rear wheel out of the wheel mount.

BRAKE

10. To lock the brakes: push the brake lever down to engage the brakes.

11. To release the brakes: lift the brake lever up.


Lock the brakes before loading and unloading your child and whenever the stroller is not moving.

CANOPY

12. Pull forward to open canopy, push backwards to close canopy.

13. To use the canopy extension: Pull the extension out from under the canopy until it snaps into place, push the extension under the main canopy to hide.


ADJUSTING SHOULDER STRAPS

14. From the back of the seat, undo the fastening strip and open the pocket to locate the plastic square stopper. Turn stopper and pass through the openings in the Plastic board and seat fabric.

15. Reinsert stopper at seat opening closest to child's shoulders. Pass back through seat fabric and plastic board. Tug on strap to ensure stopper is locked. Repeat on both sides.


    Avoid serious injury from falling or sliding out. Always properly adjust and fasten safety harness.

    Always use the crotch strap in combination with the shoulder straps and waist belt.
16. Slide the harness pads up to access plastic guide on strap.

17. Hold the plastic guide and pull strap to tighten or loosen.


USING SAFETY HARNESS

18. Insert side strap buckle into harness buckle on both sides.

19. Insert connected harness and side strap buckles into the sides of the crotch buckle.

20. Press button on crotch buckle to release.


RECLINE THE BACKREST

21. Pinch the clamp behind the backrest, and slide it down to desired position.

22. Pull backrest down on both sides to match the clamp position. Reverse steps to return to the upright position.


When making adjustments to the stroller seat, make sure child's head, arms, and legs are clear of moving seat parts and stroller frame.

LEG SUPPORT INCLINE

23. Lift the leg support up in order to raise it.

24. To lower the leg support, pull the release bar underneath it and push it down.



BASKET REMOVAL

25. From underneath the stroller, unfasten the snaps of the basket near the rear of the stroller.

26. At the rear of the stroller, push up on the hanging clips to remove them from the stroller frame.

27. From under the front of the stroller, unfasten and unloop the two snaps.

28. Pull the basket fabric out of the channels in the footwell.


FOLDING

• Remove your child from the seat.
• Remove all attachments and all items from basket.

29. Slide the handlebar fold release button and hold it, then squeeze the fold button on the handle bar and fold the handlebar forward.

30. Fold the upper stroller frame down to the lower stroller frame.

31. Pull up on the strap on the seat and let the frame collapse.

32. Make sure the auto-lock lever clicks into place.


REMOVING THE SEAT FABRIC

33. From the underside of the seat, unfasten the hook-and-loop and slide the strap through the D-ring.

34. Unfasten and unloop the two snaps underneath the seat.

35. Undo the fastening strip underneath the leg support.

36. Undo the six fastening strips on the back of the seat.

37. At the top of the seat, pull the seat fabric out of the channels in the frame.



Make sure that all fasteners are properly closed when re-attaching the seat fabric.

CARE AND MAINTENANCE

To preserve the longevity of your stroller, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition. If you hear any squeaking or feel tension, you can take your stroller to a local bike shop for added lubrication. All repairs should only be carried out by an authorized dealer.

WASHING

Seat Fabric

• You can machine wash your stroller's seat in cold water with a mild detergent.
• Be sure to remove the metal frame and Plastic boards from the seat before washing.
• Do not use solvents, caustic or abrasive cleaning materials.
• To minimize shrinkage, simply reattach the seat to the frame to dry.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If the seat covers need to be replaced, only use parts from a Baby Jogger Authorized Dealer. They are the only ones that are guaranteed to have been safety tested and designed to fit this seat.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat folding mechanism or brakes.

Wheel Care

• The wheels can be cleaned using a damp cloth. They will need to be dried completely with a soft towel or cloth.

STORING

• Sunshine can fade seat fabric and dry out tires, so storing your stroller indoors will prolong its good looks.
• DO NOT store outside.
• Ensure that the stroller is dry before storing for prolonged periods.
• Always store the stroller in a dry environment.
• Store the stroller in a safe place when not in use (i.e. where children cannot play with it).
• DO NOT place heavy objects on top of the stroller.
• DO NOT store the stroller near a direct heat source such as a radiator or fire.

WARNING

Read carefully and keep for future reference.
Your child's safety may be affected if you do not follow these instructions.

• Never leave the child unattended.
• Always use the restraint system.
• This product is not suitable for running or skating
• Ensure that all the locking devices are engaged before use.
• To avoid injury, ensure that the child is kept away when unfolding and folding this product.
• Do not let the child play with this product.
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

ADDITIONAL SAFETY INFORMATION

• This stroller seats one passenger. NEVER allow more than one child at a time on this stroller.
• The seat unit is suitable for one child from birth up to 22 kg.

• Total weight load recommended for this stroller is 27 kg. 22 kg in the seat, and 5 kg in the basket. Excessive weight may cause a hazardous unstable condition to exist.
• Parcels or accessory items, or both, placed on the unit may cause the unit to become unstable.
• Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
• For new born babies we recommend always to use the most reclined seat position.
• Lock the brakes before loading and unloading your child and whenever the stroller is not moving.
• Ensure that the brake is properly engaged by moving the stroller slightly back and forth.
• Stroller is not meant to be used for transporting children up or down stairs or escalators. Damage resulting to stroller will not be covered under warranty.
• This stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot, or bed.
• Accessories which are not approved by Baby Jogger shall not be used.
• Watch out for cars - never assume that a driver can see you and your child.
• The passenger shall remain seated (no standing in the stroller).
• Use only replacement parts supplied or approved by Baby Jogger.
