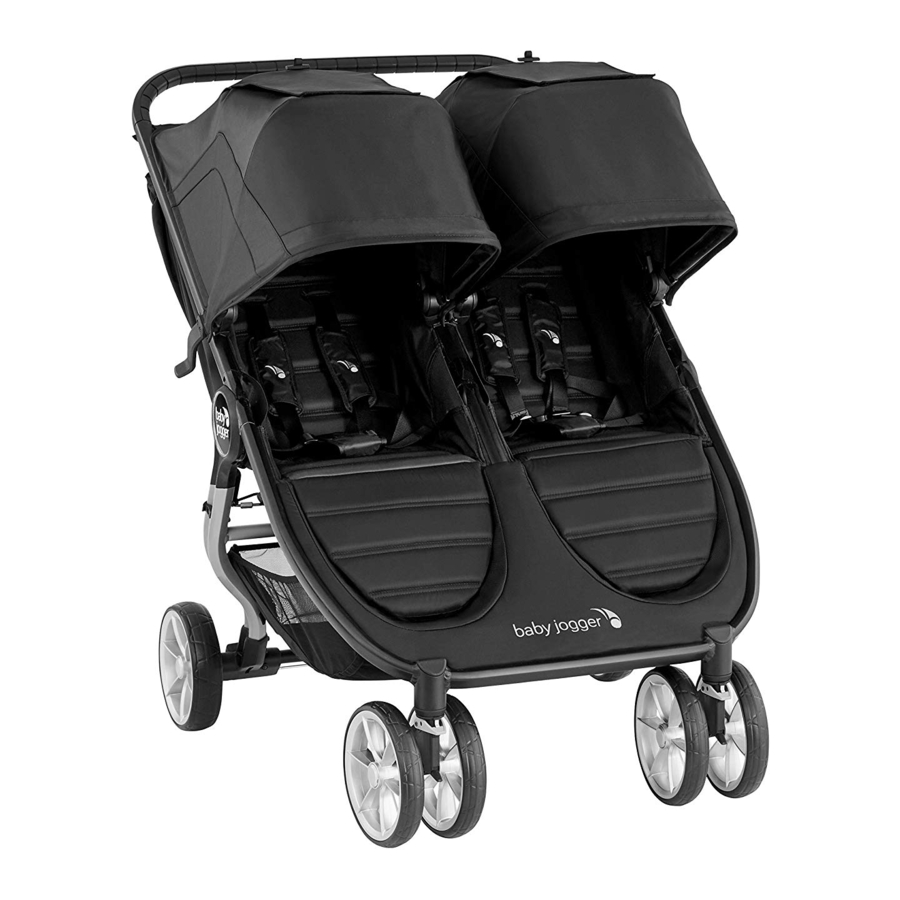

Baby Jogger City Mini 2 Double - Everyday Double Stroller Pushchair Manual

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
Your child's safety may be affected if you do not follow these instructions.

babyjogger.com

OVERVIEW

1. Handlebar
2. Canopy
3. Auto-Lock
4. Harness Pads
5. Harness Buckle
6. Crotch Strap Pad
7. Fold Strap
8. Rear Wheel
9. Rear Wheel Release Button
10. Parking Brake
11. Leg Support
12. Footwell
13. Storage Basket
14. Front Wheels
15. Swivel/Lock
16. Front Wheel Release Button
17. Seat Recline Strap

OPERATION

FRAME

1. Unpack the pushchair frame from the box and set the wheels aside.
   Unlock the pushchair by pulling the auto-lock lever.

2. Unfold the pushchair by pulling the handlebar away from the frame. Then lift the handlebar away from the seat. The pushchair will lock into place and you will hear a click.

3. Place the pushchair in the upright position.


Ensure that all the locking devices are engaged before use.

FRONT WHEELS

4. Installation

   • Lay pushchair on its back so the handlebar is resting on the floor.
   • Attach front wheels by sliding them into the front wheel mount until it clicks. Gently pull on the front wheel to make sure it is properly attached.
5. Removal

   • While pressing the front wheel release button, gently slide the front wheels out of the front wheel mount.

SWIVEL FEATURE

6. Push the swivel lock button down to lock the front wheel to a fixed position.

7. Press the swivel lock button up to allow the front wheel assembly to swivel.


When loading and unloading child, lock the front wheel in a fixed position. Although the front wheel of your pushchair locks, it is not intended for jogging or exercise purposes.

REAR WHEELS

8. Installation

   • Align the rear wheel axle with the wheel mount on the pushchair frame and insert it into the wheel mount until it locks into place. You will hear a click.
   • Gently pull on the rear wheel to make sure it is properly attached.
9. Removal

   • While pressing down on the wheel release button, gently slide the rear wheel out of the wheel mount.

BRAKE

10. To lock the brakes: push the brake lever down to engage the brakes.

11. To release the brakes: lift the brake lever up.


Lock the brakes before loading and unloading your child and whenever the pushchair is not moving.

CANOPY

12. Attach the canopy to the frame by sliding the canopy onto one of two mounting brackets. To remove, slide canopy off of mounts.

    NOTE: When using a Car Seat, canopy must be removed.
13. Attach the fastening strip on the back of the canopy to the frame.

14. Pull forward to open canopy and push backwards to close canopy.

15. There are two canopy windows, a top one and back one. To use them, roll the shade up towards the top and secure with the elastic and button.


ADJUSTING SAFETY HARNESS

16. From the back of the seat, undo the fastening strip and open the pocket to locate the plastic square stopper. Turn stopper and pass through the openings in the PE board and seat fabric.

17. Reinsert stopper at seat opening closest to child's shoulders. Pass back through seat fabric and PE board. Tug on strap to ensure stopper is locked. Repeat on both sides.


    Avoid serious injury from falling or sliding out. Always properly adjust and fasten safety harness.

    Always use the crotch strap in combination with the shoulder straps and waist belt.
18. Slide the harness pads up to access plastic guide on strap.

19. Hold the plastic guide and pull strap to tighten or loosen.



USING SAFETY HARNESS

20. Insert side strap buckle into harness buckle on both sides.

21. Insert connected harness and side strap buckles into the sides of the crotch buckle.

22. Press button on crotch buckle to release.


RECLINE THE SEAT

23. Pinch the clamp behind the seat, and slide it down to desired recline.

24. Pull seat down on both sides to match the clamp position. Reverse steps to return to the upright position.


    When making adjustments to the pushchair seat, make sure child's head, arms, and legs are clear of moving seat parts and pushchair frame.
25. For extra ventilation, roll up the seat back flap and secure with elastic and button.



LEG SUPPORT

26. To use the leg support, lift the front of the seat pad.


27. Rotate the support arm out and lower the seat pad. Lock the support arm.


28. To lower leg support, reverse the steps.



FOLDING

• Remove your child from the seat.
• Disengage front wheel swivel locks.
• Remove all attachments and all items from basket.

To prevent injury, remove Child Tray or Belly Bar accessory when folding or unfolding the pushchair.

29. Pull up on the straps on both seats and let the frame collapse.


30. Make sure the auto-lock lever clicks into place.


BASKET REMOVAL

31. From the front of the pushchair, unsnap the 2 snaps and pull the straps out of foot well.

32. Lift basket off the hook.

33. From the back, lift the top of basket off the tab on both sides of frame.

34. Remove the strap from the D clamp on both sides of frame.



REMOVING THE SEAT PAD

35. Flip the pushchair over to expose the seat bottom.

    1. Unfasten the 4 fastening strips and pull them out of the pushchair frame.

    2. Unfasten the fastening strips and pull them out of the sides of the pushchair frame.

    3. Unscrew 4 carabiner hooks and remove them from the pushchair.

36. Unsnap 4 snaps from pushchair frame.

37. Starting from the bottom, slide the seat pad out from the pushchair frame on both sides.

38. From the top, slide the seat pad out of the frame on both sides.

39. Remove seat fabric.


Reverse the steps to reattach the seat pad to the frame.

CARE AND MAINTENANCE

To preserve the longevity of your pushchair, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition. If you hear any squeaking or feel tension, you can take your pushchair to a local bike shop for added lubrication. All repairs should only be carried out by an authorized dealer.

WASHING

Seat Fabric

• You can hand wash your pushchair's seat in cold water with a mild detergent.
• Be sure to remove the metal frame and PE boards from the seat before washing.
• Do not use solvents, caustic or abrasive cleaning materials.
• To minimize shrinkage, simply reattach the seat to the frame to dry.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If the seat covers need to be replaced, only use parts from a Baby Jogger Authorized Dealer. They are the only ones that are guaranteed to have been safety tested and designed to fit this seat.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat folding mechanism or brakes.

Wheel Care

• The wheels can be cleaned using a damp cloth. They will need to be dried completely with a soft towel or cloth.

STORING

• Sunshine can fade seat fabric and dry out tires, so storing your pushchair indoors will prolong its good looks.
• DO NOT store outside.
• Ensure that the pushchair is dry before storing for prolonged periods.
• Always store the pushchair in a dry environment.
• Store the pushchair in a safe place when not in use (i.e. where children cannot play with it).
• DO NOT place heavy objects on top of the pushchair.
• DO NOT store the pushchair near a direct heat source such as a radiator or fire.

WARNING

Read carefully and keep for future reference.

Your child's safety may be affected if you do not follow these instructions.

• Never leave the child unattended.
• Always use the restraint system.
• This product is not suitable for running or skating
• Ensure that all the locking devices are engaged before use.
• To avoid injury, ensure that the child is kept away when unfolding and folding this product.
• To prevent injury, remove Child Tray or Belly Bar accessory when folding or unfolding the pushchair.
• Do not let the child play with this product.

ADDITIONAL SAFETY INFORMATION

• This pushchair seats two passengers. NEVER allow more than two children at a time on this pushchair.
• Each seat unit is suitable for children from birth to 22 kg. Maximum height: 112 cm.

• Total weight load recommended for this stroller is 50.5 kg. 22 kg on each seat, 1 kg in each seat back pocket and 4.5 kg in basket. Excessive weight may cause a hazardous unstable condition to exist.
• For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
• Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
• For new born babies we recommend always to use the most reclined seat position.
• Lock the brakes before loading and unloading your child and whenever the pushchair is not moving.
• Ensure that the brake is properly engaged by moving the pushchair slightly back and forth.
• Pushchair is not meant to be used for transporting children up or down stairs or escalators. Damage resulting to pushchair will not be covered under warranty.
• Accessories which are not approved by Baby Jogger shall not be used.
• Watch out for cars - never assume that a driver can see you and your child.
• The passenger shall remain seated (no standing in the pushchair).
• Use only replacement parts supplied or approved by Baby Jogger.
