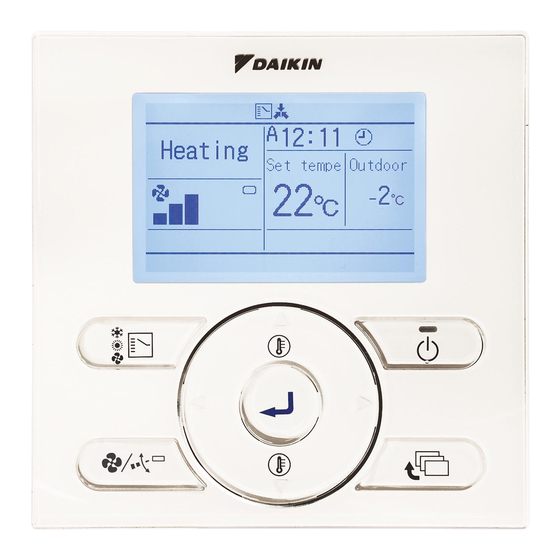

- Page 1 WIRED REMOTE CONTROLLER INSTALLER REFERENCE GUIDE BRC1E53 Be sure to read these installation instructions before conducting the installation of this product.
-
Page 2: Table Of Contents
18. External Input Interlock Function ..........37 19. Single and Dual setpoint mode ............. 43 20. Other Service Settings ..............44 21. Software update with Updater ............46 22. Connection diagram ..............47 Installer reference guide BRC1E53 4P419250-1 – 2015.10... -
Page 3: Safety Precautions
Improper connections or securing of wires may result in abnormal heat build-up or fire. The choice of materials and installations must comply with the applicable national and international standards. BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 4 ● Which is not near a heat source. ● Which is not affected by the outside air or air draught due to, for example, opening/closing of doors, the air outlet of the indoor unit or the like. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 5: Accessories
48.5 CAUTION Through If the hole size is too large or the location is not hole proper, the hole may come out from the Ø8-10 controller. BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 6 2. Do not directly touch the remote controller PCB. Wiring Specifications Wiring Type Sheathed vinyl cord or cable Wiring Size 0.75~1.25 mm² Wiring Length Max. 500 m *This is the total length in the system when using group control. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 7 (P1 and P2 have no polarities.) 3-4-1 Rear outlet Indoor unit Lower case Upper case Clamp Clamp Cross-section Secure the wiring at the wiring fixing point by using the attached Wiring fixing clamp. point <Wiring fixing guideline> BRC1E53 Installer reference guide – 4P419250-1 2015.10...
- Page 8 Install the attached Wiring wiring retainer to prevent wiring pinching as shown Cross-section to the left. Indoor unit Lower case Upper case 3-4-4 Upper center outlet Indoor unit Wiring retainer Lower case Upper case Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 9 Wood screws (Ø4.0x30) 3-5-2 Switchbox mounting Secure by using the attached small screws (2×). Switchbox for two units Switchbox (with no cover) (field supply) (Use optional accessory KJB211A) (Installation pitch) Small screws (M4×16) BRC1E53 Installer reference guide – 4P419250-1 2015.10...
- Page 10 PCB with the slot screwdriver. Screwdriver ● Take care that dust or moisture does not touch the PCB of the removed upper case. Lower case Insert and twist the screwdriver lightly to remove the upper case. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 11: Functions And Menu Items Of The Remote Controller Buttons
* Available menu items are depending on the connected model. ** Lock Function and Rotation are hidden menu items. For instructions on how to make them visible, refer to chapters 14, 15, 16, and 17. BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 12 4-2 Description of button operation <Service Settings> Service Settings Highlighted display (selected items) Test Operation Maintenance Contact Field Settings Demand Instructions for manipulating Min Setpoints Differential the buttons will appear. External Input Interlock Return Setting Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 13: Power-On
Checking the connection. Please stand by. Please stand by. Main RC Main RC NOTE When the above text is displayed, the backlight does not light up when one of the buttons is pressed. BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 14 <Basic screen> <Basic screen> The Basic screen is displayed. CAUTION It's only possible to use a main and a sub remote controller of the same type. For example, do not combine BRC1E52* with BRC1E53*. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 15 • "Auto" operation mode (switches to cooling or heating) • Energy Saving Options • Schedule • Service Settings (only Test Operation, Maintenance Contact and Switch Main Sub Controller are available). • Demand • Quiet Operation Mode • Rotation • Draft Prevention BRC1E53 Installer reference guide – 4P419250-1 2015.10...
-
Page 16: Field Settings
NO. of the FIRST CODE NO. to be changed by using the Press the Menu/Enter (Left/Right) buttons and select the button. desired SECOND CODE NO. by using the (Up/Down) buttons. Multiple identical mode number settings are available. Installer reference guide BRC1E53 4P419250-1 – 2015.10... - Page 17 - Airflow direction range (except roundflow cassette): "02" - Thermostat sensor in remote controller (Sky Air only): "02" - Rotation overlap time: "03" ● Functions which are unavailable for the connected indoor unit(s) are not displayed. BRC1E53 Installer reference guide – 4P419250-1...
- Page 18 — — External input B2. Do not use — — Cool and Setback function. Do not use Heat only Cool only Heat Rotation overlap time. 30 minutes 15 minutes 10 minutes 5 minutes Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 19: Test Operation Method (Skyair Only)
Press and hold the Cancel °C button for 4 seconds or Press and hold the Cancel button for longer while the backlight 4 seconds or longer. The Service is lit. Settings menu is displayed. <Service Settings> BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 20 After confirming correct airflow Return Setting setting screen operation, press the Menu/Enter button to return to the Basic screen Change the airflow direction by using the (Up/ Down) buttons. Press the Menu/Enter button. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 21 Maintenance Information screen according to the following procedure. <Basic screen> 7-14 7-14 Press the Menu/Enter button in the Basic screen. The Main menu is Cool Set to displayed. °C Press the Menu/Enter button. <Main menu> BRC1E53 Installer reference guide – 4P419250-1 2015.10...
- Page 22 Wrong wiring (between indoor and outdoor units) * Though "Checking the connection Please stand by" is displayed for up to 90 seconds after powering on, this does not mean there is a failure. (Determine after 90 seconds.) Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 23: Checking Procedure Of Error History
The Basic screen returns. Return Unit No. Latest record NOTE In the Indoor Unit Error History the error history of each indoor unit can be independantly consulted. The last 5 items are displayed in order. BRC1E53 Installer reference guide – 4P419250-1 2015.10... -
Page 24: Registration Method Of The Maintenance Contact Information
Maintenance Contact Enter button. The settings are Save the settings? entered and the Service Settings menu returns. Press the Menu/Enter Return Setting button. <Service Settings> Press the Cancel button once. The Basic screen returns. Installer reference guide BRC1E53 4P419250-1 – 2015.10... -
Page 25: Confirmation Of Registered Details
The registered is entered correctly. Contact Info details are displayed. 0123 – 4567 – 8900 ––– /000 Indoor Model ––– /000 Outdoor Model Return 10-4 Press the Cancel button twice. The Basic screen returns. BRC1E53 Installer reference guide – 4P419250-1 2015.10... -
Page 26: Energy Demand Control
Save the settings? the Basic screen returns. Press the Menu/Enter button. Return Setting 11-7 11-7 To enable/disable Demand, go to the Demand Demand menu and select Enable/Disable Settings Enable/Disable Press the Menu/Enter button. Return Setting Installer reference guide BRC1E53 4P419250-1 – 2015.10... - Page 27 ● After saving changes to the settings, Demand is automatically enabled. ● The availability of the Demand function depends on the outdoor unit model. ● For Demand to be visible among the service settings, the clock needs to be set. BRC1E53 Installer reference guide –...
-
Page 28: Clock & Calendar
Basic screen returns. Press the Menu/Enter Return Setting button. <Basic screen> NOTE If a power outage lasts longer than 48 hours, the time is reset and needs to be set again. Installer reference guide BRC1E53 4P419250-1 – 2015.10... -
Page 29: Language
4) HU Hungarian 4) TR Turkish 5) ES Spanish 5) SL Slovenian 5) PL Polish 6) PT 6) RO 6) SQ Portuguese Romanian Albanian 7) NL Dutch 7) BG Bulgarian 7) SK Slovak BRC1E53 Installer reference guide – 4P419250-1 2015.10... -
Page 30: Prohibit Buttons
14-7 14-7 Select and press the Menu/ Prohibit Buttons Enter button. The settings are Save the settings? entered and the Basic screen returns. Press the Menu/Enter button. Return Setting <Basic screen> Installer reference guide BRC1E53 4P419250-1 – 2015.10... - Page 31 Make sure that this controller is set to "main" (factory default) first, change the restrictions to the setting you prefer and only then set the remote controller to "sub". BRC1E53 Installer reference guide –...
-
Page 32: Function Prohibition
15-7 15-7 Select and press the Menu/ Function Prohibition Enter button. The settings are Save the settings? entered and the Basic screen returns. Press the Menu/Enter button. Return Setting <Basic screen> Installer reference guide BRC1E53 4P419250-1 – 2015.10... -
Page 33: Prohibit Mode
Return Setting 16-4 16-4 Select Prohibit Mode and press the Lock Function Menu/Enter button. The "Prohibit Prohibit Buttons Function Prohibition Mode" screen is displayed. Prohibit Mode Press the Menu/Enter button. Return Setting BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 34 Make sure that this controller is set to "main" (factory default) first, change the restrictions to the setting you prefer and only then set the remote controller to "sub". Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 35: Duty Rotation And Backup
● The rotation order depends on the set Unit Number. For instructions on how to change the Unit Number, contact your local dealer. ● To be able to use the Rotation function, group control is required. For more information, see "22. Connection diagram" BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 36 17-7 Save the settings? 17-7 Select and press the Menu/ Enter button. The settings are Press the Menu/Enter button. entered and the Basic screen Return Setting returns. <Basic screen> Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 37 Enter button. The function is Save the settings? enabled/disabled and the Basic screen returns. Press the Menu/Enter button. Return Setting <Basic screen> NOTE ● After saving changes to the settings, Rotation is automatically enabled. BRC1E53 Installer reference guide – 4P419250-1 2015.10...
-
Page 38: External Input Interlock Function
Service Settings press the Menu/Enter button. The Test Operation Maintenance Contact "External Input Interlock " screen is Field Settings Demand displayed. Min Setpoints Differential Press the Menu/Enter External Input Interlock button. Return Setting Installer reference guide BRC1E53 4P419250-1 – 2015.10... - Page 39 See indoor unit’s “22°C” setpoint range and setpoint range limitation, “--“. NOTE ● When a parameter is “--“, this means that nothing will be changed for this parameter and the current active value is kept. BRC1E53 Installer reference guide – 4P419250-1 2015.10...
- Page 40 Cooling only, Dry and Fan only have their own fan speed. ● Changes made while the Key Card contact is open and the delay timer has not expired (normal operation) are not saved when closing the contact again. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 41 ● If the reset timer has not expired before inserting the key card, the unit returns to the state before the window was opened (last on state). ● If the reset timer has expired before inserting the key card, the unit goes to the "Default Reset Setting" state. BRC1E53 Installer reference guide – 4P419250-1...
- Page 42 Previous Previous state: state: Time before a) before a) > Reset Time timer doesn't matter Update Return to previous previous state state: "Default Previous reset setting" state: state "Default reset setting" state Installer reference guide BRC1E53 4P419250-1 – 2015.10...
- Page 43 Time < Reset timer Time Setback Update Return to Reset enabled, previous previous timer Reset timer state state: continues "Default reset setting" state Previous Previous state: state: before a) "Default reset setting" state BRC1E53 Installer reference guide – 4P419250-1 2015.10...
-
Page 44: Single And Dual Setpoint Mode
Save the settings? confirmed and the Service Settings menu returns. Press the Menu/Enter button. Return Setting <Service Settings> 19-6 Press the Cancel button once. The remote controller restarts and the Basic screen returns. Installer reference guide BRC1E53 4P419250-1 – 2015.10... -
Page 45: Other Service Settings
20-3 Indoor Unit Status ● Consult the indoor unit thermistor temperatures. SkyAir Suction air thermistor Suction air thermistor Heat exchanger thermistor Heat exchanger liquid pipe thermistor Heat exchanger gas pipethermistor Discharge air thermistor Discharge air thermistor BRC1E53 Installer reference guide – 4P419250-1 2015.10... - Page 46 ● When disabled, the message "Auto filter clean is disabled" will be shown when opening the Test Filter Auto Clean and Filter Auto Clean screen. ● This function is only available if the Self Cleaning Decoration Panel is installed. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
-
Page 47: Software Update With Updater
7. Follow the onscreen instructions (additionally, during installation, cable 4P344073-1 is needed). a) PC with Updater b) USB cable c) Remote controller PCB d) To indoor unit More information about the available languages can be found in "13. Language" on page BRC1E53 Installer reference guide – 4P419250-1 2015.10... -
Page 48: Connection Diagram
● When using group control, every unit is automatically assigned an address (i.e. Unit Number). In case the Rotation function is enabled, this number determines the rotation order. For instructions on how to change the Unit Number, contact your dealer. Installer reference guide BRC1E53 4P419250-1 – 2015.10... - Page 49 22-3 Group control: main controller + sub controller P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 22-4 Group control: controller + digital inputs adapter BRP7A5* P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 BRC1E53 Installer reference guide – 4P419250-1 2015.10...
- Page 50 F1 F2 P1 P2 NOTE If the controller is used together with DIII central control equipment, then … ● … the schedule timer function can be restricted. ● … do not enable setback mode. Installer reference guide BRC1E53 4P419250-1 – 2015.10...
