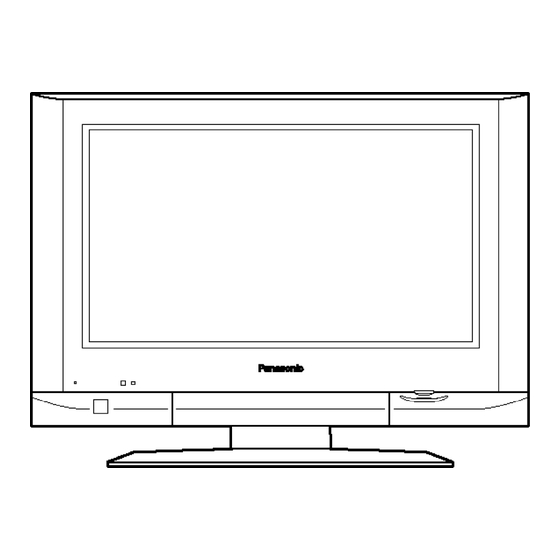

TX-32LX500M / TX-32LX500A / TX-32LX500X / TX-26LX500M
SPECIFICATIONS
Power Source
Power Consumption
LCD
Visible screen Size
Sound
Speaker
Audio Output
Headphones
Scanning format
PC signals
Specifications
AC 110 - 240 V, 50 / 60 Hz
Average use : 137 W (0.8 A) (TX-26LX500)
Average use : 168 W (1.0 A) (TX-32LX500)
Standby condition : 0.4 W
Wide XGA (1,366 × 768 pixels)
16 : 9 aspect ratio LCD panel
64.8 cmV, 565 mm (W) × 318 mm (H) (TX-26LX500)
80.0 cmV, 697 mm (W) × 392 mm (H) (TX-32LX500)
Woofer (Ø80 mm) × 2 pcs, Tweeter (16 mm × 73 mm) ×4 pcs
20 W (5 W + 5 W, 5 W + 5 W), 10% THD
M3 (3.5 mm) Jack × 1
480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(50Hz), 720p(60Hz), 1080i(50Hz),
1080i(60Hz)
XGA display
VGA, SVGA, XGA
SXGA...... (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
ORDER NO. ITD0507041CE
/ TX-26LX500A / TX-26LX500X
1
Wide LCD TV
LH41 Chassis

Advertisement

loading

Related Manuals for Panasonic TX-32LX500M

Summary of Contents for Panasonic TX-32LX500M

  • Page 1 ORDER NO. ITD0507041CE Wide LCD TV TX-32LX500M / TX-32LX500A / TX-32LX500X / TX-26LX500M / TX-26LX500A / TX-26LX500X LH41 Chassis SPECIFICATIONS Specifications Power Source AC 110 - 240 V, 50 / 60 Hz Power Consumption Average use : 137 W (0.8 A) (TX-26LX500) Average use : 168 W (1.0 A) (TX-32LX500)
  • Page 2 Receiving Systems/ Band name Receiving Channels Regular TV VHF BAND 2-12 (PAL / SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL / SECAM D) 1-12 (NTSC M Japan) 2-13 (NTSC M USA) UHF BAND 21-69 (PAL G, H, I / SECAM G, K, K1) 28-69 (PAL B AUST.) 13-57 (PAL D, K) 13-62 (NTSC M Japan)
  • Page 3 Card slot SD CARD slot × 1, PC CARD slot × 1 MONITOR OUT VIDEO (RCA PIN Type) 1.0 Vp-p (75 AUDIO L-R (RCA PIN Type × 2) 0.5 Vrms Dimensions ( W × H × D ) Including TV Stand 724 mm ×...
  • Page 4 the reading should be between 1M and 5.2M . When the exposed metal does not have a return path to the chassis, the reading must be . Figure 1 1.1.2. Leakage Current Hot Check (See Figure 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
  • Page 5 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
  • Page 6 3. Applicable signals Note: - Signals other than above may not be displayed properly. - Applicable input signal for PC is basically compatible to VESA standard timing. - PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
  • Page 7 will show : 3. Turn off the TV to reset JPEG Viewer mode after SELF-CHECK. If the CCU ports have been checked and found to be incorrect or not located then “--” will appear in place of “O.K.”. Display Ref. No. Description P.C.B.
  • Page 8 When an abonormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinking of the Power LED on the front panel of the unit. 5.
  • Page 9 Board Name Function AP-Board Regulator DG-Board Global Core, A/D Converter, MCU H-Board AV connector, TV Tuner, AV Switch K-Board Power Switch G-Board Front AV & HP connector, Key Switch DC Power Supply Power Unit None service able. Power Unit should be exchange for service. V-Board Remote Receiver, LED DV-Board...
  • Page 10 Ref No. Connecter type Pins Location Opposite Ref No. 8pin DG-Board CN3 (Inverter) 32pin DG-Board LCD Panel 7pin DG-Board LCD Panel DG10 60pin DG-Board DV15 DV15 60pin DV-Board DG10 Bridge type 23pin H-Board Flexible type 40pin H-Board Flexible type 40pin H-Board 30pin H-Board...
  • Page 11 6.2. How to remove the connector Bridge cable connector Flexible cable connector...
  • Page 12 6.3. Wire dressing 1 1. Make the wire dressing as illustrated below.
  • Page 13 6.4. Wire dressing 2 <Clamping> Notes : 1. Connect every connector surely. 2. Manage wires not to touch any sharp edge of the metal parts. 3. Manage wires not to have too much tension. For 32 inch model only.
  • Page 14 7. Servicing method 7.1. Removing the stand ass’y 1. Lay down the main unit so that the rear cover faces upward. 2. Remove the cable cover. 3. Remove the fixing screws (4pcs). 4. Remove the stand ass’y. 7.2. Removing the rear cover 1.
  • Page 15 7.3. Removing the speaker box L and R 1. Remove the rear cover. (See 7.2.) 2. Release the speaker cables from the clampers on the speaker box L and R, and disconnect the speaker relay couplers (SPL and SPR). 3. Remove the fixing screws (6pcs). 4.
  • Page 16 4. Remove the rear AV bracket. 7.5. Removing the rear metal frame 1. Remove the rear AV bracket. (See 7.4.) 2. Release the cables from the clampers on the rear metal frames. 3. Remove the fixing screws (4pcs). 4. Remove the rear metal frames (right and left). 7.6.
  • Page 17 7.7. Removing the DG-Board 1. Remove the rear AV bracket (See 7.4.) and the rear metal frame. (See 7.5.) 2. Disconnect the couplers (DG6, DG8 and DG7), the flexible cables (DG2 and DG3) and the bridge cables (DG4 and DG5). 3.
  • Page 18 7.9. Removing the AP-Board 1. Remove the rear AV bracket ass'y (See 7.4.) and the rear metal frame. (See 7.5.) 2. Disconnect the couplers (AP2, AP6 and AP10 (AC Cord)) and the bridge cables (H1 (AP1) on the H-Board, P3/CN201 (AP3) on the P- Board and DG4 (AP4) and DG5 (AP5) on the DG-Board.
  • Page 19 7.11. Removing G-Board bracket (G-Board and GP-Board) 1. Remove the rear AV bracket (See 7.4.) and the rear metal frames. (See 7.5.) 2. Remove the fixing screws (2pcs ) and pull out the rear AV bracket slightly. 3. Disconnect the flexible cable (GP10) and the couplers (G1, G4, G5, G10, G11 and GP6).
  • Page 20 <Removing the GP-Board> 4. Remove the screws (2pcs ) and push the hooks (2 points ). 5. Remove the GP-Board. 7.13. Removing the GS-Board bracket. 1. Remove the screws (3pcs ) (See figure in item 7.11.) 2. Remove the GS-Board bracket. 3.
  • Page 21 7.14. Removing the K-Board 1. Remove the rear cover (See 7.2.) and the speaker box L. (See 7.3.) 2. Remove a coupler (K6). 3. Remove the screws (2pcs ). 4. Remove the K-Board bracket with the K-Board. 5. Remove a screw ( ) and remove the K-Board. 7.15.
  • Page 22 7.16. Removing the main chassis 1. Remove the rear AV bracket (See 7.4.) and the rear metal frame. (See 7.5.) 2. Disconnect the couplers (CN202, CN203, DG6, DG7, DG8, H4, H5, H6, H8, H9, AP6, AP10) and the earth lug (on the H-Board) from G- Board.
  • Page 23 2. Remove the fixing screws (11pcs ). 3. Remove the LCD panel and LCD panel holders (right and left). 4. Remove the screw (4pcs ). 5. Remove the LCD panel holders (top and bottom). 8. Service Mode Function MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Mode.
  • Page 25 8.3. Option Description...
  • Page 27 8.4. Option Code Setting If the memory IC (IC1107) or DG Board is replaced, option code should be re-memorized. If you use for other model, you should re-memorized the different option code in SERVICE 2 mode.
  • Page 28 9. Adjustment method 9.1. Sub-Contrast/White Balance Adjustment Instrument Name Connect to Remarks 1. Remote controller Correlation can be also taken 2. LCD WB meter (Minolta CS-1000A equivalent) CA-210 or equivalent 3. Communication jig 4. Computer for external control Procedure Remarks Let the panel stand for more Sub-Contrast adjustment 1.
  • Page 29 10.2. Block Diagram (1 of 6) 10.3. Block Diagram (2 of 6) 10.4. Block Diagram (3 of 6) 10.5. Block Diagram (4 of 6) 10.6. Block Diagram (5 of 6) 10.7. Block Diagram (6 of 6) 11. Schematic Diagram 11.1. Schematic Diagram Notes...
  • Page 30 11.2. AP-Board (1 of 2) and K-Board Schematic Diagram 11.3. AP-Board (2 of 2) Schematic Diagram 11.4. H-Board (1 of 3) Schematic Diagram 11.5. H-Board (2 of 3) Schematic Diagram 11.6. H-Board (3 of 3) Schematic Diagram 11.7. DG-Board (1 of 7) Schematic Diagram 11.8.
  • Page 31 11.17. G-Board and V-Board Schematic Diagram 12. Printed Circuit Board 12.1. AP-Board 12.2. H-Board 12.3. DG-Board 12.4. DV and GP-Board 12.5. GS-Board 12.6. G-Board 12.7. K and V-Board 13. Exploded View and Replacement Parts List. 13.1. Set Layout 13.2. Front Chassis Layout...
  • Page 32 13.3. Cabinet Ass’y Layout 13.4. Packing...
  • Page 33 13.5. Mechanical Replacement Parts List...
  • Page 34 LCD PANEL 32 INCH N2QAJB000156 REMOTE CONTROL TRANSMITT TBLA0145 STAND ASSY TBLA0146 SUPPORTING FRAME ASSY TBLG3071 RUBBER FOOT(FRONT/REAR) TBLG3073 RUBBER FOOT(L/R) TBMA163 PANASONIC BADGE TBXA46502 POWER BUTTON(FINISH) TEKC029 DANPER TEKX020 SD DOOR TES4G204 SPRING TESD074 COIL SPRING THTD010N SCREW TKKC5211-1...
  • Page 35 Ref. No. Part No. Part Name & Description Remarks TMWX032 SD BRACKET TPCB83401 PACKING CASE 32 INCH TPCB83501 PACKING CASE 26 INCH TPDA1175 CUSHION(TOP) 32 INCH TPDA1177 CUSHION(REAR) 32 INCH TPDA1178 CUSHION(TOP) 26 INCH TPDA1179 CUSHION(BOTTOM) 26 INCH TPDA1180 CUSHION(REAR) 26 INCH TPEH210 SET COVER...
  • Page 36 Ref. No. Part No. Part Name & Description Remarks 14. Electrical Replacement Parts List 14.1. Electrical Replacement Parts List Notes 14.2. Electrical Replacement Parts List...
  • Page 37 Ref. No. Part No. Part Name & Description Remarks K1KA23A00005 23P CONNECTOR K1KA04A00576 4P CONNECTOR K1KA11A00124 11P CONNECTOR AP4,P5 K1KA23A00003 23P CONNECTOR K1KA02A00626 2P CONNECTOR AP10 K1KA02A00613 2P CONNECTOR C1004 ECJ1XF1C104Z C 0.1UF, Z, 16V C1005 EEEHB1C220UR C 22PF, J, 16V C1006 ECJ1XF1C104Z C 0.1UF, Z, 16V...
  • Page 38 Ref. No. Part No. Part Name & Description Remarks C1161,62 ECJ1XB1C104K C 0.1UF, Z, 16V C1164 ECJ1VB1H103K C 0.001UF, K, 50V C1166,67 ECJ1XB1C104K C 0.1UF, Z, 16V C1168 ECJ1VB1H103K C 0.001UF, K, 50V C1169 ECJ1XB0J105K C 1UF, K, 16V C1170-73 ECJ1XB1C104K C 0.1UF, Z, 16V C1175,76...
  • Page 39 Ref. No. Part No. Part Name & Description Remarks C2183 EEEHB1H3R3R C 3.3PF, J, 50V C2184,85 ECJ1XF1C104Z C 0.1UF, Z, 16V C2186 EEEHB1C101UP C 100PF, J, 16V C2189,90 ECJ1VF1C105Z C 1UF, Z, 16V C2191 ECJ1XF1C104Z C 0.1UF, Z, 16V C2192 EEEHB1C100R C 10PF, J, 16V C2195...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks C2544 ECA1EHG102 E 1000UF, 25V C2545 ECJ2FB1E224K C 22UF, K, 25V C2546 ECJ1VB1H153K C 0.015UF, K, 50V C2547 ECA1HM2R2 E 2.2UF, 50V C2550 ECJ2FB1E105K C 1UF, K, 25V C2551,52 ECJ1VB1H221K C 220UF, K, 50V C2553 ECJ2FB1H104K C 0.1UF, K, 50V...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks C3070 ECEA1CN470U E 47UF, 16V C3071 ECJ1XF1C104Z C 0.1UF, Z, 16V C3074 ECJ1VF1H104Z C 0.1UF, Z, 50V C3078-85 ECJ1XC1H561J C 560PF, J, 50V C3087,88 ECJ1VF1C105Z C 1UF, Z, 16V ECJ2VF1C105Z C3092 ECA1EM471 E 470UF, 25V C3093...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks C4031-36 ECJ1XB1C104K C 0.1UF, Z, 16V C4038 ECJ1XC1H102J C 1000PF, J, 50V C4039 ECJ1VB1H103K C 0.001UF, K, 50V C4040 ECJ1XB1C104K C 0.1UF, Z, 16V C4041 ECJ1XB0J105K C 1UF, K, 16V C4042,43 ECJ1XB1C104K C 0.1UF, Z, 16V C4044...
  • Page 43 Ref. No. Part No. Part Name & Description Remarks C4157 ECJ1XB1C104K C 0.1UF, Z, 16V C4158 ECJ1XC1H102J C 1000PF, J, 50V C4159 ECJ1XB1C104K C 0.1UF, Z, 16V C4160 ECJ1XB0J105K C 1UF, K, 16V C4163 ECJ1XC1H102J C 1000PF, J, 50V C4164 ECJ1VB0J225K C 2.2UF, K, 6.3V C4165...
  • Page 44 Ref. No. Part No. Part Name & Description Remarks C4269 ECJ1XB0J105K C 1UF, K, 16V C4270 EEVHB0J470R E 47UF, 6.3V C4271-84 ECJ1XB1C104K C 0.1UF, Z, 16V C4286 ECJ1XB0J105K C 1UF, K, 16V C4287-89 ECJ1XB1C104K C 0.1UF, Z, 16V C4293,94 ECJ1VB1H103K C 0.001UF, K, 50V C4295 ECJ1XB0J105K...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks C4367 EEEHB1A101P C 100PF, J, 10V C4368,69 ECJ3YB1C475K C 0.047UF, K, 16V C4370 ECJ1VB1C105K C 0.01UF, K, 16V C4371,72 ECJ1XB0J105K C 1UF, K, 16V C4373,74 ECJ1VB1H103K C 0.001UF, K, 50V C4375 EEVHB0J470R E 47UF, 6.3V C4376-96...
  • Page 46 Ref. No. Part No. Part Name & Description Remarks C4540 EEEHB0G221P C 220PF, J, 4V C4547 ECJ1XB1C104K C 0.1UF, Z, 16V C4549-75 ECJ1XC1H102J C 1000PF, J, 50V C4577-79 ECJ1XB1C104K C 0.1UF, Z, 16V C4584 ECJ1XC1H680J C 68PF, J, 50V C4586,87 ECJ2FB0J335K C 3.3UF, K, 16V C4588...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks C4736 ECJ1XB1C104K C 0.1UF, Z, 16V C4737 ECJ1XC1H102J C 1000PF, J, 50V C4738 ECJ1XB1C104K C 0.1UF, Z, 16V C4739 ECJ1XC1H102J C 1000PF, J, 50V C4740 ECJ1XB1C104K C 0.1UF, Z, 16V C4741 ECJ1XC1H102J C 1000PF, J, 50V C4744...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks C5018 ECJ1XB1C104K C 0.1UF, Z, 16V C5019 ECJ1VB1H102K C 1000PF, K, 50V C5020 ECJ1XB1C104K C 0.1UF, Z, 16V C5030 ECJ1XB1C104K C 0.1UF, Z, 16V C5034 ECJ1XB1C104K C 0.1UF, Z, 16V C5036 ECJ1XB1C104K C 0.1UF, Z, 16V C5039,40...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks C7053,54 ECA2WHG4R7 E 4.7UF, 450V C7055 ECQB1H473JF P 0.047UF, J, 50V C7056 ECQE2A473KF P 0.047UF, K,250V C7100 ECJ2XB1H103K C 0.01UF, K, 50V C7101 ECKD3D471KBP C 470PF, K, 2KV C7102 ECJ2VC2A101J E 100UF, 100V C7104 ECJ2XB1H102K C 1000PF, K, 50V...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks C7755 ECJ2XB1H682K C 6800PF, K, 50V C7756 ECJ2FB1H104K C 0.1UF, K, 50V C7951 ECA1VHG471 E 470UF, 35V C7952-61 ECJ2XB1H103K C 0.01UF, K, 50V C7964,65 ECJ2XB1H103K C 0.01UF, K, 50V C7966,67 ECA1EM101 E 100UF, 25V D1001 MAZ8043M...
  • Page 51 D7106 MA111 DIODE MA2J111 Ref. No. Part No. Part Name & Description Remarks D7107 B0EBKT000007 DIODE D7109 TVSSR2KL DIODE B0ZAZ0000044 D7110 RY24 DIODE D7111 B0BA01000070 ZENER DIODE D7112 ERA22-10 DIODE B0EAEV000002 D7113 B0JANG000003 DIODE D7116 B0JAMG000025 DIODE D7120 MA4330M ZENER DIODE MAZ43300M D7201 MA4075M...
  • Page 52 Ref. No. Part No. Part Name & Description Remarks FL3301,02 J0HABB000003 LC FILTER FL4005 J0HABC000008 LC FILTER FL4012-15 J0HABC000011 LC FILTER FL4020-22 J0JBD0000043 CHIP INDUCTOR FL4023-29 ELKE103FA NOISE FILTER K1KA10BA0062 10P CONNECTOR K1KA30AA0009 30P CONNECTOR K1KA20AA0009 20P CONNECTOR K1KA04BA0061 4P CONNECTOR K1KA05BA0061 5P CONNECTOR K1KA02A00553...
  • Page 53 Ref. No. Part No. Part Name & Description Remarks IC4002 C0FBBK000038 IC4005 C1AB00002298 IC4008 C0CBCBD00008 IC4009 C0CBCAD00012 IC4010 C0EBE0000336 IC4011 C0CBCAC00282 IC4012 C1AB00001834 IC4013 C1AB00002202 IC4014 C0JBAZ002186 IC4024 C0DBAMH00014 IC4025 C0DBAMH00013 IC4033 C0JBCZ000485 IC4041 C0CBCAC00275 IC4042 C0DBEJG00001 IC4044 C0CBCAC00136 IC4047 C0CBCBD00008 IC4048 C0DBEJG00001...
  • Page 54 Ref. No. Part No. Part Name & Description Remarks JS2111 ERJ3GEY0R00 M 0 OHM, 1/16W JS2500 ERJ6GEY0R00 M 0 OHM, 1/10W JS3023-25 ERJ3GEY0R00 M 0 OHM, 1/16W JS3026-28 ERJ6GEY0R00 M 0 OHM, 1/10W JS3401 ERJ3GEY0R00 M 0 OHM, 1/16W JS3903 ERJ3GEY0R00 M 0 OHM, 1/16W JS4001,02...
  • Page 55 Ref. No. Part No. Part Name & Description Remarks L3811,12 EXC3BB221H BEAD CHOKE L3813,14 J0JCC0000364 CHIP INDUCTOR L4001 J0JHC0000078 CHIP INDUCTOR L4002 G1C100KA0008 INDUCTOR COIL L4003,04 J0JHC0000078 CHIP INDUCTOR L4006-08 J0JHC0000078 CHIP INDUCTOR L4014,15 J0JHC0000078 CHIP INDUCTOR L4016 J0JCC0000241 CHIP INDUCTOR L4017-19 J0JHC0000078 CHIP INDUCTOR...
  • Page 56 Ref. No. Part No. Part Name & Description Remarks L7962 G0A100GA0013 CHOKE COIL G0C151K00004 LF7001,02 G0B852H00001 CHOKE COIL LF7003 G0B552H00001 CHOKE COIL LF7004 G0B601H00002 CHOKE COIL ETXMM565MBB POWER UNIT RD-SD008 MODULE SD PA6701 K5H1622A0023 FUSE PC7102 CNC1S171R Q1003 2SA207700L TRANSISTOR Q1101 2SC584500L TRANSISTOR...
  • Page 57 Ref. No. Part No. Part Name & Description Remarks Q4058 2SC584500L TRANSISTOR Q4060-62 2SC584500L TRANSISTOR Q4065 2SC584500L TRANSISTOR Q4068 2SC584500L TRANSISTOR Q4073 2SC584500L TRANSISTOR Q4074 XN6501 TRANSISTOR XN06501 Q4075 UN5211 TRANSISTOR UNR5211 Q4076 2SA207700L TRANSISTOR Q4077 2SC584500L TRANSISTOR Q4080 2SC584500L TRANSISTOR Q5001 B1MBACA00008...
  • Page 58 Ref. No. Part No. Part Name & Description Remarks R1113 ERJ3GEY0R00 M 0 OHM, 1/16W R1115 ERJ3GEYJ104 M 100KOHM,J,1/16W R1116 ERJ3GEYJ683 M 68KOHM,J,1/16W R1117 ERJ3GEYJ333 M 33KOHM,J,1/16W R1119 ERJ3GEYJ563 M 56KOHM,J,1/16W R1120 ERJ3GEY0R00 M 0 OHM, 1/16W R1121 ERJ3GEYJ333 M 33KOHM,J,1/16W R1122 ERJ3GEYJ563 M 56KOHM,J,1/16W...
  • Page 59 Ref. No. Part No. Part Name & Description Remarks R1223 ERJ3GEY0R00 M 0 OHM, 1/16W R1224 ERJ3GEYJ332 M 3.3KOHM,J,1/16W R1225 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R1226 ERJ3GEYJ680 M 68 OHM,J,1/16W ERJ3GEYJ680V R1227 ERJ3GEY0R00 M 0 OHM, 1/16W R1228,29 ERJ3GEYJ680 M 68 OHM,J,1/16W ERJ3GEYJ680V R1230 D1HG5608A002...
  • Page 60 Ref. No. Part No. Part Name & Description Remarks R2059 ERJ3GEYJ103 M 10KOHM,J,1/16W R2060 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R2061 ERJ3GEYJ105 M 1MOHM,J,1/16W R2068 ERJ3EKF8201 M 8.2KOHM, 1/16W R2069 ERJ3GEYJ561 M 560 OHM,J,1/16W R2070 ERJ3GEY0R00 M 0 OHM, 1/16W R2121 ERJ3GEY0R00 M 0 OHM, 1/16W R2123...
  • Page 61 Ref. No. Part No. Part Name & Description Remarks R2321,22 ERJ3GEYJ433 M 43KOHM,J,1/16W R2327,28 ERJ3GEYJ203 M 20KOHM,J,1/16W R2329,30 ERJ3GEY0R00 M 0 OHM, 1/16W R2332 ERJ3GEY0R00 M 0 OHM, 1/16W R2334 ERJ3GEYJ391 M 390 OHM,J,1/16W D0GB391JA002 R2335 ERJ3GEY0R00 M 0 OHM, 1/16W R2337 ERJ3GEYJ391 M 390 OHM,J,1/16W...
  • Page 62 Ref. No. Part No. Part Name & Description Remarks R2610 ERJ3GEYJ222 M 2.2KOHM,J,1/16W R2611 ERJ6ENF6800 M 680 OHM, 1/10W R2623 ERJ3GEY0R00 M 0 OHM, 1/16W R2625 ERJ3GEY0R00 M 0 OHM, 1/16W R2626-28 ERJ6ENF6800 M 680 OHM, 1/10W R2634,35 ERJ3GEY0R00 M 0 OHM, 1/16W R2643 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 63 Ref. No. Part No. Part Name & Description Remarks R3162 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R3164 ERJ3GEY0R00 M 0 OHM, 1/16W R3166-68 ERJ3EKF75R0 M 0.75HM, 1/16W R3170 ERJ3GEY0R00 M 0 OHM, 1/16W R3171 ERJ3GEYJ471 M 470 OHM,J,1/16W R3173 ERJ3GEYJ271 M 270 OHM,J,1/16W R3176 ERJ3EKF75R0 M 0.75HM, 1/16W...
  • Page 64 Ref. No. Part No. Part Name & Description Remarks R3361-63 ERJ3GEYJ330 M 33 OHM,J,1/16W R3364-68 ERJ3GEY0R00 M 0 OHM, 1/16W R3891 ERJ3GEY0R00 M 0 OHM, 1/16W R3903 ERJ6ENF6801 M 6.8KOHM, 1/10W R3904-07 ERJ6GEYJ184 M 180KOHM,J,1/10W R3918 ERJ6ENF2202 M 2.2KOHM, 1/10W R3919 ERJ6GEYJ223 M 22KOHM,J,1/10W...
  • Page 65 Ref. No. Part No. Part Name & Description Remarks R4156 ERJ6GEYJ331 M 330 OHM,J,1/10W R4157,58 ERJ3GEY0R00 M 0 OHM, 1/16W R4159,60 ERJ6GEYJ471 M 470 OHM,J,1/10W R4166-68 ERJ3GEY0R00 M 0 OHM, 1/16W R4169-71 ERJ3GEYJ151 M 150 OHM,J,1/16W R4172-74 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R4175 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 66 Ref. No. Part No. Part Name & Description Remarks R4263 ERJ3GEYJ560 M 56 OHM,J,1/16W R4265 ERJ3GEYJ560 M 56 OHM,J,1/16W R4267 ERJ3EKF1500 M 150 OHM, 1/16W R4268 ERJ3GEYJ510 M 51 OHM,J,1/16W R4269 ERJ3GEYJ470 M 47 OHM,J,1/16W R4270 ERJ3EKF1200 M 120 OHM, 1/16W R4271 ERJ3GEYJ101 M 100 OHM,J,1/16W...
  • Page 67 Ref. No. Part No. Part Name & Description Remarks R4386 EXB2HV680J RESISTOR ARRAY R4388 EXB2HV680J RESISTOR ARRAY R4390 EXB2HV680J RESISTOR ARRAY R4392 EXB2HV680J RESISTOR ARRAY R4393 ERJ3GEYJ750 M 75 OHM,J,1/16W R4397 ERJ3GEYJ393 M 39KOHM,J,1/16W R4398 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R4399-01 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 68 Ref. No. Part No. Part Name & Description Remarks R4510 EXB2HV220JV RESISTOR ARRAY R4511,12 ERJ3EKF1741 M 17.4 OHM, 1/16W R4513 ERJ3GEYJ564 M 560KOHM,J,1/16W R4514 EXB2HV220JV RESISTOR ARRAY R4515,16 ERJ3GEYJ220 M 22 OHM,J,1/16W R4521 ERJ3GEYJ220 M 22 OHM,J,1/16W R4530 ERJ3GEYJ220 M 22 OHM,J,1/16W R4548 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 69 Ref. No. Part No. Part Name & Description Remarks R4660 ERJ3GEYJ822 M 8.2KOHM,J,1/16W R4662 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R4664-67 J0JDC0000054 CHIP INDUCTOR R4669,70 J0JDC0000054 CHIP INDUCTOR R4678 ERJ3GEY0R00 M 0 OHM, 1/16W R4681,82 ERJ3GEY0R00 M 0 OHM, 1/16W R4685 ERJ3EKF1001 M 1KOHM, 1/16W R4686...
  • Page 70 Ref. No. Part No. Part Name & Description Remarks R4827 ERJ3GEY0R00 M 0 OHM, 1/16W R5002,03 ERJ3GEYJ220 M 22 OHM,J,1/16W R5006 ERJ3GEYJ102 M 1KOHM,J,1/16W R5007 ERJ3GEY0R00 M 0 OHM, 1/16W R5011 ERJ3GEY0R00 M 0 OHM, 1/16W R5013 ERJ3GEYJ473 M 47KOHM,J,1/16W R5014,15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W...
  • Page 71 Ref. No. Part No. Part Name & Description Remarks R6589 ERJ3GEYJ103 M 10KOHM,J,1/16W R6590 ERJ3GEYJ221 M 220 OHM,J,1/16W R6591 ERJ3GEYJ223 M 22KOHM,J,1/16W R6592,93 ERJ3GEYJ560 M 56 OHM,J,1/16W R6596 ERJ3GEYJ332 M 3.3KOHM,J,1/16W R6597 ERJ3GEY0R00 M 0 OHM, 1/16W R6598,99 EXB38VR000 RESISTOR ARRAY R6600 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 72 R7121 ERDS2TJ431 C 430 OHM, J,1/4W...
  • Page 73 Ref. No. Part No. Part Name & Description Remarks R7123 ERDS2TJ222 C 2.2KOHM, J,1/4W R7124 ERDS2TJ103 C 10KOHM, J,1/4W R7125 ER0S2CKF1052 M10.5KOHM, F,1/4W R7126 ER0S2CKF1002 M 10KOHM, F,1/4W R7127,28 ERJ6GEYJ102 M 1KOHM,J,1/10W R7130 ERJ6GEYJ103 M 10KOHM,J,1/10W R7133 ERJ6GEYJ103 M 10KOHM,J,1/10W R7136 ERJ6GEYJ103 M 10KOHM,J,1/10W...
  • Page 74 Ref. No. Part No. Part Name & Description Remarks R7503 ERJ6GEYJ222 M 2.2KOHM,J,1/10W R7504 ERJ6GEYJ223 M 22KOHM,J,1/10W R7505 ERJ6GEYJ102 M 1KOHM,J,1/10W R7506 ERJ6GEYJ222 M 2.2KOHM,J,1/10W R7507 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R7508 ERJ6GEYJ102 M 1KOHM,J,1/10W R7509 ERJ6GEY0R00 M 0 OHM, 1/10W R7510 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R7513,14...
  • Page 75 Ref. No. Part No. Part Name & Description Remarks TU3201 ENG39A02GF TUNER K1KA10BA0062 10P CONNECTOR X1101 H0J600400006 CRYSTAL X2101 H0J184500027 CRYSTAL X4001 H0J202500016 CRYSTAL X4002 H0J270500087 CRYSTAL ZA2101-03 TESA169 SHIELD CLIP ZA2105,06 TESA169 SHIELD CLIP ZA2108,09 TESA169 SHIELD CLIP ZA3201-05 K9ZZ00000424 CONNECTOR ZA4005-20...
  • Page 76 Parts Location Parts Location H-BOARD (FOIL SIDE) H-BOARD (COMPONENT SIDE) TRANSISTOR TRANSISTOR TRANSISTOR IC2101 Q3016 IC2103 Q2001 Q3002 IC2102 Q3019 IC2105 Q2002 Q3003 IC2104 Q3021 IC2106 Q2003 Q3004 IC3302 Q3022 IC2107 Q2004 Q3005 IC2108 Q2005 Q3006 IC2111 Q2006 Q3008 IC2112 Q2007 Q3009 IC2302...
  • Page 77 K-BOARD (FOIL SIDE) TNPA3492AB Parts Location Parts Location K-BOARD V-BOARD TRANSISTOR TNPA3492 TP001 Q1001 TP1001 SEE REVERSE FOR ORDER NO. TP002 Q1003 TP1002 TP1003 TP1004 TP1005 TP1006 SW001 TP1007 TP1009 TP1010 TP1011 TP1012 TP1013 V-BOARD (FOIL SIDE) TNPA3490AC (TX-26/32LXD500) TNPA3490AD (TX-26/32LX500F/P) TNPA3490 TP1009 TP1010...
  • Page 78 XV-BOARD (COMPONENT SIDE) TNP0EXV01AD C501 R613 C504 C507 R608 D501 R602 R606 R609 R603 R959 R614 R604 C502 TP002 C505 XV05 JK201 R304 IC034 XV07 R965 R966 IC019 IC301 R923 R933 R929 R928 XV03 R936 R935 R934 C098 C058 C034 L008 R108 C002...
  • Page 79 XV-BOARD (FOIL SIDE) TNP0EXV01AD R834 R835 R956 FL302 FL301 R059 C180 ZA007 R958 IC226 D002 C323 R971 R187 R732 C249 R733 R734 C509 R610 R735 C250 R601 C175 R736 R318 X006 C176 C379 R075 VSUPPLY R039 R074 R040 C171 FL201 C051 R008 RF-AGC...
  • Page 80 POWER UNIT POWER UNIT (CN101) (CN201) TP7905 ZA7002 TP7002 K9ZZ00000424 AP-BOARD (1/2) D7203 D7204 C7012 MA2J11100L MAZ83300ML 100p TP7005 TP7904 TNAP3487AA(TX-26/32LXD500) 24V OVP ZA7005 IC7301 K9ZZ00000424 TNAP3487AC(TX-26/32LX500F/P) C7100 SUUND_16V/SUB_5V 0.01u C5HAAKG00002 TP7001 TP7006 5V OVP C7007 4700p D7301 D7302 TP7301 MAZ81000ML MA2J11100L D7004...
  • Page 81 ZA7003 H-BOARD K9ZZ00000424 (H1) R7234 R7247 D7208 MA2J11100L R7218 L7201 THUNDER_GND R7243 JS7967 THUNDER_GND C7210 C7209 R7228 STB_LED Q7210 0.22u *R7235 100u *D7209 *R7248 PC_5V 2SA207700L MA2J11100L SOUND_GND *IC7751 PC_5V C7956 SHORT SOS SOUND_GND D7207 C0DAAZG00014 0.01u R7223 MA2J72900L SOUND_GND 2.2k 17.6 PC_5V OVP...
  • Page 82 STB5V AO_A16 *R1159 C1120 STB3.3V 4.7k *R1216 C1119 *R1197 *R1206 *Q1106 0.1u 220k AO_A15 6.3V PANEL3.3V 2SC584500L *C1148 *R1241 AO_A14 *R1191 *Q1110 BYTE *R1151 100k *C1153 Q-LINK SELECT 220p AO_A13 2SC584500L *R1328 220p *C1165 C1199 *R1182 AQ_D15 *IC1105 AO_A12 0.1u *Q1107 DQ15/A-1 0.1u...
  • Page 83 GC_RST AS_TELETEXT MAIN5V L4002 G1C100KA0008 AS_BLK C4006 C4004 1.8V 0.1u IC4041 TP4147 VOUT C0CBCAC00275 MAIN3.3V ADJUST C4039 MAIN3.3V C4041 L4006 6.3V IC4049 J0JHC0000078 C4015 0.01u C4013 L4015 MAIN9V L4003 6.3V VOUT J0JHC0000078 C4049 C4050 J0JHC0000078 C0CBABF00020 0.1u 6.3V JS4008 0.1u C4002 C4097 C4100...
  • Page 84 DV-BOARD *DG10 (DV15) DG-BOARD (3/7) TP4209 IC4014 *R4304 EXB38V560JV TP4159 YGIN0 HDMIINT TXNDG10LPM(TX-26LXD500) C0JBAZ002186 C4195 YGIN1 UBIN0 0.1u BUFFER TXNDG10LQM(TX-26LX500F) R4194 UBIN1 *R4306 SDA_1L *R4305 SCL_1L R4272 R4271 TXNDG10LRM(TX-26LX500P) TP4160 HDMI_RST TXNDG10LLM(TX-32LXD500) UBIN2 UBIN3 UBIN4 TP4163 *R4301 TXNDG10LMM(TX-32LX500F) JTAG_TMS UBIN5 TP4154 *R4300 UBIN6...
  • Page 85 BS_YIN7 BS_UVIN7 HSIC RGBAD,PEAKS_OSD IC4054 YIC7 IC4054 UVIC7 IC4054 HSIC D_CLKOE_A R4372 R4713 HSOD IC4054 CLKOE R4368 HSOD IC4054 MOSDHSO BS_YIN6 BS_UVIN6 VSIC D_CLKOE_C R4779 D1HG5608A002 IC4054 YIC6 IC4054 UVIC6 IC4054 VSIC R4714 OSDIN15 OSDIN7 VSOD IC4054 BOE5 D_HSOE_C R4374 IC4054 OSDI15 IC4054...
  • Page 86 AS_MAIN_ON 108MHz to 4L(FRCLKIN) 74.25MHz to 4L(EXCLKIN) MAIN3.3V MAIN1.8V L4082 R4688 J0JCC0000241 L4020 J0JCC0000241 C4671 C4672 C4113 100p 0.1u 0.1u IC4063 IC4010 C0EBC0000208 C0EBE0000436 C4116 CLK-Gen. C4673 DELAY 6800p R4193 6800p MAIN3.3V R4689 RESET L4052 IC4051 J0JCC0000241 MAIN3.3V C4320 C4318 C4319 C1ZBZ0002790 220u...
  • Page 87 JTAG_TCK R4485 IC4057 R4499 R4486 JTAG_TMS C4397 C4398 SCL_2L IC4057 MAIN2.5V C4412 IC4057 MAIN3.3V 6.3V R4487 L4060 TDO_HDMI_4L R4503 0.1u J0JHC0000078 SDA_2L IC4057 0.1u IC4057 IC4057 OEMUTE C4375 C4376 R4488 JTAG_TRST MAIN1.8V R4500 R4504 6.3V C4406 C4411 C4415 C4426 C4436 IC4057 TRST L4059...
  • Page 88 MAIN3.3V JTAG R4704 R4706 PANEL5V MAIN3.3V LCD PANEL R4703 L4073 R4559 TP4081 FL4026 JTAG_TRST TP4083 J0JHC0000078 PANEL_5V(12V) MAIN3.3V AC_LCD_R6 PANEL3.3V ELKE103FA C4476 *R4741 C4488 JTAG_TMS TP4078 PANEL_5V(12V) C4478 AC_LCD_R5 L4075 AC_LCD_R1 0.01u TP4075 J0JHC0000078 PANEL_5V(R/L) TP4079 R4549 R4553 JTAG_TCK 0.01u PANEL_5V(12V) AC_LCD_R7 AC_LCD_R4...
  • Page 89 DV-BOARD TXNDV10LLM MAIN5V TP5017 MAIN3.3V L5021 TP5006 J0JHC0000045 C5054 C5056 C5057 4.7u 0.1u 100p L5003 J0JHC0000045 TP5000 C5004 C5005 0.1u C5013 R5034 5V_MAIN 4.7u L5007 J0JHC0000045 R5040 R5354 R5356 EXB38V330JV C5133 1.5V_MAIN TP5025 4.7u C5046 C5140 VSIB C5030 R5366 IC5015 TP5001 470p 4.7k...
  • Page 90 H-BOARD (H5) TP3906 17.5 SOUND_16V JS2500 17.5 C2520 SOUND_16V C2522 R2561 2200p 17.5 470u SOUND_16V 17.5 R2570 SOUND_16V G-BOARD TNPA3489AB R2560 6.8k R2562 3.9k 17.5 R2557 C2611 SOUND_16V C2586 TP3907 C2523 R2559 4.7u VSSD 2200p 0.015u 470k VSSD C2524 C2525 R2558 C2521 2200p...
