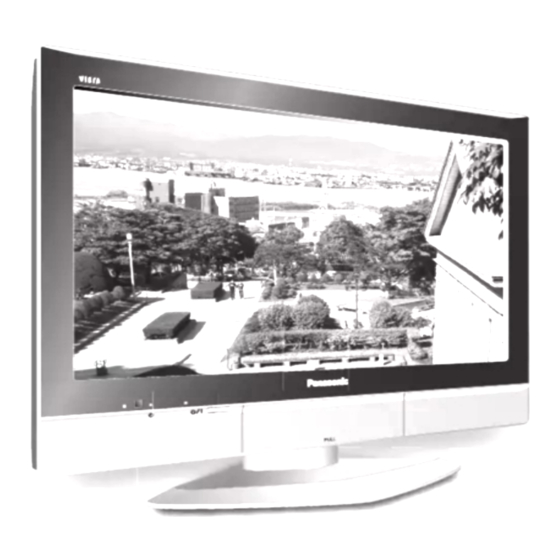

Panasonic TX-32LXD50 Service Manual

Specifications
Power Source
Power Consumption
LCD
Screen Size
Sound
Speaker
Audio Output
Headphones
Scanning format
Receiving Systems /
Band name
AC 220 - 240 V, 50 / 60 Hz
Average use : 133 W (0.78 A) (TX-26LXD50)
Average use : 169 W (0.98 A) (TX-32LXD50)
Standby condition :
0.1 W (Without DVB Timer programmes)
11W (With DVB Timer programmes)
Average use : 126 W (TX-26LX50F/P)
Average use : 161 W (TX-32LX50F/P)
Standby condition : 0.4 W
Wide XGA (1,366 × 768 pixels)
16 : 9 aspect ratio LCD panel
575.8 mm (W) × 323.7 mm (H) (TX-26LXD50, TX-26LX50F/P)
697.7 mm (W) × 392.3 mm (H) (TX-32LXD50,TX-32LX50F/P)
Woofer Ø8 cm × 2 pcs, Full range Ø5 cm ×2pcs
20 W (5.4 W + 5.4 W, 4.6 W + 4.6 W )
M3 (3.5 mm) Jack × 1
480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(50Hz), 1080i(50Hz)
PAL I (TX-26LXD50/32LXD50)
DVB (TX-26LXD50/32LXD50)
PAL B, G, H, SECAM B, G SECAM L / L' (TX-26LX50F/P, TX-32LX50F/P)
VHF E2 - E12
VHF A - H (ITALY)
CATV (S01 - S05)
TX-32LXD50
TX-26LXD50
TX-32LX50F
TX-32LX50P
TX-26LX50F
TX-26LX50P
LH41 Chassis
UHF E21-68.
Digital terrestrial services via UHF aerial input.
VHF H1 - H2 (ITALY)
UHF E21 - E69
CATV S1 - S10 (M1 - M10)
