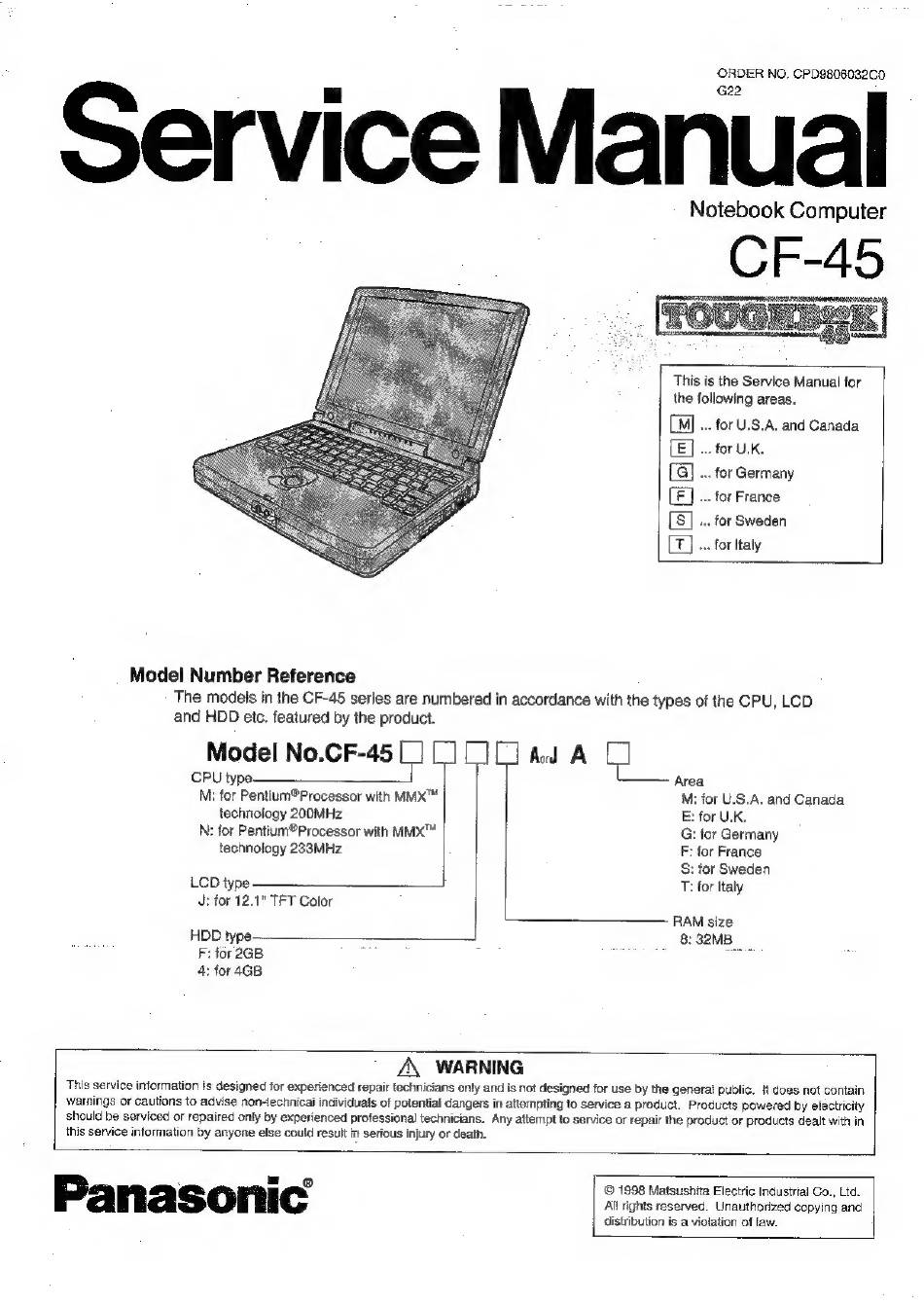

Panasonic TOUGHBOOK CF-45 Series Service Manual

ORDER NO. CPD9806032C0
G22 ;
Notebook Computer
Service Ma
This is the Service Manual for
the following areas.
.. for U.S.A. and Canada
. for UK.
.. for Germany
.. for France
+ for Sweden
=I [o] | [fg]
+» for Italy
Model Number Reference
The models in the CF-45 series are numbered in accordance with the types of the CPU, LCD
and HDD etc. featured by the product.
Cy dd A Ld
Model No.CF-45 (| (1
CPU type Area
M: for Pentium®Processor with MMX™ M: for U.S.A. and Canada
technology 200MHz E: for U.K.
N: for Pentium®Processor with MMX™
technology 233MHz
G: for Germany
F: for France
S: for Sweden
LCD type T: for Italy
J: for 12.1" TFT Color
RAM size
HDD type: 8: 32MB
F: for 2GB ~~ 5
4: for 4GB
AX WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain
warnings or cautions to advise non-iechnicai individuals of potential dangers in attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in
this service information by anyone else could result in serious injury or death.
} a © 1998 Matsushita Electric Industrial Co., Ltd.
rasonic All rights reserved. Unauthorized copying and
distribution is a violation of law.
