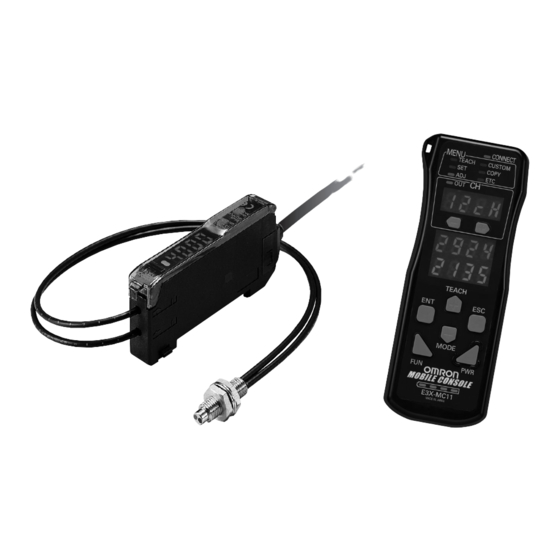

Digital Fiber Amplifier
E3X-DA-N
Reducing power line wiring meaning
space is saved. New design for easier
maintenance.
Industry First
The connector type that uses the wire-saving connector sup-
plies power to the single-conductor slave connectors via the
three-conductor master connector. Hence, the following three
has been made possible.
1. Wiring is much simpler.
2. Relay connectors are not required meaning that space is used
more efficiently and costs are reduced.
3. Simple inventory control because of no differentiation between
master and slave in the amplifier section.
New Connector Design
Up to 16 Amplifiers
can be connected together.
Optical
commu-
nications
Master Connector
E3X-DA-N
Truly ultimate fiber amplifier
in pursuit of "user friendliness"
and "high performance"
UL991*
* UL-listed including UL991 tests/evaluations Applicable standard: UL3121-1 Standards for additional tests/evaluations
for applications: UL991, SEMI S2-0200
Patent pending
Power supply pin
Slave Connector
Features
Super digital display by use of the Auto
Power Control (APC) circuit
The incident level of LEDs used in sensors is prone to deteriorate
with time and as a result, detection becomes unstable.
Using the APC (auto power control) circuit for the first time as the
fiber sensor, the E3X-DA-N series has no digital value variations,
realizing severe detection.
This makes the E3X-DA-N ideal for applications where a high de-
gree of sensitivity is required, such as detecting crystal glass.
Conventional
Digital Fiber
Amplifiers
E3X-DA-N Series
Industry First
Incident level
3000
Threshold
Detection becomes unstable
Time
Incident level
3000
Threshold
Stable detection
Time
A-419

Advertisement

loading

Summary of Contents for Omron E3XDAC21S2M

  • Page 1 Digital Fiber Amplifier E3X-DA-N Truly ultimate fiber amplifier in pursuit of "user friendliness" and "high performance" UL991* * UL-listed including UL991 tests/evaluations Applicable standard: UL3121-1 Standards for additional tests/evaluations for applications: UL991, SEMI S2-0200 Features Reducing power line wiring meaning Super digital display by use of the Auto space is saved.
  • Page 2 E3X-DA-N (Digital display not lit) This ECO label is indicated on products that meet the environmental standards established by OMRON. Beeper-sized, new-generation Mobile Console unleashing the power of the ultimate fiber amplifier Remote setting/adjustment function Simultaneous turning possible using group teaching.
  • Page 3: Ordering Information

    Ordering Information Amplifier units Prewired Model Item Shape Control output NPN output PNP output Standard models ON/OFF output E3X-DA11-N E3X-DA41-N · ON/OFF output E3X-DA21-N E3X-DA51-N Monitor-output models · Monitor output Mark-detecting models (Blue LED) E3X-DAB11-N E3X-DAB41-N Mark-detecting models (Green LED) E3X-DAG11-N E3X-DAG41-N Infrared models...
  • Page 4 Amplifier units Connectors (Order Separately) Note: Stickers for Connectors are included as accessories. Item Shape Cable length No. of conductors Model E3X-CN11 Master connector E3X-CN21 E3X-CN12 Slave con- nector E3X-CN22 Sensor I/O Connectors (Order separately) Size Cable type Shape Cable length Model XS3F-M421-402-A Straight...
  • Page 5 Rating/Performance Amplifier units Prewired Standard Monitor-out- Infrared Water-resis- Twin-output Type Mark-detecting models models put models models tant models models Model E3X-DA11-N E3X-DA21-N E3X-DAB11-N E3X-DAG11-N E3X-DAH11-N E3X-DA11V E3X-DA11TW output E3X-DA41-N E3X-DA51-N E3X-DAB41-N E3X-DAG41-N E3X-DAH41-N E3X-DA41V E3X-DA41TW Item output Light source Blue LED Green LED Infrared LED Red LED (660 nm)
  • Page 6 Standard Monitor-out- Infrared Water-resis- Twin-output Type Mark-detecting models models put models models tant models models Model E3X-DA11-N E3X-DA21-N E3X-DAB11-N E3X-DAG11-N E3X-DAH11-N E3X-DA11V E3X-DA11TW output E3X-DA41-N E3X-DA51-N E3X-DAB41-N E3X-DAG41-N E3X-DAH41-N E3X-DA41V E3X-DA41TW Item output Insulation resistance 20 M min. at 500 VDC Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute Vibration resistance...
  • Page 7 Digital Fiber Amplifier * Differential output digital fiber amplifier (E3X-DA11D/E3X-DA6D) Applicable fiber unit characteristic (Through-beam model) Sensing distance (mm) (Values in parentheses: When using the E39-F1 lens unit) Sensitivity HIGH switching Standard object (mm) *1 Minimum sensing object 11 steps can be 3-11 3-11 *2 (Opaque object) de-...
  • Page 8 Differences from E3X-DA-N amplifier unit Differential output type (edge detection type) Item Prewiring type amplifier units with Connectors Item NPN output E3X-DA11D E3X-DA6D Power consumption Power consumption 960 mW max. (at power supply voltage 24 V, power consumption 40 mA max.) Con- trol Load current 50 mA (residual voltage NPN/PNP: 1 V max.
  • Page 9: Output Circuit Diagram

    Output Circuit Diagram NPN output Output transistor Mode selection Model Timing chart Output circuit Status switch Incident light No incident light Operation Indicator (orange) Brown Operation Indicator Display L ON Load (orange) Black Light ON E3X-DA11-N Output (LIGHT ON) Control output transistor E3X-DAB11-N Main...
  • Page 10 PNP output Output transis- Mode selection Model Timing chart Output circuit tor Status switch Incident light No incident light Operation Indicator (orange) Brown Operation Indicator L ON Display Light ON (orange) E3X-DA41-N (LIGHT ON) Output transistor E3X-DAB41-N Control output Main Black 12 to 24 E3X-DAG41-N...
  • Page 11 Characteristic data (default) Hysteresis vs. sensing distance Repeated accuracy vs. sensing distance Reflective model Reflective model E32-DC200 E32-D11L Sensing object: White paper Sensing object: White paper Distance Hysteresis Super- high- speed Standard Standard Super- high-speed Super- Super- long-distance long-distance Distance (mm) Distance (mm) Monitor output vs.
  • Page 12: Operation

    Operation General Changing the Display (RUN Mode) Zero-reset (RUN Mode) Digital incident level (4000 max.) Set the mode selector Digital incident level (4000 max.) Set the mode selector (Factory-set to RUN) TEACH MODE To reset to zero again: TEACH Digital Percent To return the initial digital incident level: TEACH MODE...
  • Page 13 Setting Functions in SET Mode Set the mode selector There are four different sensitivity settings. Refer to page AB- for TEACH details. Digital incident level display MODE Available with: E3X-DA21-N Sensing function Displayed as "F". E3X-DA51-N Monitor Focus E3X-DA7 Standard (factory-set) E3X-DA9 TEACH...
  • Page 14 Twin-output models Setting Functions in SET Mode Set the mode selector There are four different sensitivity settings. Refer to page AB- for TEACH details. Digital incident level display Setting the Changing the operating mode operating mode The operating mode for the channel set MODE with the channel-selection switch can be Timer function...
  • Page 15 General When teaching is performed (SET mode) • The four types of teaching given below are available. • Once setting is made, operation is performed in the preset status thereafter. When a teaching error occurs, the level indicators flash in red. Restart setting from the beginning. Twin-output models only Select the channel to be adjusted using the channel selection switch.
  • Page 16 Precautions Correct Use Amplifier units Design Adjustment Power ON Mutual interference prevention function The sensor is ready to sense an object within 200 ms after turn- The digital display value may vary due to the light from the ing the power ON. If the load and sensor are connected to differ- other sensor.
  • Page 17 Amplifier Unit Connectors Mounting End Plate (PFP-M) Installation Depending on the installation, an amplifier unit may move dur- Connector installation ing operation. In this case, use an end plate. 1. Insert the Master or Slave Connector into the amplifier unit Before installing an end plate, remove the clip from the master until it clicks into place.
  • Page 18: Dimensions (Unit: Mm)

    Dimensions (Unit: mm) Amplifier Units prewired With Mounting Blanket Attached E3X-DA11-N E3X-DAG11-N E3X-DA21-N 44.9 x 3 = 14.7 Incident level display E3X-DAH11-N E3X-DAB11-N E3X-DAB41-N 17.15 Threshold level display 13.05 E3X-DA41-N E3X-DAG41-N E3X-DA51-N (A) * 1 E3X-DAH41-N E3X-DA11D Operation Indicator 64.3 Two, 38.6 2.4 dia.
  • Page 19 With Mounting Blanket Attached Amplifier units with Cables, Twin-output Models E3X-DA11TW 4.9 x 3 = 14.7 Incident level display 17.15 E3X-DA41TW Threshold level display 13.05 (A) * 1 Operation Indicator 64.3 38.6 Two, 2.4 dia. Mounting Holes 2-M3 31.5 10.7 10.75 Hole for optical...
  • Page 20 Amplifier Units M8 Connectors, With Mounting Bracket Attached Water-resistant Models 4.9 x 3 = 14.7 30.05 E3X-DA14V Incident level display * The Mounting Bracket can 25.95 Threshold level display E3X-DA44V also be on side A. Operation Indicator (A) * 1 81.5 Two, 2.4 dia.
  • Page 21 Amplifier Unit Connectors Master connector 2,000 E3X-CN11 10.7 E3X-CN21 4 dia. 14.4 15.1 ± 2 ± 2 * E3X-CN11: A 4-dia., 3-conductor, vinyl-insulated round cable (conductor cross-sectional area: 0.2 mm ² ; insulation diameter: 1.1 mm) is used. E3X-CN21: A 4-dia., 4-conductor, vinyl-insulated round cable (conductor cross-sectional area: 0.2 mm ²...
