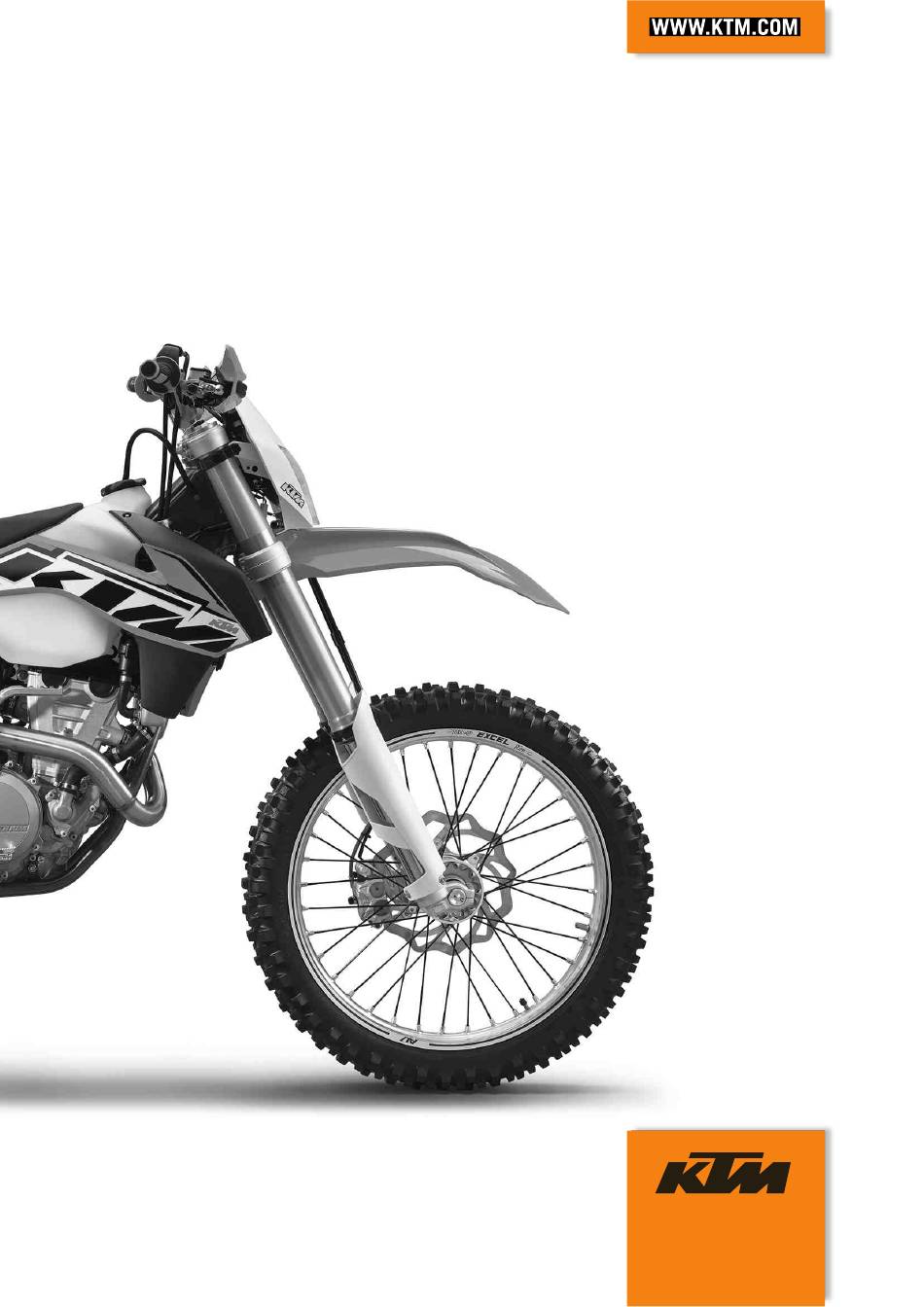

- Page 1 SETUP INSTRUCTIONS 2014 250 EXC-F EU 250 EXC-F SIX DAYS EU 250 EXC-F AUS 250 XCF‑W USA Art. no. 3213133en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SETUP Unpacking and setting up the vehicle Packaging 2 – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Remove the separate enclosure and unpack it. Check that the scope of supply is complete on the basis of the enclosed packing list.
- Page 6 SETUP (EXC-F SIX DAYS) – Position the fork legs and tighten the screws of the triple clamp. Guideline Screw, top triple clamp 17 Nm (12.5 lbf ft) Screw, bottom triple clamp 15 Nm (11.1 lbf ft) Info The rebound damping is located in the right fork leg REB (red adjusting screw).
- Page 7 SETUP (XCF‑W) – Insert the indicator lamp with the orange and brown cable colors into socket – Insert indicator lamp LED with the black and black cable colors into socket – Connect pull switch with the yellow and white cables. C00522-10 (EXC-F SIX DAYS) –...
- Page 8 SETUP – Position the turn signal on each side and mount and tighten nuts. – Connect plug-in connection of the right turn signal using the black and brown cable colors. – Connect plug-in connection of the left turn signal using the violet and brown cable colors.
- Page 9 Set the clock. ( p. 17) – Refuel. ( p. 14) – Position all controls in their exact positions on the handlebar. Tighten all screws. – Print out the current PDI form found on KTM DEALER.NET and perform the pre-delivery inspection.
- Page 10 WORK Raising the motorcycle with the lift stand Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. – Raise the motorcycle at the frame underneath the engine. Lift stand (54829055000) The wheels should no longer touch the ground.
-
Page 11: Checking The Headlight Setting
WORK Refitting the headlight mask with the headlight Main work – Connect the electric plug connector B01561-11 – Position the headlight mask and fix it with the rubber band Info Ensure that the retaining lugs engage in the fender. – Position the brake line and wiring harness. - Page 12 WORK – Tighten screw Installing the shock absorber Main work – Push splash protector to the side and position the shock absorber. Mount and tighten screw Guideline Screw, top shock absorber 80 Nm Loctite ® 2701™ (59 lbf ft) – Mount and tighten screw Guideline B01525-11...
- Page 13 WORK Installing the front fender Main work – Position the front fender. Mount and tighten screws Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) B01602-10 – Mount and tighten screws Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) B01603-11 Finishing work –...
-
Page 14: Installing The Battery
– Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage. - Page 15 WORK Preparatory work – Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 11) – Disconnect the negative cable of the battery to avoid damage to the onboard elec- tronics. Main work – Connect the battery charger to the battery.
-
Page 16: Closing Filler Cap
WORK 3.15 Closing filler cap – Replace the filler cap and turn clockwise until the release button locks in place. Info Route the fuel tank breather hose without kinking. B01502-11 3.16 Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. - Page 17 WORK 3.17 EXC‑F EU, EXC‑F AUS, XCF‑W 3.17.1 Setting kilometers or miles Info If you change the unit of measure, the ODO value is retained and converted accordingly. The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed. Condition The motorcycle is stationary.
-
Page 18: Exc-F Six Days
WORK – Press the button briefly and repeatedly until CLK appears at the bottom right of the display. – Press the button for 3 - 5 seconds. The hour display flashes. – Set the hour display with the button and/or button –... - Page 19 WORK – Repeatedly press the button briefly until H appears at the bottom right of the display. – Press the button for 2–3 seconds. The Setup menu is displayed and the active functions are shown. Info If no button is pressed for 10–12 seconds, the settings are automatically stored.
-
Page 20: Technical Data - Tightening Torques For Chassis
TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – EJOT PT ® Screw, pressure regulator 3 Nm (2.2 lbf ft) – Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) – Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –... - Page 21 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
-
Page 22: Auxiliary Substances
AUXILIARY SUBSTANCES Long-life grease Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Bike Grease 2000... - Page 23 *3213133en* 3213133en 08/2013 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
