Adjusting Door Alignment

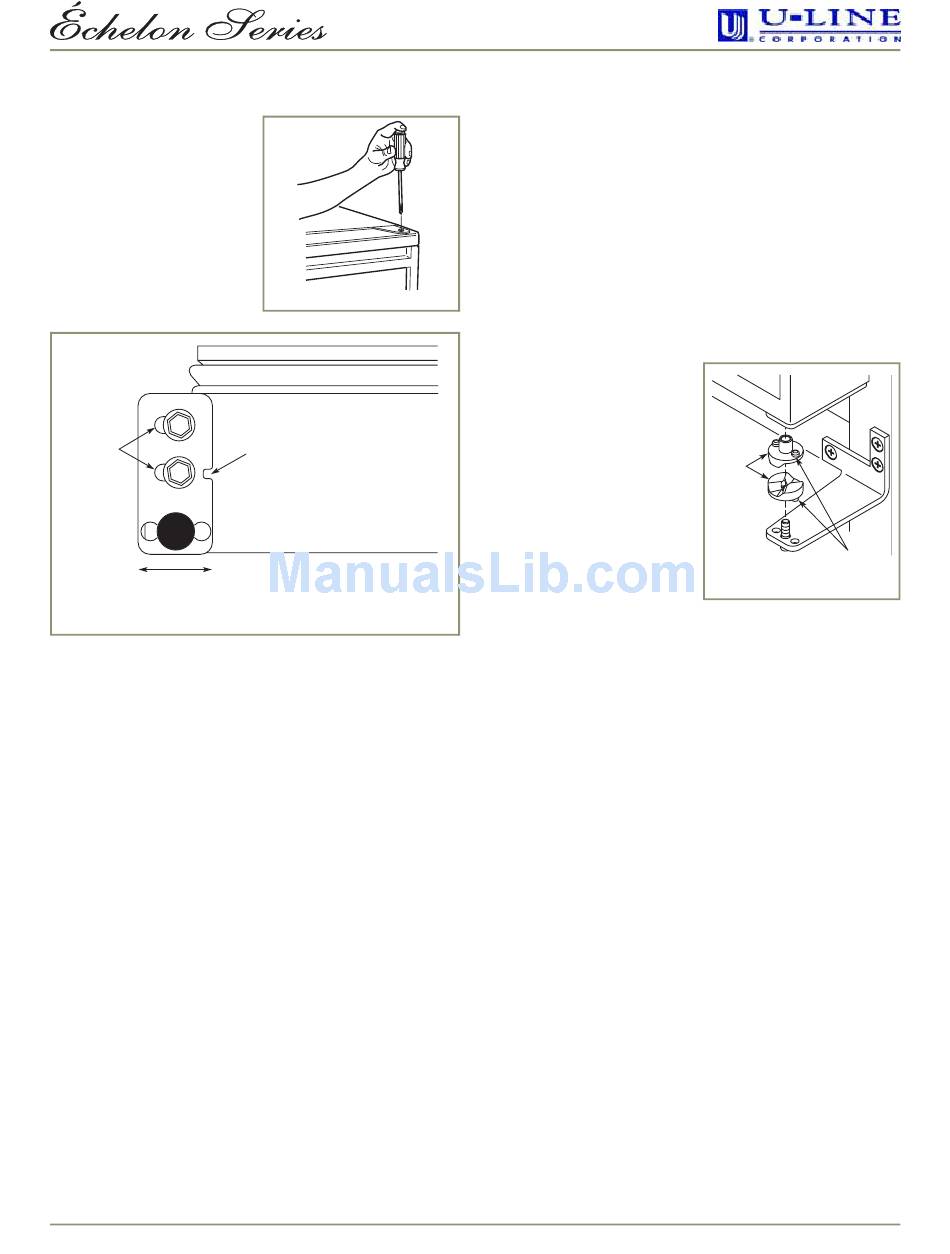

1. Remove top hinge screw
pin (Phillips screwdriver,
see Figure 16). Remove
door by tilting forward
and lifting off bottom
hinge pin.
2. With door upside-down,
loosen but do not remove
the two screws on the
door's bottom hinge plate.
Slotted
Mounting
Holes
Raise Lower
Outside Outside
Door Edge Door Edge
Figure 17
04/2006
Figure 16
Notch
(must face toward
center of door)
3. See Figure 17. If the top far edge of the door needs to
move UP, move the hinge plate toward the outside of
the door and retighten screws. If the top far edge of the
door needs to move DOWN, move the hinge plate
toward the inside of the door and retighten screws.
4. Mount the door to recheck alignment and repeat Steps
2 and 3 if further adjustment is necessary.
5. When top edge of door is parallel to top edge of
cabinet, remove the door and ensure the two screws
are secure.
6. Remove the door closers from the bottom hinge, clean
thoroughly and lubricate the mating surfaces with
petroleum jelly.
7. Reinstall the closers, lining
up the bosses with holes in
hinge and hinge plate (see
Figure 18).
8. Mount the door and install
top hinge pivot pin.
5
Door
Closer
Inserts
Boss
Figure 18
