Full Overlay Door Panel - U-Line Echelon 2175R Installation Manual

ULIN_0133a_A

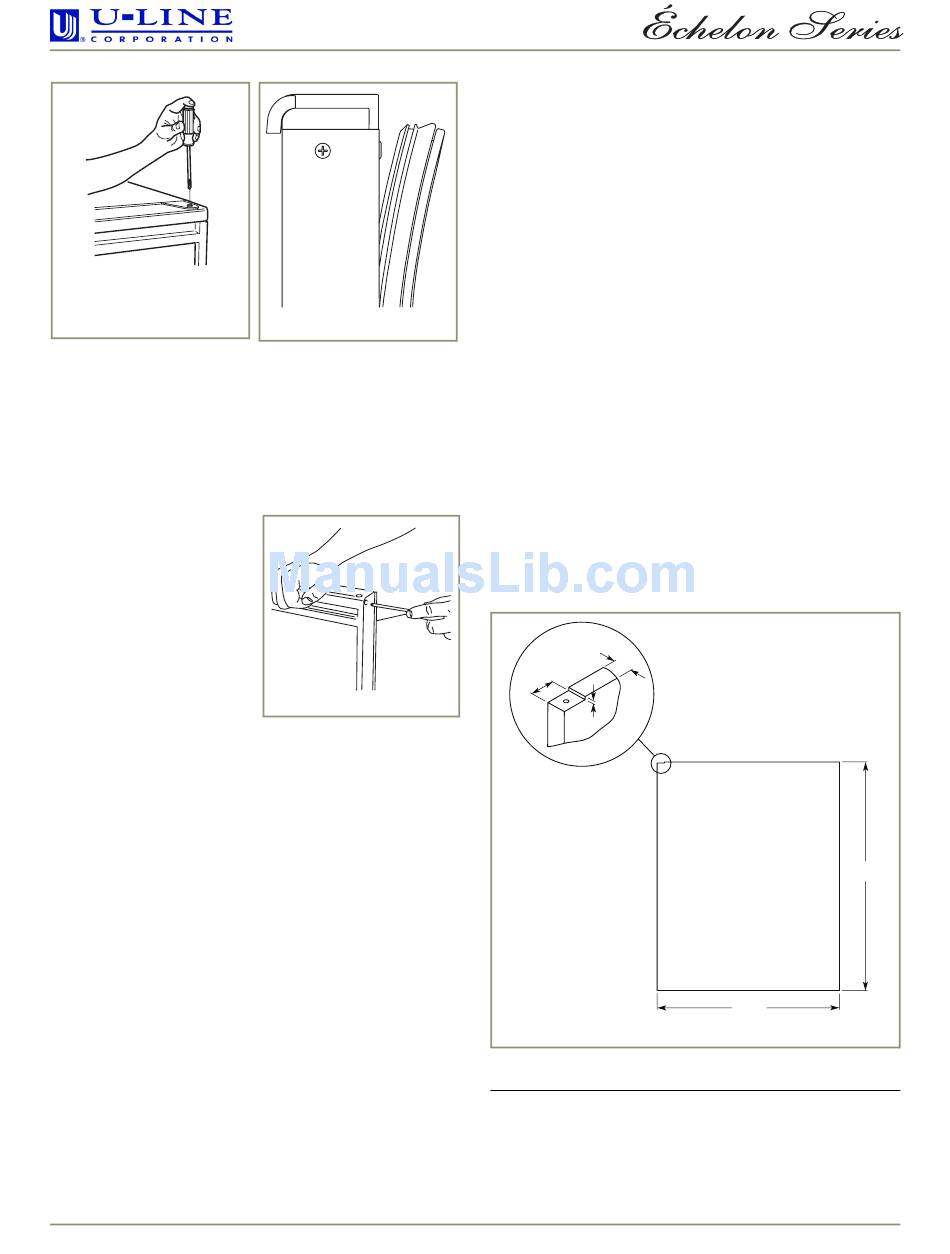

Figure 12
2. Pull door gasket out of groove (top edge of door only).
Start in the middle and pull outward, moving toward
the edge (see Figure 13). This may take some force.
3. Remove two outside screws holding door handle.
Slightly separate door handle from door (see
Figure 14).
4. Pull handle up and off.
5. Remove and discard
existing panel and
cardboard spacer.
6. Slide custom door panel
insert into 1/4-inch
channel in door front.
7. Holding door gasket out
of the way, replace handle
on door, making sure it is
seated properly on insert
and that screw holes line up.
8. Install two small screws removed in Step 3.
9. Starting at the corners and working inward, push door
gasket into place on door.
10. Place door on bottom hinge pin and install upper hinge
screw.
www.U-LineService.com
2175R Refrigerator and 2175RF Refrigerator/Freezer
Figure 13
Figure 14

Full Overlay Door Panel

Door Panel Preparation
A full overlay door panel completely covers the
doorframe and handle to give a built-in appearance. See
your U-Line dealer for the optional Full Overlay Door
Panel Kit.
2175 Models:
P/N U-OL2175B -- Black
P/N U-OL2175W -- White
2115 & CLR2160 Models:
P/N U-OL2115B -- Black
P/N U-OL2115W --White
Appropriate hardware, Modified Handle, Replacement
Hinges and a copy of these instructions will be included in
the kit.
1. Cut the overlay to the following dimensions (see
Figure 15).
Full Overlay Dimensions:
2175 Models:
Width: 23-3/4"
Height: 29-3/4"
The door panel must not weigh more than 20 lbs.
3/4"
31/32"
1/8"
Relief Notch
for Pivot Plate
Figure 15
IMPORTANT
Rear View of wood panel for right-hand hinge shown. Use
mirror image for left-hand hinges.
8
2115 & CLR2160 Models:
Width: 14-3/4"
Height: 29-3/4"
Rear View
Height
of
Wood Panel
Width
ULIN_0400_A
08/2006
