Side-By-Side Installation
Instructions
For a complete refreshment center, install your 2175R or
2175RF Model beside a U-Line Ice Maker, Combo or Wine
Captain Model (see Figure 11 for typical cut-out). Note
that each Side-By-Side Installation will be different.
• Cut-out width for a side-by-side installation is the total
of the widths listed under Cut-Out Dimensions in each
unit's Installation Guide.
For example:
Placing a 2175R or 2175RF next to a 2115 series unit
would require a cut-out width of:
24-3/16" + 15-3/16" = 39-3/8"
Placing a 2175R or 2175RF next to a 2175 series unit
would require a cut-out width of:
24-3/16" + 24-3/16" = 48-3/8"
• No trim kit is required. However, 1/4-inch space needs to
be maintained between the units to ensure
unobstructed door swing.
• Units must operate from separate, properly grounded
electrical receptacles placed according to each unit's
Electrical Specifications.

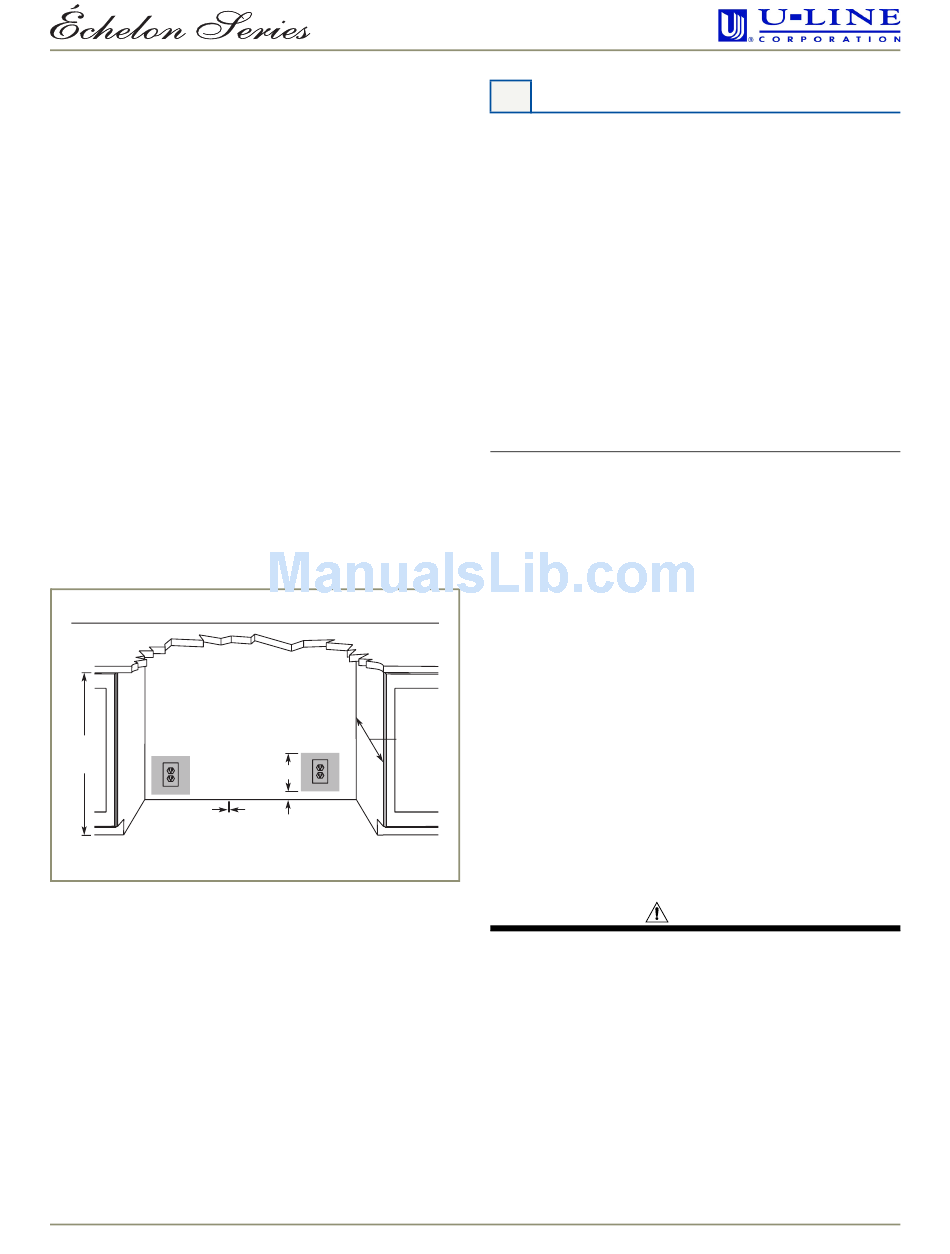

Typical Side-By-Side Cut-Out
34-1/4"
to
35-1/8"
1/4" Space
Between
Appliances
Figure 11
08/2006
2175R Refrigerator and 2175RF Refrigerator/Freezer
23-1/4"
7"
1-1/2"
4 Prepare and Install Door Panel
(Black and White Units Only)
Two types of custom door panels can be installed on your
Black or White unit to harmonize with or accent the
surrounding décor: a Custom 1/4" Insert or a Full Overlay.
If no custom door panel is used, go on to 5 Adjust Door.

Custom 1/4'' Door Panel Insert

Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door's 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure.
For 2175 models cut the panel insert to the following
dimensions.
Custom 1/4" Dimensions:
Width: 23-1/32"
Height: 27-11/16"
For 2115 & CLR2160 models cut the panel insert to the
following dimensions.
Custom 1/4" Dimensions:
Width: 14-1/32"
Height: 27-11/16"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
Use care when handling the insert. Insert edges may be
sharp.
1. Remove top hinge screw pin (using a Phillips
screwdriver, see Figure 12). Remove door by tilting
forward and lifting off bottom hinge pin.
7
