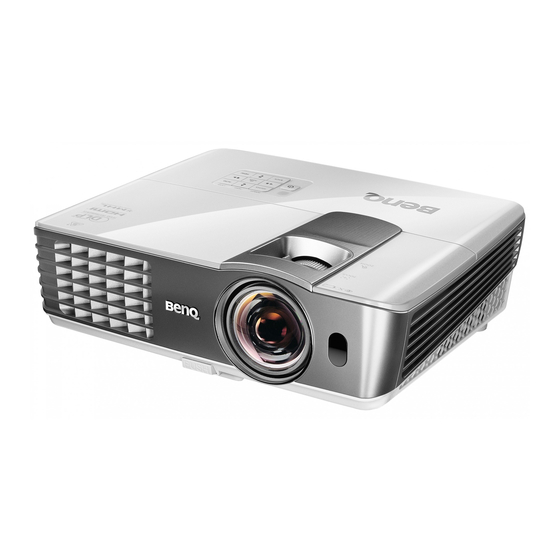

BenQ W1070+ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
W1070+/W1080ST+
Digital Projector
Home Cinema Series
User Manual

Advertisement

Table of Contents
loading

Related Manuals for BenQ W1070+

Summary of Contents for BenQ W1070+

  • Page 1 W1070+/W1080ST+ Digital Projector Home Cinema Series User Manual...

  • Page 2: Table Of Contents

    Table of contents Important safety instructions..3 About the OSD Menus......29 Using the Basic OSD menu....31 Overview..........6 Basic OSD menu - with input signals connected............31 Projector features ........6 Basic OSD menu - without input signals Shipping contents........8 connected............34 Standard accessories........

  • Page 3: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. 1.
  • Page 4 Liquids spilled into the projector will void your the projector has cooled down and is unplugged warranty. If the projector does become wet, from the power supply. disconnect it from the power point and call BenQ to have the projector repaired. Important safety instructions...
  • Page 5 BenQ projector ceiling mount kit and ensure it is When the projector is exposed to such a change securely and safely installed.

  • Page 6: Overview

    Overview Projector features • Full HD compatible The projector is compatible with Standard Definition TV (SDTV) 480i, 576i, Enhanced Definition television (EDTV) 480p, 576p and High Definition TV (HDTV) 720p, 1080i/p 60Hz formats, with the 1080p format providing a true 1:1 image reproduction. •...
  • Page 7 • Intuitive lens shift (W1070+) The intuitive control over lens shift lever provides flexibility in setting-up your projector. • Short throw ratio (W1080ST+) The short throw ratio projection provides 1080p picture quality with shorter projection distance. • SmartEco SmartEco™ technology saves lamp power consumption up to 70% depending on the content brightness level when SmartEco mode is selected.

  • Page 8: Shipping Contents

    Shipping contents Carefully unpack and verify that you have the items below. Some of the items may not be available depending on your region of purchase. Please check with your place of purchase. Standard accessories Some of the accessories may vary from region to region. W1070+ W1080ST+ Projector...

  • Page 9: Projector Exterior View

    Projector exterior view Front and upper side view 1. Control panel (See Control panel W1070+ details.) 2. Lamp cover 3. Vent (heated air exhaust) 4. Quick-release button 5. Lens cap 6. Lens shift lever 7. Focus and Zoom ring 8. Vent (cool air intake) 9.

  • Page 10: Controls And Functions

    Controls and functions Control panel 1. Focus ring 12. Keystone/Arrow keys ( Adjusts the focus of the projected image. Manually corrects distorted images resulting from an angled projection. 2. Zoom ring When the On-Screen Display (OSD) menu is Adjusts the size of the image. activated, the #7 and #12 keys are used as 3.

  • Page 11: Remote Control

    Remote control 6. MENU • Accesses the On-Screen Display (OSD) menu. • Goes back to previous OSD menu, exits and saves menu settings. • Mute: Toggles projector audio between on and off. • Volume Down: Decreases the projector volume. • Volume Up: Increases the projector volume.
  • Page 12 Installing/replacing the remote control batteries 1. Press and slide off the battery cover, as illustrated. 2. Remove the old batteries (if applicable) and install two AAA batteries within. Make sure that the positive and negative ends are positioned correctly, as illustrated. 3.

  • Page 13: Installation

    Projector Position > MENU > Settings or System Front Ceiling Setup : Basic > Projector Position > Front Purchase the BenQ Projector Ceiling Mount Kit from your dealer to mount your projector on the ceiling. 2. Rear: 4. Rear Ceiling:...

  • Page 14: Obtaining A Preferred Projected Image Size

    Obtaining a preferred projected image size The projected image size is determined by the distance from the projector lens to the screen, the zoom setting, and the video format. W1070+ is equipped with movable lens. See ‘Shifting the projection lens vertically (W1070+ only) for details.

  • Page 15: Shifting The Projection Lens Vertically (W1070+ Only)

    Shifting the projection lens vertically (W1070+ only) The vertical lens shift control provides flexibility for installing your projector. It allows the projector to be positioned slightly above or below the top level of the projected images. The lens shift (offset) is expressed as a percentage of the projected image height. It is measured as an offset from the projected image's vertical center.

  • Page 16: Connection

    Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Make sure the cables are firmly inserted. • In the connection illustrations shown below, some cables may not be included with the projector (see Shipping contents).

  • Page 17: Connecting With Video Equipment

    Connecting with video equipment You need only connect the projector to a video source device using just one of the connecting methods. Each video source provides different picture quality. The method you choose most likely depends upon the availability of matching terminals on both the projector and the video source device as described below: Terminal Terminal name...

  • Page 18: Connecting Smart Devices

    Connecting smart devices The projector can project the content directly from a MHL compatible smart device. Using an HDMI to Micro USB cable or an HDMI to Micro USB adaptor, you can connect your smart devices to the projector and then enjoy your content on the big screen. Some smart devices may not be compatible to the cable that you use.

  • Page 19: Connecting Component-Video Devices

    Connecting component-video devices The RCA type component video jacks are provided for connection to video output devices. You should also connect the separate audio cable to a suitable audio amplifier. AV equipment: DVD player, digital tuner, etc. From audio output To audio input terminals terminals...

  • Page 20: Connecting A Computer

    Connecting a computer Connect the projector to a computer with a VGA cable. Laptop or desktop computer To audio input terminals From audio output terminal VGA cable Many laptops do not turn on their external video ports when connected to a projector. Usually a key combination like Fn + F3 or CRT/LCD key turns the external display on/off.

  • Page 21: Operation

    Operation Starting up the projector 1. Plug the power cable into the projector and into a power outlet. Turn on the power outlet switch (where fitted). The POWER indicator light on the projector lights orange after power has been applied. Please use the supplied power cable to avoid possible dangers such as electric shock and fire.

  • Page 22: Shutting Down The Projector

    Step 3: Specify 2D Keystone. Step 4: Specify Auto Source. Now you’ve completed the initial setup. 4. If you are prompted to enter the password, use the arrow keys on the projector or remote control to enter a six-digit password. See Utilizing the password function for details.

  • Page 23: Securing The Projector

    Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the projector. See item 28 on page for details.
  • Page 24 2. Write down the number and turn off the projector. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.
  • Page 25 Changing the password To do this, first and foremost, you have to access the Advanced OSD menu (see for details). 1. Go to System Setup : Advanced > Password to display the Password window. 2. Select Change Password and press OK to display the Input Current Password window. Input Current Password Back 3.

  • Page 26: Selecting An Input Source

    Selecting an input source The projector can be connected to multiple equipment at the same time. However, it only displays one full screen at a time. When starting up, the projector automatically searches for the available signals. If you want the projector to always automatically search for the signals: •...

  • Page 27: Adjusting The Projected Image

    Adjusting the projected image Adjusting the projection angle The projector is equipped with a quick-release adjuster foot and a rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector: 1. Press the quick-release button and lift the front of the projector.

  • Page 28: Correcting Keystone

    Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen. You may correct this in ONE of these ways. •...

  • Page 29: Menu Functions

    Menu Functions About the OSD Menus To let you make various adjustments or settings on the projector and the projected image, the projector is equipped with 2 types of multilingual On-Screen Display (OSD) menus: • Basic OSD menu: provides primary menu functions. (See Using the Basic OSD menu) •...
  • Page 30 If you intend to switch from the Basic OSD menu to the Advanced OSD menu, follow the instructions below: Use the arrow keys ( ) on the projector or remote control to move through the menu items, and use OK to confirm the selected menu item. •...

  • Page 31: Using The Basic Osd Menu

    Using the Basic OSD menu Depending on whether or not any video signal is connected to the projector, the Basic OSD menu offers different available functions. Check the following links to learn more. • Basic OSD menu - with input signals connected •...
  • Page 32 3D game discs), 3D Blu-ray 3D players (with 3D Blu-ray discs), 3D TV (with 3D channel), and so on. After you have connected the 3D video devices to the projector, wear the BenQ 3D glasses and make sure the power is on to view 3D contents. When watching 3D contents, •...
  • Page 33 Selects an input source type for the HDMI signal. You can also manually select the source type. The different source types carry different standards for the brightness • HDMI level. Format HDMI Format is only available when the HDMI signal is selected. Activates this function only after a new lamp is installed.

  • Page 34: Basic Osd Menu - Without Input Signals Connected

    Basic OSD menu - without input signals connected As there’s no input signal to your projector, only the submenus of Settings under Basic OSD menu - with input signals connected are available. Menu options that are not available will become grayed out. To access the OSD menu, press MENU on the projector or remote control.

  • Page 35: Using The Advanced Osd Menu

    Using the Advanced OSD menu The Advanced OSD menu offers complete menu functions. Main menu icon Main menu name Picture Picture Mode Standard Select User Mode Management Brightness Contrast Status Submenu Color Tint Sharpness Normal Color Temperature Lamp Power Advanced... Press BACK to go back to Reset Current Picture Mode the previous window or to...

  • Page 36: Picture Menu

    Picture menu Submenu Functions and Descriptions Selects a preset picture mode to suit your operating environment and input signal picture type. The preset picture modes are described as below: Bright: Maximizes the brightness of the projected image. This mode is suitable •...
  • Page 37 Adjusts the degree of difference between dark and light in the picture. After adjusting the Brightness value, adjust Contrast to set the peak white level. The higher the value, the greater the Contrast contrast. The function is accessible through the remote control. Adjusts the color saturation level -- the amount of each color in a video picture.
  • Page 38 Gamma Selection Gamma refers to the relationship between input source and picture brightness. • 1.6/1.8/2.0/BenQ: Selects these values according to your preference. • 2.2: Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.
  • Page 39 • Color Management In most installation situations, color management is not necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room. Only in permanent installations with controlled lighting levels, such as boardrooms, lecture theaters, or home theaters, should color management be considered.

  • Page 40: Audio Setup Menu

    All of the adjustments you’ve made for the selected Picture Mode (including preset modes, User 1, and User 2) return to the factory preset values. Reset Current 1. Press OK. The confirmation message displays. Picture Mode 2. Use to select Reset and press OK. The picture mode returns to the factory preset settings.

  • Page 41: Display Menu

    Display menu Submenu Functions and Descriptions The native display resolution of this projector is in a 16:9 aspect ratio. However, you may use this function to display projected picture of different aspect ratio. In the following illustrations, the black portions are inactive areas and the white portions are active areas.
  • Page 42 3D game discs), 3D Blu-ray 3D players (with 3D Blu-ray discs), 3D TV (with 3D channel), and so on. After you have connected the 3D video devices to the projector, wear the BenQ 3D glasses and make sure the power is on to view 3D contents. When watching 3D contents, •...

  • Page 43: System Setup : Basic Menu

    Allows you to select which logo screen displays during projector start-up. You Splash Screen can choose BenQ logo screen, Blue screen, or Black screen. The projector can be installed on a ceiling or behind a screen, or with one or Projector Position more mirrors.

  • Page 44: System Setup : Advanced Menu

    System Setup : Advanced menu Submenu Functions and Descriptions Activates this function only after a new lamp is installed. When you select Reset Lamp Timer Reset, a "Reset Successfully" message displays to notify that the lamp time has been reset to "0". HDMI Format •...
  • Page 45 BenQ video display devices. Accordingly, we recommend that setup and calibration be performed by an ISF certified installation technician.

  • Page 46: Information Menu

    Information menu Submenu Functions and Descriptions Source Displays the current signal source. Picture Mode Displays the current picture mode under the Picture menu. Resolution Displays the native resolution of the input source. Color System Displays input system format. Equivalent Lamp Displays the number of hours the lamp has been used.

  • Page 47: Advanced Osd Menu Structure

    Sharpness 0–15 Color Temperature Normal/Cool/Lamp Native/Warm Picture Lamp Power Normal/Economic/SmartEco Black Level 0 IRE/7.5 IRE Gamma Selection 1.6/1.8/2.0/2.2/2.4/2.5/2.6/2.8/BenQ Brilliant Color On/Off Color Temperature Fine Red Gain/Green Gain/Blue Gain/Red Offset/ Advanced... Tuning Green Offset/Blue Offset Color Management Primary Color/Hue/Gain/Saturation Noise Reduction 0–31...
  • Page 48 Language Background Color Black/Blue/Purple Splash Screen BenQ/Black/Blue System Setup : Projector Position Front/Front Ceiling/Rear/Rear Ceiling Basic Disable/5 min/10 min/15 min/20 min/25 min/ Auto Off 30 min Direct Power On On/Off Menu Type Basic/Advanced 5 sec/10 sec/15 sec/20 sec/25 sec/30 sec/...

  • Page 49: Maintenance

    Maintenance Care of the projector Your projector needs little maintenance. The only thing you have to do on a regular basis is keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer or local customer service center if the projector fails to operate as expected.

  • Page 50: Lamp Information

    Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. To obtain the lamp hour information: 1. Press MENU and then use the arrow keys ( / / ) to go to Information or Settings >...

  • Page 51: Timing Of Replacing The Lamp

    An old lamp may cause a malfunction in the projector and in some instances the lamp may explode. Go to http://www.BenQ.com for a replacement lamp. The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes.

  • Page 52: Replacing The Lamp

    Replacing the lamp • To reduce the risk of electrical shock, always turn the projector off and disconnect the power cable before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
  • Page 53 7. As shown in the illustration, lower the new lamp. 8. Tighten the screw that secures the lamp. 9. Ensure the handle is fully laid flat and locked in place. • Loose screw may cause a bad connection, which could result in malfunction.

  • Page 54: Indicators

    • When the projector is in an abnormal state Status & Description • The lamp has been damaged. Please contact your local BenQ customer center for purchasing a new lamp. • The lamp is not properly attached. •...

  • Page 55: Troubleshooting

    Troubleshooting Problem Cause Remedy Plug the power cable into the AC inlet on the rear of the projector, and plug the power There is no power from the power cable into to the power outlet. If the power cable. outlet has a switch, make sure that it is The projector does switched on.

  • Page 56: Specifications

    Specifications Projector specifications All specifications are subject to change without notice. Optical Control Resolution RS-232 serial control 1920 (H) x 1080 (V) 9 pin x 1 Display system IR receiver x 2 Single-chip DLP system 12VDC (Max. 0.5 A) x 1 Lens F/Number Input terminals F = 2.59 to 2.87, f = 16.88 to 21.88 mm...

  • Page 57: Dimensions

    Dimensions 311.87 mm x 244.12 mm x 104 mm (W x D x H) 311.87 244.12 Unit: mm Ceiling mount installation Ceiling mount screws: M4 (Max. L = 25 mm; Min. L= 20 mm) 43.55 95.33 102.97 Unit: mm 163.12 244.12 311.95 Maintenance...

  • Page 58: Timing Chart

    84.997 68.667 94.500 XGA_120** 119.989 97.551 115.500 (Reduce Blanking) 1152 x 864 1152 x 864_75 75.00 67.500 108.000 BenQ Notebook 1024 x 576 60.0 35.820 46.966 Timing BenQ Notebook 1024 x 600 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60* 45.000...
  • Page 59 SXGA_60*** 60.020 63.981 108.000 1280 x 1024 SXGA_75 75.025 79.976 135.000 SXGA_85 85.024 91.146 157.500 1280 x 960_60*** 60.000 60.000 1280 x 960 1280 x 960_85 85.002 85.938 148.500 1360 x 768 1360 x 768_60*** 60.015 47.712 85.500 1440 x 900 WXGA+_60*** 59.887 55.935...
  • Page 60 84.997 68.667 94.500 XGA_120** 119.989 97.551 115.500 (Reduce Blanking) 1152 x 864 1152 x 864_75 75.00 67.500 108.000 BenQ Notebook 1024 x 576 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60* 45.000...
  • Page 61 1280 x 960_60*** 60.000 60.000 1280 x 960 1280 x 960_85 85.002 85.938 148.500 1360 x 768 1360 x 768_60*** 60.015 47.712 85.500 1440 x 900 WXGA+_60*** 59.887 55.935 106.500 1400 x 1050 SXGA+_60*** 59.978 65.317 121.750 1600 x 1200 UXGA*** 60.000 75.000...
  • Page 62 Supported timing for MHL input V. Frequency H. Frequency Pixel Freq. Timing Resolution Remark (Hz) (KHz) (MHz) 480i 720 (1440) x 480 59.94 15.73 480p 720 x 480 59.94 31.47 576i 720 (1440) x 576 15.63 576p 720 x 576 31.25 720/50p 1280 x 720...

  • Page 63: Warranty And Copyright Information

    Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

This manual is also suitable for:

W1080st+
