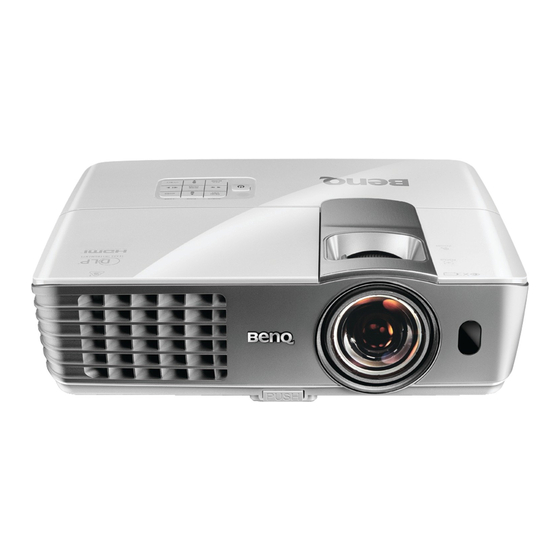

BenQ W1070 Quick Start Manual

W1070 quick start guide
Hide thumbs Also See for W1070:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for BenQ W1070

Summary of Contents for BenQ W1070

  • Page 2 W1070 W1080ST W1080ST...

  • Page 4: Projection Dimensions

    Center of lens Diagonal Center of lens Diagonal Projection distance Screen Lowest/Highest lens position The screen aspect ratio is 16:9 and the projected picture is 16:9 W1070 Screen size Projection distance (mm) Lowest/ Highest Diagonal Min distance Max distance lens position...
  • Page 5 W1080ST Screen size Projection distance (mm) Lowest/ Highest Diagonal Min distance Max distance lens position H (mm) W (mm) Average (max. (mm) Inch (min. zoom) zoom) The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed.
  • Page 6 Image height Center of lens Diagonal Center of lens Diagonal Screen Projection distance Lowest/Highest lens position The screen aspect ratio is 4:3 and the projected picture is 16:9 W1070 Screen size Projection distance (mm) Lowest/ Image Highest height Diagonal distance distance...
  • Page 7 W1080ST Screen size Projection distance (mm) Lowest/ Image Highest height Diagonal distance distance lens Average (max. (min. position Inch (mm) (mm) zoom) zoom) (mm) (mm) The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed.
  • Page 8 Ceiling Mount Screws: M4 (Max. L = 25 mm; Min L= 20 mm) 43.55 95.33 102.97 163.12 244.12 311.95...
  • Page 13 Table of contents English ................... 13 Français ..................14 Deutsch ..................15 Italiano ................... 16 Español ..................17 Português ..................18 Svenska ..................19 Русский ..................20 Nederlands ................... 21 Polski ....................22 Türkçe ................... 23 Čeština ..................24 ....................25 繁體中文...

  • Page 14: Specifications

    W1070-W1080ST-QSG-17L.fm Page 13 Wednesday, August 1, 2012 5:14 PM Specifications All specifications are subject to change without notice. Optical Control Resolution RS-232 serial control 1920 (H) x 1080 (V) 9 pin x 1 Display system IR receiver x 2 Mini B type USB x 1...

  • Page 15: Caractéristiques

    W1070-W1080ST-QSG-17L.fm Page 14 Wednesday, August 1, 2012 5:14 PM Caractéristiques Toutes les caractéristiques peuvent être modifiées sans notification préalable. Caractéristiques optiques Commande Résolution Contrôle série RS-232 1920 (H) x 1080 (V) 1 à 9 broches Système d’affichage 2 récepteurs IR Système à...

  • Page 16: Technische Daten

    W1070-W1080ST-QSG-17L.fm Page 15 Wednesday, August 1, 2012 5:14 PM Technische Daten Alle Daten können ohne Bekanntmachung geändert werden. Optische Daten Steuerung Serielle RS-232-Steuerung Auflösung 9-polig x 1 1920 (H) x 1080 (V) IR-Empfänger x 2 Anzeigesystem Mini-B-Typ-USB x 1 Einzel-Chip DLP...

  • Page 17: Specifiche Tecniche

    W1070-W1080ST-QSG-17L.fm Page 16 Wednesday, August 1, 2012 5:14 PM Specifiche tecniche Tutte le specifiche sono soggette a modifiche senza preavviso. Parte ottica Controllo Risoluzione Controllo seriale RS-232 1920 (O) x 1080 (V) 9 pin x 1 Sistema di visualizzazione Ricevitore infrarossi x 2...

  • Page 18: Especificaciones

    W1070-W1080ST-QSG-17L.fm Page 17 Wednesday, August 1, 2012 5:14 PM Especificaciones Todas las especificaciones están sujetas a cambio sin previo aviso. Óptico Control Resolución Control de serie RS-232 1920 (H) x 1080 (V) 9 patillas x 1 Sistema ópticoSistema DLP Receptor de infrarrojos (IR) x 2 TM de un sólo chip...
  • Page 19 W1070-W1080ST-QSG-17L.fm Page 18 Wednesday, August 1, 2012 5:14 PM Especificações Todas as especificações estão sujeitas a alteração sem aviso prévio. Ópticas Controlo Resolução Controlo de série RS-232 1920 (H) x 1080 (V) 9 pinos x 1 Sistema de ecrã Receptor IR x 2 Sistema DLP de um só...
  • Page 20 W1070-W1080ST-QSG-17L.fm Page 19 Wednesday, August 1, 2012 5:14 PM Specifikationer Alla specifikationer kan ändras utan föregående meddelande. Optik Kontroll Upplösning RS-232-seriekontroll 1920 (H) x 1080 (V) 9 stift x 1 Visningssystem IR-mottagare x 2 -system med enkel krets USB av typ Mini B x 1 12VDC (Max.

  • Page 21: Технические Характеристики

    W1070-W1080ST-QSG-17L.fm Page 20 Wednesday, August 1, 2012 5:14 PM Технические характеристики Все характеристики могут быть изменены без предварительного уведомления. Оптические характеристики Управление Разрешение Последоват. порт RS-232 1920 (Г) x 1080 (В) 9-конт. x 1 Проекционная система ИК-датчик x 2 шт.
  • Page 22 W1070-W1080ST-QSG-17L.fm Page 21 Wednesday, August 1, 2012 5:14 PM Specificaties Alle specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd. Optisch Besturing Resolutie RS-232 seriële besturing 1920 (H) x 1080 (V) 9-pin x 1 Weergavesysteem IR-ontvanger x 2 Single-chip DLP -systeem Mini B-type usb x 1 12V gelijkstroom (max.

  • Page 23: Dane Techniczne

    W1070-W1080ST-QSG-17L.fm Page 22 Wednesday, August 1, 2012 5:14 PM Dane techniczne Wszystkie specyfikacje mogą ulec zmianie bez powiadomienia. Parametry optyczne Sterowanie Rozdzielczość Port szeregowy RS-232 1920 (H) x 1080 (V) 9 styków x 1 System wyświetlacza Odbiornik podczerwieni x 2...
  • Page 24 W1070-W1080ST-QSG-17L.fm Page 23 Wednesday, August 1, 2012 5:14 PM Spesifikasyonlar Tüm spesifikasyonlar, haber verilmeden değiştirilebilir. Optik Kumanda Çözünürlük RS-232 seri kontrol 1920 (Y) x 1080 (D) 9 pin x 1 Görüntü sistemi Kızılötesi alıcı x 2 Mini B tipi USB x 1 Single-chip DLP Lens F/Değeri...

  • Page 25: Technické Údaje

    W1070-W1080ST-QSG-17L.fm Page 24 Wednesday, August 1, 2012 5:14 PM Technické údaje Veškeré technické údaje se mohou změnit bez předchozího upozornění. Optické parametry Ovládání Rozlišení Sériové rozhraní RS-232 1920 (H) x 1080 (V) 9 pinů x 1 Systém zobrazování Infračervený senzor x 2 USB konektor typu mini B x 1 Jednočipový...
  • Page 26 W1070-W1080ST-QSG-17L.fm Page 25 Wednesday, August 1, 2012 5:14 PM รายละเอี ย ดทางด า นเทคนิ ค รายละเอี ย ดทางด า นเทคนิ ค ทั ้ ง หมดอาจเปลี ่ ย นแปลงได โ ดยไม ต  อ งแจ ง ให ท ราบล ว งหน า...
  • Page 27 W1070-W1080ST-QSG-17L.fm Page 26 Wednesday, August 1, 2012 5:14 PM 規格 所有規格如有變更，恕不另行通知。 光學 控制 解析度 RS-232 序列控制 1920 （H） x 1080 （V） 9 針腳 x 1 顯示系統 紅外線接收器 x 2 單晶片 DLP 系統 Mini B 類型 USB x 1 燈泡焦距 / 數字...
  • Page 28 W1070-W1080ST-QSG-17L.fm Page 27 Wednesday, August 1, 2012 5:14 PM 规格 所有规格如有更改，恕不另行通知。 光学 控制 分辨率 RS-232 串口控制 1920 （水平） x 1080 （垂直） 9 针 x 1 显示系统单 红外接收器 x 2 芯片 DLP 系统 Mini B 型 USB x 1 镜头焦距 / 编号...
  • Page 29 W1070-W1080ST-QSG-17L.fm Page 28 Wednesday, August 1, 2012 5:14 PM 仕様 仕様はすべて予告なしに変更されることがあります。 光学 コントロール RS-232 シリアル コントロール 解像度 1920 (H)x 1080 (V) 9 pin x 1 ディスプレイ システム IR 受信機 x 2 Single-chip DLP システム ミニ B タイプ USB x 1 レンズ...
  • Page 30 W1070-W1080ST-QSG-17L.fm Page 29 Wednesday, August 1, 2012 5:14 PM 사양 모든 사양은 사전 통보 없이 변경될 수 있습니다 . 광학 사양 컨트롤 RS-232 직렬 컨트롤 해상도 1920 (H) x 1080 (V) 9 핀 x 1 디스플레이 시스템 IR 수신기 x 2 단일...
  • Page 31 … h ‘ H H g l P ” H g j ‘ z ¢ j s g ” L H g ¬ r f ¢ ¬ f h P ¬ ‘ H ¬ U ¬ ) V • Œ d ) •...
  • Page 32 … h ‘ H H g l...
  • Page 33 … h ‘ H H g l...
