Operation, Repair, Parts
™

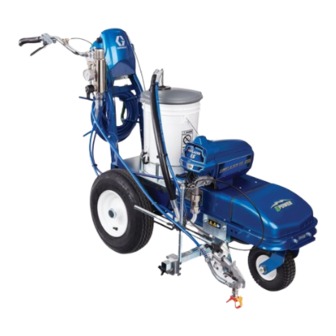

LineLazer
Airless Line Striper
For the application of line striping materials.
For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
Maximum Operating Pressure: 3300 psi (22.8 MPa, 228 bar)
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals
before using the equipment. Be familiar with the controls and the proper
usage of the equipment. Save these instructions.
Related Manuals:
ES 1000
ES 2000
311254
Gun
311254
334599
Pump
310643
3A3428
Use only genuine Graco replacement parts.
The use of non-Graco replacement parts may void warranty.
ES 1000 / ES 2000
Gun
Pump
Auto-Layout Application Methods
LineLazer ES 1000
LineLazer ES 2000
3A4603J
EN

Advertisement

Table of Contents
loading

Related Manuals for Graco LineLazer ES 1000

Summary of Contents for Graco LineLazer ES 1000

  • Page 1 Save these instructions. Related Manuals: ES 1000 ES 2000 311254 311254 334599 Pump 310643 Pump 3A3428 Auto-Layout Application Methods LineLazer ES 2000 LineLazer ES 1000 Use only genuine Graco replacement parts. The use of non-Graco replacement parts may void warranty.

  • Page 2: Linelazer V Livelook Display

    LineLazer V LiveLook Display LineLazer V LiveLook Display ES 2000 (Standard Series) 3A4603J Operation, Repair, Parts...

  • Page 3: Initial Setup (Es 2000 Standard Series)

    LineLazer V LiveLook Display Initial Setup (ES 2000 Standard Series) The initial setup prepares the striper for operation based US Units on a number of user entered parameters. Language Pressure = psi selections and the units of measure selections can be Volume = gallons set before you start or changed later.
  • Page 4 LineLazer V LiveLook Display 3. Press to select Setup/Information. 6. Push to start calibration. ti27826a 7. Move striper forward. Keep unit aligned with steel tape. 8. Stop when chosen part of unit aligns with 26-ft (8m), or distance entered, on steel tape (25-ft./ 7.6m dis- ti27827a tance).

  • Page 5: Striping Mode (Es2000 Standard Series)

    LineLazer V LiveLook Display Striping Mode (ES2000 Standard Series) Operating in Striping Mode Ref. Description 1. Make sure ON/OFF switch is ON position. Resets Distance, Gallons, Mils *2 Job logging 2. Set pump switch to ON. Scroll between menu screens Line width adjustment buttons *5 Auto gun buttons MIL thickness.

  • Page 6: Measure Mode (Es2000 Standard Series)

    LineLazer V LiveLook Display Measure Mode (ES2000 Standard Series) Measure Mode replaces a tape measure to measure 2. Press and release . Move striper forwards or distances when laying out an area to be striped. backwards. (Moving backwards is a negative dis- tance.) 1.
  • Page 7 LineLazer V LiveLook Display Setup/Information to select Setup/Information. Press to select Language. See Language, page 31. See Calibration, page 31. See Settings, page 36. See Information, page 37. ti27835b 3A4603J Operation, Repair, Parts...
  • Page 8 LineLazer V LiveLook Display Settings to select Setup/Information. Press open Settings Menu. Chooses the machine type. Necessary for accurate gallon counting. to set time and date. Set units with to adjust screen contrast to the desired value. 3A4603J Operation, Repair, Parts...
  • Page 9 LineLazer V LiveLook Display Information to select Setup/Information. Press open Information Menu. Displays and logs life data and striper information. View and test functionality of components. Stroke Counter Touch Pad Buttons Pressure Transducer Distance Sensor Battery Voltage Logs last four error codes that occurred. Code Description 02 = Over pressure 03 = No transducer detected...

  • Page 10: Es2000 (Hp Auto Series)

    ES2000 (HP Auto Series) ES2000 (HP Auto Series) 3A4603J Operation, Repair, Parts...
  • Page 11 LineLazer V LiveLook Display LineLazer V LiveLook Display ES2000 (HP Auto Series) 3A4603J Operation, Repair, Parts...

  • Page 12: Initial Setup (Es2000 Hp Auto Series)

    LineLazer V LiveLook Display Initial Setup (ES2000 HP Auto Series) The initial setup prepares the striper for operation based US Units on a number of user entered parameters. Language Pressure = psi selections and the units of measure selections can be Volume = gallons set before you start or changed later.
  • Page 13 LineLazer V LiveLook Display 6. Press and release gun trigger control to start cali- 3. Press to select Setup/Information. bration. ti27912a 7. Move striper forward. Keep laser dot on steel tape. 8. Stop when laser aligns with 26-ft (8m) or distance entered on steel tape (25-ft./7.6m distance).

  • Page 14: Striping Mode (Es2000 Hp Auto Series)

    LineLazer V LiveLook Display Striping Mode (ES2000 HP Auto Series) Operating in Striping Mode Ref. Description Striper must be running before activating gun trigger Select a “Favorite”, press for less than one sec- control. ond. 1. Make sure ON/OFF switch is ON position. Save a “Favorite”, press and hold for more than three seconds.

  • Page 15: Measure Mode (Es2000 Hp Auto Series)

    LineLazer V LiveLook Display Measure Mode (ES2000 HP Auto Series) Measure Mode replaces a tape measure to measure 2. Press and release gun trigger control. Move striper distances when laying out an area to be striped. forwards or backwards. (Moving backwards is a negative distance.) 1.

  • Page 16: Layout Mode

    LineLazer V LiveLook Display Layout Mode 2. Use gun activation buttons to select guns. Layout Mode is used to calculate and mark parking lot stalls. 1. Use to select Layout Mode. ti27918a 3. Press and release gun trigger control and move striper forward.

  • Page 17: Stall Calculator

    LineLazer V LiveLook Display Stall Calculator 2. The most recent length measured in Measure Mode is automatically displayed. Press gun trigger control to start a new measurement. Press again to stop Stall Calculator is used to set the stall size. The striper measuring.

  • Page 18: Angle Calculator

    LineLazer V LiveLook Display Angle Calculator 2. Dot spacing (B) and offset (C) are calculated based on the parameters entered: Angle Calculator is used to determine the offset value Stall angle and dot spacing value for a layout. Stall depth Stall size (width) 1.
  • Page 19 LineLazer V LiveLook Display 5. Press and release gun trigger control to start 4. Press to transfer calculated dot spacing marking stall size dots. Press and release gun distance to Layout Mode. Save this value in trigger control to stop marking. favorites if desired.
  • Page 20 LineLazer V LiveLook Display Setup/Information to select Setup/Information. Press to select Language. See Language, page 31. See Calibration, page 31. See Settings, page 49. See Information, page 50. See Marker Layout Mode, page 51. 3A4603J Operation, Repair, Parts...
  • Page 21 LineLazer V LiveLook Display Settings to select Setup/Information. Press open Settings Menu. Chooses the machine type. Necessary for accurate gallon counting. to set time and date. Needed for accurate Data Logging. Set units with to adjust screen contrast to the desired value. For programmed skip lines, press to choose: In Auto-mode, guns won’t fire or will shut off if speed is below set...
  • Page 22 LineLazer V LiveLook Display Information to select Setup/Information. Press open Information Menu. Displays and logs life data and striper information. View and test functionality of component Stroke Counter Touch Pad Buttons Pressure Transducer Distance Sensor Battery Voltage Logs last four error codes that occurred. Code Description 02 = Over pressure 03 = No transducer detected...

  • Page 23: Marker Layout Mode

    LineLazer V LiveLook Display Marker Layout Mode 4. Set gun switch to skip line or solid line. The Marker Layout Mode feature sprays a dot or a series of dots to mark an area. 1. Use to select Setup/Information. Press ti27918a to open Marker Layout Mode.

  • Page 24: Data Logging

    LineLazer V LiveLook Display Data Logging The LLV control is equipped with Data Logging, which 1. Press the to open the Data Logging pop up allows the user to recall job data and export the data window. from the machine to a USB drive. 2.
