Before Starting
Basic Connections
for Audio Equipment
Page 4

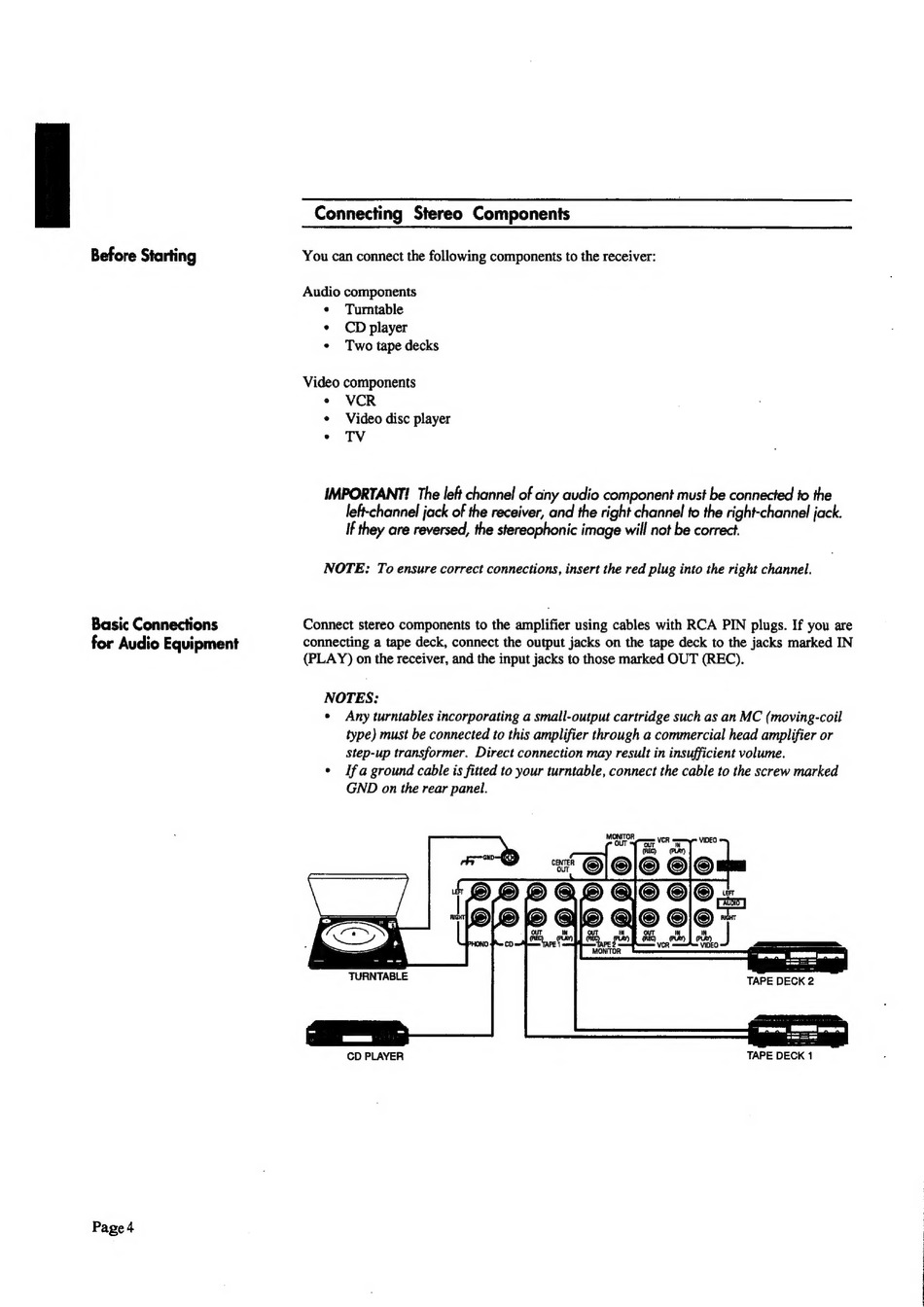

Connecting Stereo Components
You can connect the following components to the receiver:
Audio components
*
Turntable
¢
CD player
¢
Two tape decks
Video components
«
VCR
¢
Video disc player
«
TV
IMPORTANT!
The left channel of any audio component must be connected fo the
left-channel jack of the receiver, and the right channel to the right-channel jack.
If they are reversed, the stereophonic image will not be correct.
NOTE:
To ensure correct connections, insert the red plug into the right channel.
Connect stereo components to the amplifier using cables with RCA PIN plugs. If you are
connecting a tape deck, connect the output jacks on the tape deck to the jacks marked IN
(PLAY) on the receiver, and the input jacks to those marked OUT (REC).
NOTES:
e
Any turntables incorporating a small-output cartridge such as an MC (moving-coil
type) must be connected to this amplifier through a commercial head amplifier or
step-up transformer. Direct connection may result in insufficient volume.
¢
Ifa ground cable is fitted to your turntable, connect the cable to the screw marked
GND on the rear panel.
TURNTABLE
CD PLAYER
TAPE DECK 1
