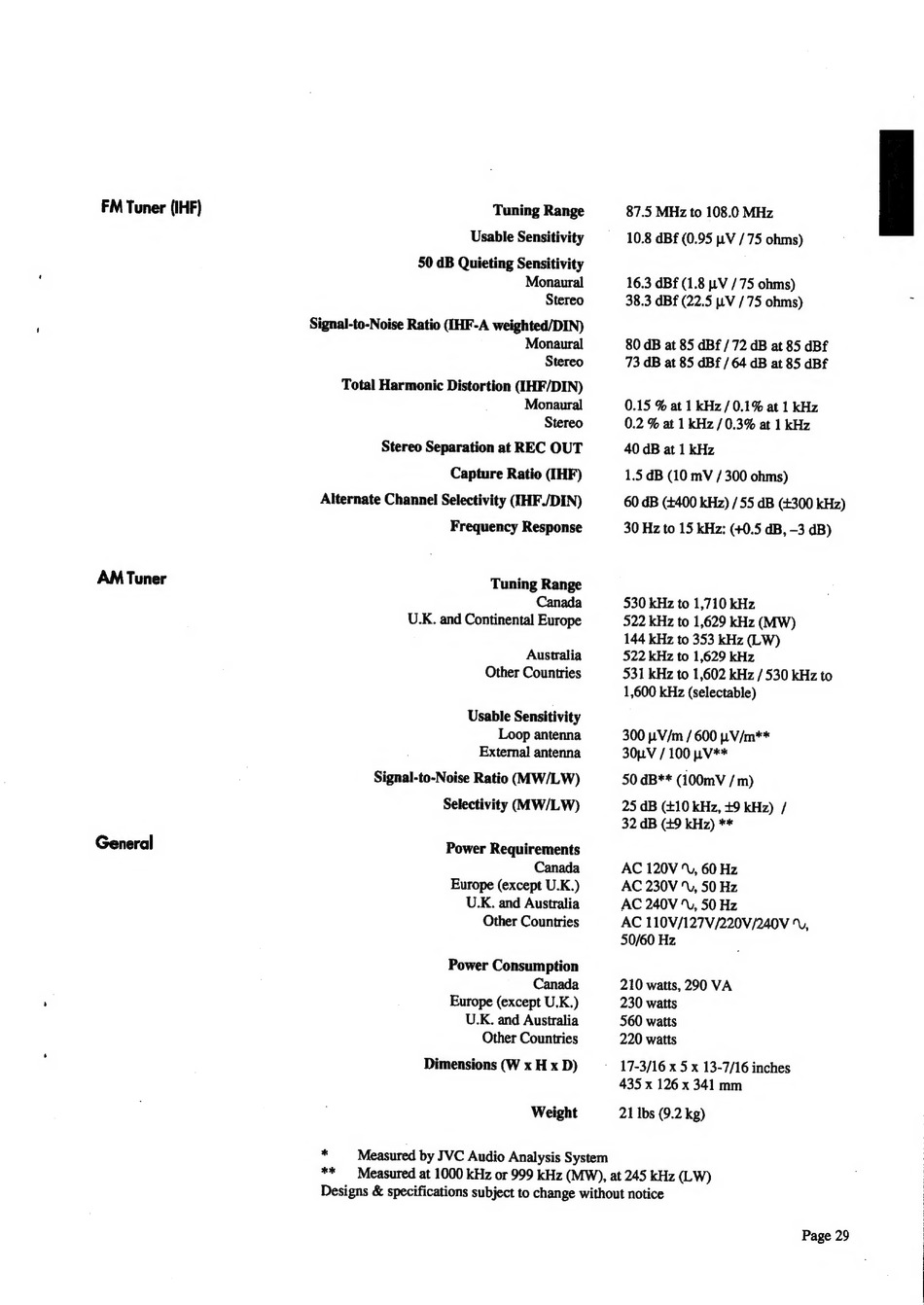

FM Tuner (IHF)
AM Tuner
General
Tuning Range
Usable Sensitivity
50 dB Quieting Sensitivity
Monaural
Stereo
Signal-to-Noise Ratio (IHF-A weighted/DIN)
Monaural
Stereo
Total Harmonic Distortion (IHF/DIN)
Monaural
Stereo
Stereo Separation at REC OUT
Capture Ratio (IHF)
Alternate Channel Selectivity (IHF./DIN)
Frequency Response
Tuning Range
Canada
U.K. and Continental Europe
Australia
Other Countries
Usable Sensitivity
Loop antenna
External antenna
Signal-to-Noise Ratio (MW/LW)
Selectivity (MW/LW)
Power Requirements
Canada
Europe (except U.K.)
U.K. and Australia
Other Countries
Power Consumption
Canada
Europe (except U.K.)
U.K. and Australia
Other Countries
Dimensions (W x H x D)
Weight
*
Measured by JVC Audio Analysis System
87.5 MHz to 108.0 MHz
10.8 dBf (0.95 LV / 75 ohms)
16.3 dBf (1.8 pV / 75 ohms)
38.3 dBf (22.5 uV /75 ohms)
80 dB at 85 dBf / 72 dB at 85 dBf
73 dB at 85 dBf / 64 dB at 85 dBf
0.15 % at 1 kHz /0.1% at 1 kHz
0.2 % at 1 kHz /0.3% at 1 kHz
40 dB at 1 kHz
1.5 dB (10 mV / 300 ohms)
60 dB (+400 kHz) / 55 dB (+300 kHz)
30 Hz to 15 kHz: (+0.5 dB, -3 dB)
530 kHz to 1,710 kHz
522 kHz to 1,629 kHz (MW)
144 kHz to 353 kHz (LW)
522 kHz to 1,629 kHz
531 kHz to 1,602 kHz / 530 kHz to
1,600 kHz (selectable)
300 V/m / 600 pV/m**
30nV / 100 wv**
50 dB** (100mV /m)
25 dB (+10 kHz, +9 kHz) /
32 dB (+9 kHz) **
AC 120V 'VL, 60 Hz
AC 230V 'V, 50 Hz
AC 240V 'VL, 50 Hz
210 watts, 290 VA
230 watts
560 watts
220 watts
17-3/16 x 5 x 13-7/16 inches
435 x 126 x 341 mm
21 Ibs (9.2 kg)
Page 29
