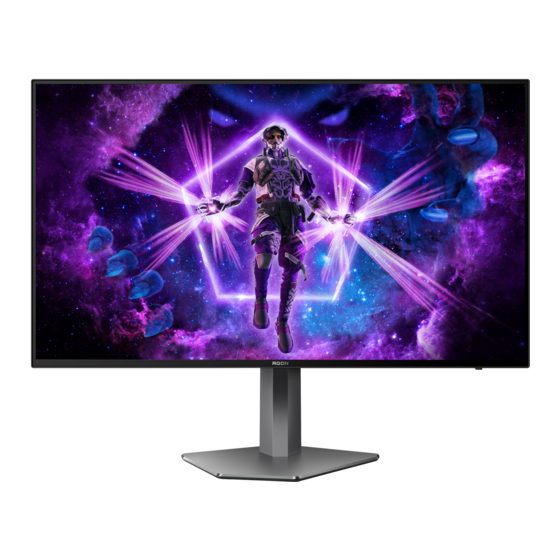

AOC AGON PRO User Manual
Oled monitor
Hide thumbs
Also See for AGON PRO:
- User manual (33 pages) ,
- User manual (33 pages) ,
- User manual (43 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for AOC AGON PRO
Summary of Contents for AOC AGON PRO
- Page 1 Based on the characteristics of the OLED product, screen maintenance according to the requirements of the user instructions is recommended, so as to reduce User Manual the risk of generating image retention. AG276QZD www.aoc.com ® 2023 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................9 Connecting the Monitor ............................10 Wall Mounting................................11 G-SYNC Compatible function .......................... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the OLED monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Warranty card Stand Base Screwdriver Bracket Screws USB Cable Power Cable Adaptor DP Cable HDMI Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... - Page 10 Wall hanger： M4x10mm 100mm 100mm Specification of wall hanger screws：M4*10mm M=4.0Max M4-P0.7 L=10+0 H=2.0±0.1 Dk=8.0±0.2 - 0.5 Specification for base screw: M6*13 mm (effective thread 5.5 mm)
-
Page 11: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 90°... -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor: 1. Power 2. HDMI1 3. HDMI2 4. DP1 5. DP2 6. USB3.2 Gen1 upstream 7. USB3.2 Gen1 downstream + fast charging USB3.2 Gen1 downstream x1 8. Earphone Connect to PC 1. Connect the power cord to the back of the display firmly. 2. -
Page 13: Wall Mounting
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90°... -
Page 14: G-Sync Compatible Function
G-SYNC Compatible function 1. G-SYNC Compatible function is working with DP/HDMI 2. To enjoy the perfect gaming experience with G-SYNC, you need to purchase a Separate NVIDIA GPU card that supports G-SYNC. G-sync system requirements Desktop computer connected to G-SYNC monitor: Graphics cards supported: G-SYNC features require NVIDIA GeForce®... -
Page 15: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 16: Screen Maintenance
Screen Maintenance Based on the characteristics of the OLED product, screen maintenance should be carried out according to the following requirements, so as to reduce the risk of generating image retention. The warranty does not cover any damage resulting from non-compliance to the following instructions. •... - Page 17 • LBC (Local Brightness Control) To reduce the risk of generating retention, the brightness of an area will be automatically lowered if the accumulative mean brightness of this area is overly high to prevent decline of the bright effect of this area, thereby avoiding possible image retention.
-
Page 18: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 19: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 20 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 21: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Se�ng Color Setup PIP Se�ng Audio Light FX Extra Audio Light FX OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 22: Game Setting
Game Setting Game Setting Game Mode Shadow Control Shadow Boost Game Color Sniper Scope G-SYNC Low Input Lag Frame Counter Exit Enter Select No optimization by Game Mode. For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). - Page 23 Shutting down the frame buffer can reduce input delay. Note: Low input delay is disabled by default and unadjust- Low Input lag On / Off able when the field frequency is less than 120 Hz; and it is enabled by default and unadjustable when the field frequen- cy is equal to 120 Hz and in the G-SYNC state.
-
Page 24: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Reading Reading Mode Gamma1... -
Page 25: Pip Setting
PIP Setting Disable or Enable PIP or PIP Setting Off / PIP / PBP PBP. Main Source Select main screen source. Sub Source Select sub screen source. Size Small / Middle / Large Select screen size. Right-up Right-down Position Set the screen location. Left-up Left-down Disable or Enable Audio... -
Page 26: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. -
Page 27: Audio
Audio Audio Volume Exit Enter Select Volume 0-100 Adjust volume setting... -
Page 28: Light Fx
Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static / Dark Point Sweep /... -
Page 29: Extra
Extra Extra Input Select Auto Orbit Weak OFF-RS Off Timer Image Ratio Wide DDC/CI Resolution:2560(H)x1440(V) SDR H.Frequency:89 KHz V.Frequency:60 Hz Exit Enter Select Auto/ HDMI1 / HDMI2 / DP1 Input Select Select Input Signal Source / DP2 On/ Off Enable/disable the USB function. It is used to turn on the LEA function to reduce the risk of generating image retention. - Page 30 Off Timer 0-24hrs Select DC off time Wide / 4:3 /1:1 /17”(4:3) / 19”(4:3) / 19”(5:4) / Image Ratio 19”W(16:10) / 21.5”W(16:9) / Select image ratio for display. 22”W(16:10) / 23”W(16:9) / 23.6”W(16:9) /24”W(16:9) / DDC/CI Yes or No Turn On/Off DDC/CI Support Reset Yes or No Reset the menu to default...
-
Page 31: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2/DP1.4 support G-SYNC DP Capability 1.1/1.2/1.4 function H. -
Page 32: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange White indicator flashes (on a second and off a Off RS under process second alternatively) White indicator flashes (on for 3 seconds and JB under process off for 3 seconds alternatively) Orange indicator flashes (on a second and off OLED panel malfunction a second alternatively) -
Page 33: Troubleshoot
User Instructions in the official website. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 34: Specification
Specification General Specification Model Name AG276QZD Driving System OLED Panel Viewable Image Size 67.3 cm Diagonal Pixel Pitch 0.2292mm(H) x 0.2292mm(V) Display Color 1.07B Colors 30k~230kHz(HDMI) Horizontal Scan Range 30k~255kHz(DP) Horizontal scan Size(Maximum) 586.75 48~144Hz (HDMI) Vertical Scan Range 48~240Hz (DP) Vertical Scan Size(Maximum) 330.05 Optimal Preset Resolution... - Page 35 Note: 1)The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards): HDMI2.0 DisplayPort1.4 YCbCr422 YCbCr444 YCbCr422 YCbCr444 YCbCr420 YCbCr420 Color Bit...
-
Page 36: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.000 640x480@100Hz 51.080 99.769 640x480@120Hz 60.938 119.720 800x600@56Hz 35.156 56.250 800×600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 75.000 800x600@100Hz 62.760 99.778 800x600@120Hz 76.302... -
Page 37: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 38: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
