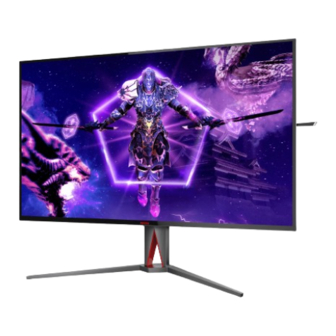

AOC AGON PRO User Manual
Oled monitor
Hide thumbs
Also See for AGON PRO:
- User manual (33 pages) ,
- User manual (33 pages) ,
- User manual (38 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for AOC AGON PRO
Summary of Contents for AOC AGON PRO
- Page 1 Based on the characteristics of the OLED product, screen maintenance according to the requirements of the user instructions is recommended, so as to reduce User Manual the risk of generating image retention. AG485UD2 www.aoc.com ® 2023 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Instructions for maintenance of the OLED monitor screen ..................8 Adjusting the monitor ...............................11 Connecting the Monitor ............................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the OLED monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Stand Screws Screwdriver Remote control Batteries Power Cable DP Cable HDMI Cable USB Cable USB C-C Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Instructions For Maintenance Of The Oled Monitor Screen
Instructions for maintenance of the OLED monitor screen Based on the characteristics of the OLED product, screen maintenance should be carried out according to the following requirements, so as to reduce the risk of generating image retention. The warranty does not cover any damage resulting from non-compliance to the following instructions. •... - Page 11 • CPC (Convex Power Control) To reduce the risk of generating image retention, this function can automatically adjust power gain for different images. Power control follows a convex mathematic model which is high in the middle and low on two sides, so as to reduce possible image retention. This function is “On”...
- Page 12 Note: The panel is under maintenance when the power indicator flashes white. At this time, the measured power cannot be used to judge the standby power or shutdown power.
-
Page 13: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 35.16 100mm... -
Page 14: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. Power Switch 3. HDMI1(HDMI2.1) 4. HDMI2(HDMI2.0) 5. DP 6. USB C 7. USB3.2 Gen1 upstream 8. USB3.2 Gen1 downstream + fast charging USB3.2 Gen1 downstream x1 9. -
Page 15: Wall Mounting
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90°... -
Page 16: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is working with DP/HDMI/USB C 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon RX Vega series • Radeon RX 500 series • Radeon RX 400 series •... -
Page 17: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 18: Kvm Function
In full-screen display,with KVM function, you can show two PCs, or two notebooks, or one PC and one notebook on one AOC monitor and control the two devices with one set of keyboard and mouse. Switch your control over your PC or notebook devices by choosing input signal source on “Input Select”... - Page 19 Extra Input Select Auto USB Selection Auto Orbit Resolution: 3840(H)x2160(V) SDR H.Frequency: 60 KHz V.Frequency: 30 Hz Exit Enter Select USB Selection Function Description Auto Auto selects USB C or USB Up depending on the input source. USB C Provides USB Hub function through Type-C cable. USB Up Provides USB Hub function through USB B cable.
-
Page 20: Adjusting
Adjusting FX function. Source/Up When the OSD is closed, press Source/Auto/Up button Hotkeys will be Source hot key function. Source/Up Dial Point/Down Game Mode/Disconnect LAN/ Reduce/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. -
Page 21: Description Of The Remote Control Buttons
Description of the remote control buttons... - Page 22 Press to switch power on and off。 Change the signal input source. Mute。 Access the OSD menu。 Adjust the OSD options upwards。. Return to previous OSD level。 Confirm the OSD adjustment/ Access the OSD menu。 Access the OSD menu. /Confirm the OSD adjustment。 . Adjust the OSD options down。...
-
Page 23: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 24 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 25: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Se�ng Color Setup PIP Se�ng Audio Light FX Audio Light FX Extras OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 26: Game Setting
Game Setting Game Setting Game Mode Shadow Control Game Color Adaptive-Sync Low Input Lag QuickSwitch LED Frame Counter HDMI HDMI1 Console/DVD Exit Enter Select No optimization by Smart image game For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). - Page 27 QuickSwitch LED On / Off Disable or Enable QuickSwitch LED Off / Right-Up / Display V frequency on the corner selected Frame Counter Right-Down / Left- (Frame counter feature only works with AMD graphic card.) Down / Left-Up Select the type of device connected. Console/DVD/PC When using HDMI1 to connect the game console or DVD HDMI1...
-
Page 28: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 HDR Mode Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Reading... -
Page 29: Pip Setting
PIP Setting PIP Setting Main Source HDMI2 Sub Source Size Small Position Right-Up Audio Swap Exit Enter Select Disable or Enable PIP or Off / PIP / PBP PBP. Main Source Select main screen source. Sub Source Select sub screen source. Size Small / Middle / Large Select screen size. - Page 30 3) When PBP/PIP is enabled, the compatibility of main screen/secondary screen input source is as follows: Main source PBP/PIP AirPlay/ HDMI1 HDMI2 USB-C Miracast DLNA HDMI1 HDMI2 Sub -source USB-C Miracast AirPlay/ DLNA...
-
Page 31: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 32: Audio
Audio Audio Volume DTS Sound Game TruVolume HD 200Hz 500Hz 2.5KHz 7KHz 10KHz Exit Enter Select Volume 0-100 Adjust volume setting Off / Game / Rock Select DTS Sound mode. DTS Sound / Classical / Live / Note: It may take up to 2 seconds to switch modes. Theater TruVolume HD Off / On... -
Page 33: Light Fx
Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static / Dark Point Sweep /... -
Page 34: Extra
Extra Extra Extra Extra Input Select Auto Off RS Reset USB Selection Auto Off Timer Working Time Image Ratio Wide Time after Off-RS Orbit DDC/CI Off-RS Counts JB Counts Resolution: 3840(H)x2160(V) SDR Resolution: 3840(H)x2160(V) SDR Resolution: 3840(H)x2160(V) SDR H.Frequency: 135 KHz H.Frequency: 135 KHz H.Frequency: 135 KHz V.Frequency: 60 Hz... - Page 35 Off Timer 0-24hrs Select DC off time Wide / 4:3 /1:1 /17”(4:3) / 19”(4:3) / 19”(5:4) / 19”W(16:10) / 21.5”W(16:9) / 22”W(16:10) / 23”W(16:9) / Image Ratio Select image ratio for display. 23.6”W(16:9) /24”W(16:9) / 27”W (16:9) /30”W (21:9) / 32”W (16:9) /34”W (21:9) / 40”...
-
Page 36: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2/DP1.4 support Adaptive-Sync DP Capability 1.1/1.2/1.4 function H. -
Page 37: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange White indicator flashes (on a second and off a Off RS under process second alternatively) White indicator flashes (on for 3 seconds and JB under process off for 3 seconds alternatively) Orange indicator flashes (on a second and off OLED panel malfunction a second alternatively) -
Page 38: Troubleshoot
User Instructions in the official website. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 39: Specification
Specification General Specification Model Name AG485UD2 Driving System OLED Viewable Image Size 120.7 cm Diagonal Panel Pixel Pitch 0.274mm(H) x 0.274mm(V) Video HDMI /DP/USB C Display Color 1.07B* Horizontal Scan Range 30k-255kHz Horizontal scan Size(Maximum) 1052.16mm Vertical Scan Range 48-138Hz Vertical Scan Size(Maximum) 591.84mm Optimal Preset Resolution... - Page 40 1). The maximum number of display colors supported by this product is 1.07 billion. The setting conditions are shown in the following table (there may be differences due to the output limitations of some graphics cards): USB C USB C USB C USB C HDMI 2.1...
-
Page 41: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz... -
Page 42: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 43: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
