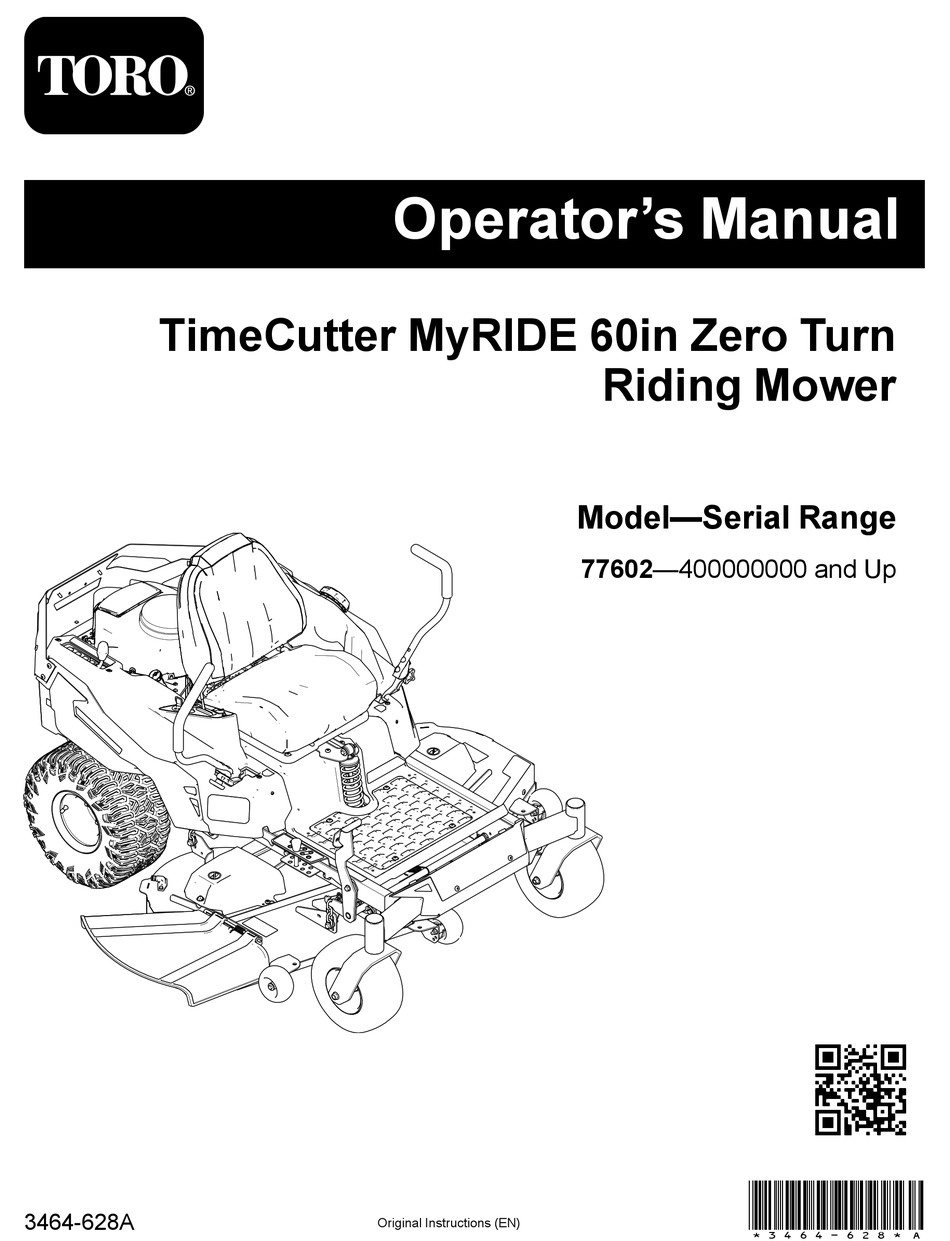

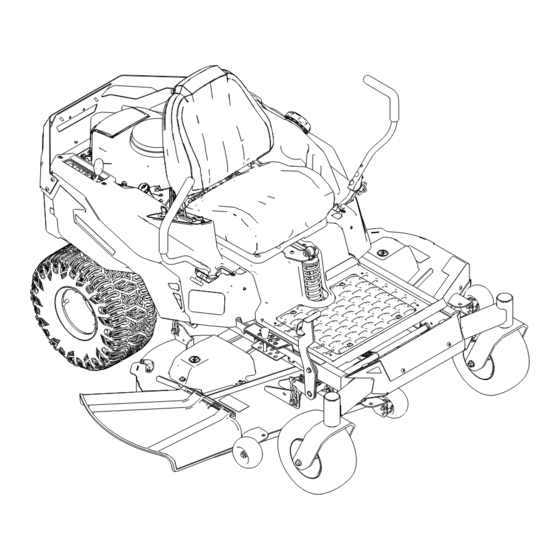

Operator's Manual
TimeCutter MyRIDE 60in Zero Turn
Riding Mower
Model—Serial Range
77602—400000000 and Up
*3464-628* A
3464-628A
Original Instructions (EN)

Advertisement

Table of Contents
loading

Related Manuals for Toro TimeCutter MyRIDE 77602

Summary of Contents for Toro TimeCutter MyRIDE 77602

  • Page 1 Operator’s Manual TimeCutter MyRIDE 60in Zero Turn Riding Mower Model—Serial Range 77602—400000000 and Up *3464-628* A 3464-628A Original Instructions (EN)

  • Page 2: Table Of Contents

    Chapter 3: Product Overview ......................3–1 Control Panel............................. 3–2 Motion-Control Levers........................3–3 Park Position ..........................3–3 MyRide® Suspension Adjustment Lever ..................3–4 © 2023—The Toro ® Company Contact us at www.Toro.com 8111 Lyndale Ave So Printed in the USA Bloomington, MN 55044 All rights reserved...
  • Page 3 Height-of-Cut Pin ..........................3–4 Deck-Lift Pedal..........................3–4 Specifications ............................ 3–4 Chapter 4: Operation ........................... 4–1 Before Operation ..........................4–1 Before Operation Safety ......................4–1 Fuel ..............................4–3 Performing Daily Maintenance ....................4–3 Break-In Time ..........................4–4 Safety-Interlock System......................4–4 Positioning the Seat ........................4–5 Adjusting the Motion-Control Lever Height ................
  • Page 4 Blade Safety ..........................5–23 Blade Service ..........................5–23 Leveling the Mower Deck ......................5–26 Removing the Mower Deck ...................... 5–29 Installing the Mower Deck ......................5–29 Replacing the Grass Deflector ....................5–30 Cleaning............................5–31 Washing the Underside of the Mower Deck................. 5–31 Disposing of Waste ........................

  • Page 5: Chapter 1: Introduction

    Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. These numbers are located on the serial plate on your product .

  • Page 6: Manual Conventions

    Manual Conventions This manual identifies potential hazards and has safety messages identified by the safety- alert symbol, which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions. G405934 This manual uses 2 words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

  • Page 7: Chapter 2: Safety

    Chapter 2 Safety General Safety This product is capable of amputating hands and feet and of throwing objects. Always follow all safety instructions to avoid serious personal injury or death. • Read, understand, and follow the instructions and warnings in this Operator’s Manual and on the machine, engine, and attachments before starting the engine.

  • Page 8: Slope Indicator

    Slope Indicator You may copy this page for personal use. G011841s The maximum slope you can operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope.

  • Page 9: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. Decal Part: 99-3943 Belt routing Engine s_decal99-3943 Decal Part: 112-9840 Read the Operator's Manual.
  • Page 10 Decal Part: 132-0872 Thrown object hazard—keep bystanders away. Thrown object hazard, mower—do not operate the machine with an open deck; use a bagger or a deflector. Cutting/dismemberment hazard of hands or feet, mower blade—stay away from moving parts. Entanglement hazard of hands, belt—stay away from moving parts;...
  • Page 11 Decal Part: 144-5288 Warning—read the Operator’s Manual. Cutting/dismemberment hazard of the fingers or hand—keep hands away from moving parts; keep all guards and shields in place. Thrown object hazard—keep bystanders away; pick up debris; keep the deflector in place. Runover hazard—do not carry passengers;...
  • Page 12 Decal Part: 147-2866 Height of cut decal147-2866 Decal Part: 147-7571 Fast Slow s_decal147-7571 Decal Part: 147-7574 MyRIDE models only s_decal147-7574 Safety: Safety and Instructional Decals Page 2–6 3464-628 A...
  • Page 13 Decal Part: 161-6207 Bypass lever position for pushing the machine Bypass lever position for operating the machine decal161-6207 3464-628A Page 2–7 Safety: Safety and Instructional Decals...

  • Page 14: Chapter 3: Product Overview

    Chapter 3 Product Overview G454716 Engine Deflector Front caster wheel Height-of-cut pin Motion-control lever MyRide® suspension adjustment lever (machines Fuel-tank cap Deck-lift pedal with MyRide suspension only) Anti-scalp roller Control panel Product Overview Page 3–1 3464-628 A...

  • Page 15: Control Panel

    Control Panel Throttle control Choke control Key switch Blade-control switch (power takeoff) G450844 Key Switch Use the key switch to start or shut off the machine. Shut off the engine Run the engine Start engine G375755s Throttle Control The throttle controls the engine speed, and it has a continuous-variable setting from the to F position.

  • Page 16: Motion-Control Levers

    Blade-Control (PTO) Switch The blade-control switch, represented by a power- takeoff (PTO) symbol, engages and disengages power to the mower blades. G428617 Choke Control Use the choke control to aid in starting a cold engine. G419508 Disengaged Engaged Motion-Control Levers Use the motion-control levers to drive the machine forward, reverse, and turn either direction.

  • Page 17: Myride® Suspension Adjustment Lever

    MyRide® Suspension Adjustment Lever For Machines with the MyRide Suspension System Use the adjustment lever to adjust the seat suspension for a smooth and comfortable ride. Adjustment lever Softer suspension Firmer suspension G292102s Height-of-Cut Pin The height-of-cut pin works with the foot pedal to lock the deck in a specific cutting height. Adjust the height of cut only when the machine is not moving.
  • Page 18 Attachments/Accessories A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories.

  • Page 19: Chapter 4: Operation

    Chapter 4 Operation Before Operation Before Operation Safety • Do not allow children or untrained people to operate or service the machine. Local regulations may restrict the age of the operator. The owner is responsible for training all operators and mechanics. •...
  • Page 20 Before Operation Safety (continued) Fuel Safety • Fuel is extremely flammable and highly explosive. A fire or explosion from fuel can burn you and others and can damage property. – To prevent a static charge from igniting the fuel, place the container and/or machine directly on the ground before filling, not in a vehicle or on an object.

  • Page 21: Fuel

    Fuel Fuel Specifications Capacity 19 L (5 US gallons) Type Unleaded gasoline Minimum octane rating 87 (US) or 91 (research octane; outside the US) Ethanol No more than 10% by volume Methanol None MTBE (methyl tertiary butyl ether) Less than 15% by volume Do not add to the fuel Use only clean, fresh (no more than 30 days old), fuel from a reputable source.

  • Page 22: Break-In Time

    Break-In Time New engines take time to develop full power. Mower decks and drive systems have higher friction when new, placing additional load on the engine. Allow 40 to 50 hours of break-in time for new machines to develop full power and best performance. Safety-Interlock System The safety-interlock system is designed to prevent the engine from starting unless: •...

  • Page 23: Positioning The Seat

    Safety-Interlock System (continued) 3. Sit on the seat, move the blade-control switch to the O position, and move the motion- control levers to the P position. Start the engine. While the engine is running, engage the blade-control switch, and rise slightly from the seat; the engine should shut off within 1 second.

  • Page 24: Adjusting The Motion-Control Lever Height

    Positioning the Seat (continued) Machines without MyRide Suspension G293874s Adjusting the Motion-Control Lever Height Adjust the motion-control levers higher or lower for your comfort. G450938 Operation: Before Operation Page 4–6 3464-628 A...

  • Page 25: Adjusting The Motion-Control Lever Tilt

    Adjusting the Motion-Control Lever Tilt Adjust the motion-control levers forward or rearward for your comfort. 1. Loosen the knob. 2. Pivot the control lever forward or rearward. 3. Tighten the knob. 4. Repeat the adjustment for the other control lever. G439363 3464-628A Page 4–7...

  • Page 26: During Operation

    • Do not operate the machine unless all guards and safety devices, such as the deflectors and the entire grass catcher, are in place and functioning properly. Replace worn or deteriorated parts with genuine Toro parts when necessary. • Operating engine parts, especially the muffler, can become extremely hot. Severe burns can occur on contact and debris, such as leaves, grass, brush, etc.
  • Page 27 • Do not use the machine as a towing vehicle unless it has a hitch installed. Attach towed equipment to the machine only at the hitch point. • Use only accessories and attachments approved by The Toro® Company. Slope Safety •...
  • Page 28 During Operation Safety (continued) Safe Zone—use the machine here on slopes less than 15° or flat areas. Danger Zone—use a walk- behind mower and/or a hand trimmer on slopes greater than 15° and near drop-offs or water. Water W = Width of the machine Keep a safe distance (twice the width of the machine) between the machine and any hazard.

  • Page 29: Starting The Engine

    Starting the Engine Start the engine as shown. Note: A warm or hot engine may not require choking. IMPORTANT Do not engage the starter for more than 5 seconds at a time; otherwise, you can damage the starter motor. If the engine fails to start, wait 1 minute before operating the engine starter again.

  • Page 30: Driving The Machine

    Shutting Off the Engine (continued) CAUTION Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended. Always remove the key and engage the parking brake when leaving the machine unattended. Driving the Machine CAUTION Positioning one lever too far in front of the other causes the machine to spin very rapidly.

  • Page 31: Operating The Mower Blade-Control Switch (Pto)

    Driving the Machine (continued) 2. Slowly push the motion-control levers forward or rearward. Move 1 lever farther than the other lever to turn. Note: The farther you move the motion- control levers, the faster the machine moves in that direction. 3.

  • Page 32: Side Discharge

    Operating the Mower Blade-Control Switch (PTO) (continued) 2. Engage the blade-control switch. G450387 3. Mow as desired. 4. Disengage the blade-control switch. G450388 Side Discharge The hinged grass deflector disperses clippings to the side and down toward the turf. DANGER Without the grass deflector, discharge cover, or complete grass catcher assembly mounted in place, you and bystanders are exposed to blade contact and thrown debris.

  • Page 33: Adjusting The Height Of Cut

    Adjusting the Height of Cut You can adjust the height of cut from 38 to 127 mm (1-1/2 to 5 inches) in 13 mm (1/2 inch) increments. 1. Push the deck-lift pedal with your foot to raise the mower deck. 2.
  • Page 34 Operating Tips (continued) as to totally surround the mower deck in uncut grass. Always try to have 1 side of the mower deck free from uncut grass, which allows air to be drawn into the mower deck. Avoid Cutting Too Low When mowing uneven ground, raise the cutting height to slightly higher than normal to avoid scalping the turf.

  • Page 35: After Operation

    After Operation After Operation Safety • Park the machine on a level surface, disengage the drives, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operator’s position. •...
  • Page 36 Hauling the Machine (continued) Trailer Requirements WARNING Loading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death. • Use only a full-width ramp; do not use individual ramps for each side of the machine.
  • Page 37 Hauling the Machine (continued) Loading the Machine WARNING Loading a machine onto a trailer or truck increases the possibility of tip-over and could cause serious injury or death. • Use extreme caution when operating a machine on a ramp. • Back the machine up the ramp and drive it forward down the ramp. •...

  • Page 38: Chapter 5: Maintenance

    Removing or modifying original equipment, parts, and/or accessories may alter the warranty, controllability, and safety of the machine. Making unauthorized modifications to the original equipment or failing to use original Toro parts could lead to serious injury or death. • Check the parking brake operation frequently. Adjust and service it as required.

  • Page 39: Recommended Maintenance Schedule

    • To ensure optimum performance, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous. Recommended Maintenance Schedule Maintenance Maintenance Procedure Service Interval After the first 50 Check the lug-nut torque.

  • Page 40: Pre-Maintenance Procedures

    Pre-Maintenance Procedures Moving a Non-Functioning Machine 1. Park the machine on a level surface, disengage the blade-control switch, and move the motion-control levers outward to the P position. 2. Shut off the engine and wait for all moving parts to stop before leaving the operating position.

  • Page 41: Raising The Machine

    Moving a Non-Functioning Machine (continued) 5. Disengage the parking brake by moving both motion-control levers down to the center, unlocked position. Note: Do not start the machine. 6. Move the machine as required. IMPORTANT Always push the machine by hand. Do not tow the machine, because towing may damage it.

  • Page 42: Engine Maintenance

    Engine Maintenance Engine Safety • Keep your hands, feet, face, other body parts, and clothing away from the muffler and other hot surfaces. Wait for the engine to cool before performing maintenance. • Do not change the engine governor speed or overspeed the engine. Air Cleaner Service Removing the Air-Cleaner Elements 1.
  • Page 43 Air Cleaner Service (continued) Servicing the Paper Air-Cleaner Element 1. Clean the paper element by tapping it gently to remove dust. Note: If it is very dirty, replace the paper element with a new one. 2. Inspect the element for tears, an oily film, or damage to the rubber seal. 3.

  • Page 44: Engine-Oil Service

    Engine-Oil Service Engine-Oil Specifications Oil Type Detergent oil (including synthetic) of API service SJ or higher Crankcase Capacity 1.9 L (64 fl oz) with oil filter Viscosity See the table below Checking the Engine-Oil Level 1. Park the machine on a level surface, disengage the blade-control switch, and move the motion-control levers outward to the P position.
  • Page 45 Engine-Oil Service (continued) IMPORTANT If you overfill or underfill the engine crankcase with oil and run the engine, you may damage the engine. Changing the Engine Oil and Oil Filter 1. Park the machine on a level surface to ensure that the oil drains completely. 2.
  • Page 46 Engine-Oil Service (continued) g027477s 6. Slowly pour approximately 80% of the specified oil into the filler tube and slowly add the additional oil to bring it to the Full mark. G365790s 7. Dispose of the used oil at a recycling center. Maintenance: Engine Maintenance Page 5–9 3464-628 A...

  • Page 47: Servicing The Spark Plug

    Servicing the Spark Plug Ensure that the air gap between the center and side electrodes is correct before installing the spark plug. Use a spark plug wrench for removing and installing the spark plug and a gapping tool or feeler gauge to check and adjust the air gap. Install a new spark plug if necessary.

  • Page 48: Cleaning The Blower Housing

    Servicing the Spark Plug (continued) Installing the Spark Plug G455874 Cleaning the Blower Housing To ensure proper cooling, clean the grass screen, cooling fins, and other external surfaces of the engine. Make sure that the cooling shrouds are installed. Torque the blower housing screws to 4.0 N∙m (35 in-lb).

  • Page 49: Fuel Maintenance

    Fuel Maintenance DANGER In certain conditions, fuel is extremely flammable and highly explosive. A fire or explosion from fuel can burn you and others and can damage property. Refer to Fuel Safety, page 4–2 for a complete list of fuel related precautions. Replacing the Fuel Filter 1.

  • Page 50: Electrical System Maintenance

    Electrical System Maintenance Electrical System Safety • Disconnect the cable from the negative terminal of the battery before repairing the machine. • Charge the battery in an open, well-ventilated area, away from sparks and flames. Unplug the charger before connecting or disconnecting the battery. Wear protective clothing and use insulated tools.
  • Page 51 Battery Service (continued) 5. Disconnect the positive (red) cable from the battery post (+). Note: Retain all fasteners. 6. Remove the battery hold-down and lift the battery from the battery tray. G440221 Battery hold-down Battery Bolt, washer, and nut Terminal boot Negative (–) battery post Positive (+) battery post Wing nut, washer, and bolt...
  • Page 52 Battery Service (continued) IMPORTANT Do not overcharge the battery; otherwise, you could damage it. Positive battery post Negative battery post Red (+) charger lead Black (-) charger lead G003792S 3. When the battery is fully charged, unplug the charger from the electrical outlet (if applicable), then disconnect the charger leads from the battery posts.
  • Page 53 Battery Service (continued) Installing the Battery 1. Position the battery in the tray. 2. Using the fasteners previously removed, install the positive (red) battery cable to the positive (+) battery terminal. 3. Using the fasteners previously removed, install the negative battery cable to the negative (-) battery terminal.

  • Page 54: Jump-Starting The Machine

    Jump-Starting the Machine WARNING Jump-starting the battery can produce gasses that can explode. Do not smoke near the battery, and keep sparks and flames away from battery. DANGER Jump-starting a weak battery that is cracked or frozen or has a low electrolyte level or an open/shorted battery cell can cause an explosion, resulting in serious personal injury.
  • Page 55 Jump-Starting the Machine (continued) Positive (+) cable on discharged battery Positive (+) cable on booster battery Negative (–) cable on the booster battery Negative (–) cable on the engine block Booster battery Discharged battery g012785 Engine block 4. Connect the other end of the positive (+) jumper cable to the positive terminal of the battery in the other machine.

  • Page 56: Servicing The Fuses

    Servicing the Fuses The electrical system is protected by fuses. It requires no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short. 1. Park the machine on a level surface, disengage the blade-control switch, and move the motion-control levers outward to the P position.

  • Page 57: Adjusting The Tracking

    Adjusting the Tracking When driving the machine forward full speed across a flat, level surface, if the machine pulls to 1 side, adjust the tracking. If the machine pulls to the left, adjust the right motion-control lever; if the machine pulls to the right, adjust the left motion-control lever.

  • Page 58: Belt Maintenance

    4. Pull up the side of the cover with the grommet and slide the cover off. G454740 5. Using a spring-removal too (Toro Part No. 92-5771), remove the idler spring from the deck hook to remove tension on the idler pulley.
  • Page 59 Replacing the Mower Belt (continued) Deck pulley Mower belt Engine pulley Idler pulley Spring Spring-removal tool G454741 6. Roll the belt off the pulleys. 7. Route the new belt around the engine pulley and mower pulleys. 8. Use the spring-removal tool to install the idler spring over the deck hook and place tension on the idler pulley and the mower belt.

  • Page 60: Mower-Deck Maintenance

    Mower-Deck Maintenance Blade Safety • Inspect the blades periodically for wear or damage. • Use care when checking the blades. Wrap the blade(s) or wear gloves and use caution when servicing them. Only replace damaged blades; never straighten or weld them. •...
  • Page 61 Blade Service (continued) Blade (in position for measuring) Level surface Measured distance between blade and the surface (A) G451422 4. Rotate the same blade 180 degrees so that the opposite blade edge is now in the same position. Blade edge previous measured Opposite blade edge G451423 5.
  • Page 62 Blade Service (continued) Removing the Blades 1. Hold the blade end using a rag or thickly padded glove. 2. Remove the blade as shown. G451425 Sharpening the Blades 1. Use a file to sharpen the cutting edge at both ends of the blade. Ensure to maintain the original angle Note: Remove the same amount of material...

  • Page 63: Leveling The Mower Deck

    WARNING Operating a machine after incorrectly installing the blade assembly and/or not using genuine Toro blade and blade hardware could allow a blade or blade component to be thrown out from under the deck, resulting in serious injury or death.
  • Page 64 Leveling the Mower Deck (continued) Checking the Mower-Deck Level 1. Position the blades side-to-side. 2. Measure at locations from a level surface to the cutting edge of the blade tips The difference between the measurements should be no more than 5 mm (3/16 inch). If the measurement is larger, adjust the side-to- side level.
  • Page 65 Leveling the Mower Deck (continued) Leveling the Mower Deck 1. Set the anti-scalp rollers to the top holes or remove them completely for this procedure. 2. Set the height-of-cut lever to the 76 mm (3 inch) position. 3. Place 2 blocks , each having a thickness of 6.6 cm (2-5/8 inches), under each side of the front edge of the deck.

  • Page 66: Removing The Mower Deck

    Removing the Mower Deck 1. Park the machine on a level surface, disengage the blade-control switch, and move the motion-control levers outward to the P position. 2. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.

  • Page 67: Replacing The Grass Deflector

    Replacing the Grass Deflector DANGER An uncovered discharge opening allows objects to be thrown toward you or bystanders. Also, contact with the blade could occur. Thrown objects or blade contact will cause serious injury or death. Do not operate the mower with the discharge deflector raised, removed, or altered unless a grass collection system or mulch kit is in place and working properly.

  • Page 68: Cleaning

    Replacing the Grass Deflector (continued) IMPORTANT The grass deflector must be spring-loaded in the down position. Lift the deflector up to test that it snaps into the full-down position. Cleaning Washing the Underside of the Mower Deck IMPORTANT You can wash the machine with a mild detergent and water. Do not pressure wash the machine.

  • Page 69: Disposing Of Waste

    Washing the Underside of the Mower Deck (continued) WARNING A broken or missing washout fitting could expose you and others to thrown objects or blade contact. Contact with a blade or thrown debris can cause injury or death. • Replace broken or missing washout fitting immediately, before using machine again.

  • Page 70: Chapter 6: Storage

    Chapter 6 Storage Storage Safety • Park the machine on a level surface, disengage the drives, engage the parking brake, shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operator’s position. •...
  • Page 71 6. Check the tire pressure. 7. Charge the battery. 8. Check the condition of the cutting blades. 9. Prepare the fuel system. A. Add a petroleum-based fuel stabilizer/conditioner to the fuel in the tank. Do not use an alcohol-based stabilizer (ethanol or methanol). B.

  • Page 72: Storing The Battery

    Storing the Battery Note: Follow the tips below to properly store the battery. • If you are storing the machine for more than 30 days, remove the battery and charge it fully. • Store it either on the shelf or on the machine. •...

  • Page 73: Chapter 7: Troubleshooting

    Chapter 7 Troubleshooting The fuel tank is showing signs of collapsing or the machine is frequently showing signs of running out of fuel. Possible Cause Corrective Action The air-cleaner paper element clogged. Clean the paper element. The engine overheats. Possible Cause Corrective Action The engine load is excessive.
  • Page 74 The engine does not start, starts hard, or fails to keep running. Possible Cause Corrective Action The fuel tank is empty. Fill the fuel tank. The choke (if applicable) is not on. Move the choke lever to the position. The air cleaner is dirty. Clean or replace the air-cleaner element.
  • Page 75 The machine does not drive. Possible Cause Corrective Action The bypass valves are open. Close the tow valves. The traction belts are worn, loose, or Contact an Authorized Service Dealer. broken. The traction belts are off the pulleys. Contact an Authorized Service Dealer. The transmission has failed.
  • Page 76 The blades do not rotate. Possible Cause Corrective Action The drive belt is worn, loose or broken. Install a new drive belt. The drive belt is off of the pulley. Install the drive belt and check the adjusting shafts and belt guides for the correct position.
  • Page 77 Chapter 8 Schematics Electrical Diagram G454156 3464-628 A Page 8–1 Schematics...

  • Page 78: California Proposition 65 Warning Information

    Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of exposure, as not all the listed chemicals provide exposure limit requirements.
  • Page 79 Notes:...
