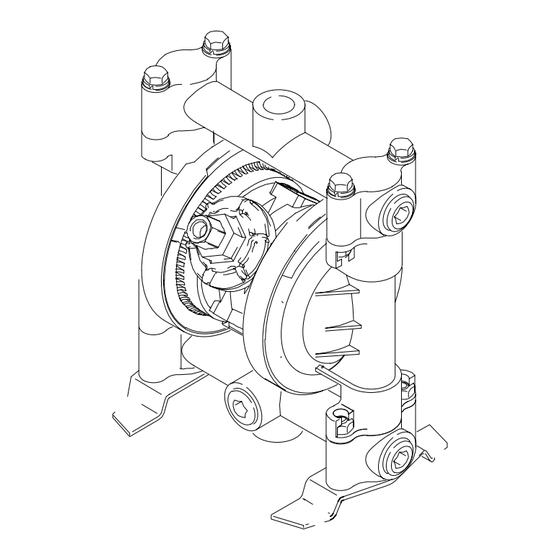

Graco Husky 515 Instructions-Parts List Manual
Drum pump
Hide thumbs
Also See for Husky 515:
- Instructions manual (34 pages) ,
- Instructions-parts list manual (12 pages) ,
- Instructions manual (26 pages)
Advertisement
Quick Links

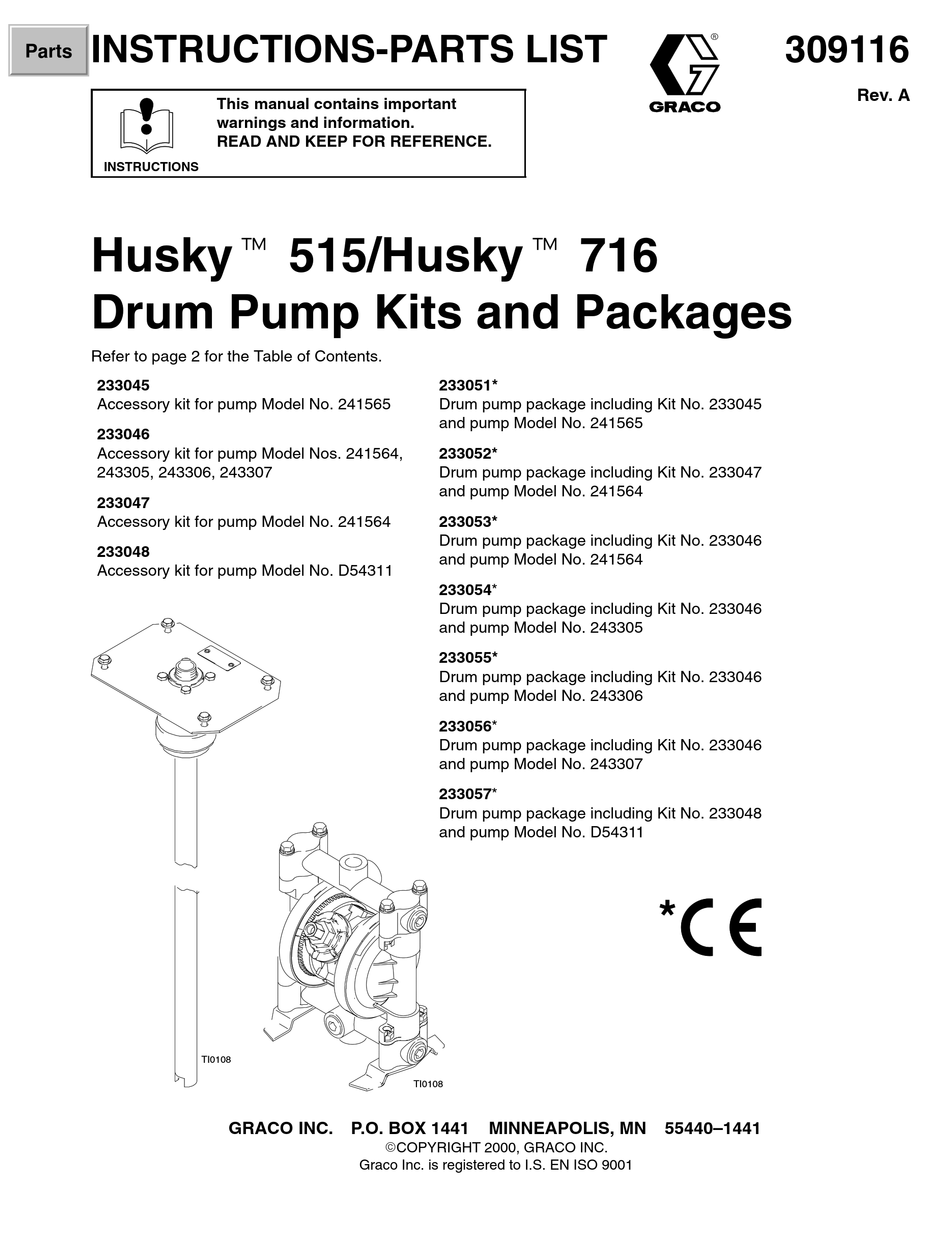

INSTRUCTIONS-PARTS LIST
Parts
INSTRUCTIONS
Huskyt 515/Huskyt 716
Drum Pump Kits and Packages
Refer to page 2 for the Table of Contents.
233045
Accessory kit for pump Model No. 241565
233046
Accessory kit for pump Model Nos. 241564,
243305, 243306, 243307
233047
Accessory kit for pump Model No. 241564
233048
Accessory kit for pump Model No. D54311
TI0108
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
GRACO INC. P.O. BOX 1441
ECOPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
233051*
Drum pump package including Kit No. 233045
and pump Model No. 241565
233052*
Drum pump package including Kit No. 233047
and pump Model No. 241564
233053*
Drum pump package including Kit No. 233046
and pump Model No. 241564
233054*
Drum pump package including Kit No. 233046
and pump Model No. 243305
233055*
Drum pump package including Kit No. 233046
and pump Model No. 243306
233056*
Drum pump package including Kit No. 233046
and pump Model No. 243307
233057*
Drum pump package including Kit No. 233048
and pump Model No. D54311
TI0108
MINNEAPOLIS, MN 55440–1441
309116
*
Rev. A
Advertisement
Related Manuals for Graco Husky 515
Summary of Contents for Graco Husky 515
- Page 1 Model No. 243307 233057* Drum pump package including Kit No. 233048 and pump Model No. D54311 TI0108 TI0108 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 2000, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor . D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
- Page 3 WARNING TOXIC FLUID HAZARD Hazardous fluids or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, swallowed, or inhaled. When flushing the air motor or pump, keep your face away from the exhaust port.
- Page 4 A. Representative B. Kit with standard C. Kit No. 233048 package with mounting plate with offset pump mounted mounting plate TI0108 TI0108 TI0106 309116...
- Page 5 Installation Grounding WARNING WARNING TIPPING HAZARD When mounting the stainless steel pump FIRE AND EXPLOSION HAZARD (D54311), ensure that the offset mounting plate (7) is positioned so that the pump is mounted This unit must be grounded. Before you over the drum to prevent tipping when the fluid operate it, ground the system as level in the drum is low.
- Page 6 Technical Data Weight 233045 ............4.0 lb (1.8 kg) 233046 .
- Page 7 Includes pump 243307 and Kit No. 233046 Drum Pump Package 233057 Pumps Includes pump D54311 and Kit No. 233048 Part Description Qty. 241564 PUMP, Husky 515 Fluid section: acetal (groundable) Guides: acetal Balls: PTFE PTFE Diaphragms: 241565 PUMP, Husky 515...
- Page 8 Parts List and Accessory Kit Matrix Kits Ref. Part No. Description 102023 SCREW, cap 106537 GASKET, bung 112553 PACKING, O-ring 115814 WASHER, flat, SST 178575 ADAPTOR, bung 178576 RETAINER, O-ring 196092 PLATE, mounting, offset 196093 PLATE, mounting 196097 ADAPTOR, bung, polypropylene 196098 ADAPTOR, bung, acetal 196099...
- Page 9 Parts Drawing Offset mounting plate and street elbow for use with stainless steel pump, model D54311. 7 offset TI0116 TI0116 309116...
- Page 10 Pump Package Matrix Pump Bung Base Tube Package Description Part No. PTFE Polypropylene/ 233051 with polypropylene tube PTFE Acetal/ with stain- 233052 less steel tube Acetal/ PTFE with alumi- 233053 num tube Aluminum/Santoprene 233054 with aluminum tube 233055 Aluminum/buna-N PTFE Aluminum/ with 233056...
- Page 11 Notes 309116...
- Page 12 Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective.
