Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

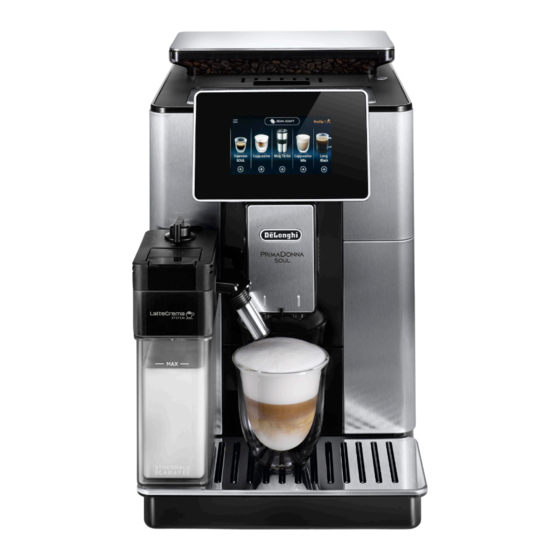

De Longhi PrimaDonna
Soul ECAM610.75.MB
o cerca il tuo prodotto tra le
migliori offerte di Macchine da Caffè
ECAM61X.3Y - 61X.5Y - 61X.7Y
BEAN TO CUP ESPRESSO AND
CAPPUCCINO MACHINE
Instructions for Use
Instructions videos available at:
http://PrimadonnaSoul.delonghi.com
Advertisement
Table of Contents
Related Manuals for DeLonghi PrimaDonna Soul ECAM6 5Y Series
Summary of Contents for DeLonghi PrimaDonna Soul ECAM6 5Y Series
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per De Longhi PrimaDonna Soul ECAM610.75.MB o cerca il tuo prodotto tra le migliori offerte di Macchine da Caffè ECAM61X.3Y - 61X.5Y - 61X.7Y BEAN TO CUP ESPRESSO AND CAPPUCCINO MACHINE Instructions for Use Instructions videos available at: http://PrimadonnaSoul.delonghi.com...
- Page 3 page 4 Espresso Coffee Cappuccino Macchiato Espresso Decalcificante per macchine da caffè Descaler for coffee machines Détartrant pour machines à café Entkalker für Kaffeemaschinen De’Longhi Appliances s.r.l. Via L. Seitz, 47 31100 Treviso - ITALY Tel. +39 0422 4131 5413218631/04.15 D10*...
-
Page 4: Table Of Contents
CONTENTS 10.4 Customising the beverages ......14 10.5 Cleaning the milk container after use ..14 1. INTRODUCTION ..........5 11. MUG TO GO (ECAM61X.7Y ONLY) ....14 1.1 Letters in brackets .........5 11.1 Cleaning the travel mug after use ....15 1.2 Troubleshooting and repairs ......5 1.3 Download the App! ........5 12. -
Page 5: Introduction
1. INTRODUCTION 2. DESCRIPTION Thank you for choosing this bean to cup espresso and cappuc- 2.1 Description of the appliance (page 2 - A) cino machine. A1. Cup shelf Take a few minutes to read this Instruction for Use. This will A2. -
Page 6: Description Of The Milk Container" (Page 3 - D)
C4. Water softener filter (*certain models only) Then follow the instructions which appear on the appliance C5. Cleaning brush display (B5): C6. Power cord C7. Descaling spout (keep the spout safely after each use) Accessories with certain models only: C8. Coffee pot (*certain models only) C9. -
Page 7: Turning The Machine On U
3. Press "Next"; also heats the internal 4. Enable the Wi-Fi connection and remote control (via the circuits by circulating hot Delonghi Coffee Link App); water. 5. The appliance PIN, needed to connect by App, is displayed on the screen;... -
Page 8: Adjust Mill
In the settings menu (B6), the symbol indicating the connection • Press "Default" to reset the default values of the coffee mill status alternates with the other symbols (e.g. descaling, etc.) (indicated by a star). Symbol on homepage Meaning 6.5 Coffee temperature To change the temperature of the water used to make the cof- The appliance is connected fee, proceed as follows:... -
Page 9: General
4. Press "←" to save the new selection and go back to the 4. Empty the grounds container (A25) and drip tray (A24) (fig. homepage (B). 11), then press "Next"; 6.9 General 1. Press the settings menu (B6); 2. Select "General"; Here you can enable or disable the following functions with a simple touch: "Beep": when enabled, the appliance beeps whenever an... -
Page 10: Making Coffeeu
7. MAKING COFFEEU Quantity 7.1 Making coffee using coffee beans Important! Aroma Do not use green, caramelised or candied coffee beans as they 2. After setting the parameters, press "Start". The appliance could stick to the coffee mill starts making the coffee and the image of the selected and make it unusable. -
Page 11: Bean Adapt Technology & Espresso Soul
4. Select the coffee quanti- • warm the cups with hot water using the hot water function (see section “13. Delivering hot water u”); ty and press "Start". The • increase the coffee temperature (section “6.5 Coffee appliance starts making temperature”). -
Page 12: Cleaning The Coffee Pot
4. Place the coffee pot (C8) under the spouts (fig. 18). Press "OK"; as the operation proceeds and a description of each indi- 5. The appliance proceeds with delivery and the image of the vidual phase (grinding, brewing coffee); selected beverage appears on the display (B5), together Please note: •... -
Page 13: Your Milk-Based Beverage At A Touch
• The quality of the froth will vary depending on: • type of milk or vegetable beverage; • brand used; • ingredients and nutritional value. 10.2 Adjusting the amount of froth Turn the froth adjustment dial (D3) (fig. 26) to adjust the amount of froth on the milk delivered while making cappuccinos and milk-based... -
Page 14: Customising The Beverages
10.4 Customising the beverages 3. Turn the froth adjust- ment dial (D3) to "Clean" To deliver a customised milk-based beverage, proceed as (fig. 28). Hot water and follows: 1. Press steam delivered (B3)at the bottom of the image correspond- from the milk spout ing to the desired beverage. -
Page 15: Cleaning The Travel Mug After Use
4. Select up to 2 ingredients in the required order of delivery, 4. Clean the inside of the container with mild/neutral wash- then press "Next"; ing-up liquid and rinse with hot drinking water at 40°C. 5. Select the preferences for the selected ingredients, then Do not use abrasive materials as these could damage the press "Next";... -
Page 16: Delivering Hot Water U
• You can also customise the beverages by connecting with or "Cancel" to retain the previous parameters. the DeLonghi Coffee Link App. 4. Press "OK" to go back to the homepage . • Press "Cancel" to exit programming at any moment. The The appliance is now ready to be used again. -
Page 17: Selecting Your Personal Profile U
• You can rename your personal profile by connecting with To clean (with the machine on): the DeLonghi Coffee Link App; 1. Remove the drip tray • To customise the profile icon, see section “6.7 Edit profile”. -
Page 18: Cleaning The Drip Tray And Drip Tray Grille
16.6 Cleaning the water tank when you make the next coffees, the grounds container will fill up more than expected and clog the machine. Clean the water tank (A20) regularly, about once a month and whenever you replace the water softener filter (C7). 16.4 Cleaning the drip tray and drip tray grille 1. -
Page 19: Cleaning The Pre-Ground Coffee Funnel
5. Reassemble the spouts, then attach them to the central 4. Press the two coloured release buttons inwards and at the outlet. Make sure the word "INSERT" is at the top and is same time pull the infuser outwards (fig. 42); visible when the spouts have been inserted;... -
Page 20: Descaling U
Please note: washing by hand Washing in a dishwasher guarantees the perfect hygiene of all the milk container components. When washing by hand, wash all components of the milk container thoroughly withhot water Insert and immerse them in a basin of hot water for 30 minutes before proceeding as described in point (6). -
Page 21: Setting Water Hardness U
Important! Danger of guarantee that the descaler solution has been complete- scalding ly eliminated from the machine's internal circuits. Before starting rinsing, remember to empty the drip tray. Hot water containing acid flows out of the spouts. Take 18. SETTING WATER HARDNESS U care to avoid contact with The descaling alarm is displayed after a period of time estab- splashes of this solution. -
Page 22: Installing The Filter
19.1 Installing the filter 11. Position an empty container with a minimum capacity of 0.5 litres under the descaling spout (fig. 8) and press "OK" 1. Press the settings menu (B6); to activate the filter; 2. Select "Water filter"; 12. The appliance delivers hot water, then stops automatically. 3. -
Page 23: Tips For Energy Saving
20.1 Tips for Energy Saving Beans container capacity: 500g Frequency: 2400 - 2500 MHz • To reduce energy consumption, after delivering one or more beverages, remove the milk container (D) or accessories. Maximum transmission power 20 mW • Set auto-off to 15 minutes (see section “6.8 Auto-off”); De'Longhi reserves the right to modify the technical specification •... - Page 24 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Empty grounds container The grounds container (A25) is full. Clean as described in section “16.3 Cleaning the coffee grounds container” Insert grounds container and The grounds container (A25) and/or drip Insert the drip tray complete with grounds tray (A24) is not correctly in place or is container and press as far as it will go.
- Page 25 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Insert descaling spout The descaling spout (C7) is not correctly in Insert the spout and push as far as it will go place or is missing. (fig. 7). The appliance emits a beep (if the beep function is enabled).
- Page 26 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Ground too fine. Adjust mill The grinding is too fine and the coffee is Press "OK" and adjust the coffee mill (see “6.4 Adjust mill”). using the dedicated function in delivered too slowly or not at all. machine settings.
- Page 27 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Water circuit empty. Press OK to The water circuit is empty Press "OK" to fill the circuit. Delivery stops au- tomatically. It is normal for there to be water start filling process in the drip tray (A24) after filling. If the problem persists, make sure the water tank (A20) is fully inserted.
-
Page 28: Troubleshooting U
22. TROUBLESHOOTING U Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact customer services. PROBLEM POSSIBLE CAUSE REMEDY The appliance does not come on The power cord connector (C6) is not in- Insert the connector as far as it will go in serted correctly. - Page 29 PROBLEM POSSIBLE CAUSE REMEDY The coffee delivered is watery We suggest you access Bean Adapt Technology in the Coffee Link App to adjust this parameter to an appropriate setting for the coffee beans used. On the other hand, please also check the following: The pre-ground coffee funnel (A3) is Open the door (A2), extract the funnel clogged.
- Page 32 De’Longhi Appliances via Seitz, 47 31100 Treviso, Italy www.delonghi.com...
