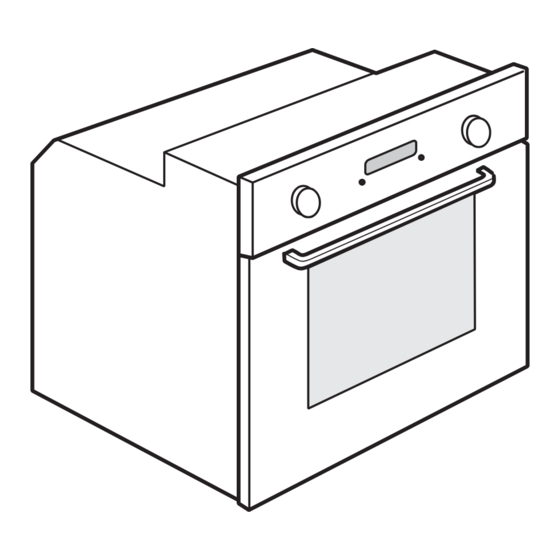

- Page 1 BLVES 8200 Benutzer- und Wartungshandbuch User and maintenance manual Manuel d’utilisation et d’entretien Handleiding voor gebruik en onderhoud...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the danger symbol and the following terms: Indicates a hazardous situation which, if not avoided, will cause serious injury. - Page 4 - If the surface of the induction plate is cracked, do not use it and switch off the appliance to avoid the possibility of electric shock (only for models with induction function). - Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
- Page 5 - Do not use containers made of synthetic materials. - Overheated oils and fats catch fire easily. Always remain vigilant when cooking foods rich in fat and oil. - Never leave the appliance unattended during food drying. - If alcoholic beverages are used when cooking foods (e.g. rum, cognac, wine), remember that alcohol evaporates at high temperatures.
-
Page 6: General Recommendations
GENERAL RECOMMENDATIONS Before use: Remove cardboard protection pieces, protective film and adhesive labels from accessories. Remove the accessories from the oven and heat it at 200° for about an hour to eliminate the smell and fumes from the insulating materials and protective grease. During use: Do not place heavy objects on the door as they could damage it. -
Page 7: After Sales Service
AFTER-SALES SERVICE Before calling the After-Sales Service: See if you can solve the problem yourself with the help of the suggestions given in the “Troubleshooting guide“. Switch the appliance off and back on again it to see if the fault persists. If after the above checks the fault still occurs, get in touch with the nearest After-sales Service. -
Page 8: Moving The Top Heating Element (Some Models Only)
To refit the door: Insert the hinges in their seats. Open the door fully. Lower the two catches. Close the door. Fig. 1 Fig. 2 MOVING THE TOP HEATING ELEMENT (SOME MODELS ONLY) Remove the side accessory holder grilles (Fig. 3). Pull the heating element out a little (Fig. -
Page 9: Instructions For Oven Use
INSTRUCTIONS FOR OVEN USE FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION Control panel Upper heating element/grill Cooling fan (not visible) Dataplate (not to be removed) Light Circular heating element (not visible) Turnspit (if present) Bottom heating element (not visible) 10. -
Page 10: Control Panel Description
INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN Insert the wire shelf horizontally, with the raised part “A” upwards (Fig. 1). The other accessories, like the drip tray and baking tray, are inserted with the raised part on the flat section “B”... -
Page 11: Setting The Time
SETTING THE TIME After setting language, the current time must be set. The two hour digits flash on the display. Turn the “Browse” knob to display the correct hour. Press the button to confirm; the two minute digits flash on the display. Turn the “Browse”... -
Page 12: Setting Cooking Time
SETTING COOKING TIME This function can be used to cook food for a set length of time, from a minimum of 1 minute to the maximum time allowed by the selected function, after which the oven switches off automatically. Once the temperature is confirmed, the symbol flashes. -
Page 13: Selecting Special Functions
SELECTING SPECIAL FUNCTIONS Turn the “Functions” knob indicator to the symbol to access a submenu containing special functions. To browse, select and start one of these functions, proceed as follows: Turn the “Functions” knob to symbol : the display shows “DEFROST” along with this function’s corresponding symbol. - Page 14 SETTING Turn the “Functions” knob to the symbol to access a submenu containing five display settings which can be modified. Language Turn the “Browse” knob to display “LANGUAGE”. Press to access the setting. Turn the “Browse” knob to select the desired setting and confirm by pressing button Clock Turn the “Browse”...
-
Page 15: Function Description Table
FUNCTION DESCRIPTION TABLE FUNCTION SELECTOR KNOB To stop cooking and switch off the oven. LAMP To switch the oven interior light on/off. To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging in order to prevent it from drying out on the outside. DEFROST For keeping just-cooked food hot and crisp (e.g: meat, fried food or flans). - Page 16 FUNCTION SELECTOR KNOB (Continued) To grill steak, kebabs and sausages; to cook vegetables au gratin and toast bread. Place food on the 4th or 5th shelf. When grilling meat, use the drip GRILL tray to collect the cooking juices. Position it on the 3rd/4th shelf, adding approx.
-
Page 17: Cooking Table
COOKING TABLE Recipe Function Pre- Shelf (from Temp. Time Accessories and notes heating bottom) (°C) (min) 160-180 30-90 Cake tin on wire shelf Leavened cakes Shelf 4: cake tin on wire shelf 160-180 30-90 Shelf 1: cake tin on wire shelf Drip tray/baking tray or cake 160-200 30-85... - Page 18 Recipe Function Pre- Shelf (from Temp. Time Accessories and notes heating bottom) (°C) (min) 190-200 20-30 Drip tray / baking tray Shelf 4: oven tray on wire Vols-au-vent / Puff shelf pastry crackers 180-190 20-40 Shelf 1: drip tray / baking tray Lasagna / Baked Drip tray or oven tray on...
- Page 19 Recipe Function Pre- Shelf (from Temp. Time Accessories and notes heating bottom) (°C) (min) Shelf 4: oven tray on wire shelf Lasagna & Meat 50-100* Shelf 1: drip tray or oven tray on wire shelf Shelf 4: oven tray on wire shelf Meat &...
- Page 20 TESTED RECIPES (in compliance with IEC 60350-1:2011-12 and DIN 3360-12:07:07) Recipe Function Pre- Shelf (from Temp. Time Accessories and notes heating bottom) (°C) (min) IEC 60350-1:2011-12 § 7.5.2 15-25 Drip tray / baking tray Shortbread Shelf 4: baking tray 25-40 Shelf 1: drip tray/baking tray IEC 60350-1:2011-12 §...
-
Page 21: Recommended Use And Tips
