7 Terminal Configuration and Functions

7.1 Pin Diagram

DIO_26
DIO_27
DIO_28
RESET_N
GND
GND
DIO_29
DIO_30
X32K_Q2
X32K_Q1
GND
GND
GND

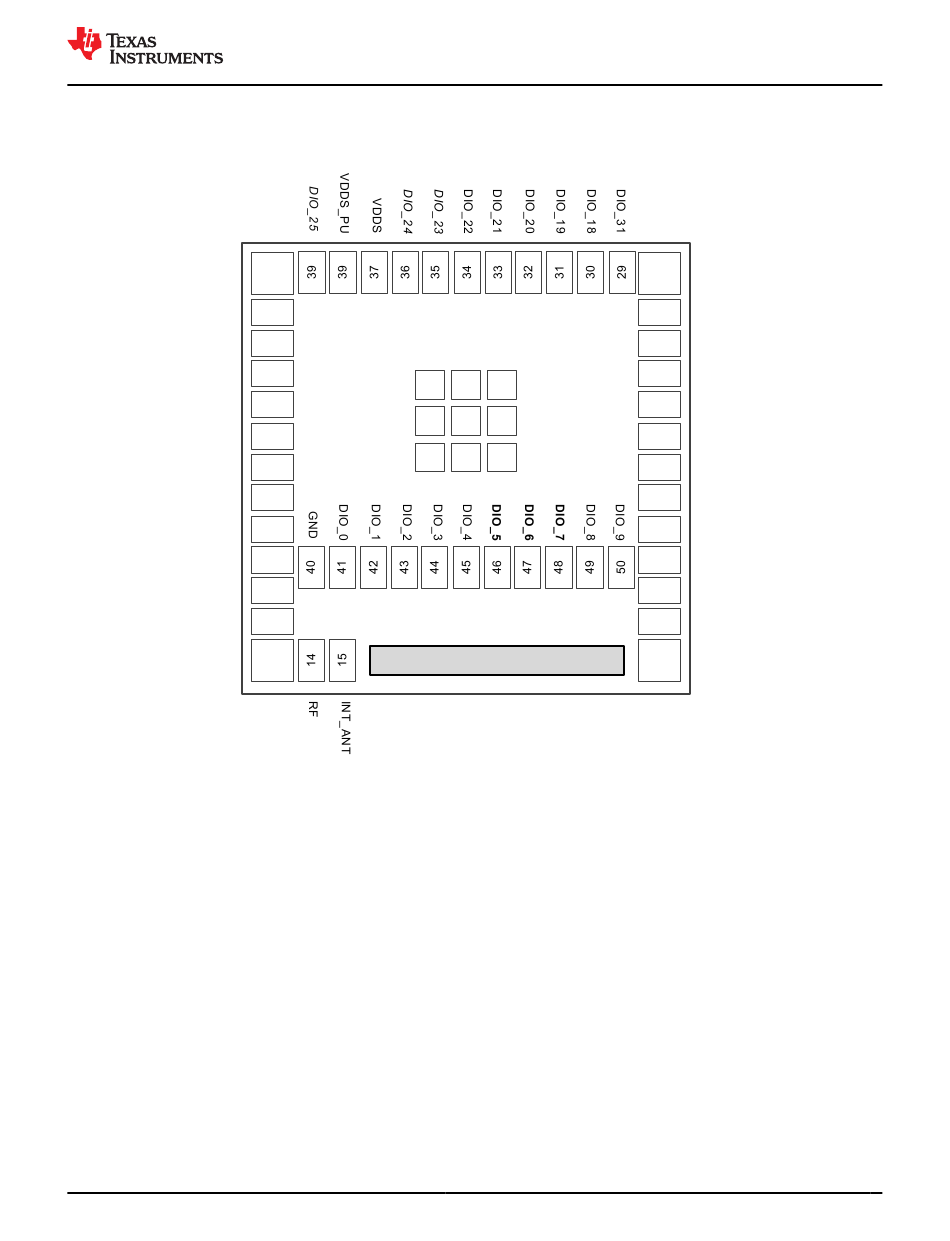

Figure 7-1. MOU (7-mm × 7-mm) Pinout, 0.5-mm Pitch (Top View)
The following I/O pins marked in
• Pin 25, JTAG_TMSC
• Pin 27, DIO_16
• Pin 28, DIO_17
• Pin 46, DIO_5
• Pin 47, DIO_6
• Pin 48, DIO_7
The following I/O pins marked in
• Pin 1, DIO_26
• Pin 2, DIO_27
• Pin 3, DIO_28
• Pin 7, DIO_29
• Pin 8, DIO_30
• Pin 35, DIO_23
• Pin 36, DIO_24
• Pin 39, DIO_25
Copyright © 2023 Texas Instruments Incorporated
1
2
CC2651R3SIPA
3
4
53
5
52
6
51
7
8
9
10
11
12
13 2.4 GHz PCB Antenna
Figure 7-1 in bold have high-drive capabilities:
Figure 7-1 in italics have analog capabilities:
Product Folder Links:
SWRS278B – FEBRUARY 2022 – REVISED AUGUST 2023
54 55
59 56
58 57
CC2651R3SIPA
CC2651R3SIPA
28
DIO_17
27
DIO_16
26
JTAG_TCKC
25
JTAG_TMSC
24
DIO_15
23
DIO_14
22
DIO_13
21
DIO_12
20
DIO_11
19
DIO_10
18
GND
17
NC
16
ANT_GND
